220320

XENON

Downloads
703994 CLIMBING ELEMENT 1200 STEP 703994 CLIMBING ELEMENT 1200 STEP
703994 CLIMBING ELEMENT 1200 STEP 703994 CLIMBING ELEMENT 1200 STEP
704440 RAMP LADDER WITH HANDELS 704440 RAMP LADDER WITH HANDELS
704440 RAMP LADDER WITH HANDELS 704440 RAMP LADDER WITH HANDELS
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
902134 902134
902134SP BALL FASTENER 902134SP BALL FASTENER
902157 PLUG FOR PLASTIC JOINT BLACK 902157 PLUG FOR PLASTIC JOINT BLACK
902157 PLUG FOR PLASTIC JOINT BLACK 902157 PLUG FOR PLASTIC JOINT BLACK
904100 ADAPTER 60-44 PARKOUR HAND RAIL 904100 ADAPTER 60-44 PARKOUR HAND RAIL
904100 ADAPTER 60-44 PARKOUR HAND RAIL 904100 ADAPTER 60-44 PARKOUR HAND RAIL
904455 POST 90x90x2737 904455 POST 90x90x2737
904455 POST 90x90x2737 904455 POST 90x90x2737
904456 POST 90x90x2737 G_J 904456 POST 90x90x2737 G_J
904456 POST 90x90x2737 G_J 904456 POST 90x90x2737 G_J
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
909709 SLIDE ELEMENT +1470 STAINLESS BWI 1470 909709 SLIDE ELEMENT +1470 STAINLESS BWI 1470
909709 SLIDE ELEMENT +1470 STAINLESS BWI 1470 909709 SLIDE ELEMENT +1470 STAINLESS BWI 1470

Technical information

  • User age
    3+

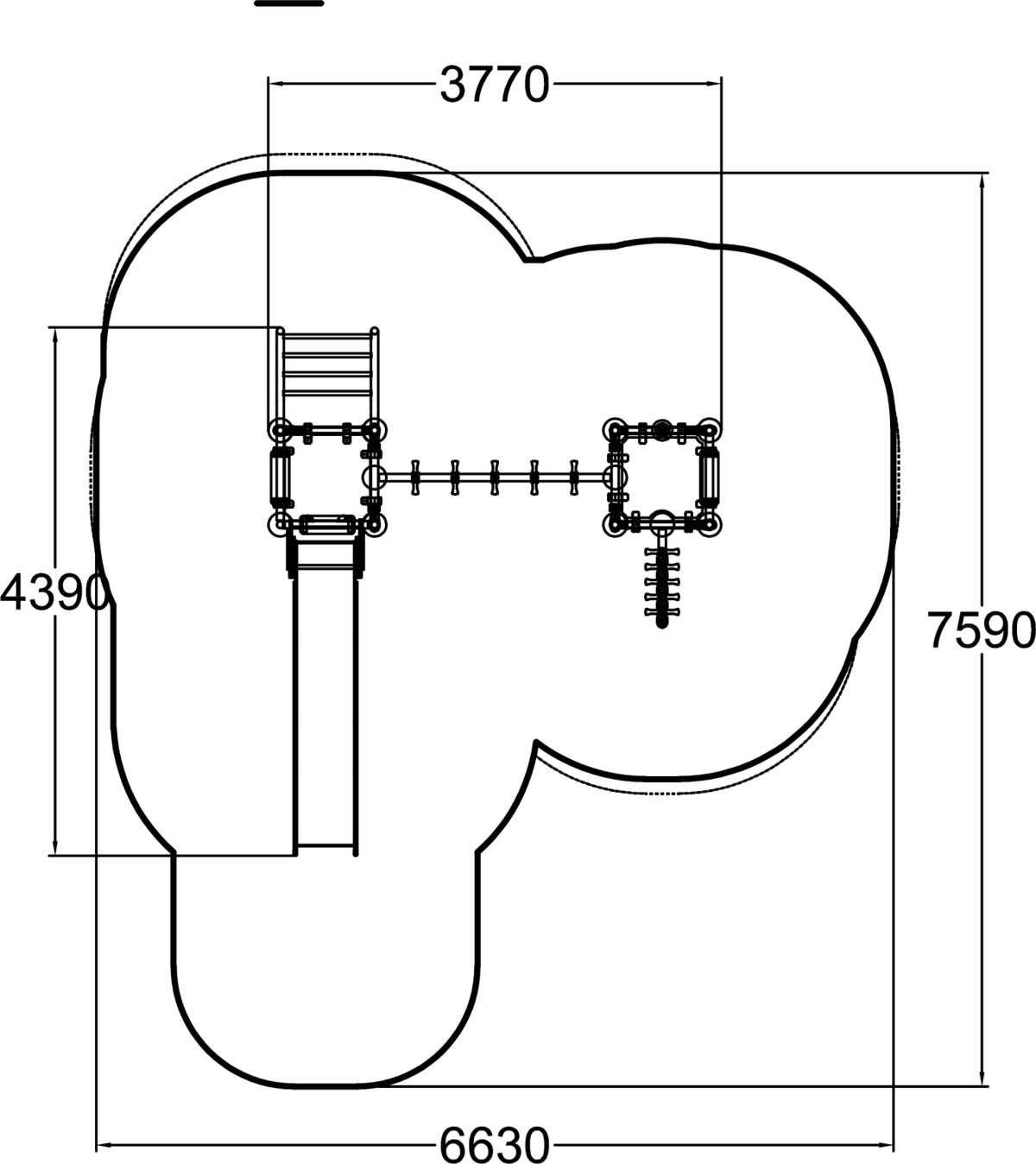

  • FALLING SPACE LENGTH, MM
    7750
  • FALLING SPACE WIDTH, MM
    6720
  • Max. free fall height, mm
    1770
  • Impact area, m²
    35.6

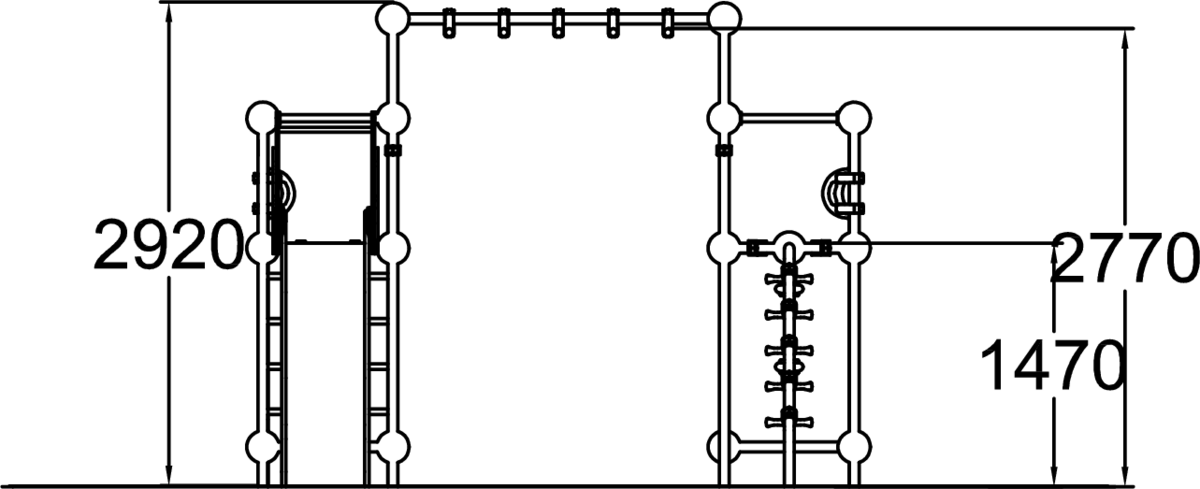

  • Product height, mm
    2920
  • Product lenght, mm
    3770
  • Product width, mm
    4390
  • Height required, mm
    3270
  • IMPACT AREA LENGTH, MM
    6630
  • IMPACT AREA WIDTH, MM
    7650
