Home
/
spareparts
Spare parts
112341

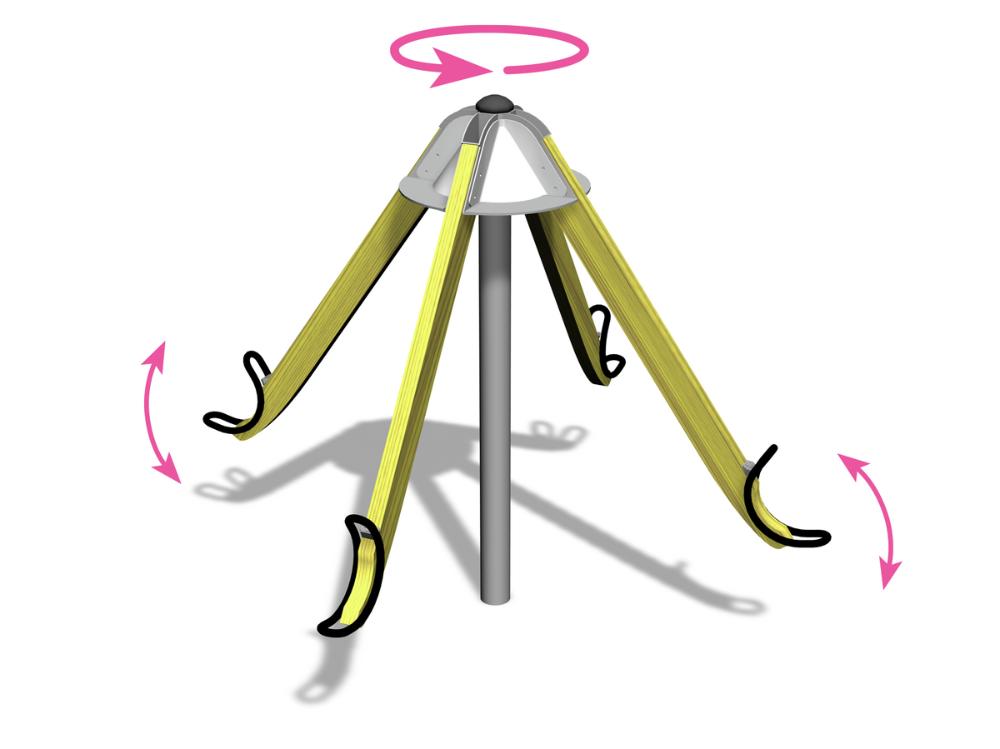

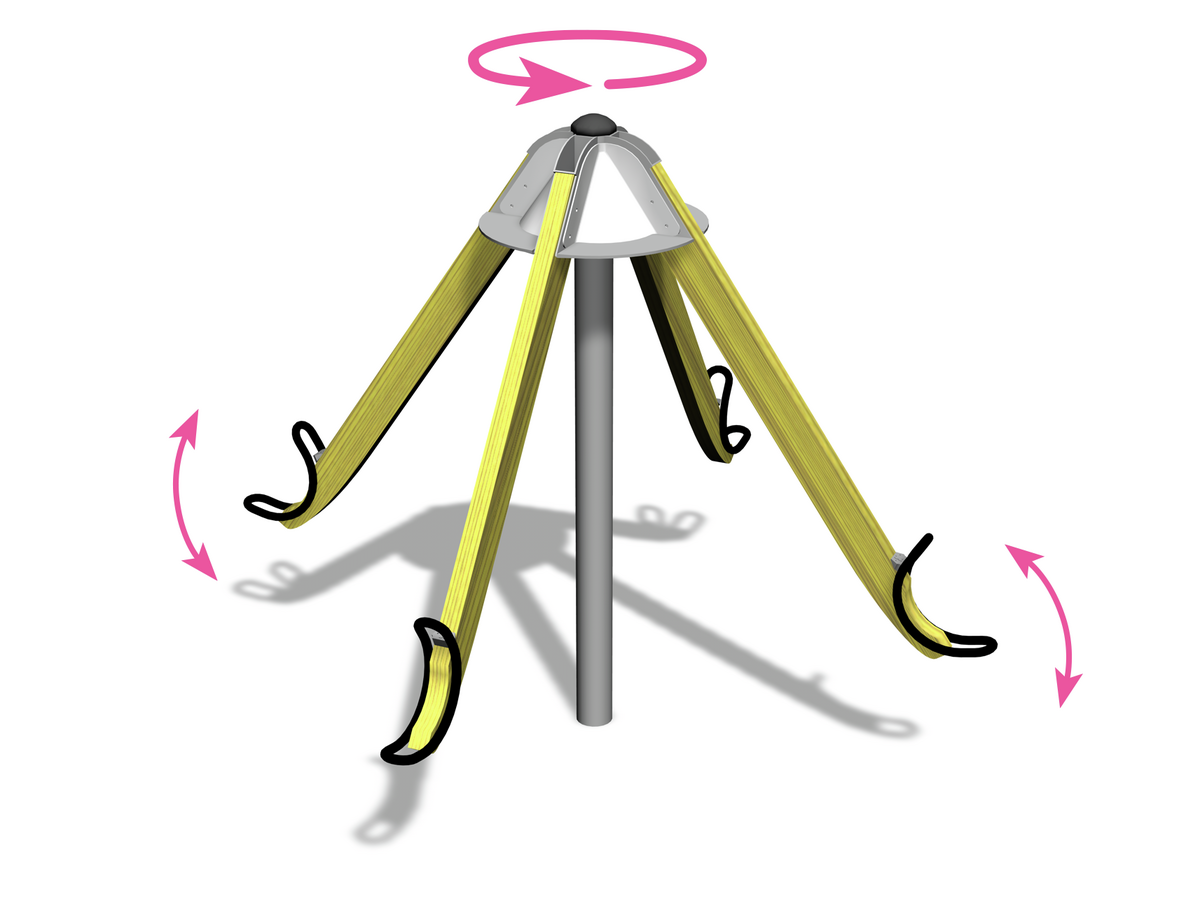

WALTZ
Downloads
Spare parts
Downloads
Technical information
Spare part sets
708428SP
TOP HAT FOR 112341
001190SP
MULTIJOINT BRAKE (112341)
Original product structure
Spare parts
900684
900684SP
COVER 300x300x300
900685
900685SP
COVER 84,5x42,1x33
905097
NUT COVER M 16 BLACK
905097
NUT COVER M 16 BLACK
909895
909895SP
SEAT, 479x249x134
907793-216
POST L 2744 SPRING+BREAK
907793-216
POST L 2744 SPRING+BREAK
009913
009913SP
PLATE 355x355x10 SUPPORT
009902
009902SP
Waltz Arm - inform wanted color!
009950
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
[EN853] (.dwg)
InstallationInstructions (.pdf)

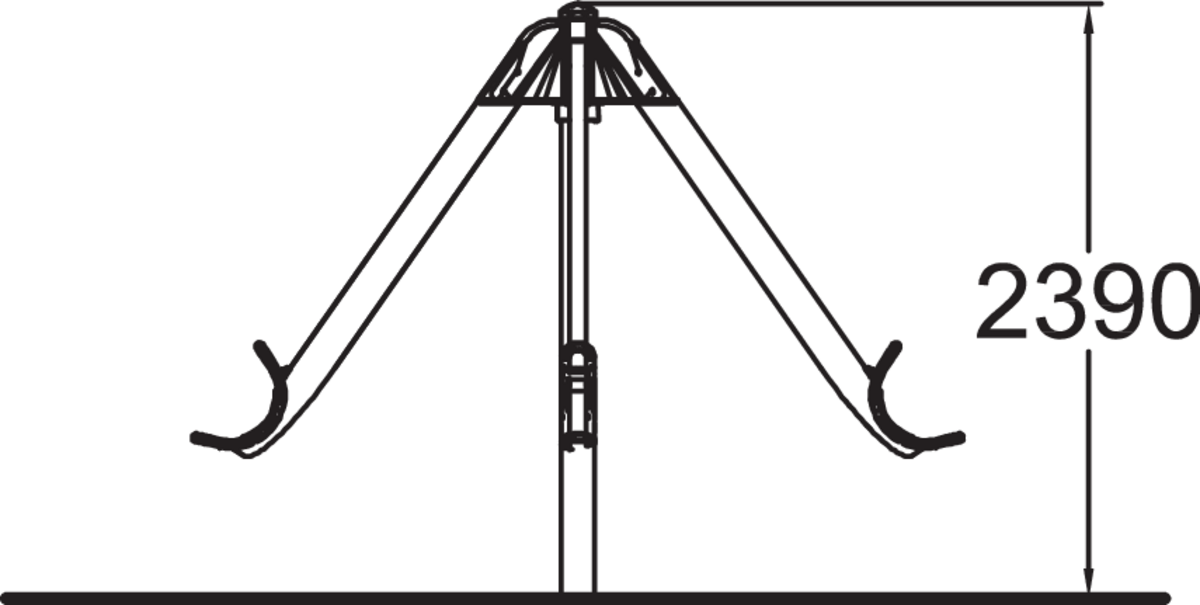

SIDE VIEW 112341 (.dwg)

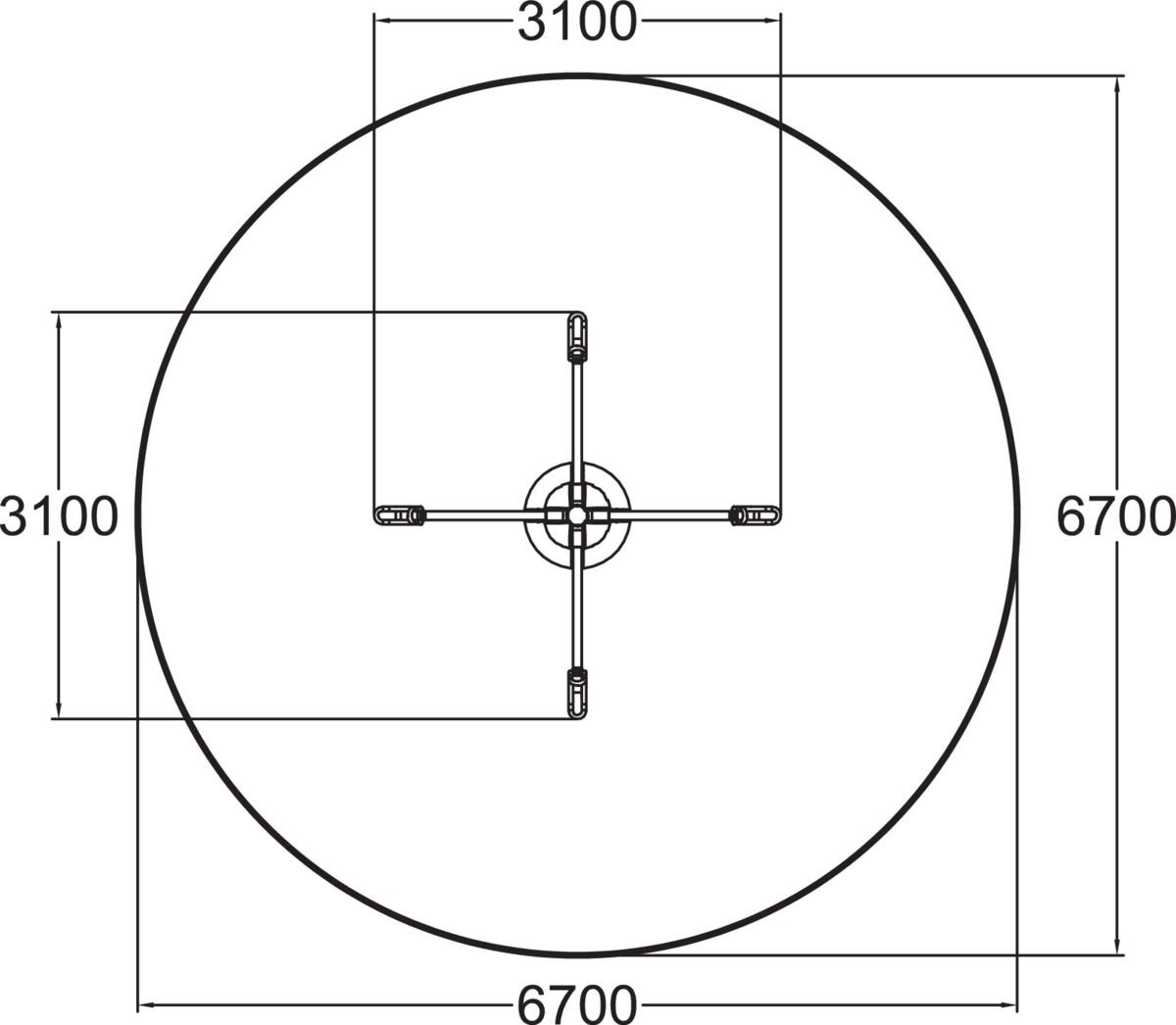

TOP VIEW 112341 (.dwg)
Technical information
User age
6
FALLING SPACE LENGTH, MM
6700
FALLING SPACE WIDTH, MM
6700
Max. free fall height, mm
1000
Impact area, m²
35,3
Product height, mm
2390
Product lenght, mm
3100
Product width, mm
3100
Height required, mm
2390
IMPACT AREA LENGTH, MM
6700
IMPACT AREA WIDTH, MM
6700
