Spare parts
175510

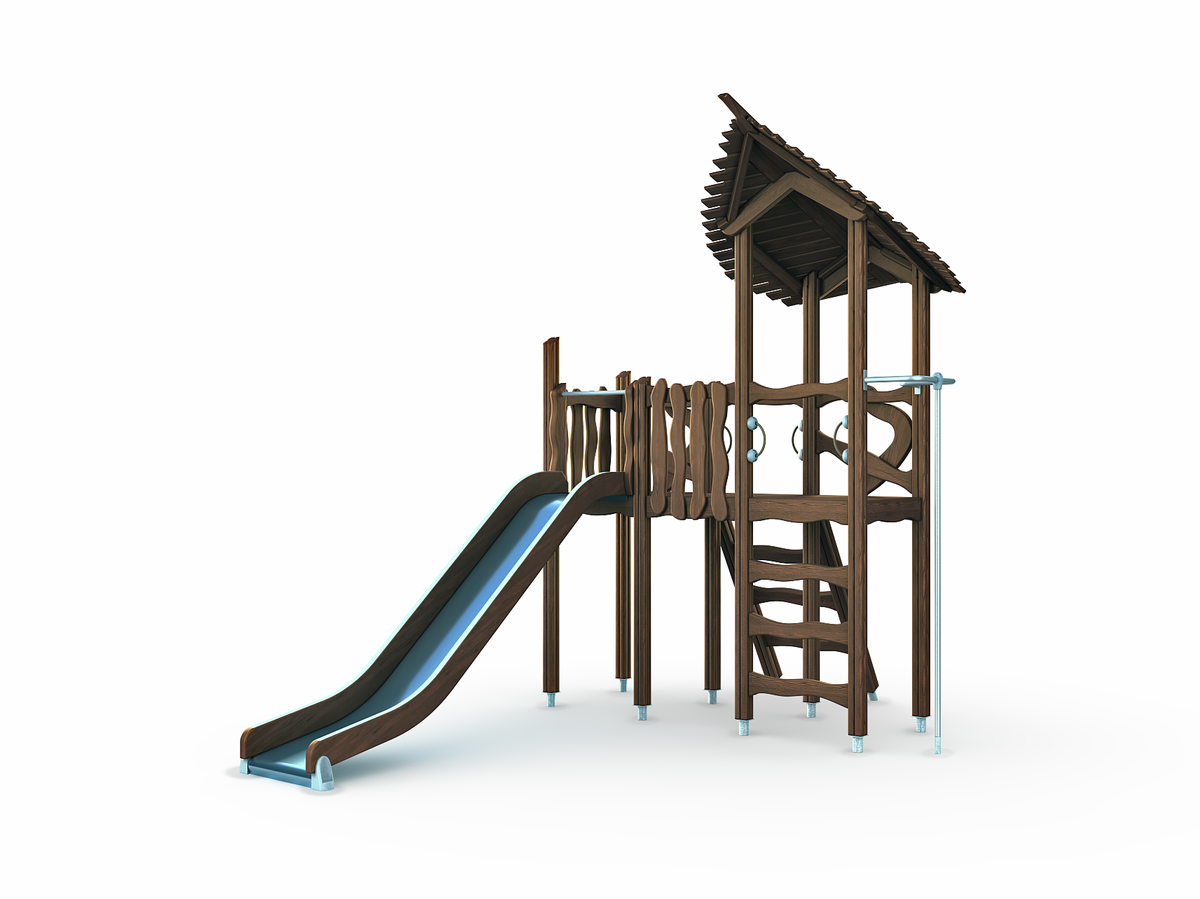

TROLL S SHELTER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
705197
BOOM 45x145x724 FLORA
705197
BOOM 45x145x724 FLORA
705207
POST 93x93x2150 FLORA
705207
POST 93x93x2150 FLORA
705211
BOOM 45x145x715 FLORA
705211
BOOM 45x145x715 FLORA
705219
POST 93x93x2246 FLORA
705219
POST 93x93x2246 FLORA
705221
POST 93x93x2450 FLORA
705221
POST 93x93x2450 FLORA
705227
CLIMBING ELEMENT LADDER FLORA
705227
CLIMBING ELEMENT LADDER FLORA
705237
POST 93x93x3138 FLORA
705237
POST 93x93x3138 FLORA
705239
POST 93x93x2850 FLORA
705239
POST 93x93x2850 FLORA
705246
WALL BOOMERANG FLORA
705246
WALL BOOMERANG FLORA
705258
FLOOR ELEMENT 32x750x750 FLORA
705258
FLOOR ELEMENT 32x750x750 FLORA
705308
SLIDE FLORA
705308
SLIDE FLORA
705310
ENTRY PLATE FOR SLIDE, 119x704x754 FLORA
705310
ENTRY PLATE FOR SLIDE, 119x704x754 FLORA
705511
705511SP
HAND GRIP Ø16 FLORA
909521
BASE FOOT, L=700
Open substructure
909519
909521SP
BASE FOOT, L=700
909519SP
PLATE 50x380x380 FOOTING
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
907698-216
907698-216SP
BAR ELEMENT +1470, Ø337x2054 GREY
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175510 (.dwg)

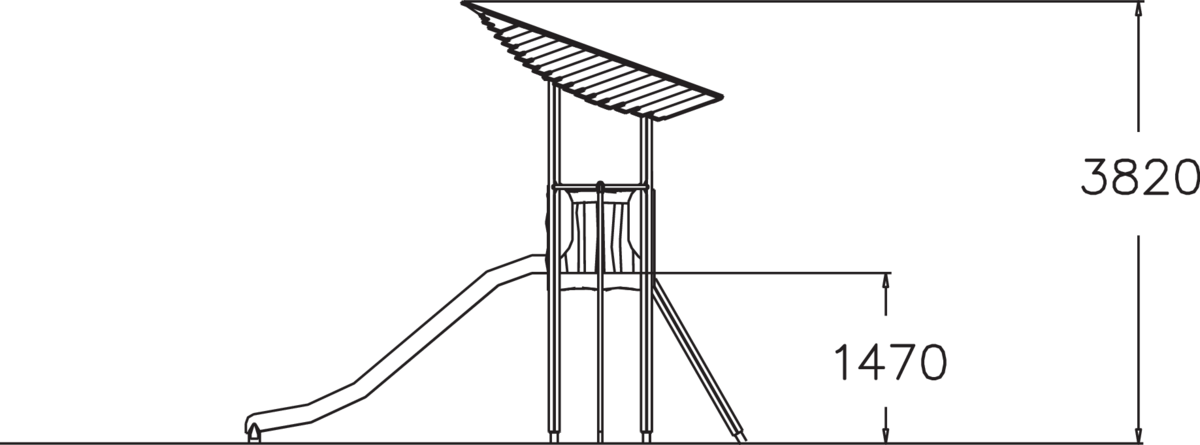

SIDE VIEW 175510sl (.dwg)

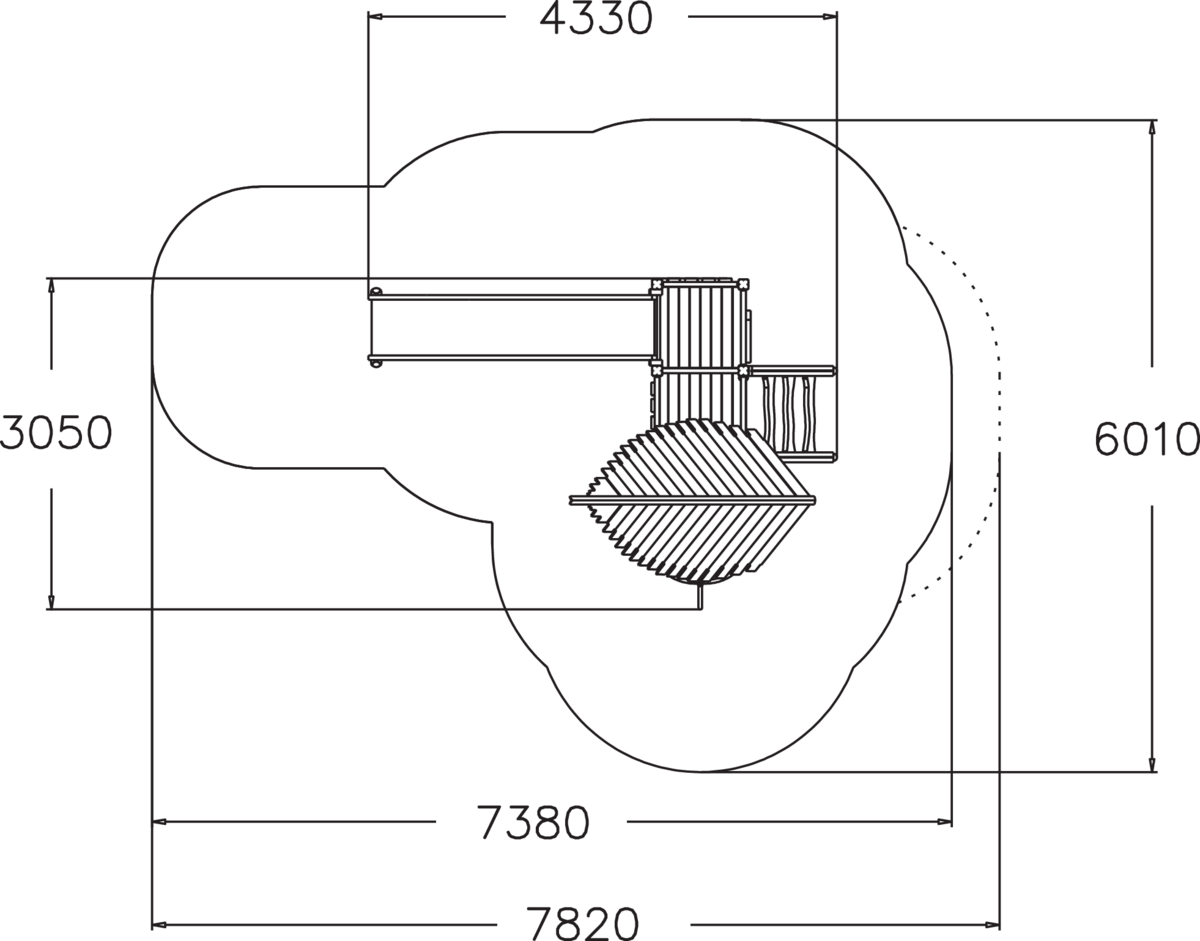

TOP VIEW 175510 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
7820
FALLING SPACE WIDTH, MM
5810
Max. free fall height, mm
1470
Impact area, m²
29.1
Product height, mm
3820
Product lenght, mm
4330
Product width, mm
2850
Height required, mm
3820
IMPACT AREA LENGTH, MM
7380
IMPACT AREA WIDTH, MM
5810
