Spare parts
175590

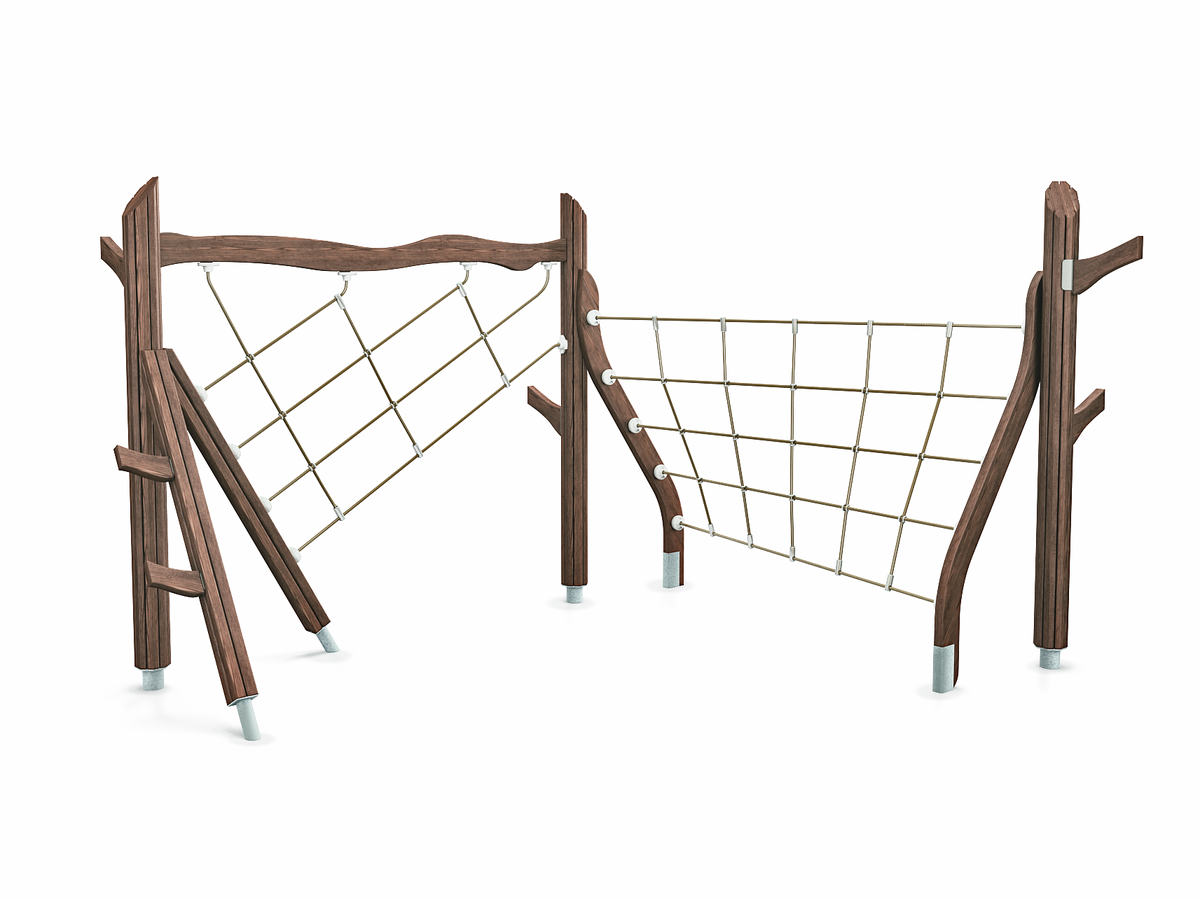

TROLL S CLIMBING TRACK
Downloads
Spare parts
Downloads
Technical information
Spare part sets
705895
NET FLORA RUPELI
705945
NET ELEMENT 1905x1400 FLORA
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
705226
POST 93x93x1530 FLORA
705226
POST 93x93x1530 FLORA
705789
BRANCH 45x120x333 FLORA
705789
BRANCH 45x120x333 FLORA
711514-614
BRANCH WITH FASTENERS FLORA
705811
POST 140x140x2094 FLORA
705811
POST 140x140x2094 FLORA
705816
BOOM 45x143x2280 FLORA
705816
BOOM 45x143x2280 FLORA
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
909521
BASE FOOT, L=700
Open substructure
909521SP
BASE FOOT, L=700
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175590 (.dwg)
SIDE VIEW 175590 (.dwg)
TOP VIEW 175590 (.dwg)
Technical information
User age
4+
FALLING SPACE LENGTH, MM
6900
FALLING SPACE WIDTH, MM
6750

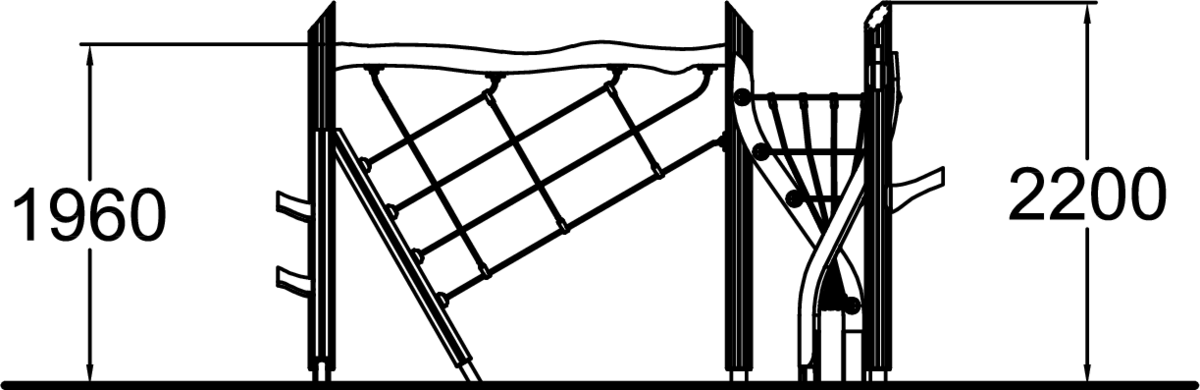

Max. free fall height, mm
1960
Impact area, m²
30.8
Product height, mm
2250

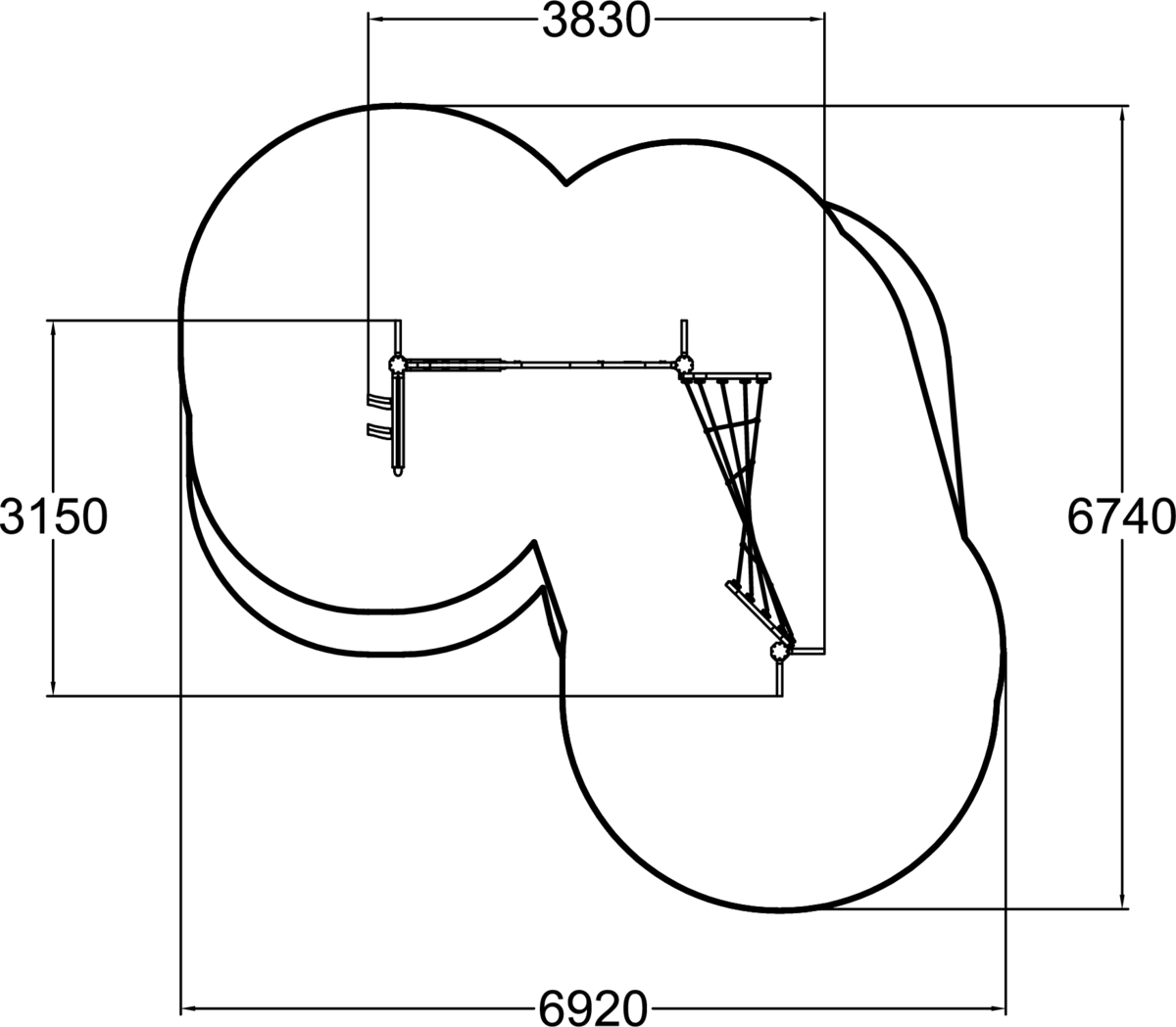

Product lenght, mm
3830
Product width, mm
3150
Height required, mm
3460
IMPACT AREA LENGTH, MM
6900
IMPACT AREA WIDTH, MM
6750
