Home
/
spareparts
Spare parts

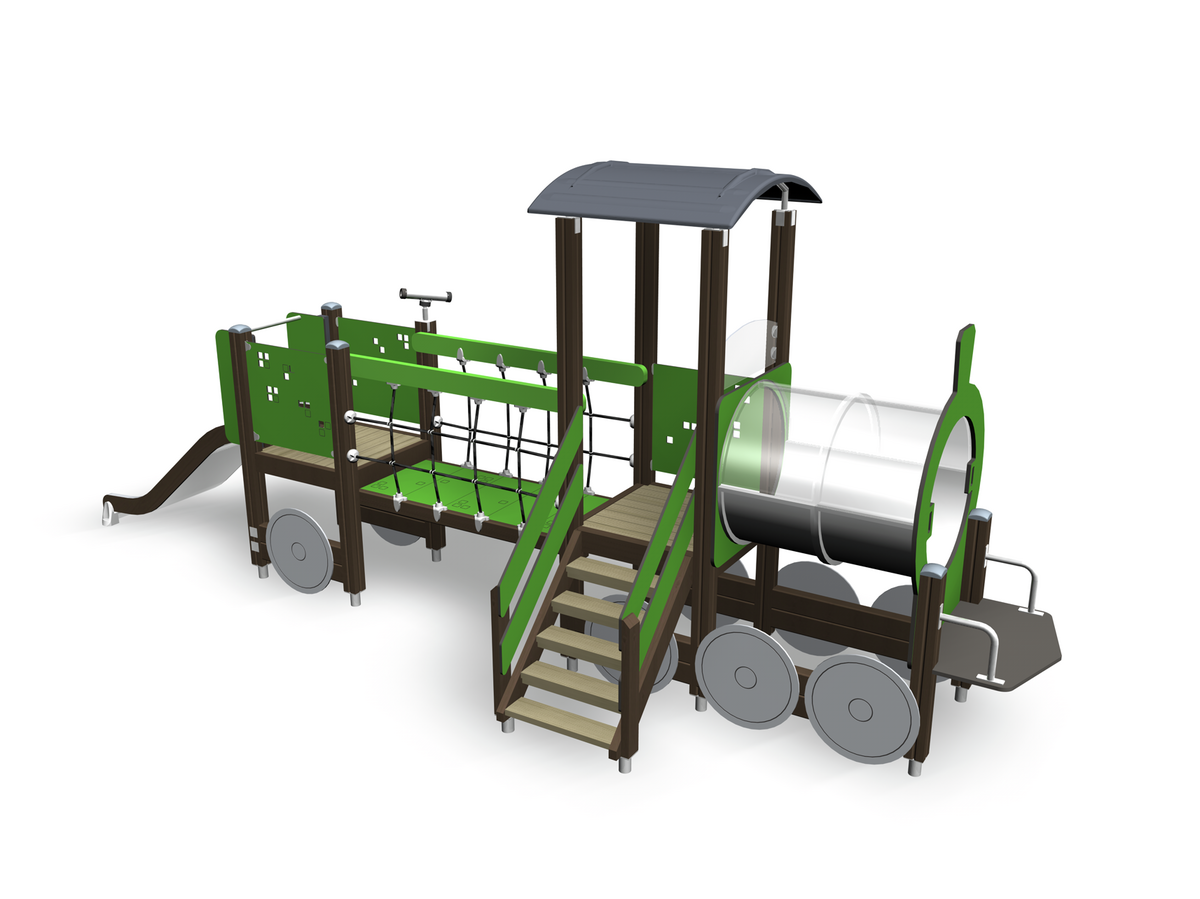

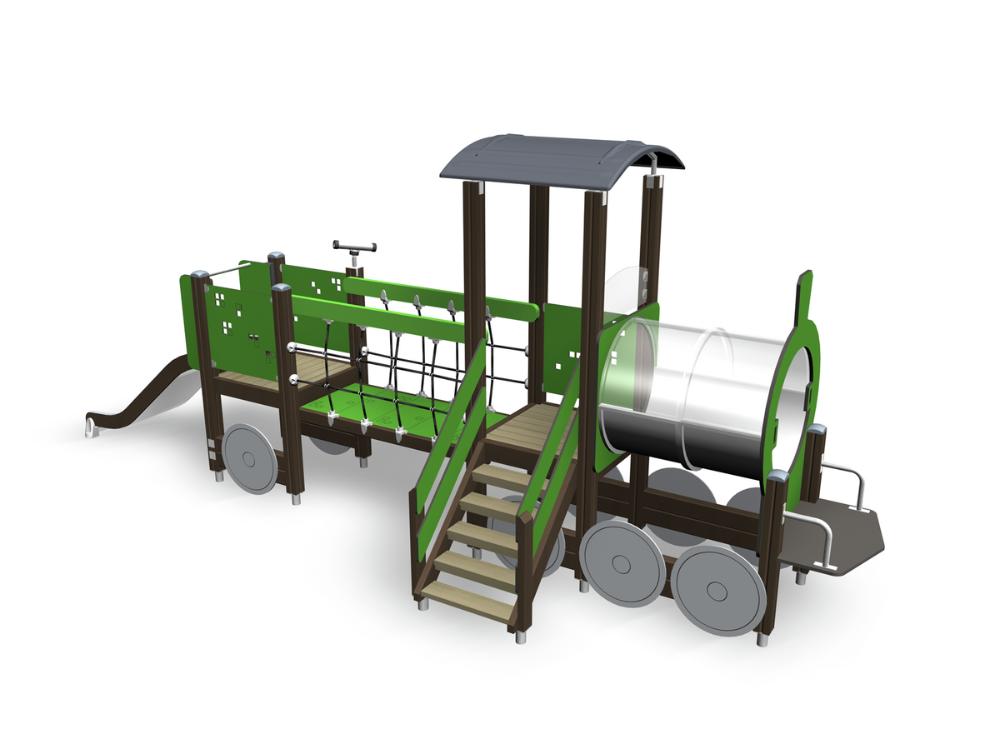

137935
TRAIN
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905821
905821SP
BASE MOD.STRAIGHT GREY
905829
905829SP
BASE MOD.STRAIGHT (SEE-THROUGH)
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706894-602
POST 93x93x950 DARK BROWN
706894-602
POST 93x93x950 DARK BROWN
706436-707
706436-707SP
WALL LAMINATE 80M 10x640x701 GREEN
707146-707
707146-707SP
HANDRAIL STAIR 15x145x1153 GREEN
706512-602
BOOM 70x120x704 DARK BROWN
706512-602
BOOM 70x120x704 DARK BROWN
706441-602
POST 93x93x1550 DARK BROWN
706441-602
POST 93x93x1550 DARK BROWN
706439-602
BOOM 45x120x704 DARK BROWN
706439-602
BOOM 45x120x704 DARK BROWN
008986
008710SP
FLOOR 80M (008701)
707401-609
RAIL 45x120x1680 GREEN
707401-609
RAIL 45x120x1680 GREEN
706452-602
706452-602SP
SLIDE ELEMENT +870 DARK BROWN DEEP
706669-602
POST 93x93x2400 DARK BROWN
706669-602
POST 93x93x2400 DARK BROWN
707398-707
PLATE 15x630x310 GREEN
707398-707
PLATE 15x630x310 GREEN
706371-707
706371-707SP
SLIDE RAIL PLATE 15x747x343 GREEN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137935 (.dwg)

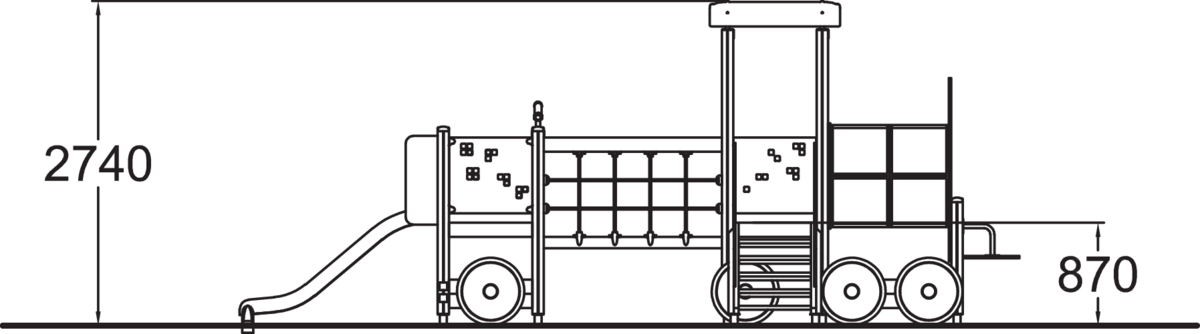

SIDE VIEW 137935 (.dwg)

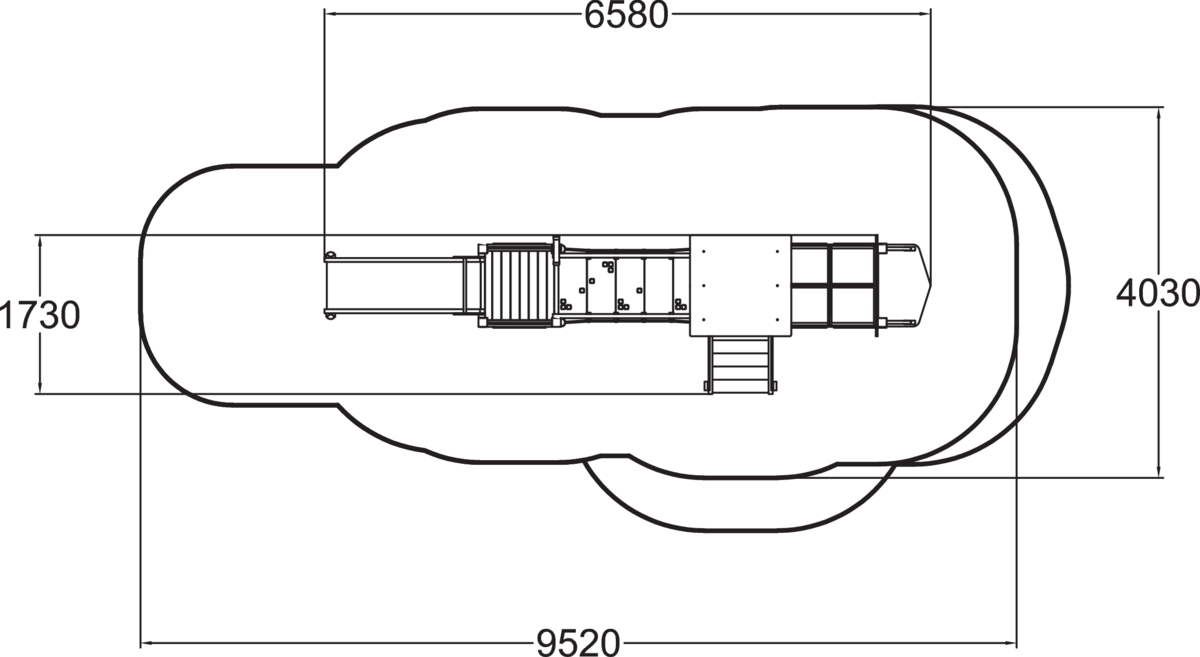

TOP VIEW 137935 (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
10080
FALLING SPACE WIDTH, MM
4610
Max. free fall height, mm
1000
Impact area, m²
32.2
Product height, mm
2740
Product lenght, mm
6580
Product width, mm
1730
Height required, mm
2740
IMPACT AREA LENGTH, MM
9520
IMPACT AREA WIDTH, MM
4030
