Home
/
spareparts
Spare parts
175042

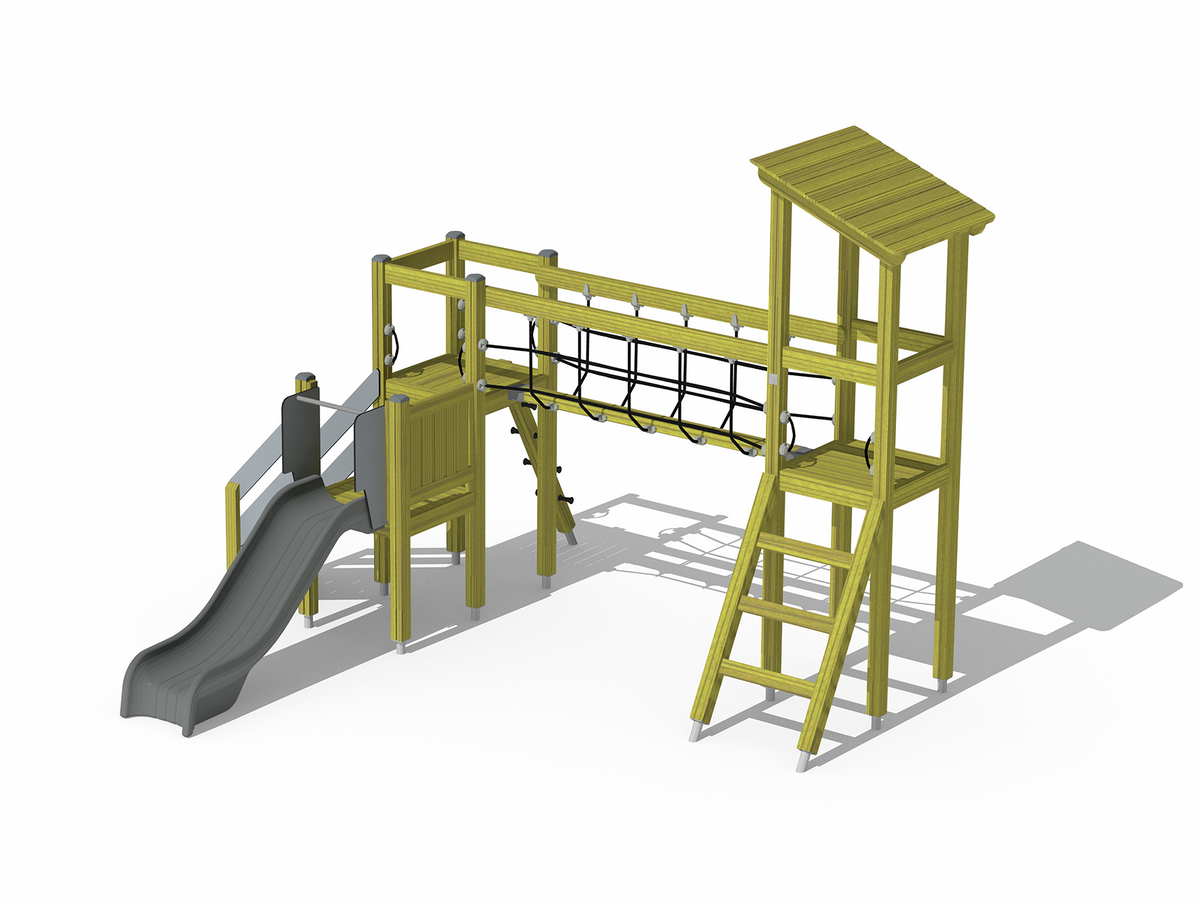

TOWER
Downloads
Spare parts
Downloads
Technical information
Spare part sets
905833SP
PLASTIC SLIDE +870 DEEP GREY
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
003241SP
HANDLES
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703130
LADDER
703130
LADDER
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
703139
ROOF
703139
ROOF
704417
POST 95x95x2900 IMPREGNATED
704417
POST 95x95x2900 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706444
POST 93x93x3200 IMPREGNATED
706461
PLATE 15x400x703 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706746
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707255
RAIL 45x120x2480 IMPREGNATED
707255
RAIL 45x120x2480 IMPREGNATED
707262
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707732
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175042 (.dwg)

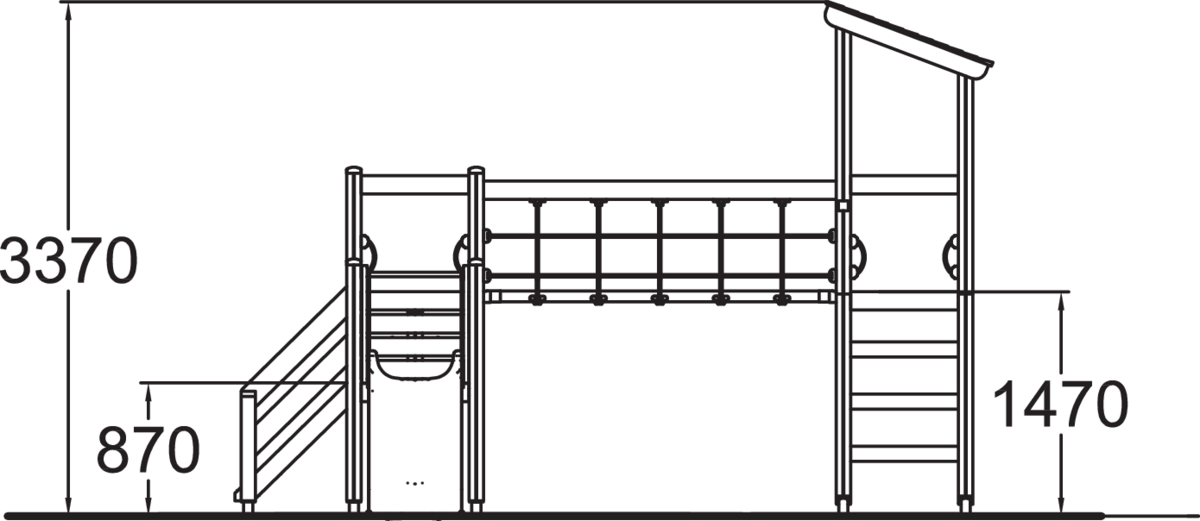

SIDE VIEW 175042 (.dwg)

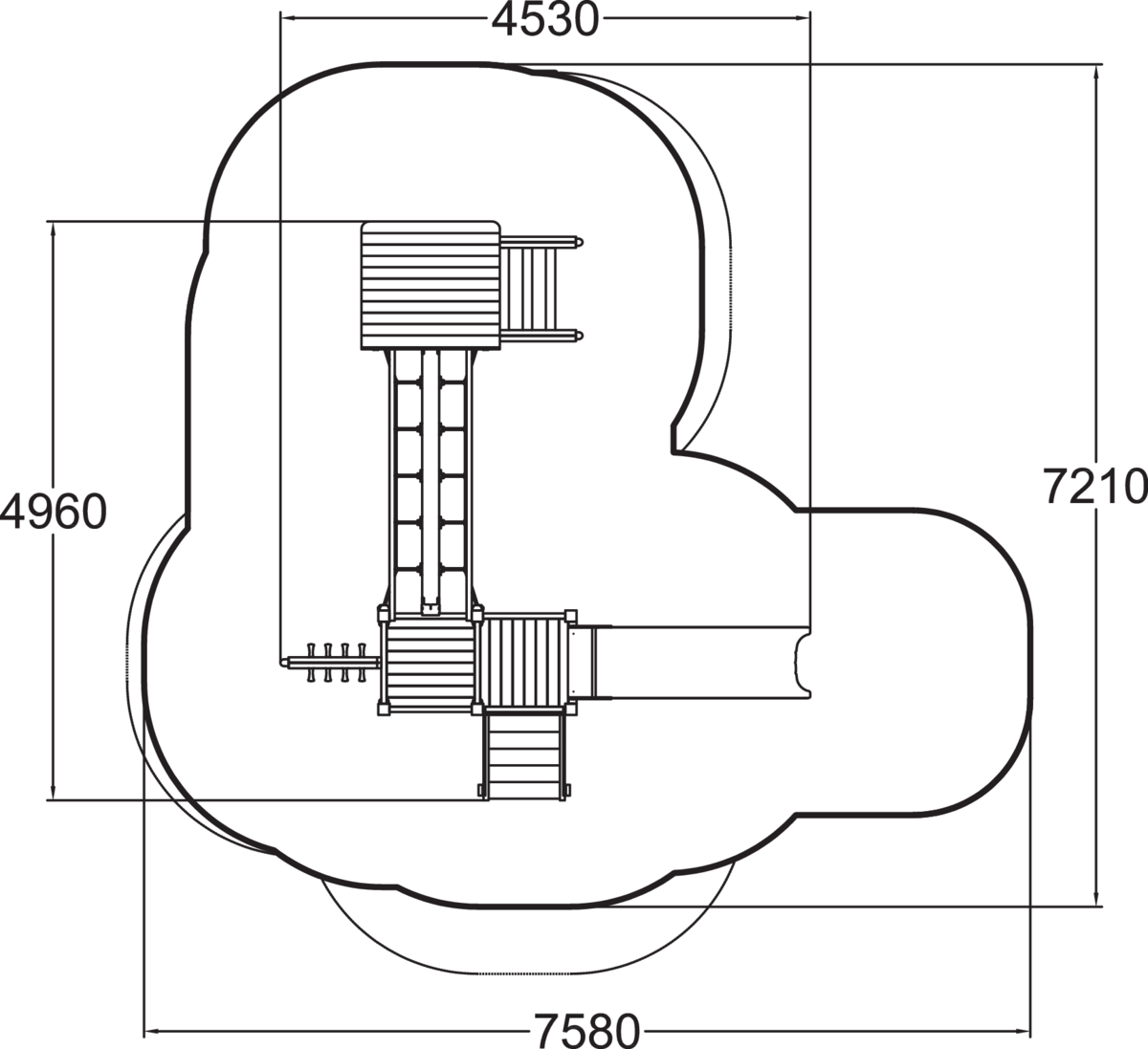

TOP VIEW 175042 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7780
FALLING SPACE WIDTH, MM
7580
Max. free fall height, mm
1840
Impact area, m²
37.3
Product height, mm
3370
Product lenght, mm
4530
Product width, mm
4960
Height required, mm
3370
IMPACT AREA LENGTH, MM
7580
IMPACT AREA WIDTH, MM
7210
