Home
/
spareparts
Spare parts
175027
TOWER
Downloads
Spare parts
Downloads
Technical information
Spare part sets
904451SP
PLASTIC SLIDE +1470 DEEP GRAY
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703130
LADDER
703130
LADDER
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175027 (.dwg)

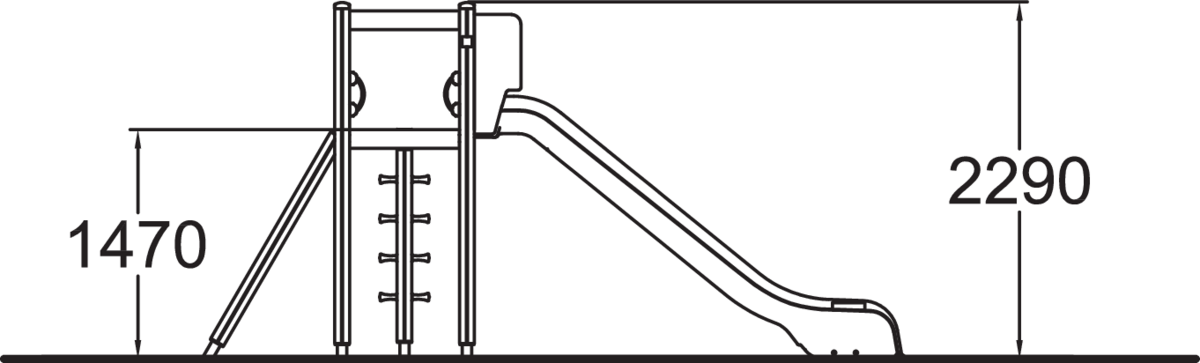

SIDE VIEW 175027 (.dwg)

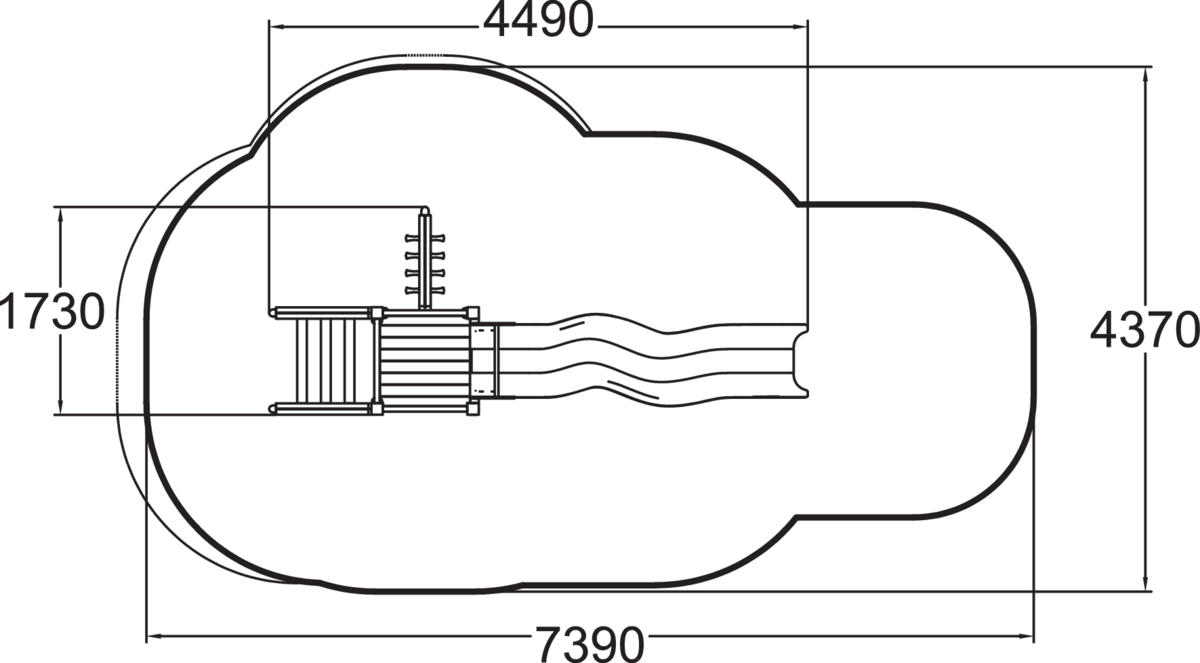

TOP VIEW 175027 (.dwg)
Technical information
User age
4+
FALLING SPACE LENGTH, MM
7700
FALLING SPACE WIDTH, MM
4470
Max. free fall height, mm
1470
Impact area, m²
24.9
Product height, mm
2290
Product lenght, mm
4490
Product width, mm
1730
Height required, mm
3270
IMPACT AREA LENGTH, MM
7390
IMPACT AREA WIDTH, MM
4370
