Home
/
spareparts
Spare parts
120347M

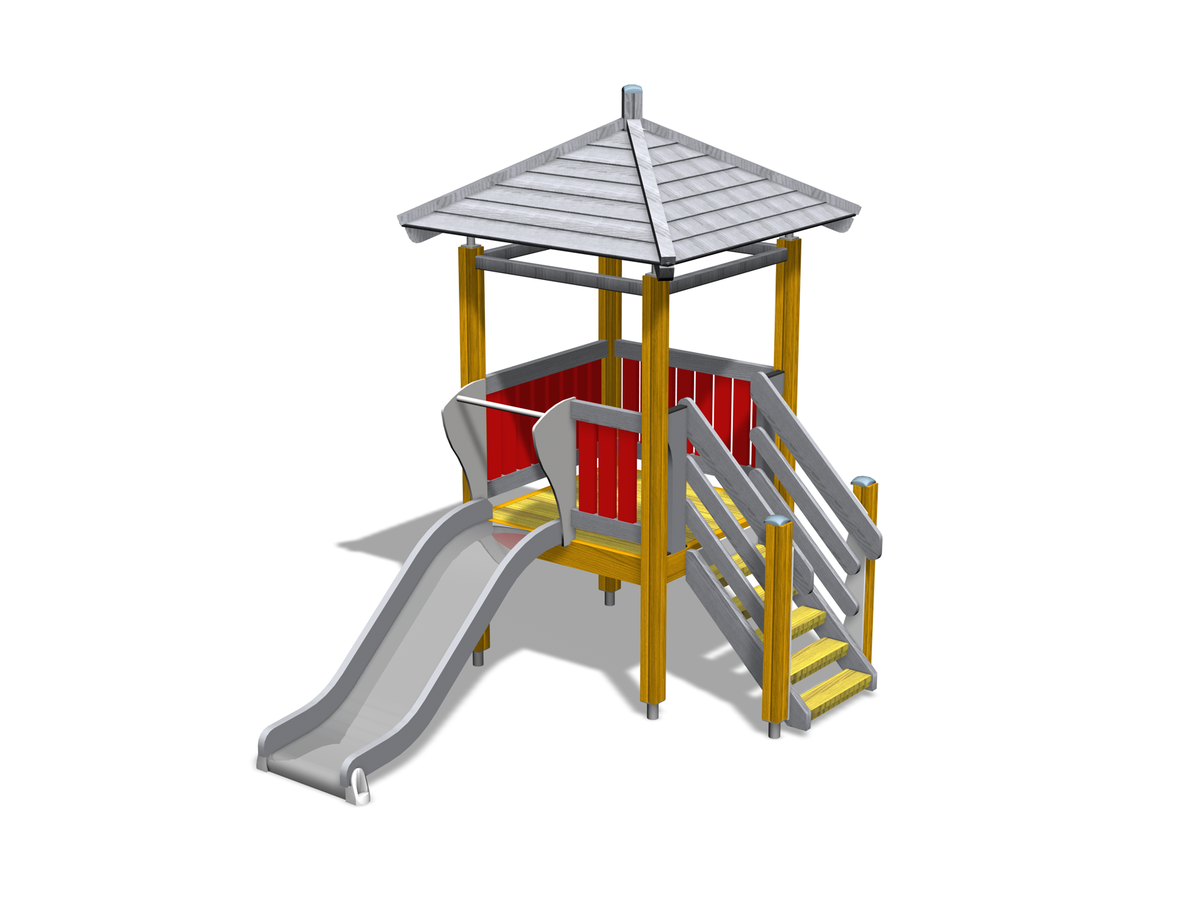

TOWER AND SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
001948SP1
STAIRS M120 +870 DEEP WOOD LIGHT BROWN, LAMINATE GREY
Original product structure
Spare parts
701428
701428SP
POST 93x93x2250 YELLOW
701450
701450SP
ROOF 120M DIAMOND
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701557
003880SP
FLOOR 120M
701582
701582SP
ADAPTER 120M TO 80M GREY
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702572
702572SP
HANDRAIL 120M SLIDE GREY
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 120347M (.dwg)
TOP VIEW 120347M (.dwg)
TORNI JA LIUKU (.dwg)

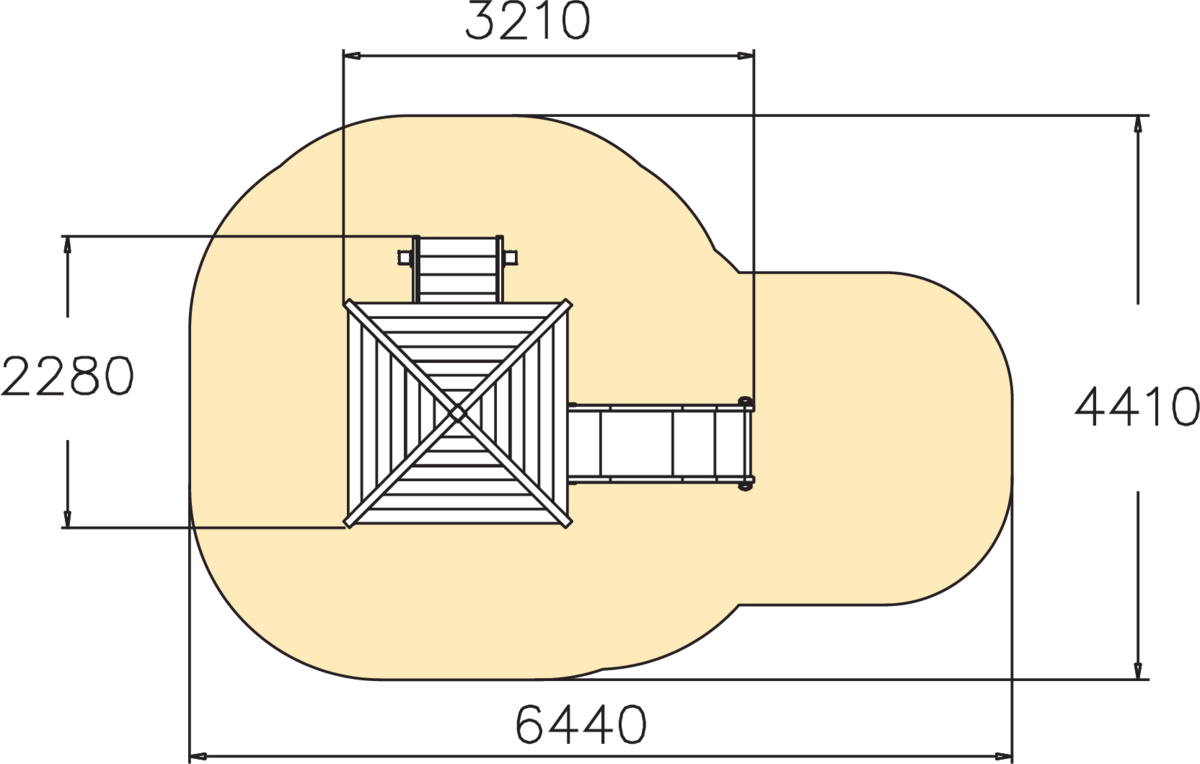

Technical information
User age
1
Max. free fall height, mm
1000
Impact area, m²
22
Product height, mm
3180
Product lenght, mm
3210
Product width, mm
2280
Height required, mm
3180
IMPACT AREA LENGTH, MM
6440
IMPACT AREA WIDTH, MM
4410
