Home
/
spareparts
Spare parts
120346M

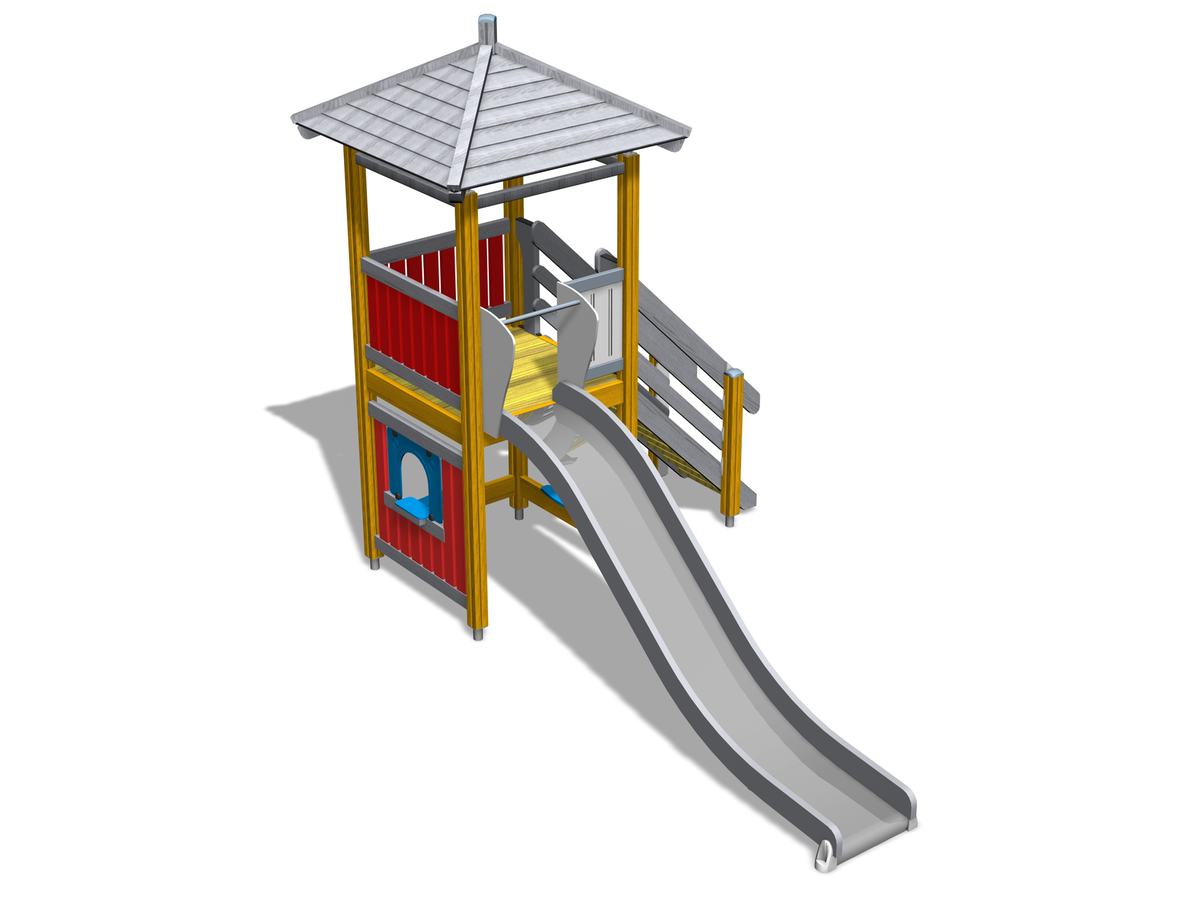

TOWER AND SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
001949SP1
STAIRS M120 +1470 DEEP WOOD BROWN, LAMINATE GREY
Original product structure
Spare parts
701052
706453-701SP
STEP 15x145x600 BLUE
701434
701434SP
POST 93x93x2850 YELLOW
701450
701450SP
ROOF 120M DIAMOND
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701557
003880SP
FLOOR 120M
701582
701582SP
ADAPTER 120M TO 80M GREY
701618
P11478-604SP
WALL 120M WINDOW 45x1065x1101 GREY
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702572
702572SP
HANDRAIL 120M SLIDE GREY
707202
STAIRS +1470 OLD GREY
707202
STAIRS +1470 OLD GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
005273
706727-701SP
KIOSK PLAY PANEL 640x702 BLUE
005285
005285SP
PLATFORM DESK
707145-604
POST 43x93x717 GREY STAIRS 20
707145-604
POST 43x93x717 GREY STAIRS 20
707192-604
STAIR ELEMENT +1470 GREY
707192-604
STAIR ELEMENT +1470 GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 120346M (.dwg)
TOP VIEW 120346M (.dwg)
TORNI JA LIUKU (.dwg)
Technical information
User age
2

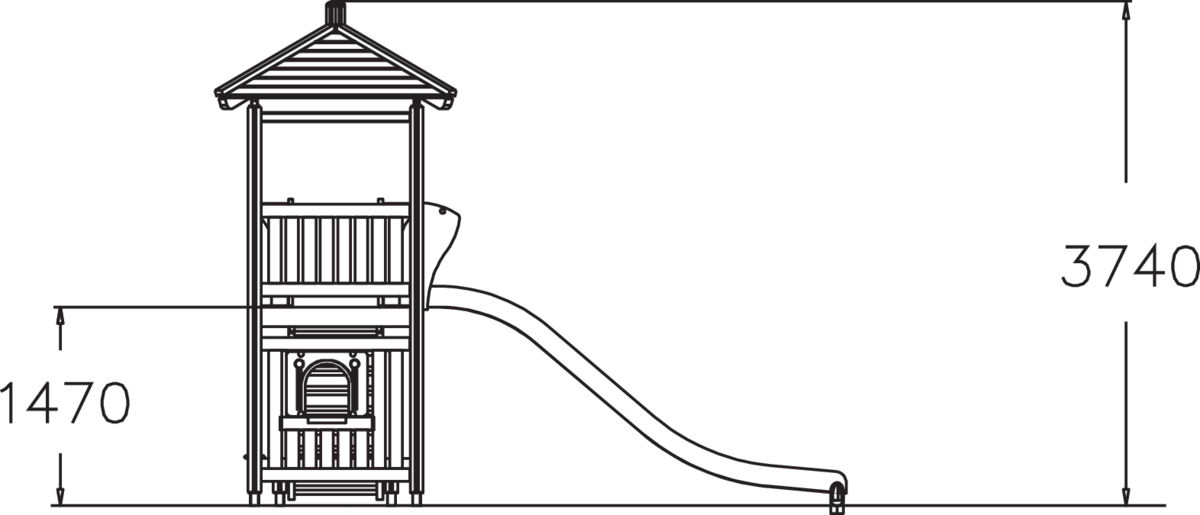

Max. free fall height, mm
1470
Impact area, m²
29.3
Product height, mm
3740
Product lenght, mm
4670
Product width, mm
2880
Height required, mm
3740

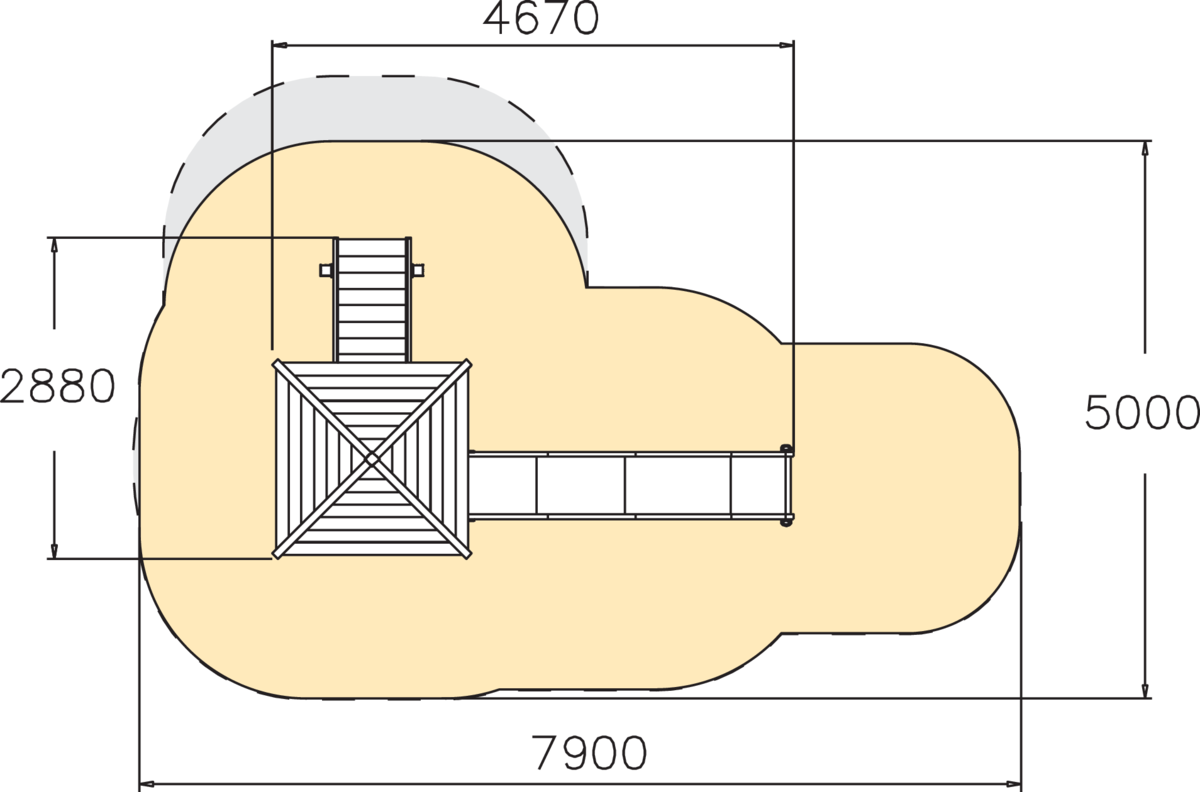

IMPACT AREA LENGTH, MM
7900
IMPACT AREA WIDTH, MM
5000
