Home
/
spareparts
Spare parts

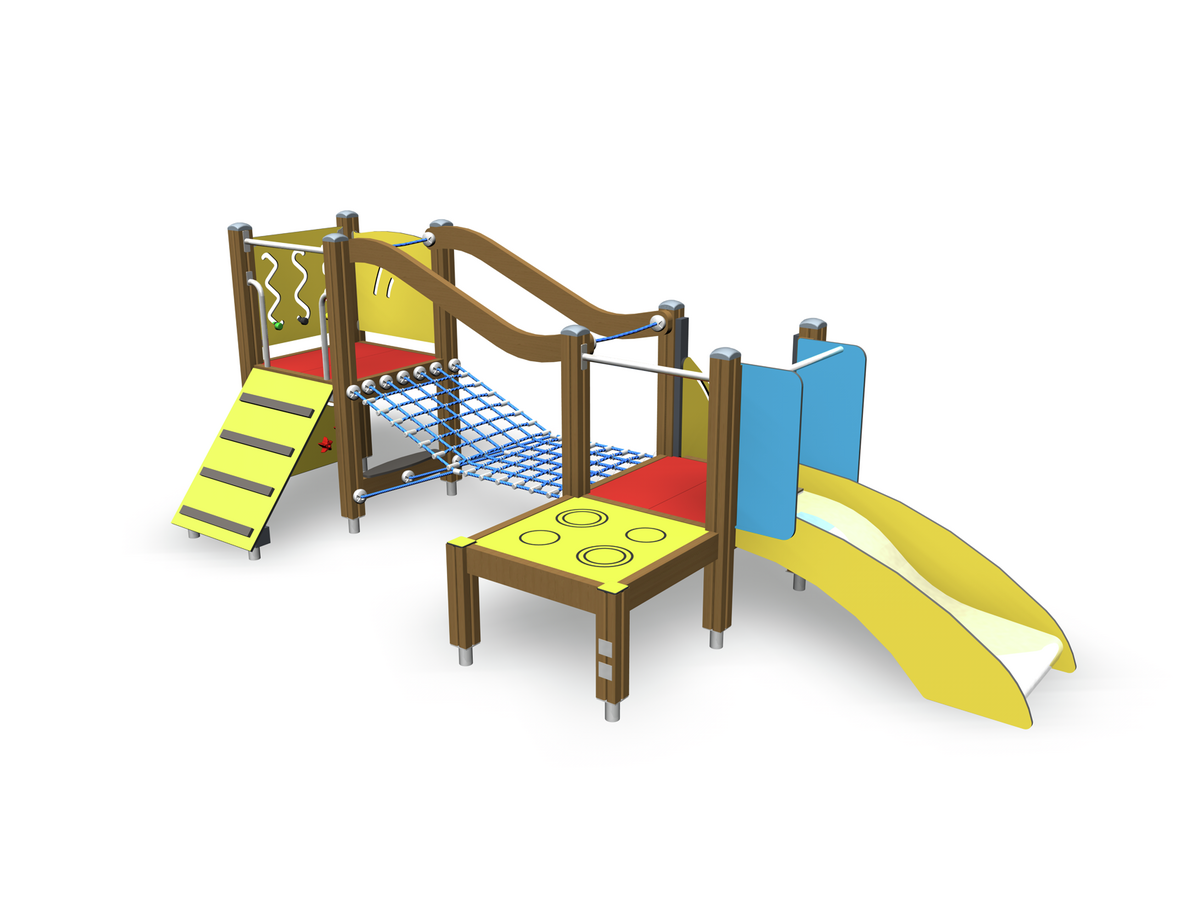

104315M
TINO
Downloads
Spare parts
Downloads
Technical information
Spare part sets
707425-301SP
NET Y ABC 80M, 160M BLUE
707376-702SP
SLIDE ELEMENT ABC 80M, +570 YELLOW, DEEP MOUNTING
Original product structure
Spare parts
701401
701401SP0
POST 93X93X1250 IMPREGNATED
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
704431
DEEP FOUNDATION LAMINATE SLIDE
704431
DEEP FOUNDATION LAMINATE SLIDE
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706453
706453-704SP
STEP 15x145x600 DARK GREY
706481
PLATE 93x93x10 TOP HAT FFL
706481-703SP
PLATE 93x93x10 TOP HAT FFL LIME
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
707331
POST 93x93x470 IMPREGNATED
707331
POST 93x93x470 IMPREGNATED
707384
707384-706SP
STEP PLATE FOR ABC STAIRS 80M RED
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
907694-216
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 104315M (.dwg)

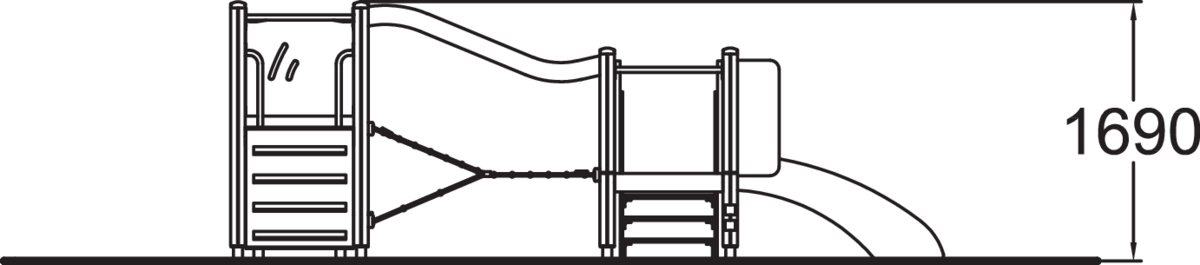

SIDE VIEW 104315M (.dwg)

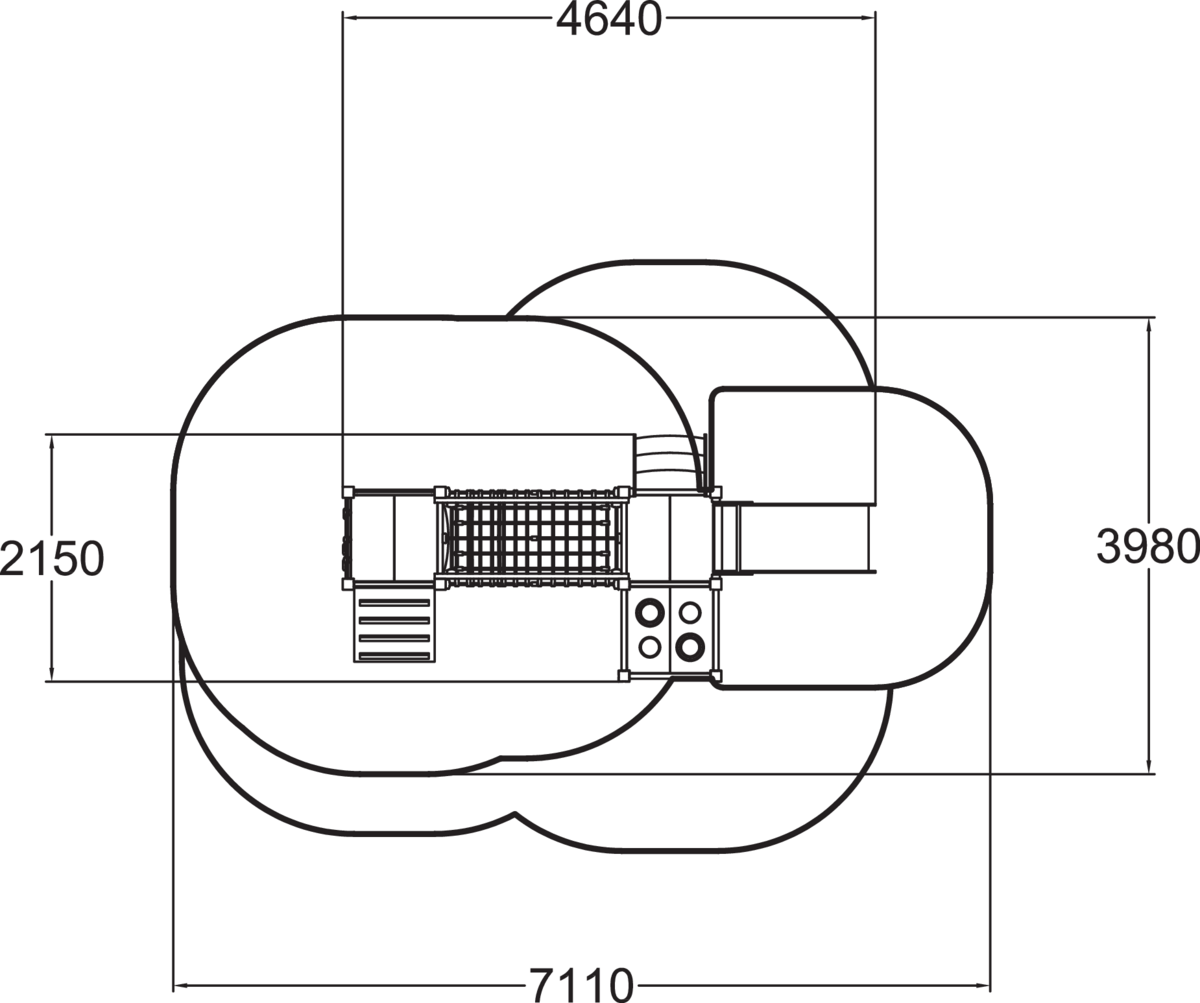

TOP VIEW 104315M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7110
FALLING SPACE WIDTH, MM
5130
Max. free fall height, mm
1000
Impact area, m²
22
Product height, mm
1690
Product lenght, mm
4640
Product width, mm
2150
Height required, mm
2670
IMPACT AREA LENGTH, MM
7110
IMPACT AREA WIDTH, MM
3980
