Home
/
spareparts
Spare parts

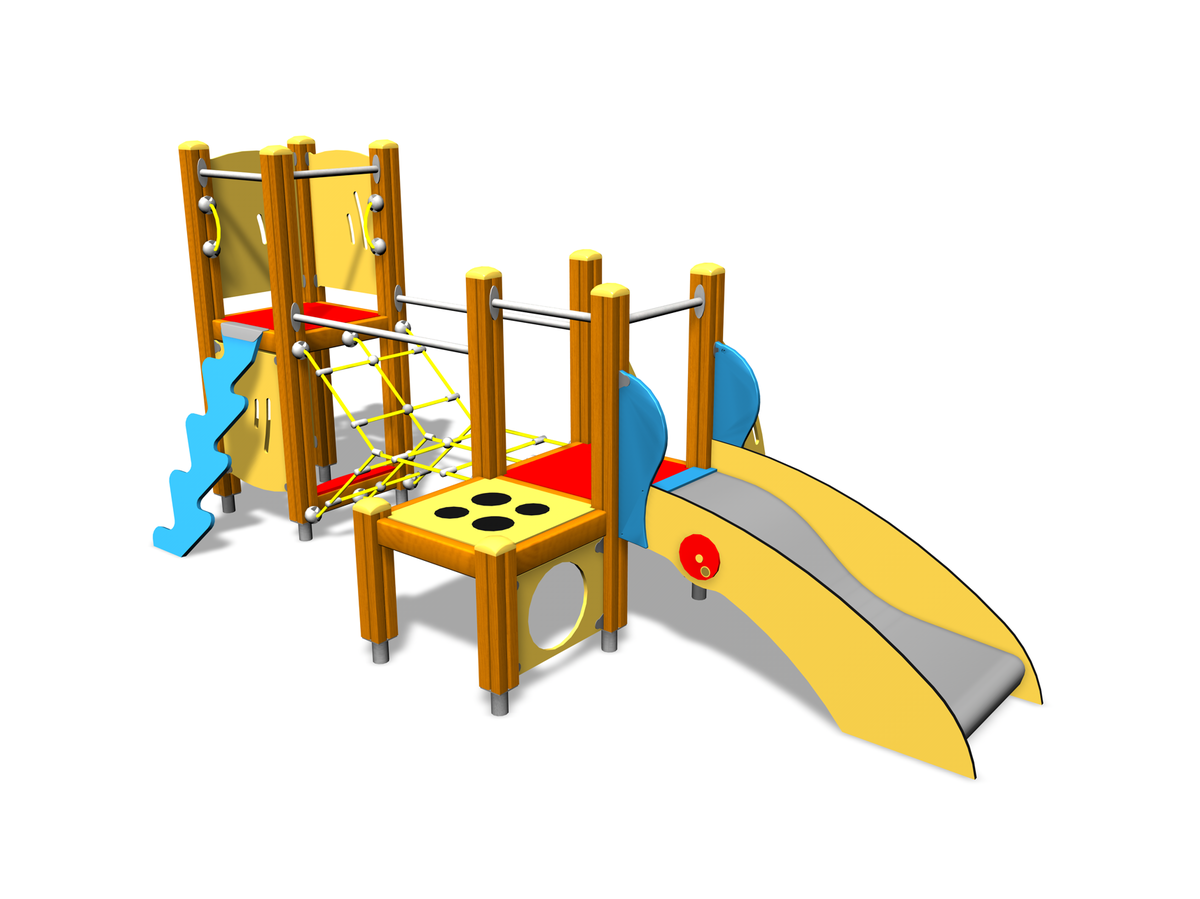

104120M
TINO
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701416
701401SP
POST 95X95X1250 YELLOW
701422
703327SP
POST 93x93x1650 YELLOW
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702584
BOOM 45x95x524 YELLOW
702584
BOOM 45x95x524 YELLOW
702606
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702625
702625SP
WALL ABC 60M YELLOW
702627
702627SP
HANDRAIL FOR ABC SLIDE 60M
702638
702638SP
WINDOW WALL ABC 60M
702641
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702647
702647SP
FLOOR RED ABC 60M
702648
702647SP
FLOOR RED ABC 60M
702673
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702677
ABC SLIDE 60M +570
702677
ABC SLIDE 60M +570
702678
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702679
702679SP
FOUNDATION ABC
702680
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702688
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702707
705511SP
HAND GRIP Ø16 FLORA
702708
702708SP
NET Y ABC 60M, 1200mm
901785
901785SP
BAR ELEMENT 120M GREY
901790
HORIZONTAL BAR, 50x130x505
901790
HORIZONTAL BAR, 50x130x505
905137
COVER TOP HAT YELLOW
905195
001295SP
SPAREPART PACKAGE TOP HAT YELLOW
Downloads
2 TORNIA (.dwg)
InstallationInstructions (.pdf)

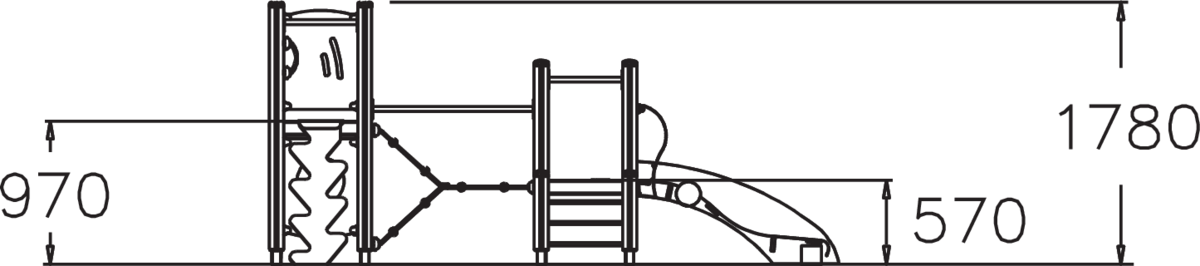

SIDE VIEW 104120M (.dwg)

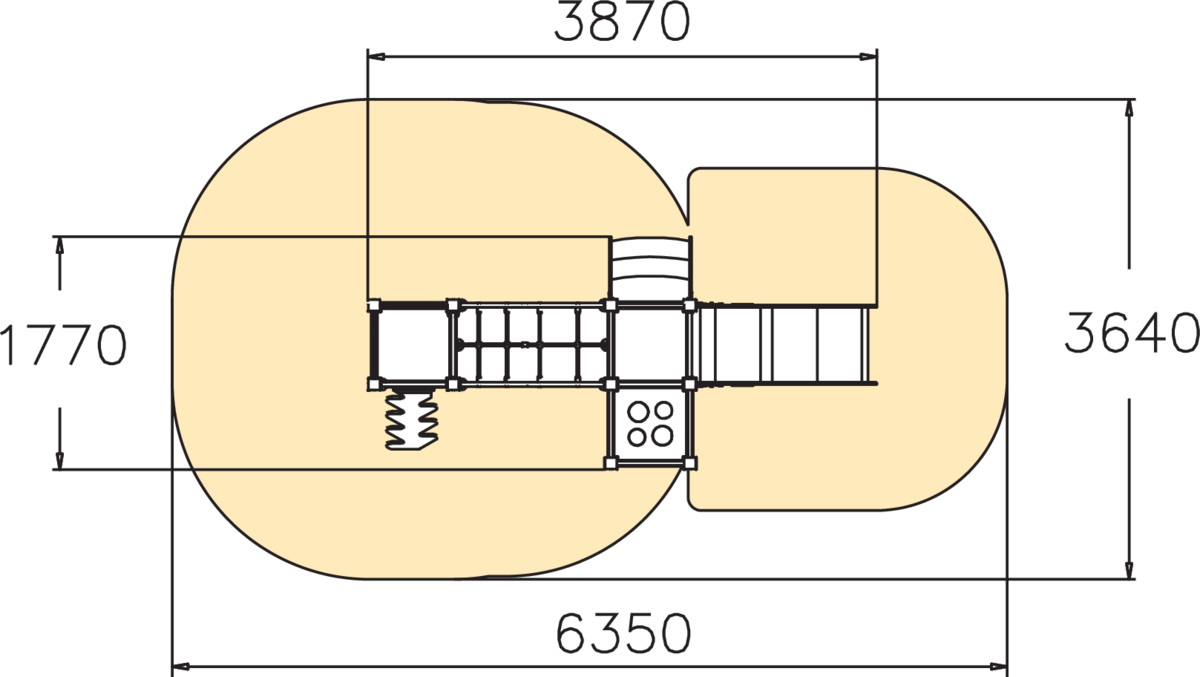

TOP VIEW 104120M (.dwg)
Technical information
Max. free fall height, mm
1000
Impact area, m²
18.4
Product height, mm
1780
Product lenght, mm
3870
Product width, mm
1770
Height required, mm
2770
IMPACT AREA LENGTH, MM
6350
IMPACT AREA WIDTH, MM
3640
