Home
/
spareparts
Spare parts
020418M

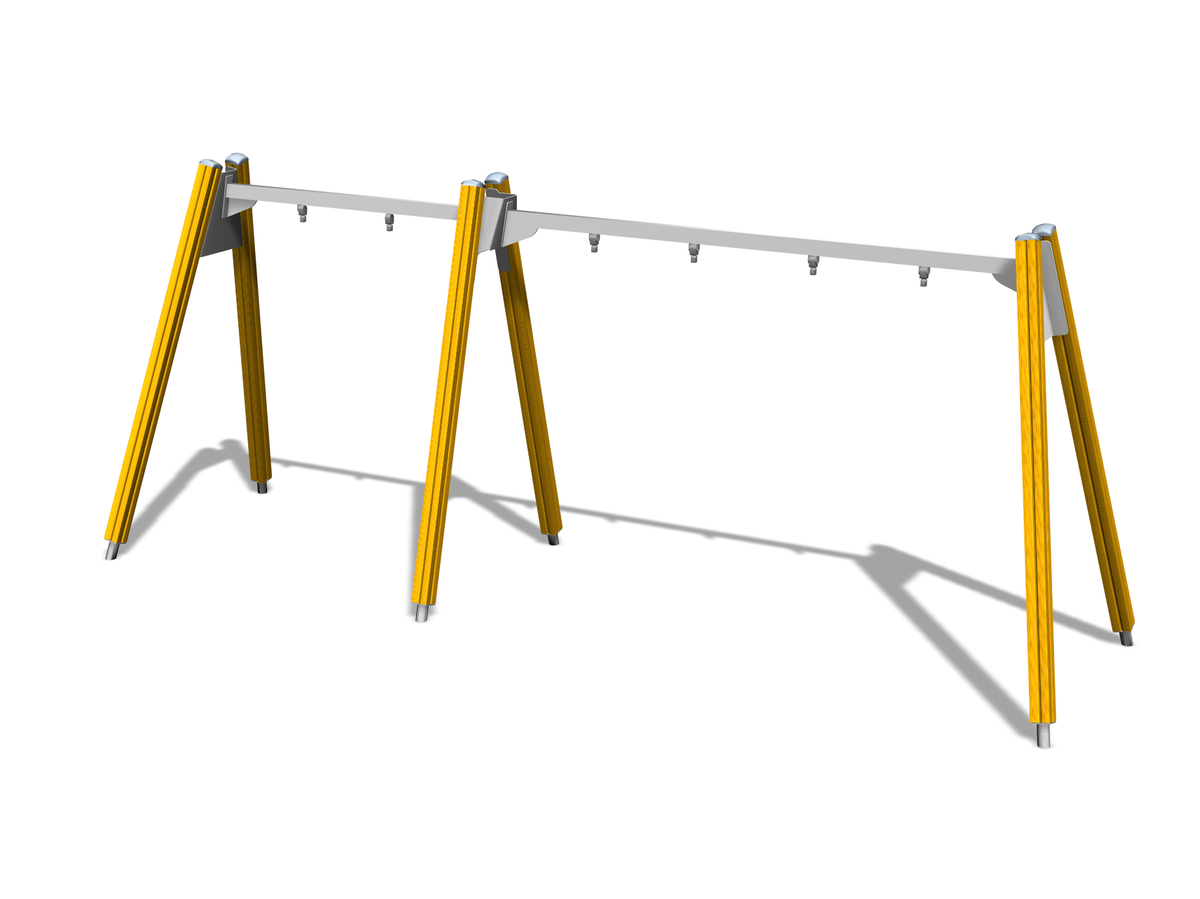

SWING FRAME FOR 3
Downloads
Spare parts
Downloads
Technical information
Spare part sets
929533SP
SWING PLATE METAL FOUNDATION PLATES, 6 posts
Original product structure
Spare parts
701767
701767SP
SWING POST 93X93X2250 YELLOW
904317
SUPPORT 468x420x284
904317
SUPPORT 468x420x284
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
906216
BOOM 1690x 250x50 1 PERSON
906216
BOOM 1690x 250x50 1 PERSON
909511
909511SP
BASE PIPE 90x90x650
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

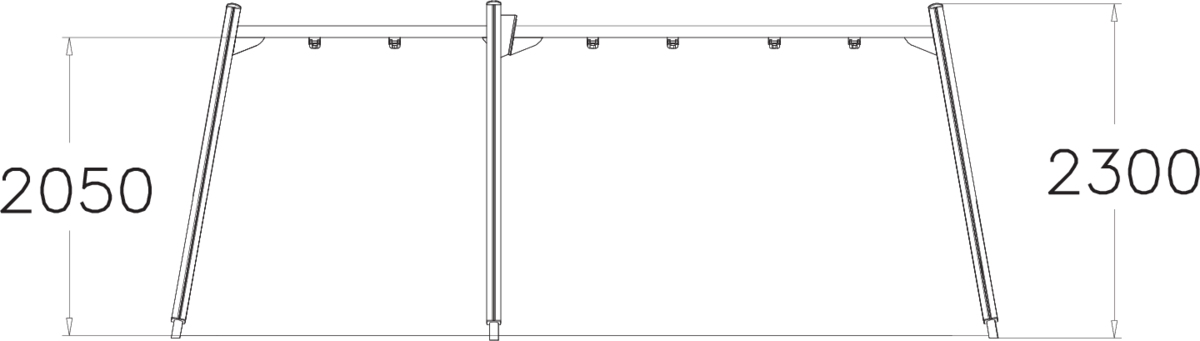

SIDE VIEW 020418M (.dwg)
SWING FRAME (.dwg)

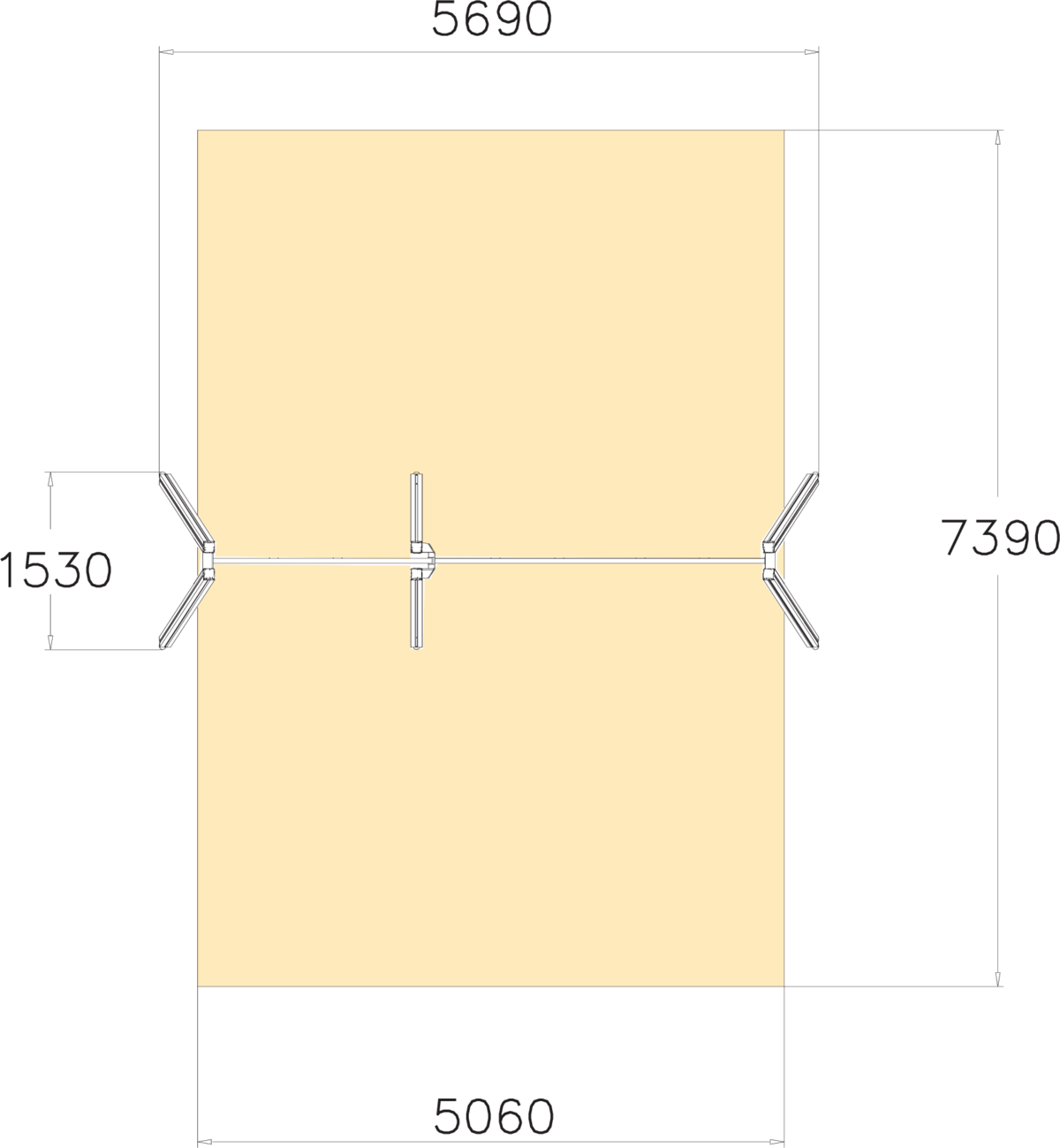

TOP VIEW 020418M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1200
Impact area, m²
37.4
Product height, mm
2300
Product lenght, mm
5390
Product width, mm
1530
Height required, mm
2700
IMPACT AREA LENGTH, MM
7390
IMPACT AREA WIDTH, MM
5060
