Home
/
spareparts
Spare parts
137414M

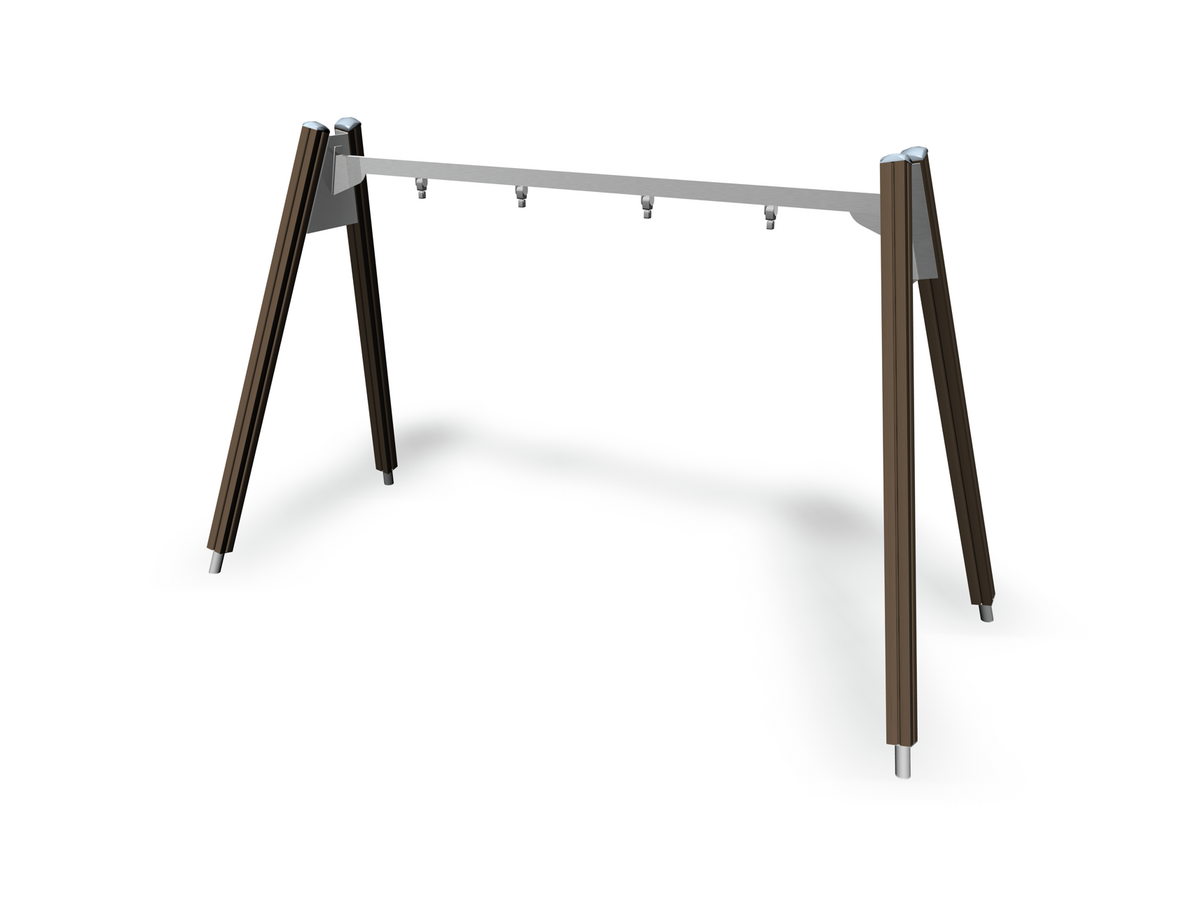

SWING FRAME FOR 2 LOW
Downloads
Spare parts
Downloads
Technical information
Spare part sets
929531SP
SWING PLATE METAL FOUNDATION PLATES
Original product structure
Spare parts
706562
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
706562-602
706562-602SP
SWING POST 93X93X2250 DARK BROWN
Downloads
InstallationInstructions (.pdf)
SIVUKUVA 137414M (.dwg)
TOP VIEW 137414M (.dwg)
TUOTEMALLI 137414M (.dwg)
Technical information
User age
1+

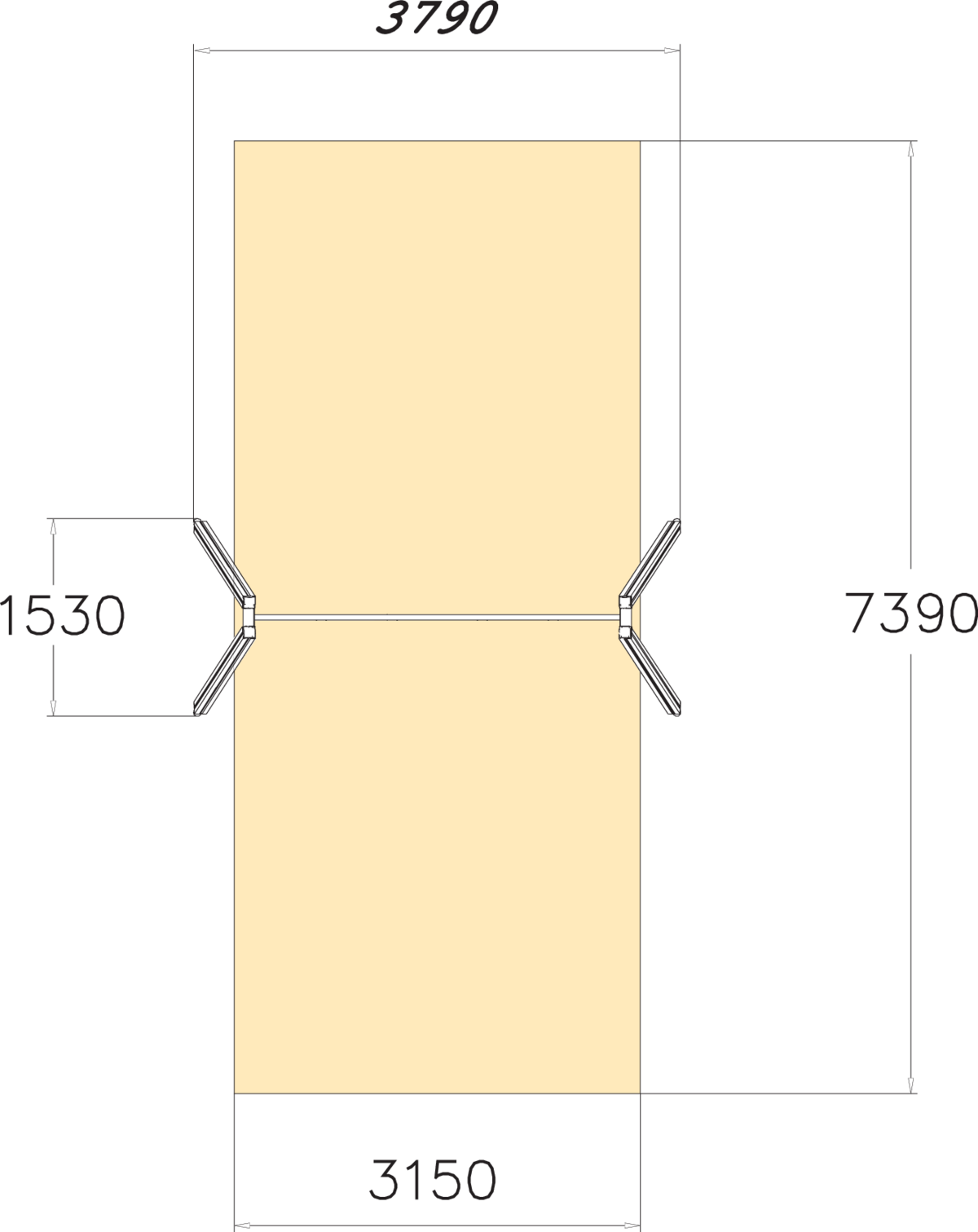

FALLING SPACE LENGTH, MM
7390
FALLING SPACE WIDTH, MM
3150
Max. free fall height, mm
1200
Impact area, m²
23.3

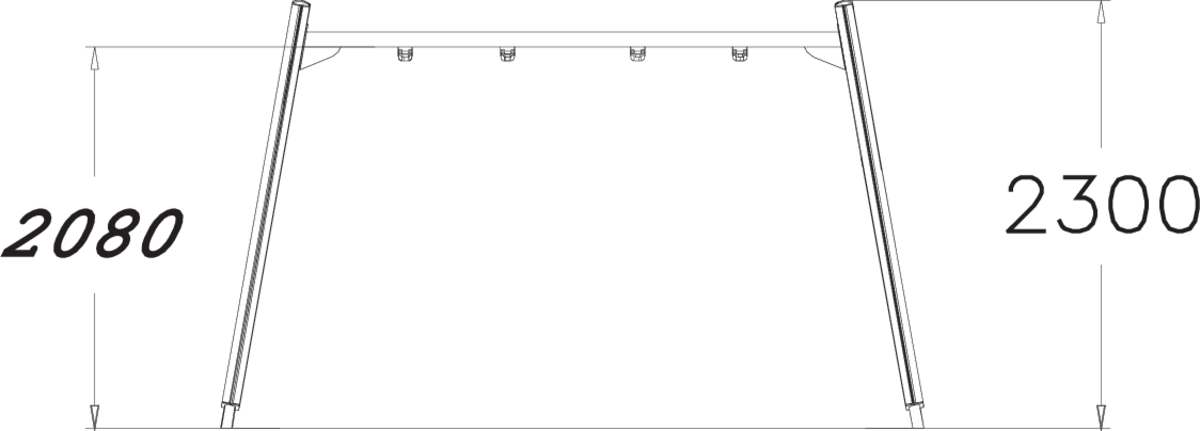

Product height, mm
2300
Product lenght, mm
3790
Product width, mm
1530
Height required, mm
2700
IMPACT AREA LENGTH, MM
7390
IMPACT AREA WIDTH, MM
3150
