Home
/
spareparts
Spare parts
020414M

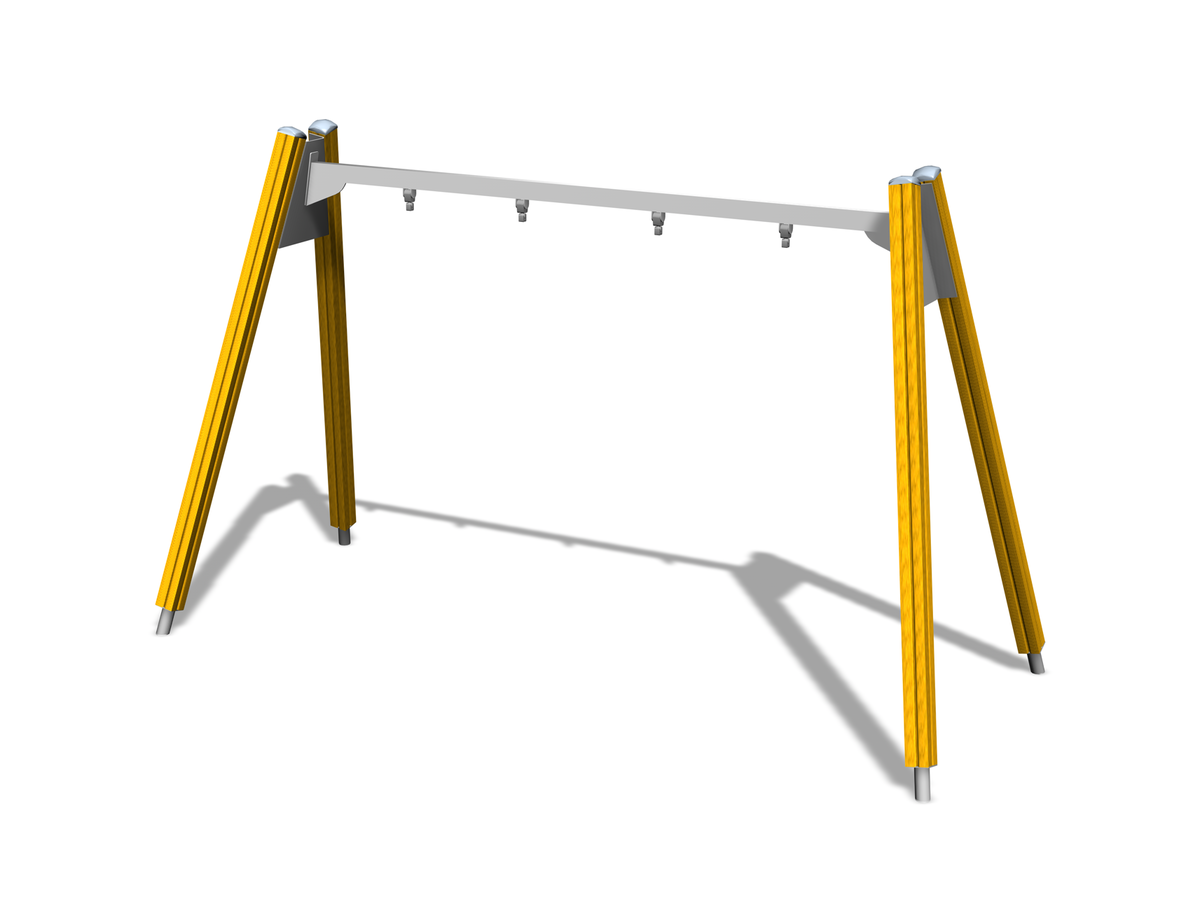

SWING FRAME FOR 2 LOW
Downloads
Spare parts
Downloads
Technical information
Spare part sets
929531SP
SWING PLATE METAL FOUNDATION PLATES
Original product structure
Spare parts
701767
701767SP
SWING POST 93X93X2250 YELLOW
904333
904333SP
SWING BOOM METAL 60x250x2940 AND 904904 (006896)
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

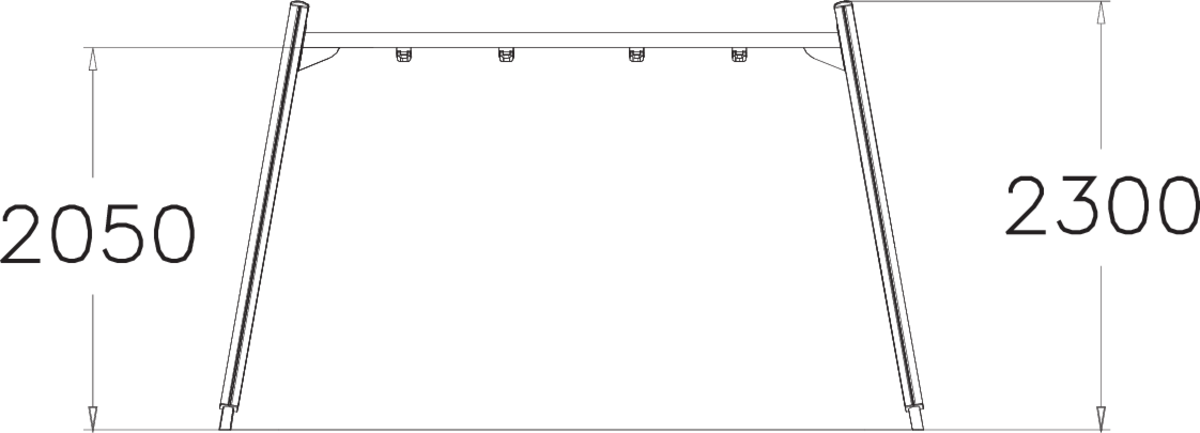

SIDE VIEW 020414M (.dwg)
SWING FRAME (.dwg)

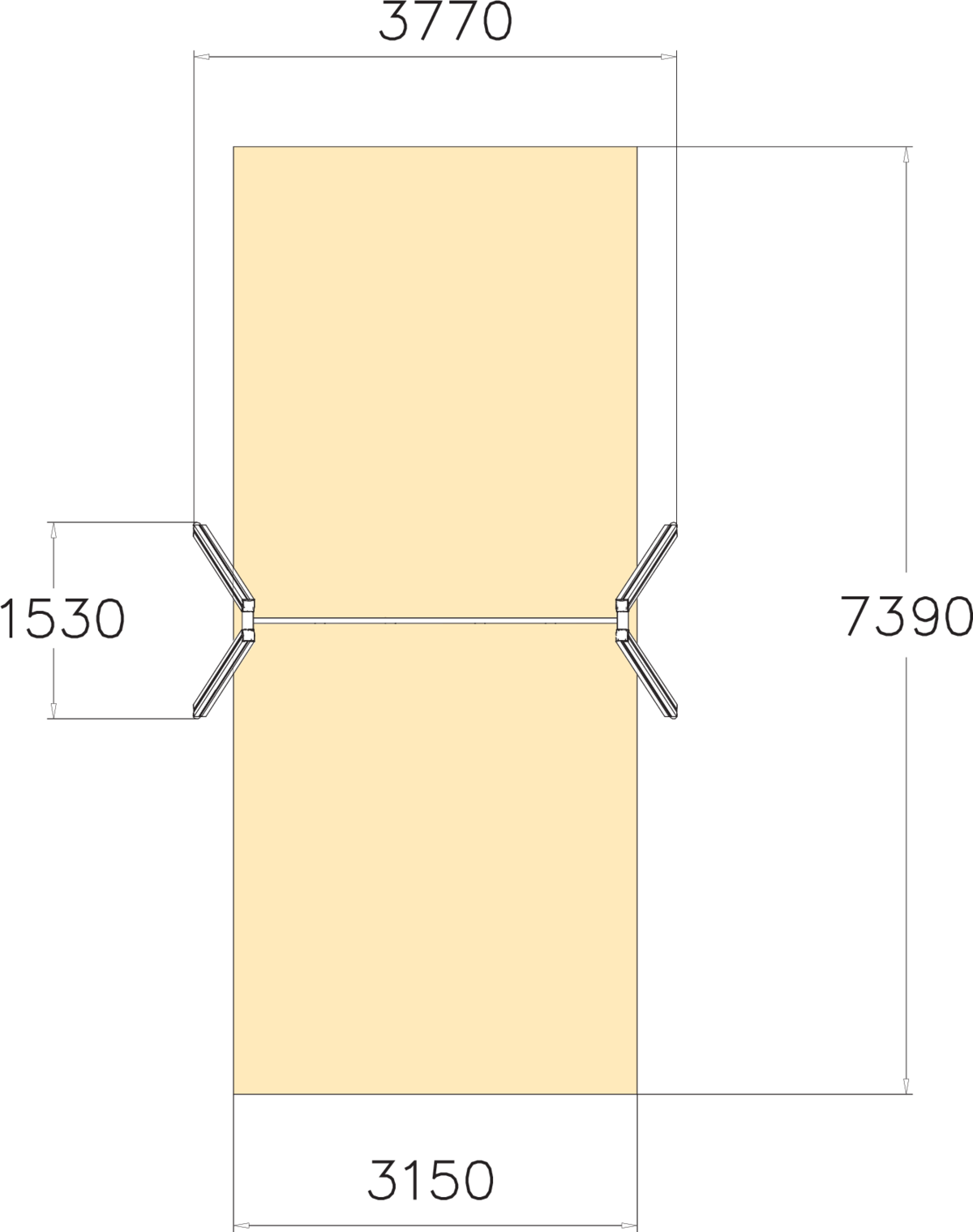

TOP VIEW 020414M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1200
Impact area, m²
23.3
Product height, mm
2300
Product lenght, mm
3770
Product width, mm
1530
Height required, mm
2700
IMPACT AREA LENGTH, MM
7390
IMPACT AREA WIDTH, MM
3150
