Home
/
spareparts
Spare parts
137415M

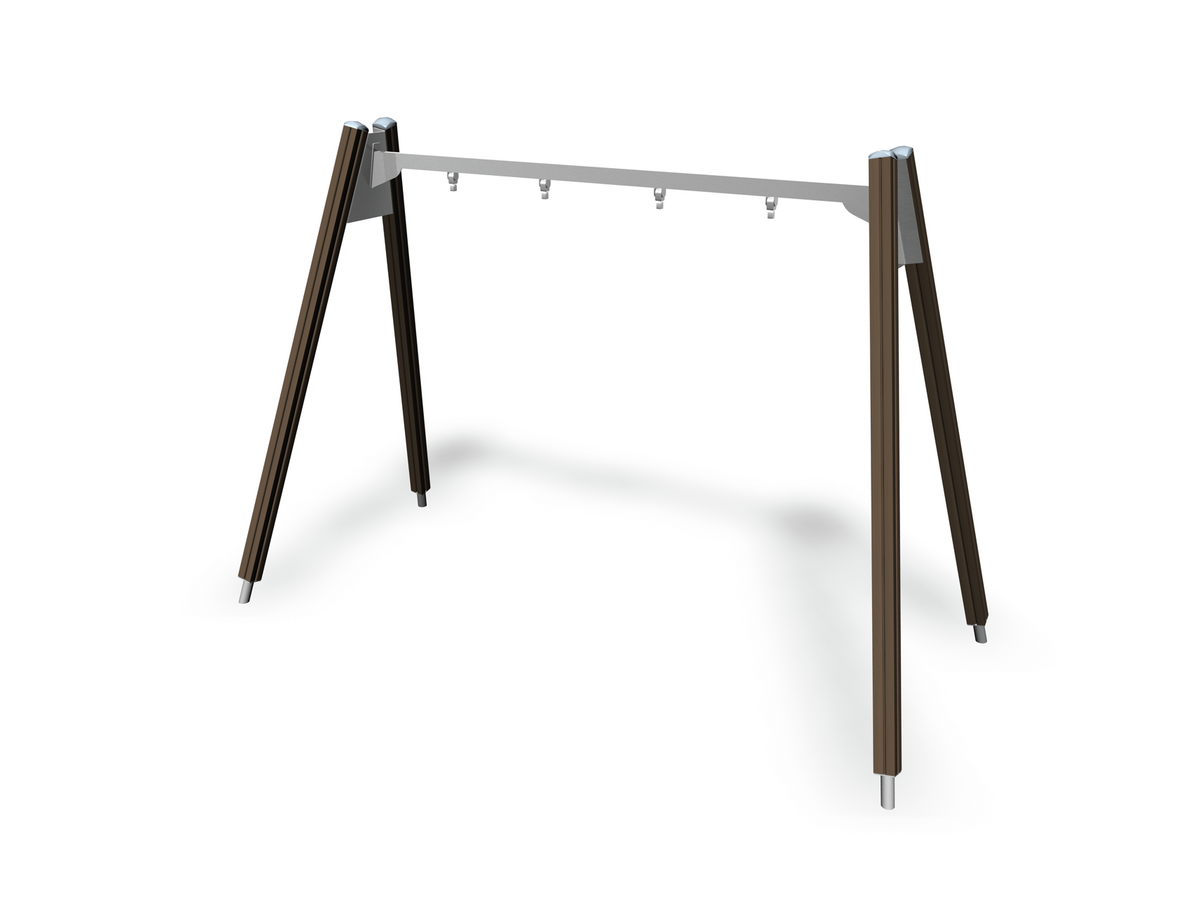

SWING FRAME FOR 2 HIGH
Downloads
Spare parts
Downloads
Technical information
Spare part sets
929531SP
SWING PLATE METAL FOUNDATION PLATES
Original product structure
Spare parts
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
706564-602
706564-602SP
SWING POST 93x93x2650 DARK BROWN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137415M (.dwg)
SIDE VIEW 137415M (.dwg)
TOP VIEW 137415M (.dwg)
Technical information
User age
4+

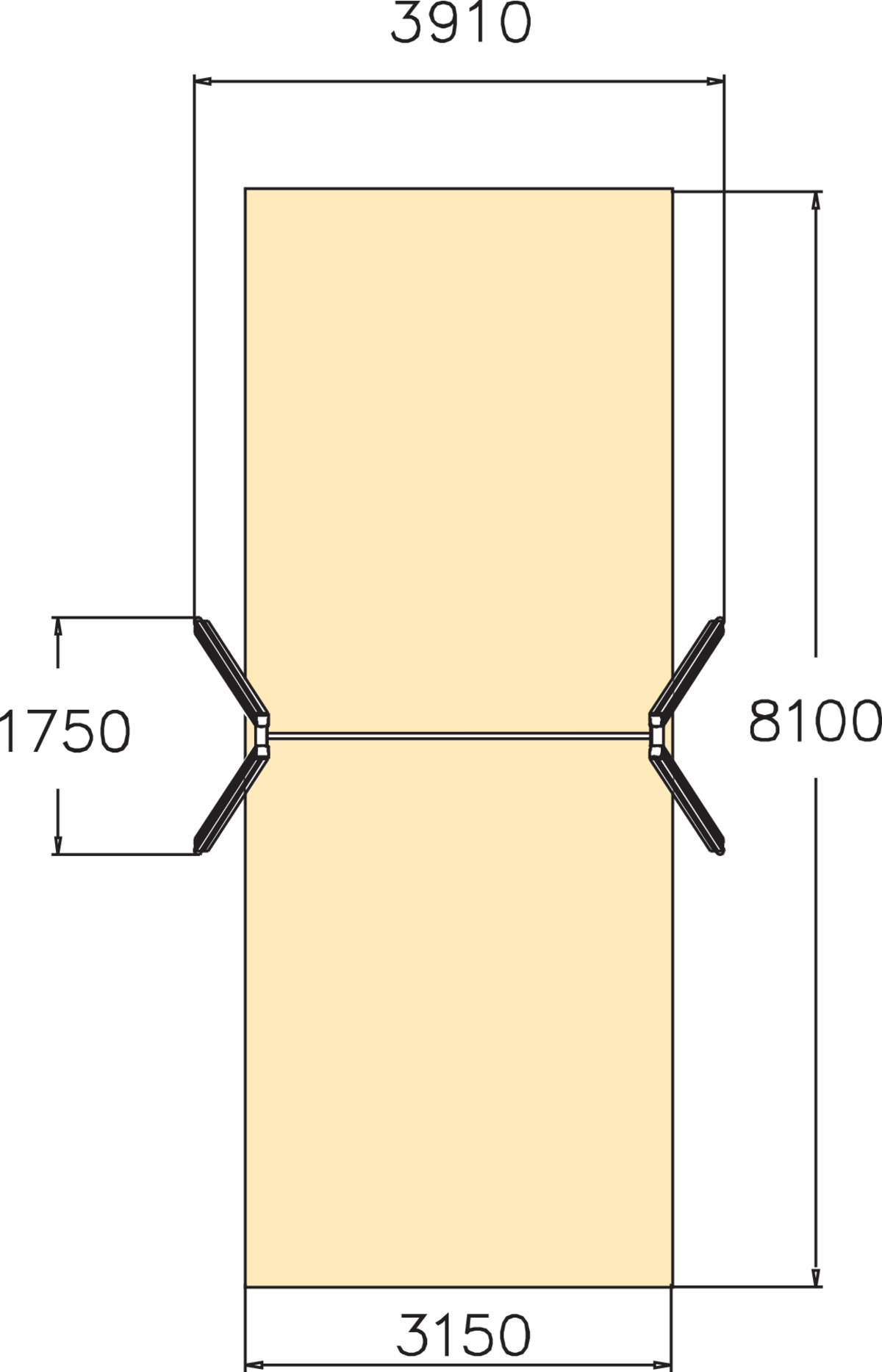

FALLING SPACE LENGTH, MM
8100
FALLING SPACE WIDTH, MM
3150
Max. free fall height, mm
1400
Impact area, m²
25.5

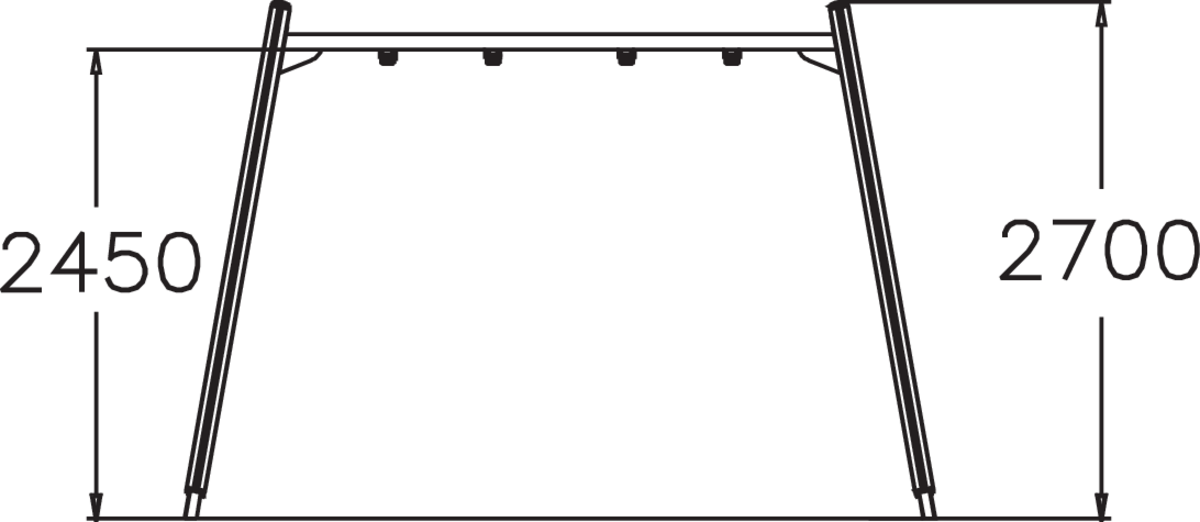

Product height, mm
2700
Product lenght, mm
3910
Product width, mm
1750
Height required, mm
2900
IMPACT AREA LENGTH, MM
8100
IMPACT AREA WIDTH, MM
3150
