Home
/
spareparts
Spare parts

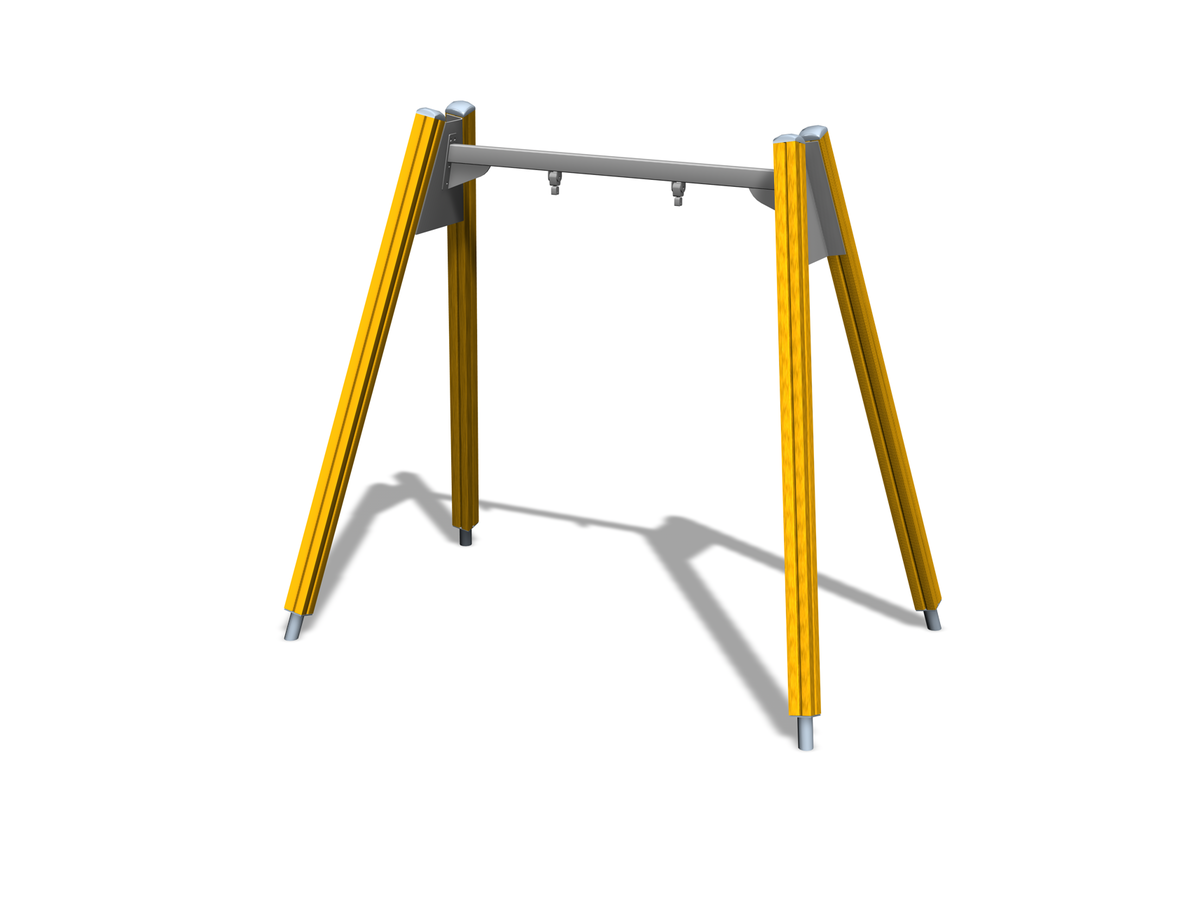

020412M
SWING FRAME FOR 1
Downloads
Spare parts
Downloads
Technical information
Spare part sets
929531SP
SWING PLATE METAL FOUNDATION PLATES
Original product structure
Spare parts
701767
701767SP
SWING POST 93X93X2250 YELLOW
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
906216
BOOM 1690x 250x50 1 PERSON
906216
BOOM 1690x 250x50 1 PERSON
909511
909511SP
BASE PIPE 90x90x650
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
KEINUTELINE YHDELLE MAIN INSTALLATION INSTRUCTION (.dwg)

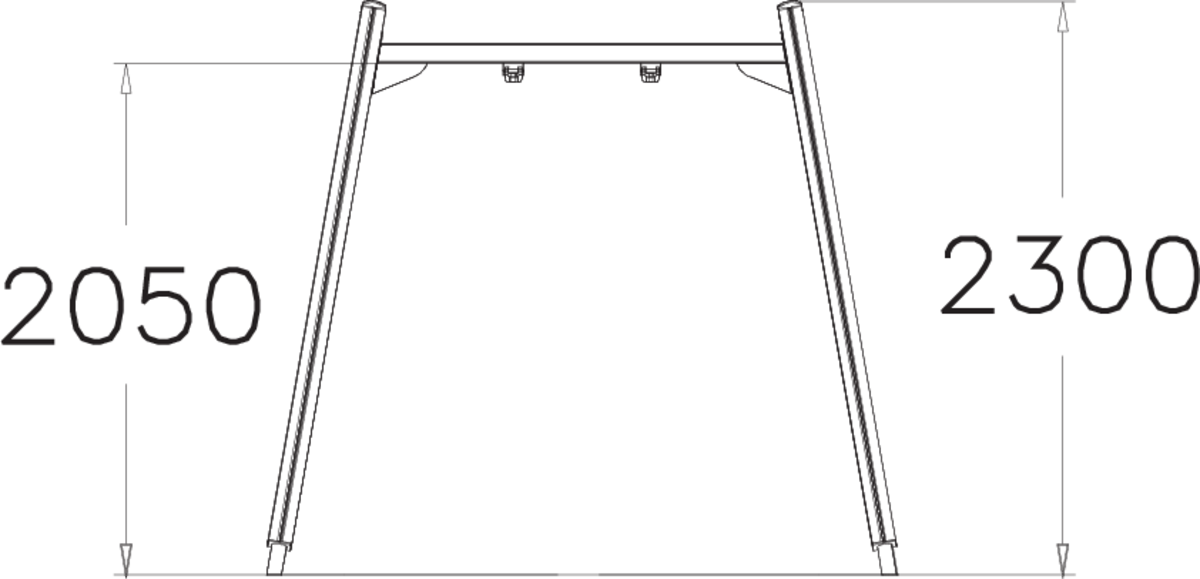

SIDE VIEW 020412M (.dwg)

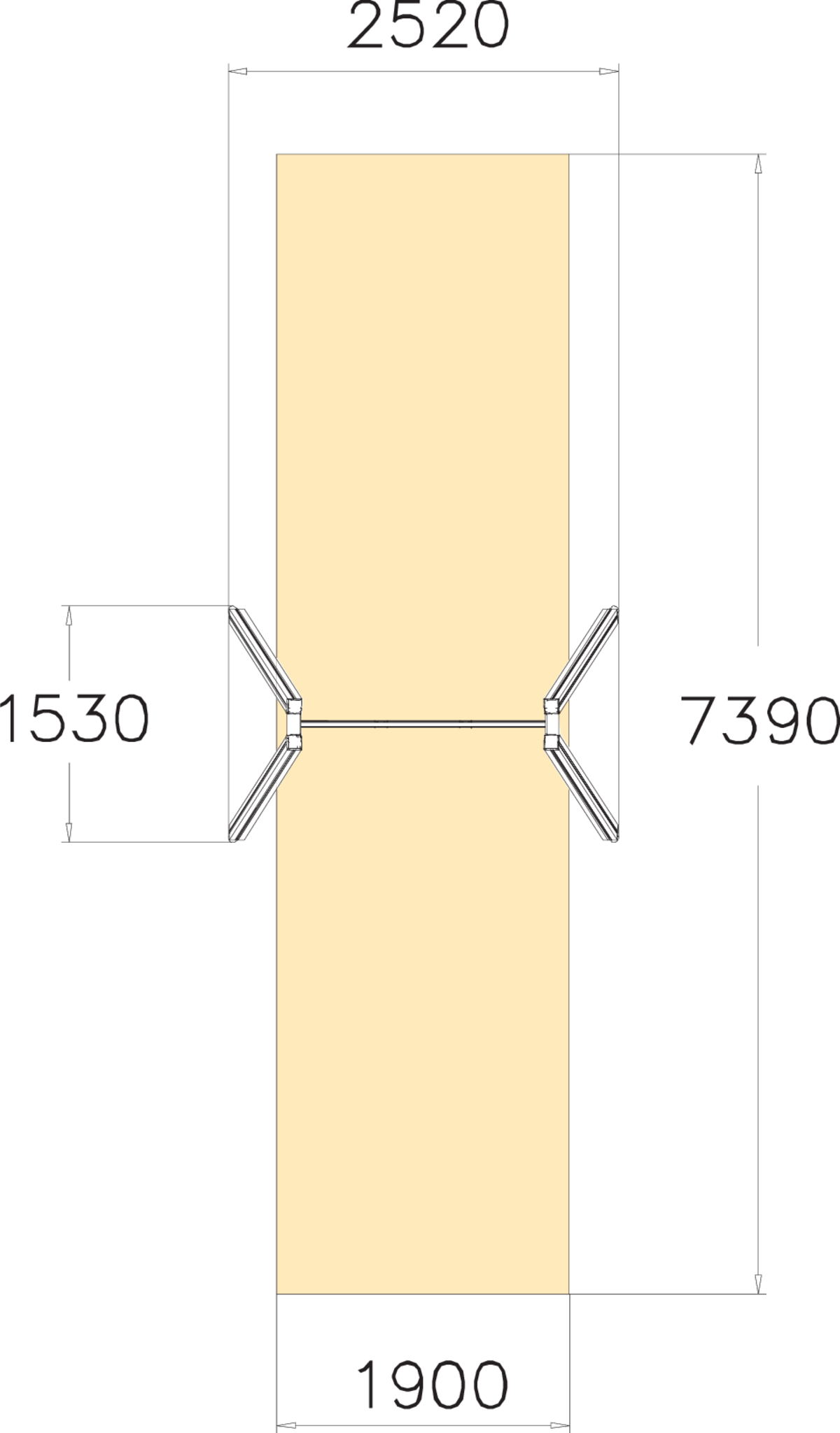

TOP VIEW 020412M (.dwg)
Technical information
User age
1
FALLING SPACE LENGTH, MM
7390
FALLING SPACE WIDTH, MM
1900
Max. free fall height, mm
1200
Impact area, m²
14
Product height, mm
2300
Product lenght, mm
1530
Product width, mm
2520
Height required, mm
2700
IMPACT AREA LENGTH, MM
7390
IMPACT AREA WIDTH, MM
1900
