Home
/
spareparts
Spare parts
220010

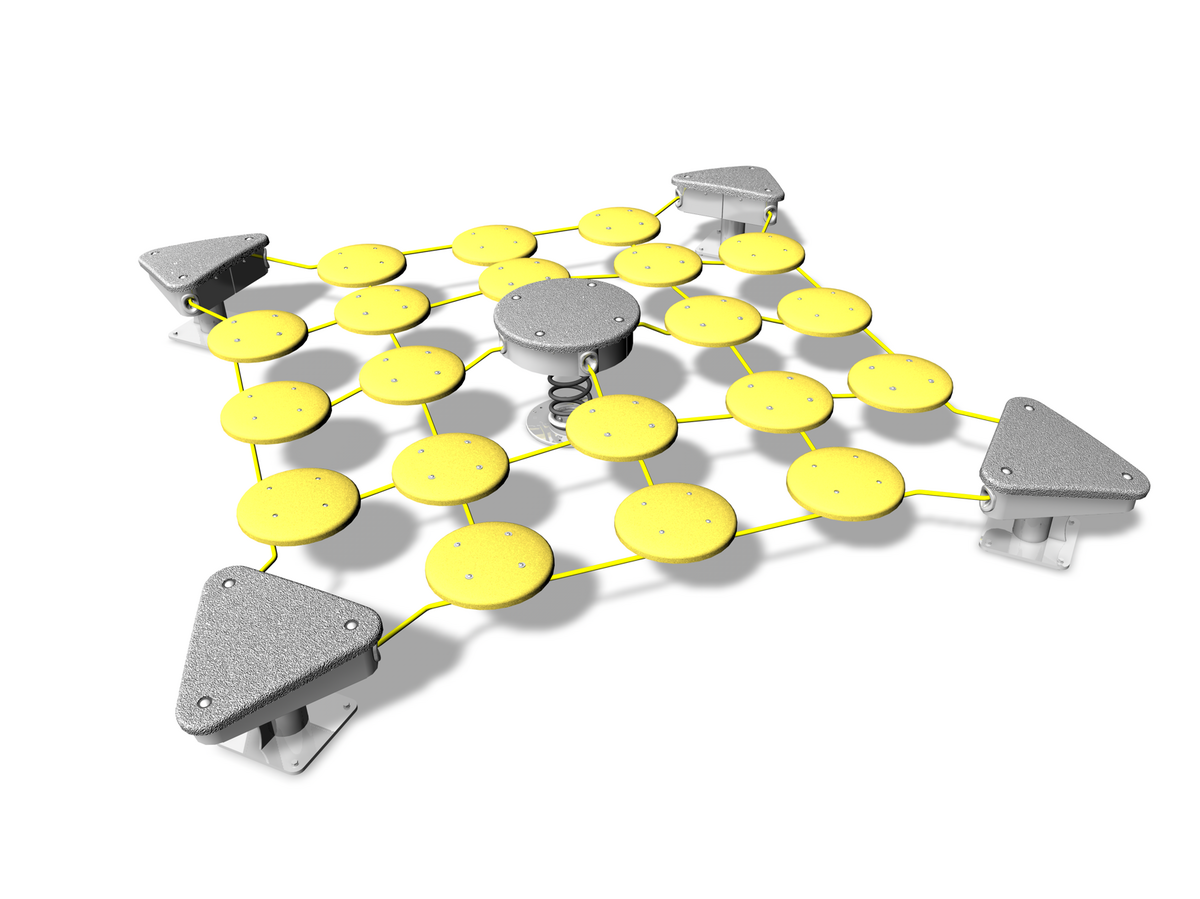

SURFY, YELLOW
Downloads
Spare parts
Downloads
Technical information
Spare part sets
900733SP
SEAT / STEP Ø450x85 BLUE
700376SP
NET 3520x3520x1130 SURFY BLUE W/O STEPS
Original product structure
Spare parts
700367
SPRING CONFIGURATION Ø640x550 SURFY
Open substructure
700367
SPRING CONFIGURATION Ø640x550 SURFY
700372
CORNER MODULE, 668x601x449
Open substructure
700372SP
CORNER MODULE 668x601x449 SURFY
702484
700376SP
NET 3520x3520x1130 SURFY BLUE W/O STEPS
Downloads
InstallationInstructions (.pdf)
SIDE VIEW 220010 (.dwg)
SURFY 3520x3520x500 (.dwg)
TOP VIEW 220010 (.dwg)
Technical information
User age
4
Max. free fall height, mm
1000
Impact area, m²
38.3

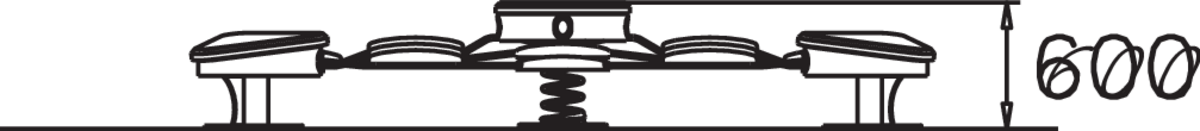

Product height, mm
600

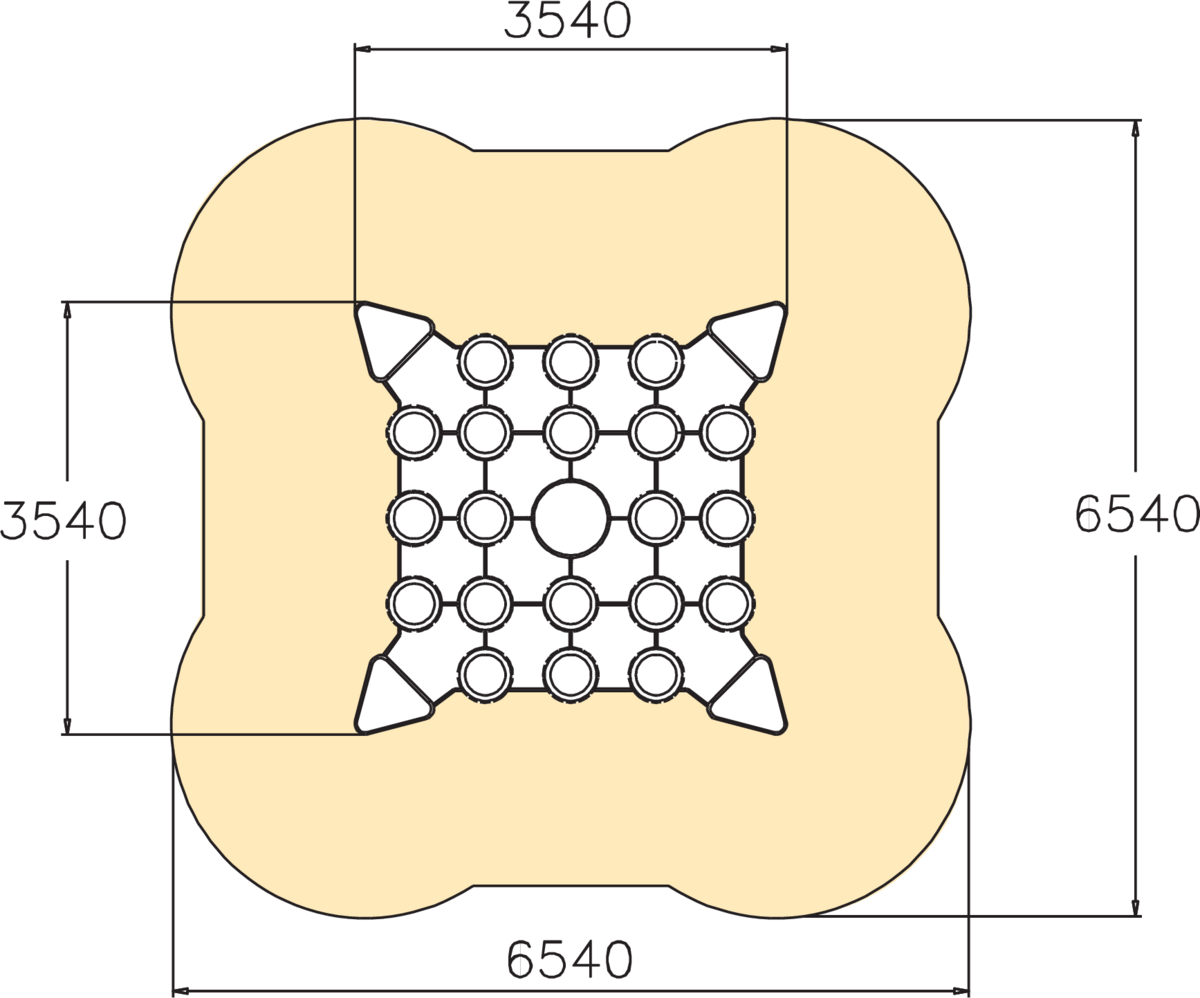

Product lenght, mm
3540
Product width, mm
3540
Height required, mm
2350
IMPACT AREA LENGTH, MM
6540
IMPACT AREA WIDTH, MM
6540
