Home
/
spareparts
Spare parts
175090

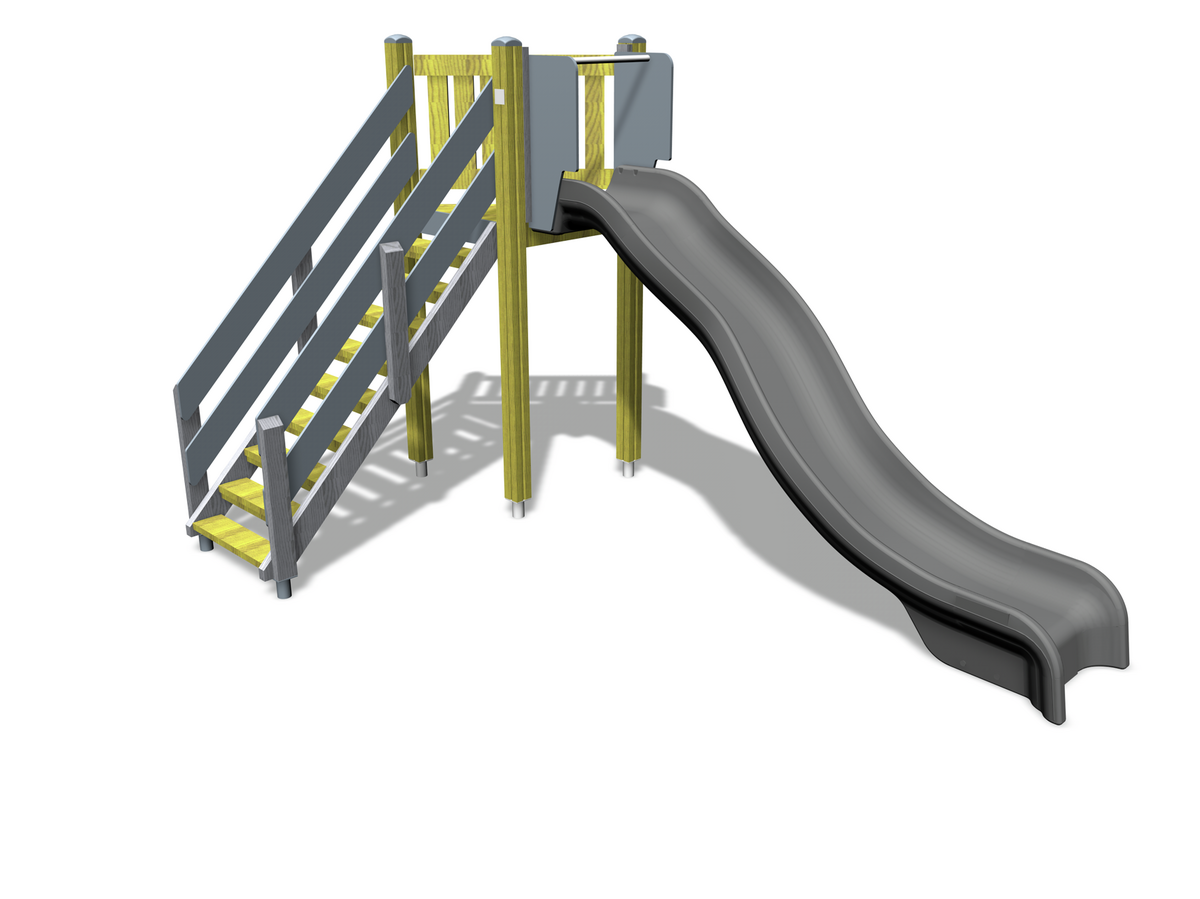

SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
904451SP
PLASTIC SLIDE +1470 DEEP GRAY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175090 (.dwg)
SIDE VIEW (.dwg)
TOP VIEW (.dwg)
Technical information
User age
2+

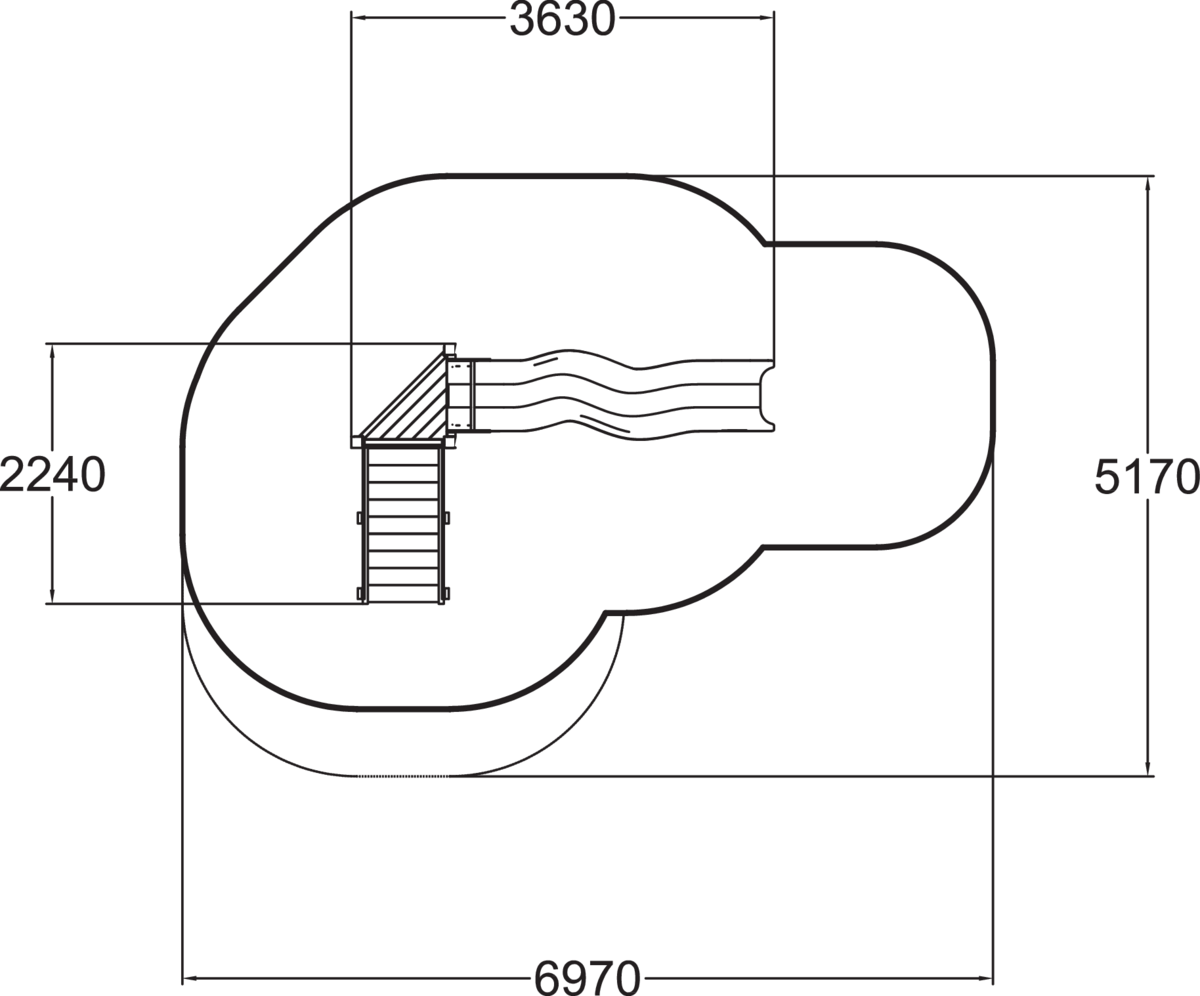

FALLING SPACE LENGTH, MM
6970
FALLING SPACE WIDTH, MM
5170

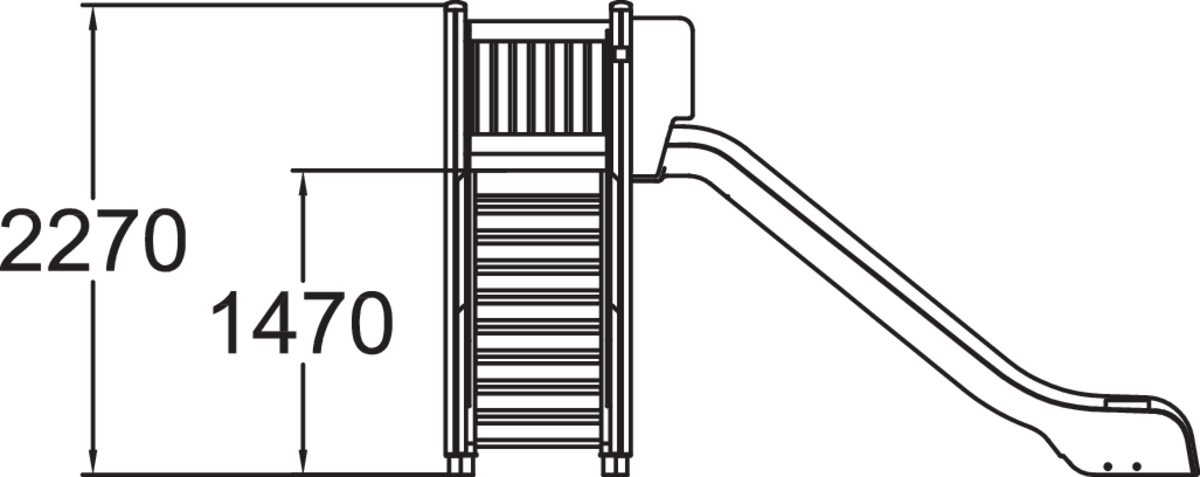

Max. free fall height, mm
1470
Impact area, m²
24
Product height, mm
2260
Product lenght, mm
3640
Product width, mm
2240
Height required, mm
3270
IMPACT AREA LENGTH, MM
7060
IMPACT AREA WIDTH, MM
3800
