Home
/
spareparts
Spare parts
175089

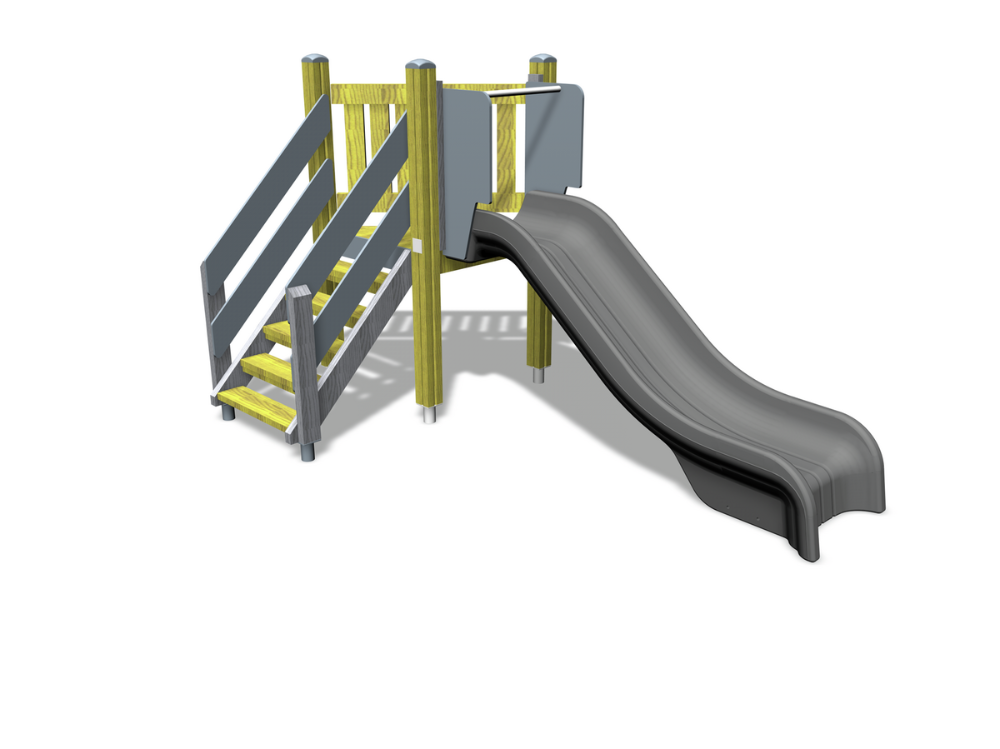

SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
905833SP
PLASTIC SLIDE +870 DEEP GREY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706527
706527SP
POST 93x93x1600 IMPREGNATED
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175089 (.dwg)

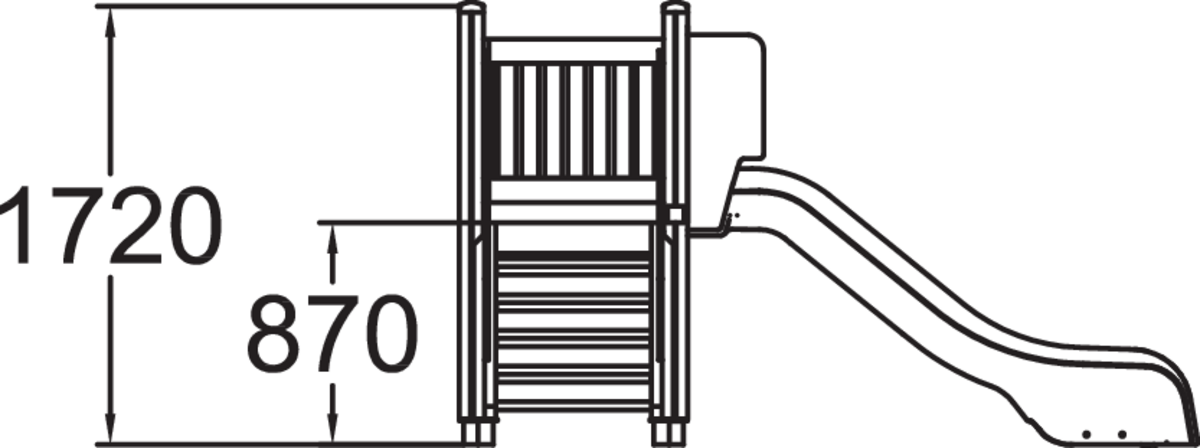

SIDE VIEW (.dwg)

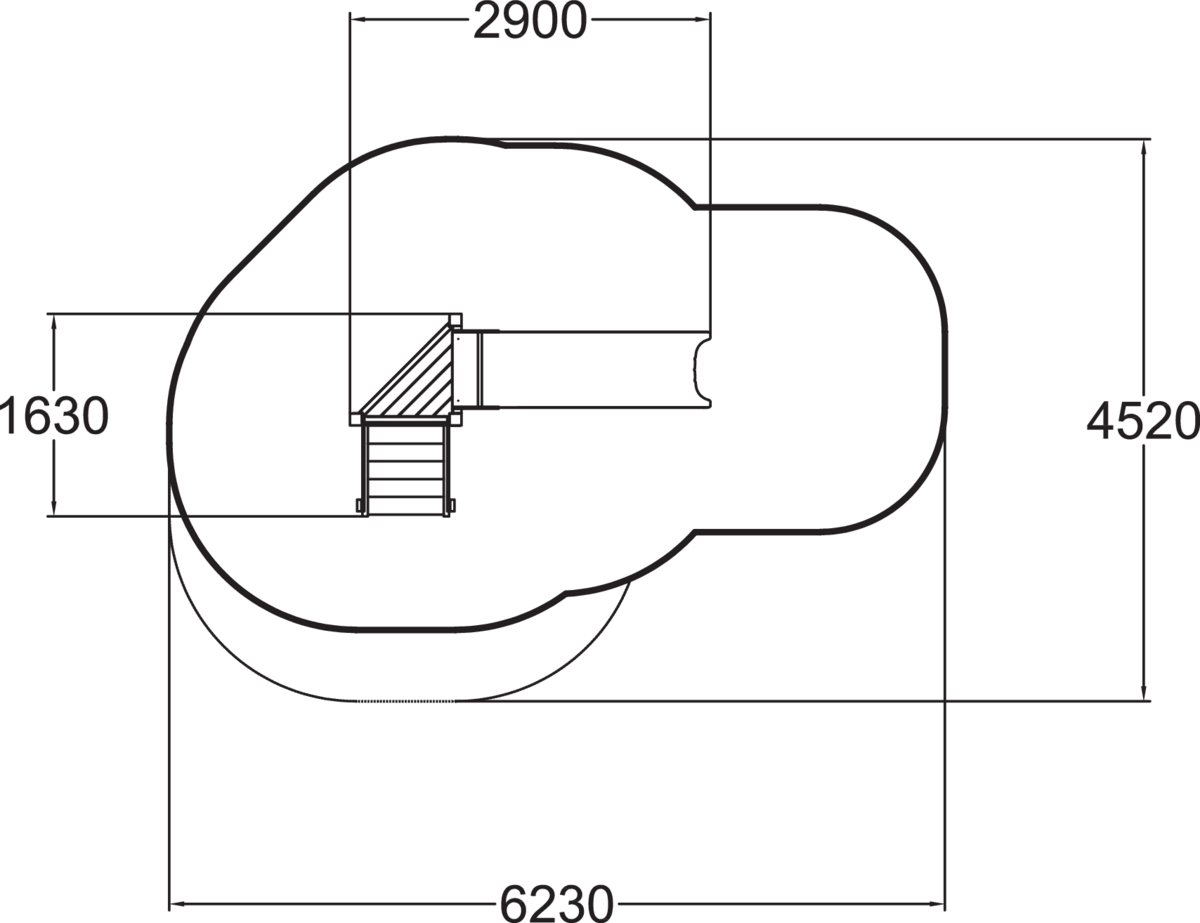

TOP VIEW (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
6230
FALLING SPACE WIDTH, MM
4520
Max. free fall height, mm
1000
Impact area, m²
19
Product height, mm
1710
Product lenght, mm
2900
Product width, mm
1630
Height required, mm
2670
IMPACT AREA LENGTH, MM
6230
IMPACT AREA WIDTH, MM
4520
