Home
/
spareparts
Spare parts
175031
SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
905833SP
PLASTIC SLIDE +870 DEEP GREY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706746
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175031 (.dwg)
SIDE VIEW (.dwg)
TOP VIEW (.dwg)
Technical information
User age
3+

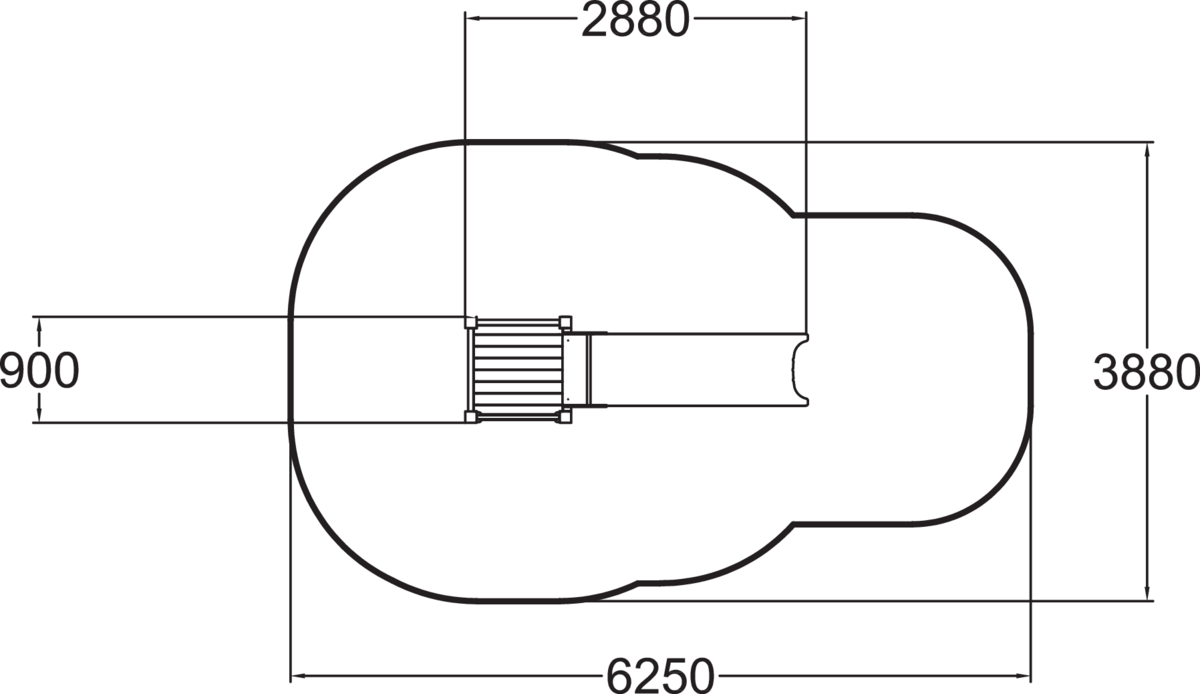

FALLING SPACE LENGTH, MM
6250
FALLING SPACE WIDTH, MM
3880
Max. free fall height, mm
1000
Impact area, m²
20
Product height, mm
1660
Product lenght, mm
2900
Product width, mm
900
Height required, mm
2670
IMPACT AREA LENGTH, MM
6250
IMPACT AREA WIDTH, MM
3880
