Home
/
spareparts
Spare parts
175029
SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
904451SP
PLASTIC SLIDE +1470 DEEP GRAY
704777-705SP
RAIL 80M PLASTIC AND LAMINATED SLIDE GREY
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703139
ROOF
703139
ROOF
703332
POST 93x93x2850 IMPREGNATED
703332
POST 93x93x2850 IMPREGNATED
703333
POST 93x93x3150 IMPREGNATED
703333
POST 93x93x3150 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706746
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909521
BASE FOOT, L=700
Open substructure
909521SP
BASE FOOT, L=700
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175029 (.dwg)

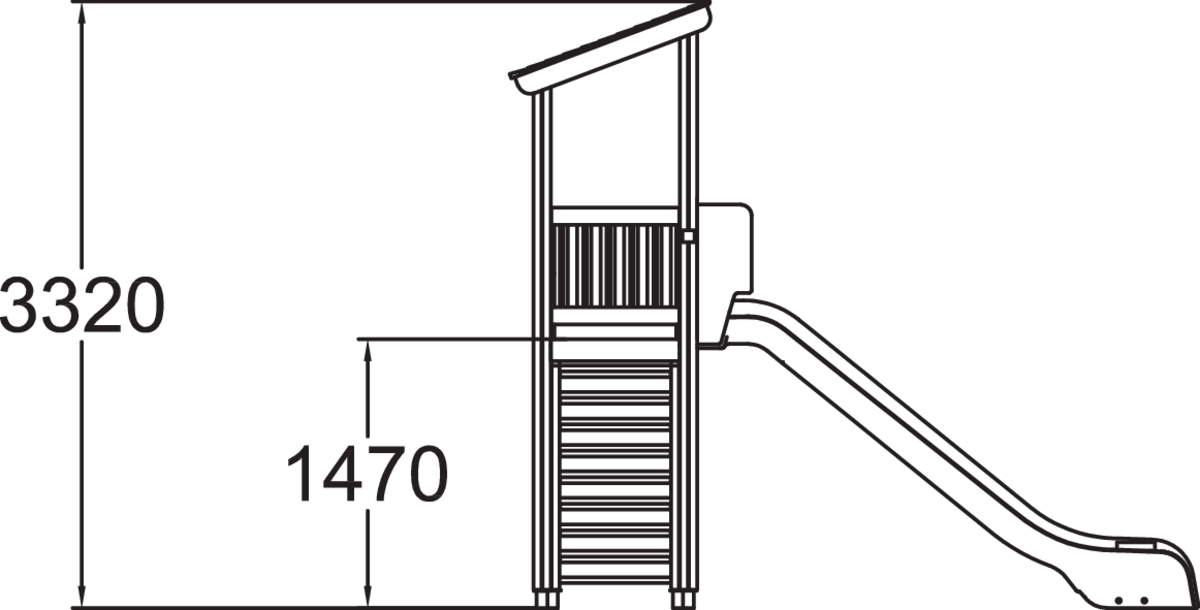

SIDE VIEW (.dwg)

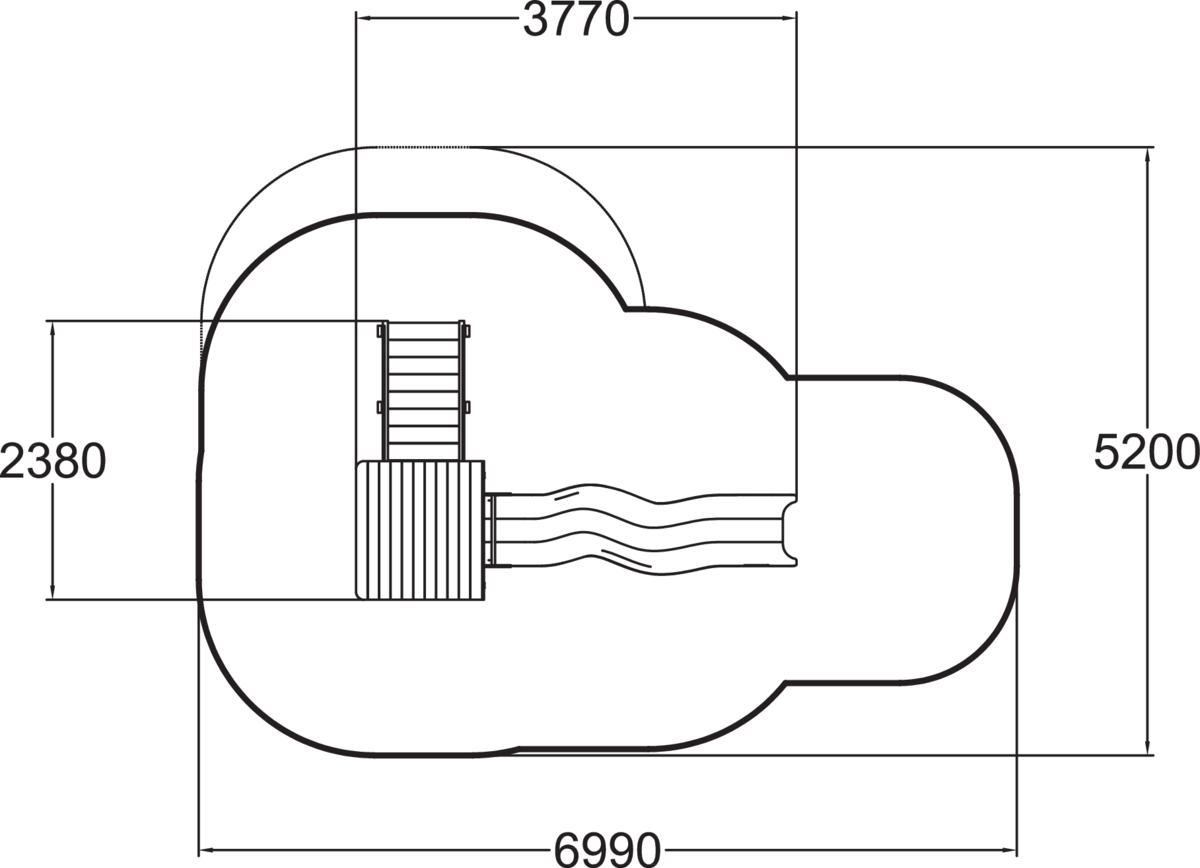

TOP VIEW (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
6990
FALLING SPACE WIDTH, MM
5200
Max. free fall height, mm
1470
Impact area, m²
25
Product height, mm
3320
Product lenght, mm
3770
Product width, mm
2380
Height required, mm
3320
IMPACT AREA LENGTH, MM
6990
IMPACT AREA WIDTH, MM
5200
