Home
/
spareparts
Spare parts

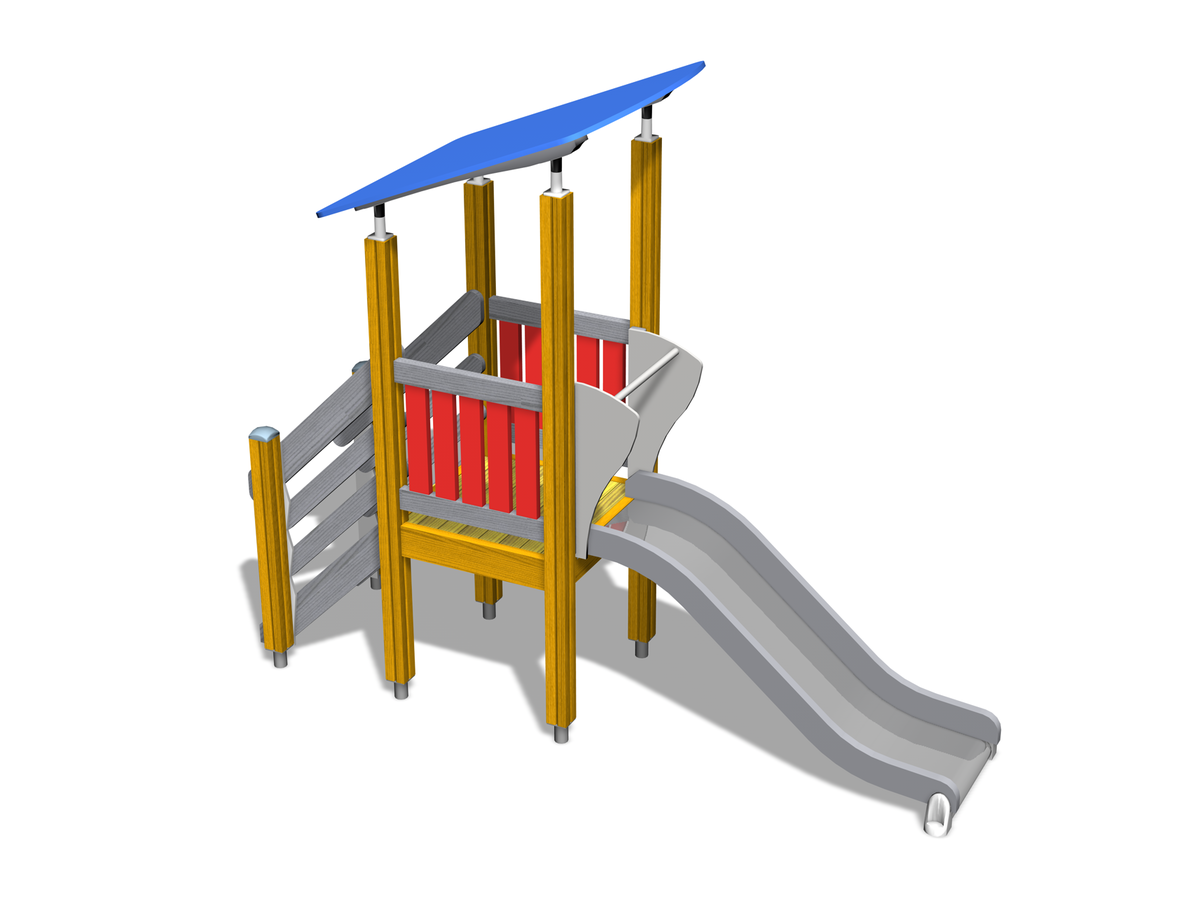

142015M
SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701464
POST, 95x95x2050 YELLOW
701464
POST, 95x95x2050 YELLOW
701467
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701478
701478SP
BOOM 45x145x724 YELLOW
701553
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701591
706746-607SP
WALL WOOD 80M 45x640x701 RED
701600
705955-701SP
ROOF PLATES BLUE
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
707201
STAIR +870 OLD GREY
Open substructure
707146-705
707145-604
POST 43x93x717 GREY STAIRS 20
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707191-604
STAIR ELEMENT +870 STAIR GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
008710
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

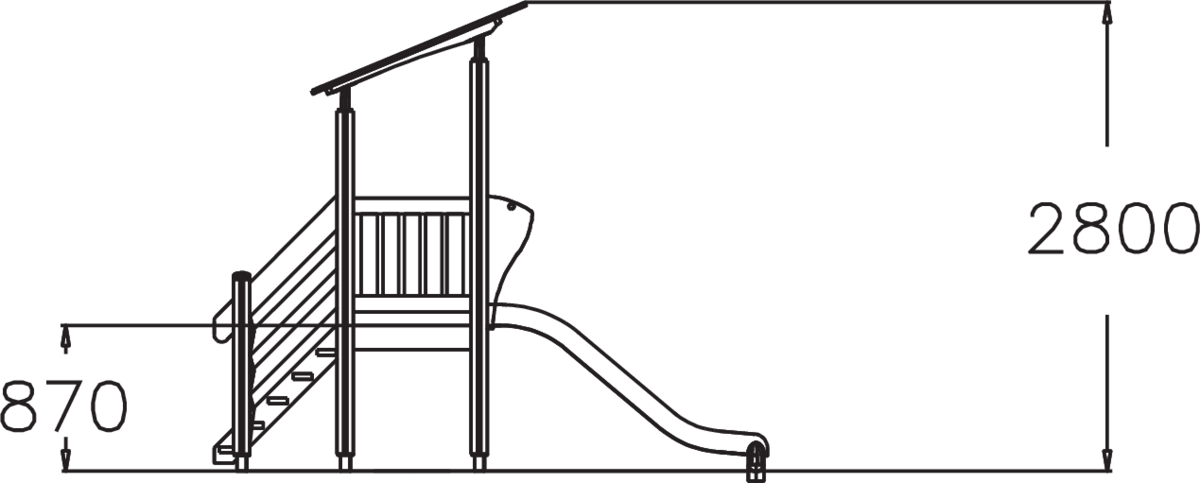

SIDE VIEW 142015M (.dwg)
SLIDE (.dwg)

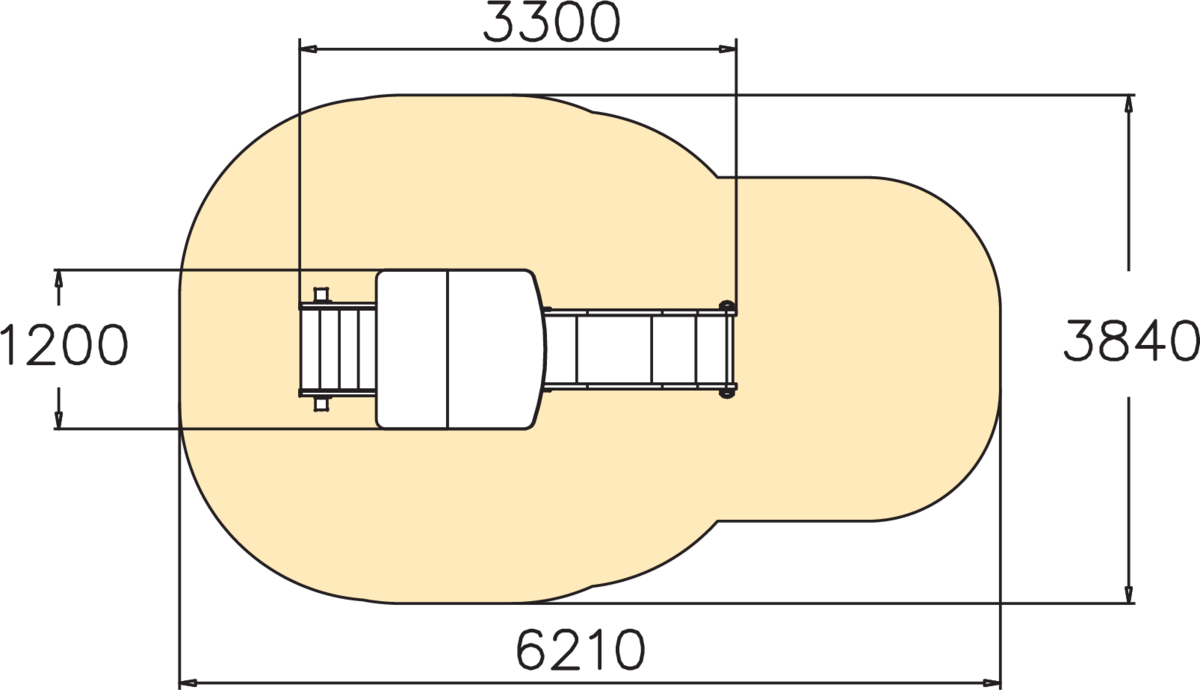

TOP VIEW 142015M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1000
Impact area, m²
19.1
Product height, mm
2800
Product lenght, mm
3300
Product width, mm
1200
Height required, mm
2800
IMPACT AREA LENGTH, MM
6210
IMPACT AREA WIDTH, MM
3840
