Home
/
spareparts
Spare parts

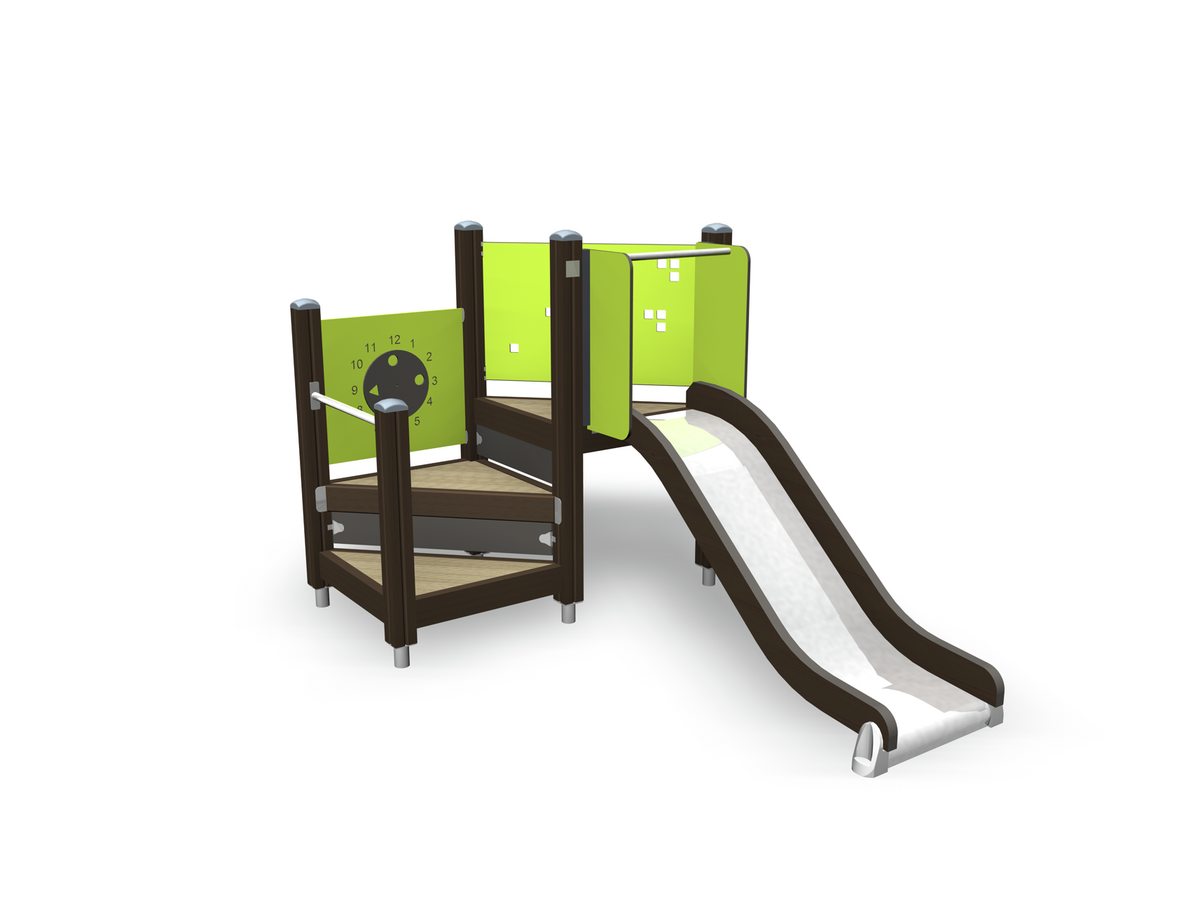

137338M
SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701401
701401SP0
POST 93X93X1250 IMPREGNATED
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706452
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706894
POST 93x93x950 IMPREGNATED
706894
POST 93x93x950 IMPREGNATED
706896
PLATE 15x150x703 DARK GREY
706896
PLATE 15x150x703 DARK GREY
706898
PLATE 15x150x1003 DARK GREY
706898
PLATE 15x150x1003 DARK GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
907694
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137338M (.dwg)

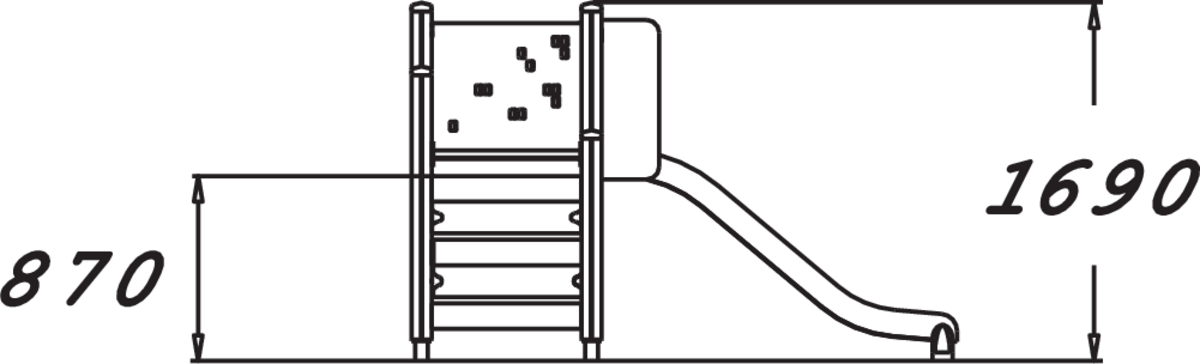

SIDE VIEW 137338M (.dwg)

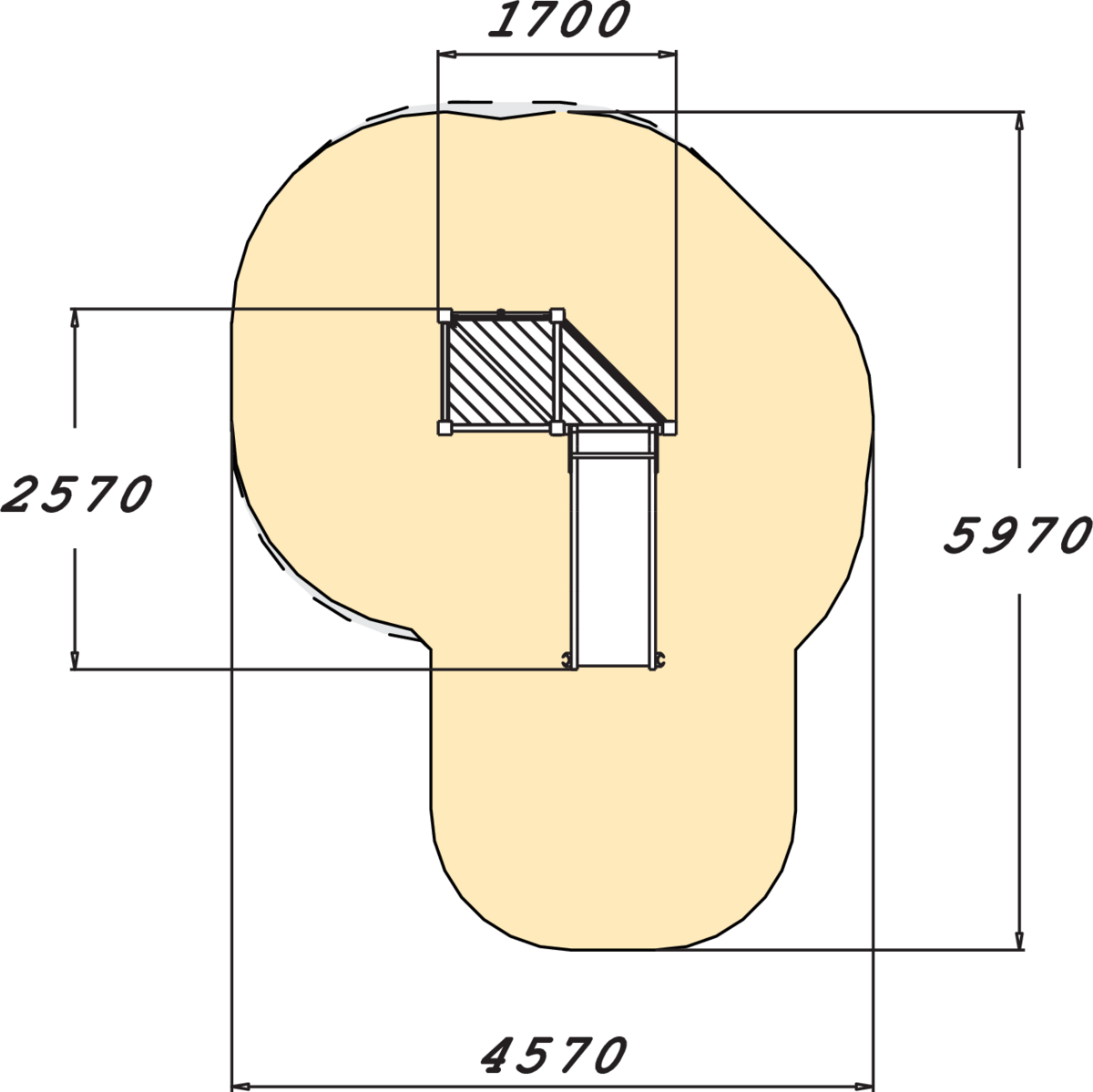

TOP VIEW 137338M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
4570
FALLING SPACE WIDTH, MM
6040
Max. free fall height, mm
1000
Impact area, m²
20
Product height, mm
1690
Product lenght, mm
1700
Product width, mm
2570
Height required, mm
2670
IMPACT AREA LENGTH, MM
4570
IMPACT AREA WIDTH, MM
5970
