Home
/
spareparts
Spare parts

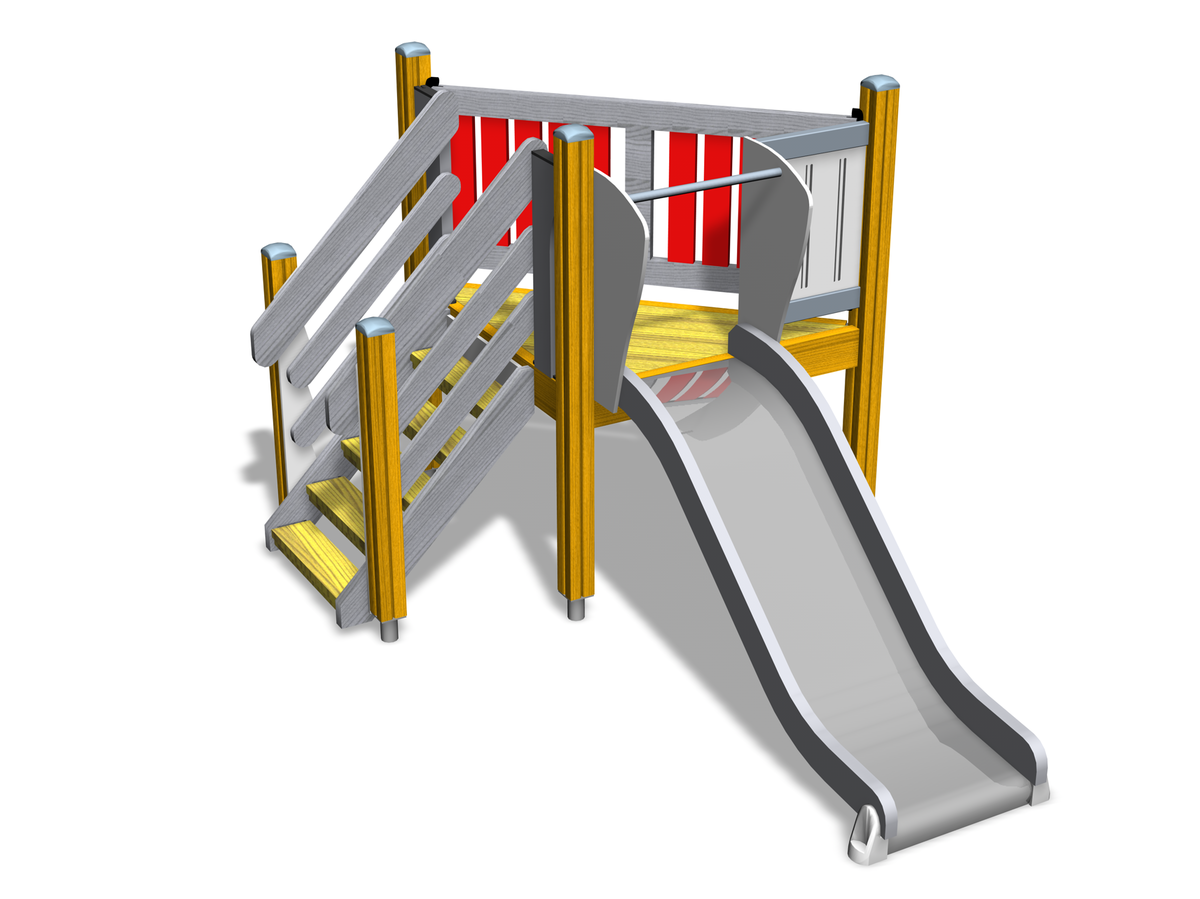

120338M
SLIDE
Downloads
Spare parts
Downloads
Technical information
Spare part sets
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
701422
703327SP
POST 93x93x1650 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701569
003886SP
TRIANGLE FLOOR 120M
701574
BOOM DIAGONAL 120M YELLOW
701574
BOOM DIAGONAL 120M YELLOW
701582
701582SP
ADAPTER 120M TO 80M GREY
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702572
702572SP
HANDRAIL 120M SLIDE GREY
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003780
P10500-604SP
WALL 120MD 45x680x1550 GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
LIUKUMÄKI (.dwg)

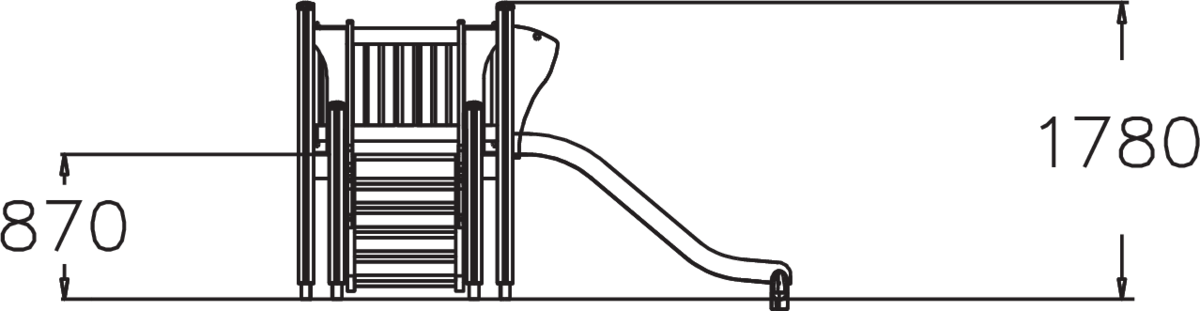

SIDE VIEW 120338M (.dwg)

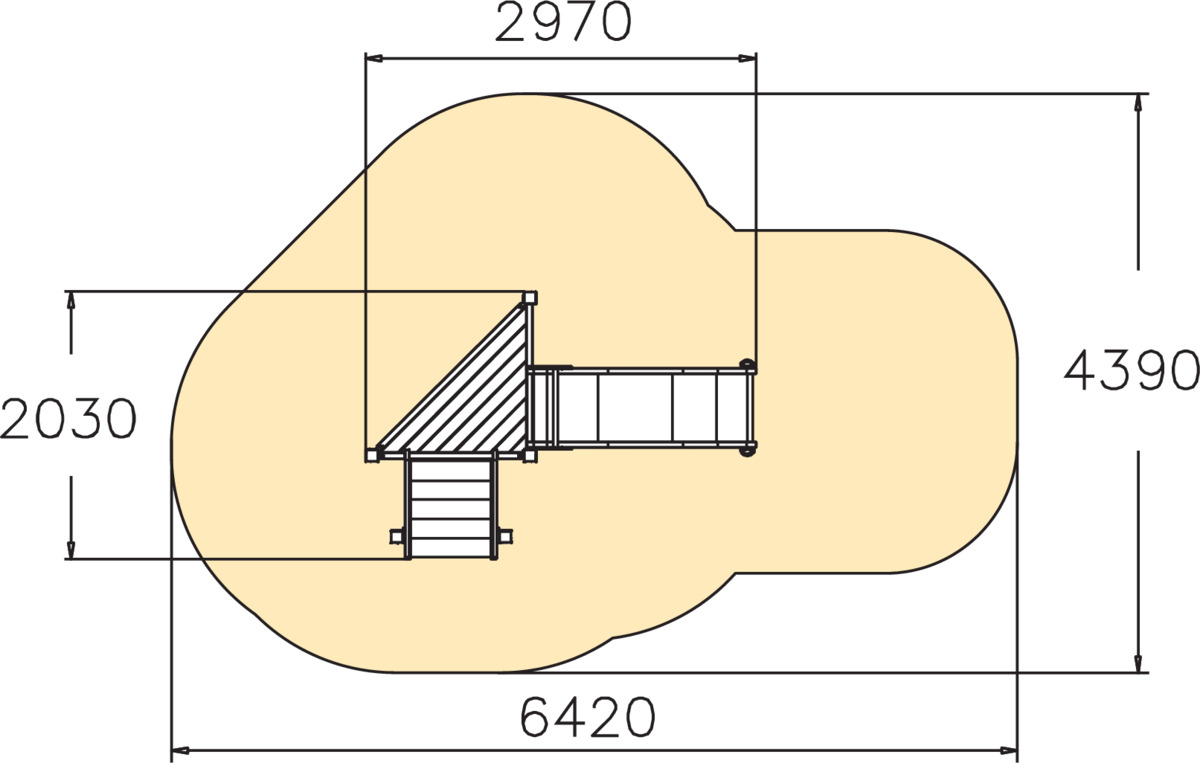

TOP VIEW 120338M (.dwg)
Technical information
User age
1
Max. free fall height, mm
1000
Impact area, m²
20.1
Product height, mm
1780
Product lenght, mm
2970
Product width, mm
2030
Height required, mm
2670
IMPACT AREA LENGTH, MM
6420
IMPACT AREA WIDTH, MM
4390
