Home
/
spareparts
Spare parts
137770M

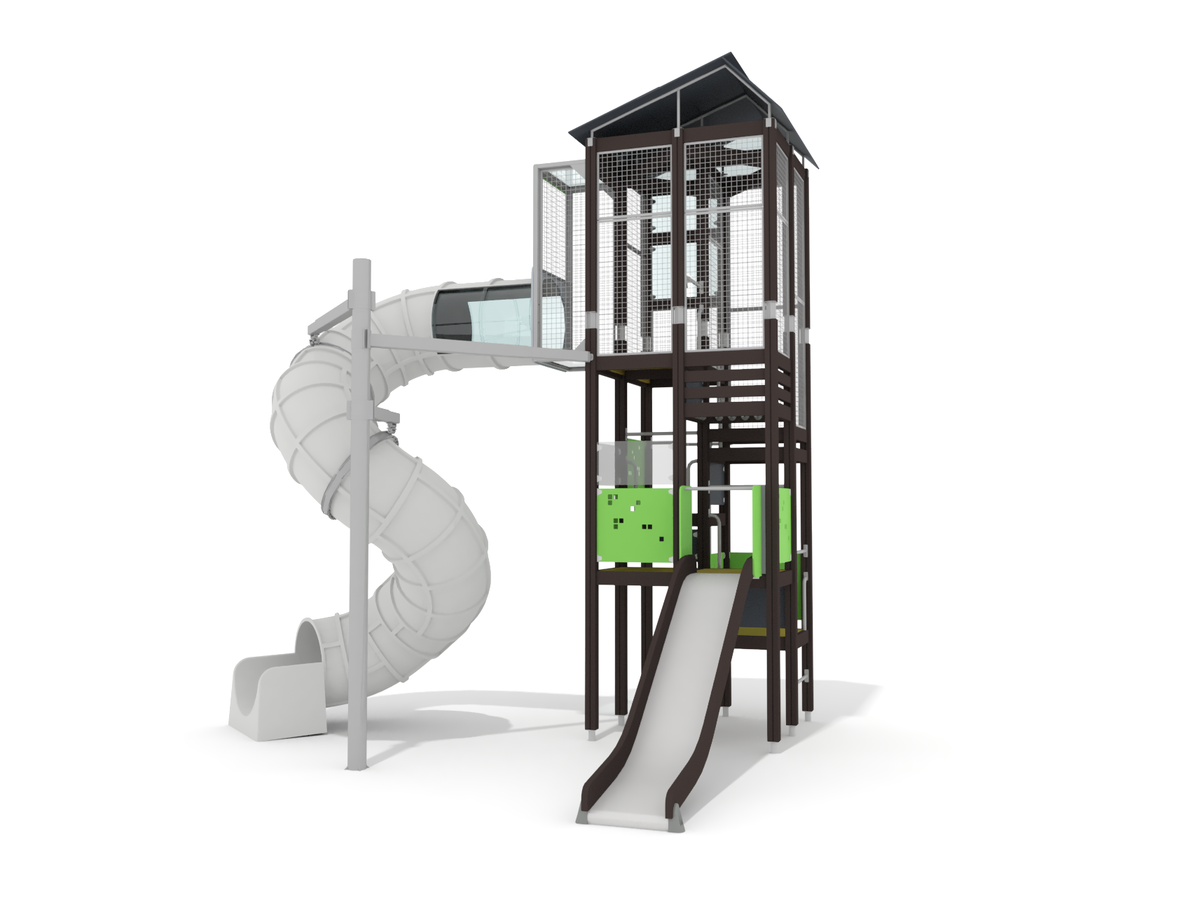

SKYLINE MEDIUM
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
703338
BOOM 45x95x724 IMPREGNATED
703338
BOOM 45x95x724 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706461
PLATE 15x400x703 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706527
706527SP
POST 93x93x1600 IMPREGNATED
707732
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
909491
EXTENSION FOOT 90x90x150
909491
EXTENSION FOOT 90x90x150
909519
909519SP
PLATE 50x380x380 FOOTING
708902-707
FRAME 870x80x10 GREEN
708902-707
FRAME 870x80x10 GREEN
907694-216
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
706450-602
706450-602SP
SLIDE ELEMENT +1470 DARK BROWN DEEP
708900-707
FRAME 870x80x10 GREEN
708900-707
FRAME 870x80x10 GREEN
008986
008710SP
FLOOR 80M (008701)
706371-707
706371-707SP
SLIDE RAIL PLATE 15x747x343 GREEN
707590-305
707590-305SP
NET 755x755 BLACK
706436-707
706436-707SP
WALL LAMINATE 80M 10x640x701 GREEN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137770M (.dwg)

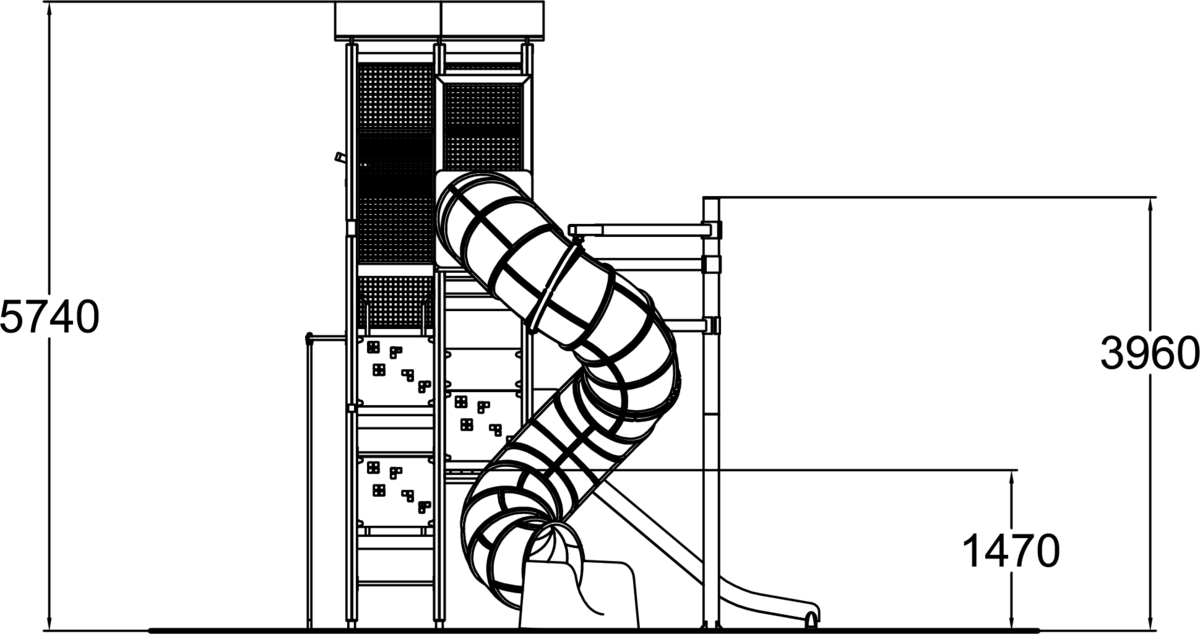

SIDE VIEW 137770M (.dwg)

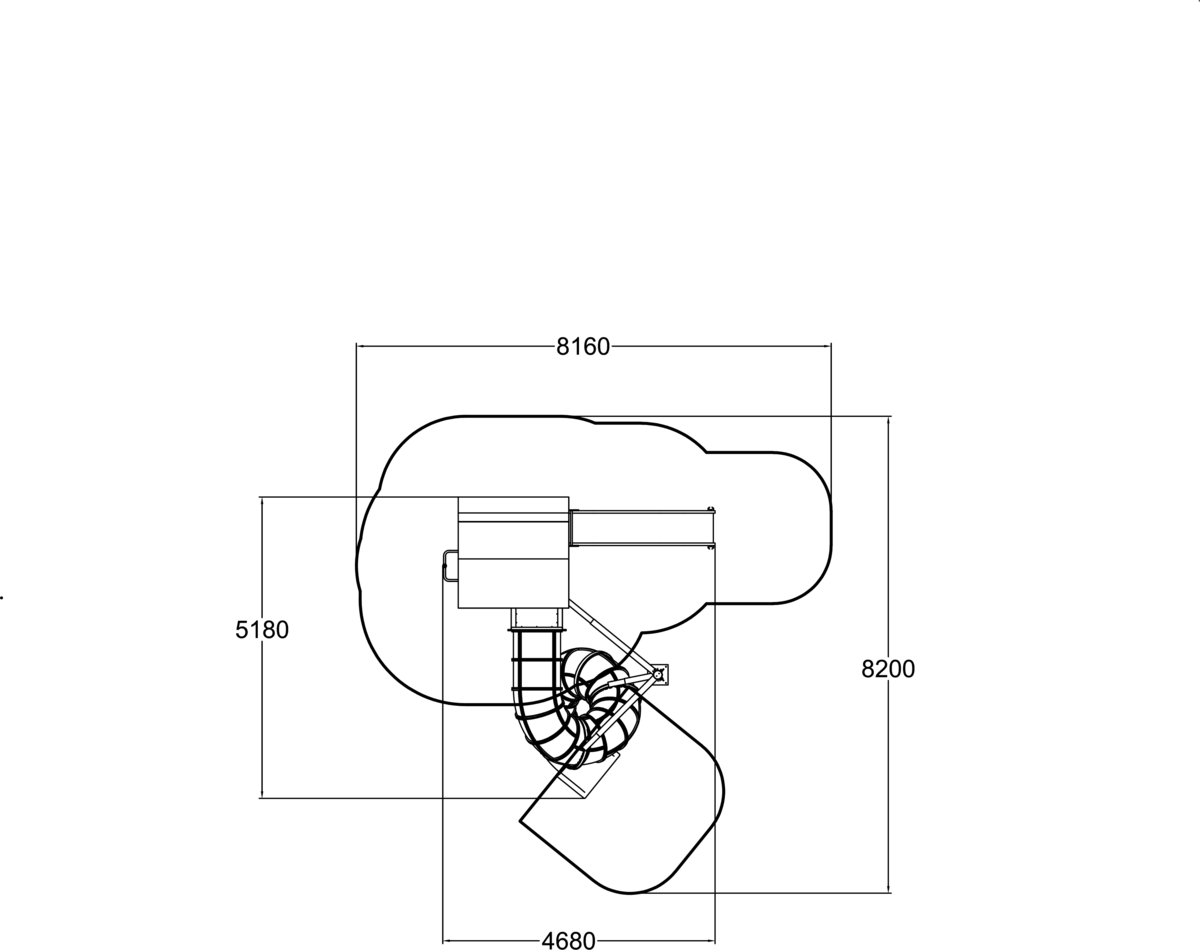

TOP VIEW 137770M (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
8210
FALLING SPACE WIDTH, MM
8100
Max. free fall height, mm
1970
Impact area, m²
38
Product height, mm
5740
Product lenght, mm
5140
Product width, mm
4680
Height required, mm
6000
IMPACT AREA LENGTH, MM
8210
IMPACT AREA WIDTH, MM
8100
