Home
/
spareparts
Spare parts
175571

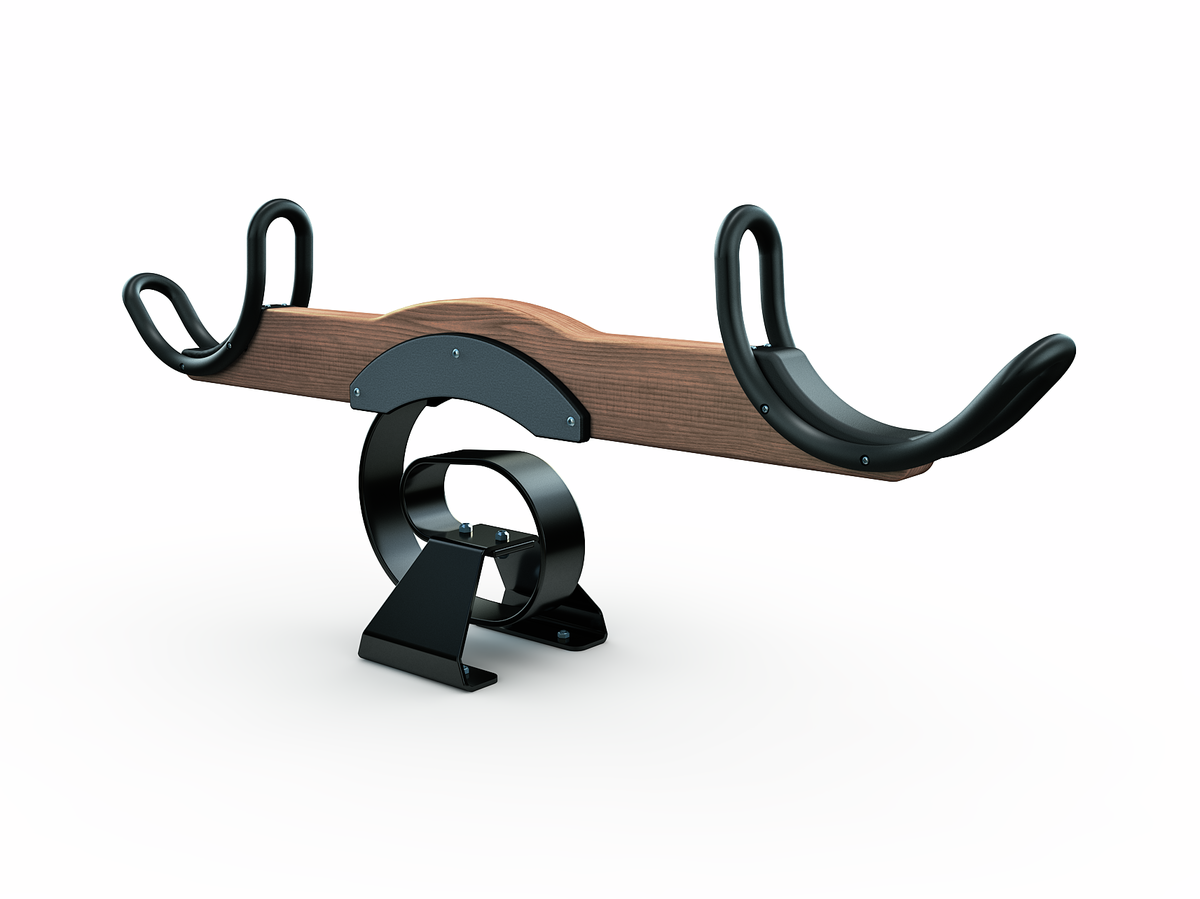

SEESAW
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
909895
909895SP
SEAT, 479x249x134
929450
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
929451
929451SP
PEDESTAL IRON 330x240x190
706738-704
SIDE PLATE 20x140x500 DARK GREY
706738-704
SIDE PLATE 20x140x500 DARK GREY
706737-614
706737-614SP
BOOM AND SPRING 1500x510x91 FLORA
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175571_175571B (.dwg)
SIDE VIEW 175571_175571B (.dwg)
TOP VIEW 175571_175571B (.dwg)
Technical information
User age
2+

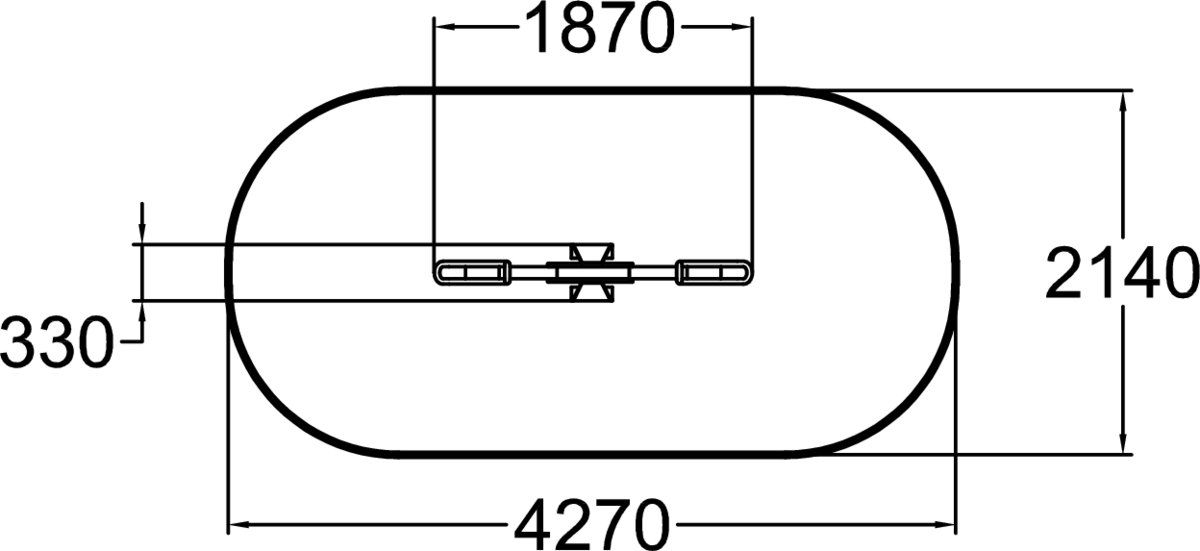

FALLING SPACE LENGTH, MM
4270
FALLING SPACE WIDTH, MM
2140
Max. free fall height, mm
590
Impact area, m²
8.3
Product height, mm
725
Product lenght, mm
1870
Product width, mm
330
Height required, mm
2500
IMPACT AREA LENGTH, MM
4270
IMPACT AREA WIDTH, MM
2140
