Home
/
spareparts
Spare parts
137840

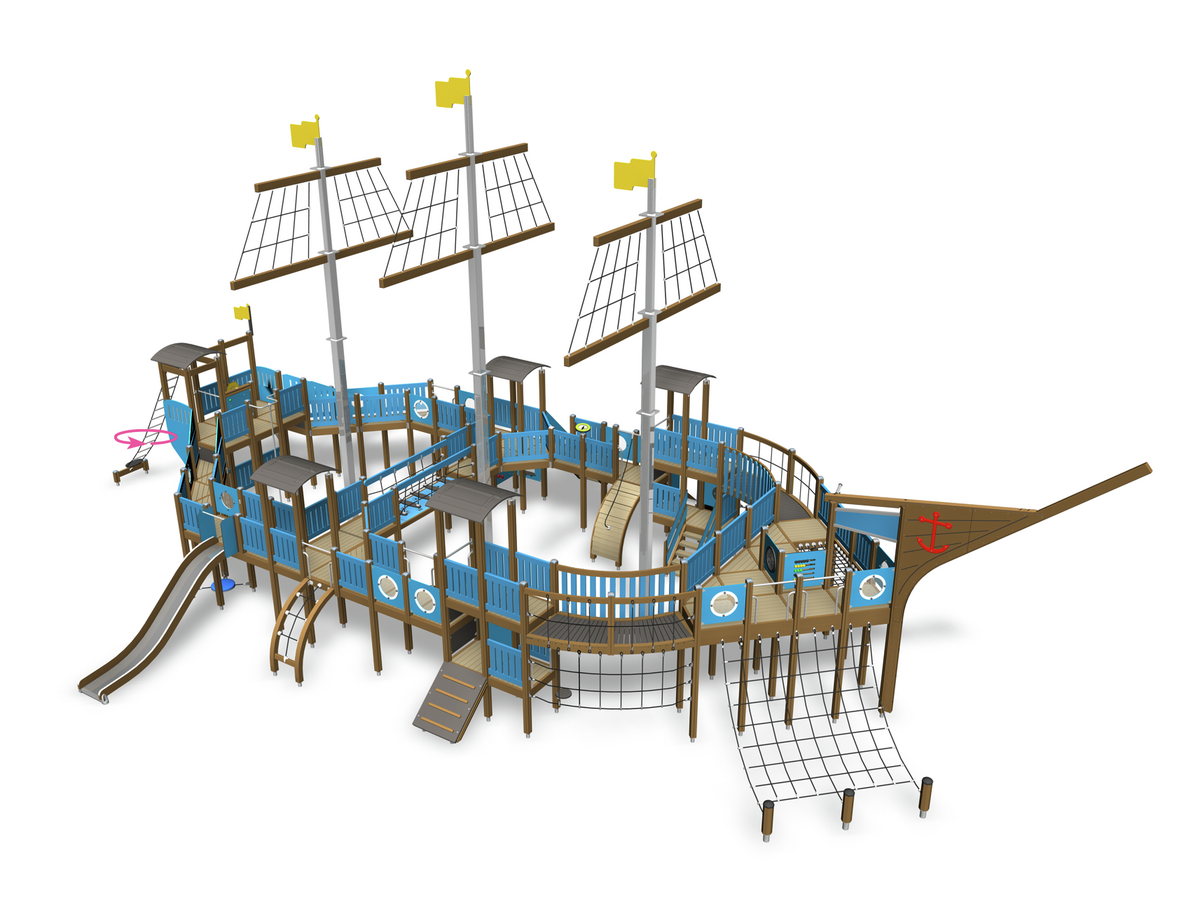

SANTA MARIA
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701088
MAT, 45x645x1698
701088
MAT, 45x645x1698
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706453
706453-704SP
STEP 15x145x600 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
707333
FASTENER KIT FUNCTION ELEMENT
707333
FASTENER KIT FUNCTION ELEMENT
707436
FLOOR 750x770 IMPREGNATED
707436
FLOOR 750x770 IMPREGNATED
707441
FLOOR 750x770 IMPREGNATED
707441
FLOOR 750x770 IMPREGNATED
707480
MAST 9700 METAL
707480
MAST 9700 METAL
707481
MAST 10700 METAL
707481
MAST 10700 METAL
707732
907688-216SP
HAND GRIP 40x765x114 GREY
907701-216SP
HAND GRIP 40x545x114 GRAY
900733
900733SP
SEAT / STEP Ø450x85 BLUE
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
904904
SWING BEARING
904904
SWING BEARING
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905879
RUDDER ATTACHMENT PIECE
905879
RUDDER ATTACHMENT PIECE
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706452-603
706452-603SP
SLIDE ELEMENT +870 BROWN DEEP
707626-603
BOOM 93x93x890 BROWN
707626-603
BOOM 93x93x890 BROWN
707271-603
BOOM 70x95x2480 SAFETY PLATE BROWN
707271-603
BOOM 70x95x2480 SAFETY PLATE BROWN
706746-608
706746-608SP
WALL WOOD 80M 45x640x701 BLUE
706519-603
ARCH ELEMENT 95x1005x1365 CURVED RAMP BROWN
706519-603
ARCH ELEMENT 95x1005x1365 CURVED RAMP BROWN
707255-608
RAIL 45x120x2480 BLUE
707255-608
RAIL 45x120x2480 BLUE
706507-701
706507-701SP
CLIMBING WALL 20x702x1160 BLUE
706510-603
706510-603SP
BOOM 80MD 45x120x1030 BROWN
706664-603
POST 93x93x2540 BROWN
706664-603
POST 93x93x2540 BROWN
706810-603
POST 93x93x2650 BROWN
706810-603
POST 93x93x2650 BROWN
707637-603
BOOM 45x120x704 BROWN
707637-603
BOOM 45x120x704 BROWN
707331-603
POST 93x93x470 BROWN
707331-603
POST 93x93x470 BROWN
707320-702
002031SP
RUDDER PLATE ELEMENT YELLOW
706511-603
POST 93x93x1870 BROWN
706511-603
POST 93x93x1870 BROWN
706568-603
POST 93x93x3000 BROWN
706568-603
POST 93x93x3000 BROWN
706788-603
POST 93x93x3700 BROWN
706788-603
POST 93x93x3700 BROWN
707643-603
POST ELEMENT 125x793x3700 SANTA MARIA 2015 BROWN
707643-603
POST ELEMENT 125x793x3700 SANTA MARIA 2015 BROWN
908226-216
BOOM 90x96,5x704
908226-216
BOOM 90x96,5x704
706518-603
ARCH ELEMENT 95x1005x1365 CURVED RAMP BROWN
706518-603
ARCH ELEMENT 95x1005x1365 CURVED RAMP BROWN
706475-603
706475-603SP
CLIMBING ELEMENT 1387x1020x325 BROWN
707260-305
707260-305SP
NET ASSEMBLY 2375x600 BLACK
707597-603
POST 140x140x450 WITH 8 GROOVES BROWN
707597-603
POST 140x140x450 WITH 8 GROOVES BROWN
707303-701
COMPASS BLUE
707303-701
COMPASS BLUE
707630-305
707630-305SP
NET 1600x2810 BLACK
706512-603
BOOM 70x120x704 BROWN
706512-603
BOOM 70x120x704 BROWN
707305-703
707305-703SP
TREASURE MAP LIME
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
707272-701
PLATE 15x630x590 BLUE
707272-701
PLATE 15x630x590 BLUE
706484-603
POST 93x93x2150 BROWN
706484-603
POST 93x93x2150 BROWN
706371-701
706371-701SP
SLIDE RAIL PLATE 15x747x343 BLUE
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
707418-701
CLIMBING RAMP 80M + 870 BLUE
707418-701
CLIMBING RAMP 80M + 870 BLUE
907688-216
907688-216SP
HAND GRIP 40x765x114 GREY
706450-603
706450-603SP
SLIDE ELEMENT +1470 BROWN DEEP
706873-305
706873-305SP
NET CURVED 1455x505 BLACK
707453-701
707453-701SP
WINDOW PLAY PANEL 640x702 BLUE
706871-603
BOOM 95x1005x1365 CURVED RAMP BROWN
706871-603
BOOM 95x1005x1365 CURVED RAMP BROWN
706521-305
706521-305SP
ROPE ELEMENT L 2120 BLACK
706997-608
706997-608SP
WOODEN WALL 80MD 45x640x984 BLUE
706772-701
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
908360-216
SUPPORT 90x202x1230 LIGHT GREY
908360-216
SUPPORT 90x202x1230 LIGHT GREY
706439-603
BOOM 45x120x704 BROWN
706439-603SP
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
707595-305
707595-305SP
NET ASSEMBLY 755x1555 BLACK
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
707374-603
BOOM 45x120x1504 BROWN
707374-603
BOOM 45x120x1504 BROWN
706790-603
POST 93x93x3500 BROWN
706790-603
POST 93x93x3500 BROWN
706872-603
BOOM 95x1005x1365 CURVED RAMP BROWN
706872-603
BOOM 95x1005x1365 CURVED RAMP BROWN
707146-701
707146-701SP
HANDRAIL STAIR 15x145x1153 BLUE
008986
008710SP
FLOOR 80M (008701)
707696-704
PLATE 15x265x275 STEP 2015
707696-704
PLATE 15x265x275 STEP 2015
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137840 (.dwg)

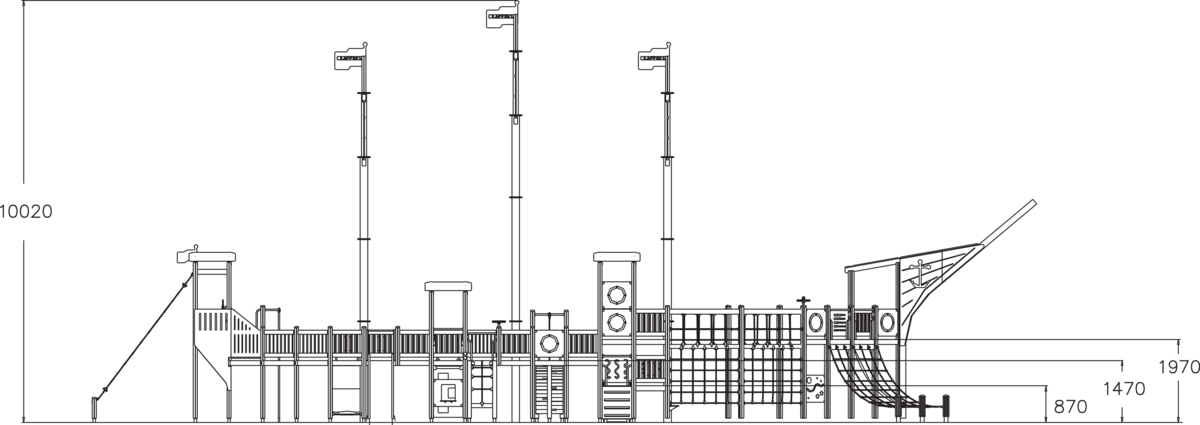

SIDE VIEW 137840 (.dwg)

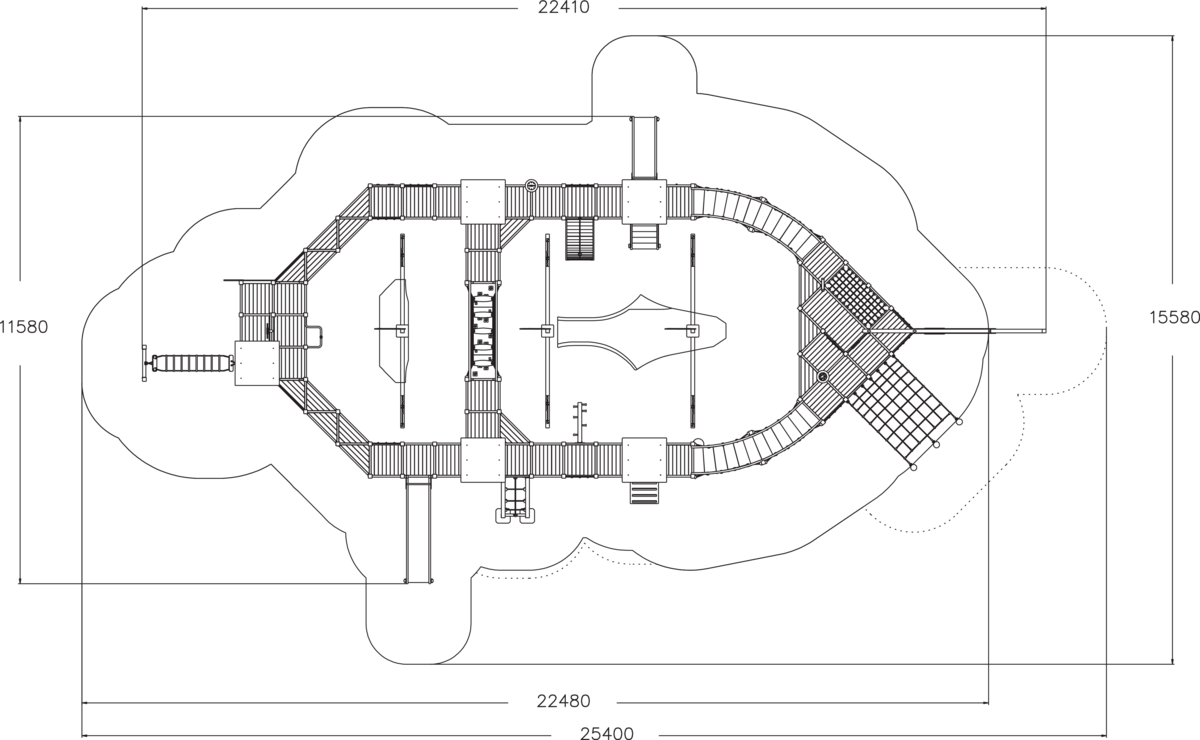

TOP VIEW 137840 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
15580
FALLING SPACE WIDTH, MM
25400
Max. free fall height, mm
2900
Impact area, m²
203
Product height, mm
10020
Product lenght, mm
22410
Product width, mm
11590
Height required, mm
10020
IMPACT AREA LENGTH, MM
15580
IMPACT AREA WIDTH, MM
22480
