Home
/
spareparts
Spare parts
137850

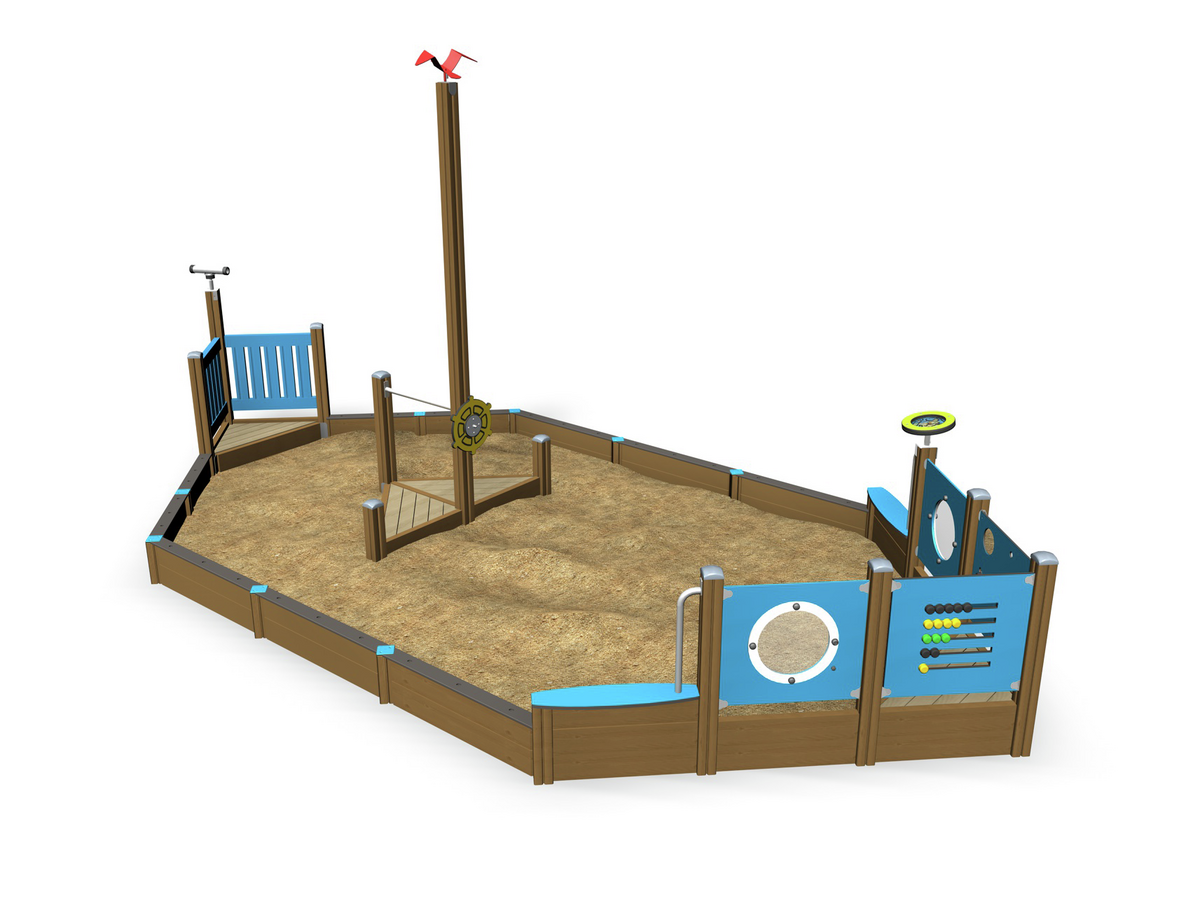

SANDPLAY BOAT DFA
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706892
PLATE 15x93x700
706892
PLATE 15x93x700
707333
FASTENER KIT FUNCTION ELEMENT
707333
FASTENER KIT FUNCTION ELEMENT
707732
907688-216SP
HAND GRIP 40x765x114 GREY
907701-216SP
HAND GRIP 40x545x114 GRAY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905879
RUDDER ATTACHMENT PIECE
905879
RUDDER ATTACHMENT PIECE
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
707320-702
002031SP
RUDDER PLATE ELEMENT YELLOW
707453-701
707453-701SP
WINDOW PLAY PANEL 640x702 BLUE
706510-603
706510-603SP
BOOM 80MD 45x120x1030 BROWN
706568-603
POST 93x93x3000 BROWN
706568-603
POST 93x93x3000 BROWN
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
706439-603
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
706746-608
706746-608SP
WALL WOOD 80M 45x640x701 BLUE
706481-701
PLATE 93x93x10 TOP HAT FFL BLUE
706481-701SP
PLATE 93x93x10 TOP HAT FFL BLUE
706577-603
706577-603SP
POST 93x93x600 BROWN
706511-603
POST 93x93x1870 BROWN
706511-603
POST 93x93x1870 BROWN
706527-603
706527-603SP
POST 93x93x1600 BROWN
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
707356-701
PLATE 800x186x15 BLUE
707356-701
PLATE 800x186x15 BLUE
707305-703
707305-703SP
TREASURE MAP LIME
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137850 (.dwg)

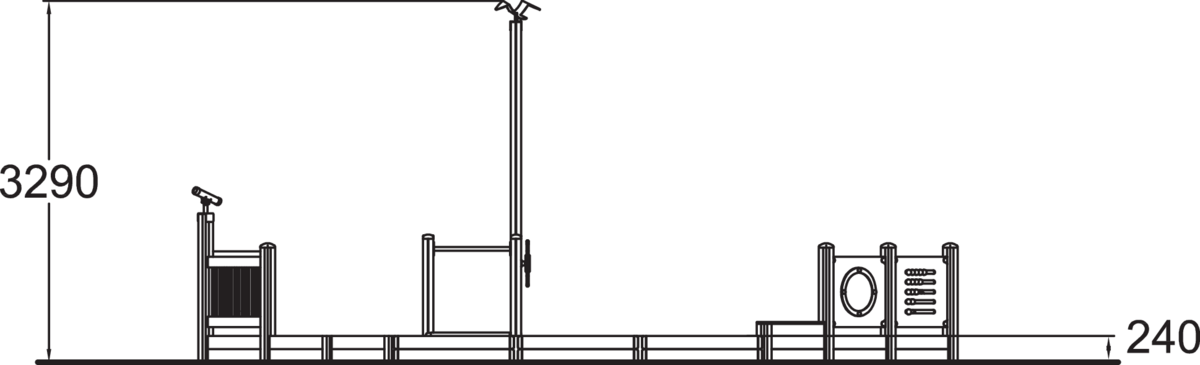

SIDE VIEW 137850 (.dwg)

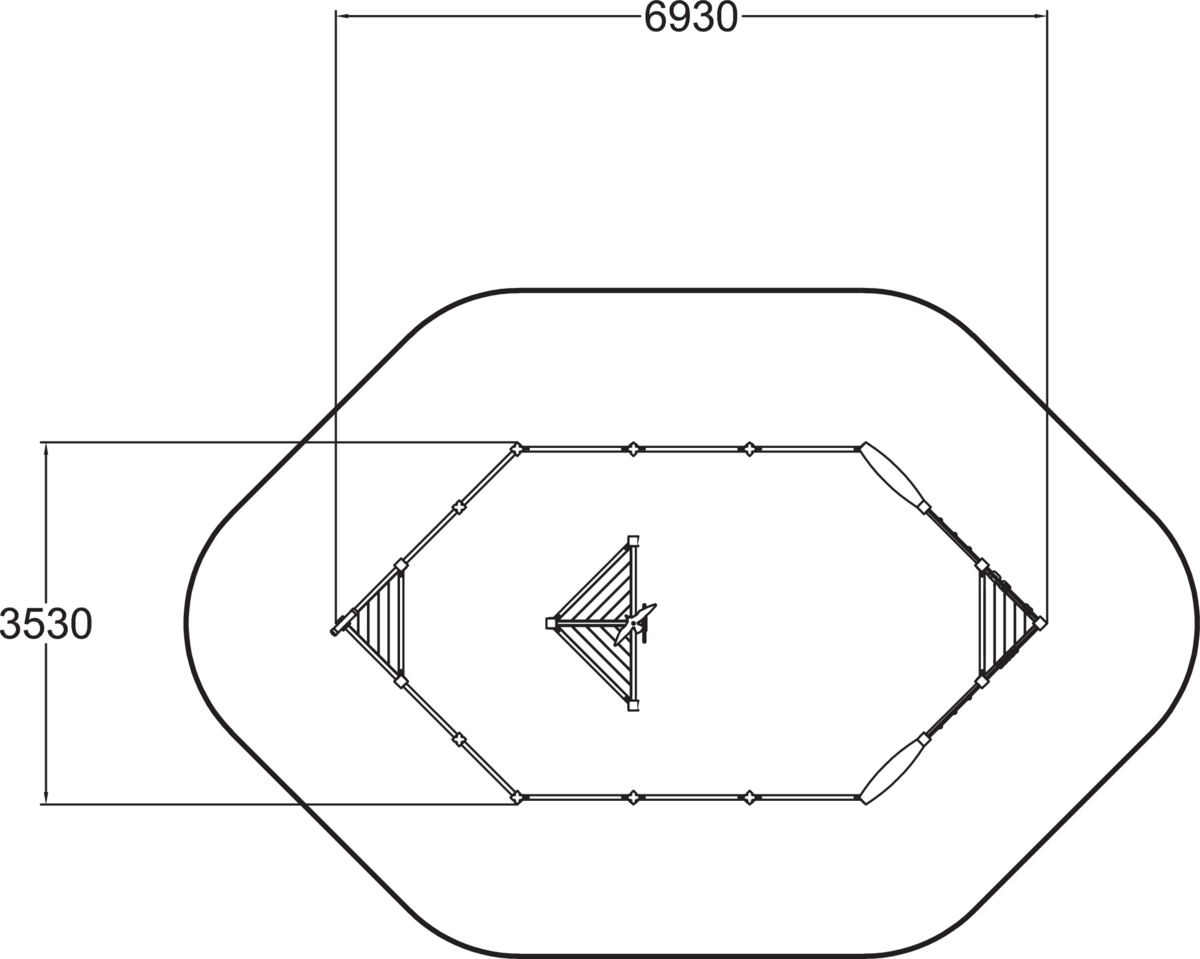

TOP VIEW 137850 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
9930
FALLING SPACE WIDTH, MM
6530
Max. free fall height, mm
380
Impact area, m²
2
Product height, mm
3290
Product lenght, mm
6930
Product width, mm
3530
Height required, mm
3290
