Home
/
spareparts
Spare parts
104112M
ROSA
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701413
POST, 95x95x1050 YELLOW
701413
POST, 95x95x1050 YELLOW
706466-603
POST 93x93x1025 BROWN
701422
703327SP
POST 93x93x1650 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701678
POST, 95x95x600 YELLOW
005735SP
POST 600x95x95 YELLOW
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702584
BOOM 45x95x524 YELLOW
702584
BOOM 45x95x524 YELLOW
702606
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702625
702625SP
WALL ABC 60M YELLOW
702627
702627SP
HANDRAIL FOR ABC SLIDE 60M
702638
702638SP
WINDOW WALL ABC 60M
702639
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702647
702647SP
FLOOR RED ABC 60M
702648
702647SP
FLOOR RED ABC 60M
702677
ABC SLIDE 60M +570
702677
ABC SLIDE 60M +570
702680
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702702
702702SP
TOY BOX
702840
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901790
HORIZONTAL BAR, 50x130x505
901790
HORIZONTAL BAR, 50x130x505
905137
COVER TOP HAT YELLOW
905195
001295SP
SPAREPART PACKAGE TOP HAT YELLOW
Downloads
ABC (.dwg)
InstallationInstructions (.pdf)

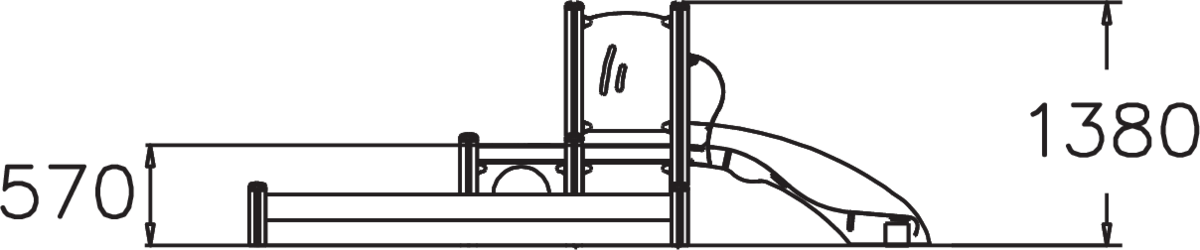

SIDE VIEW 104112M (.dwg)

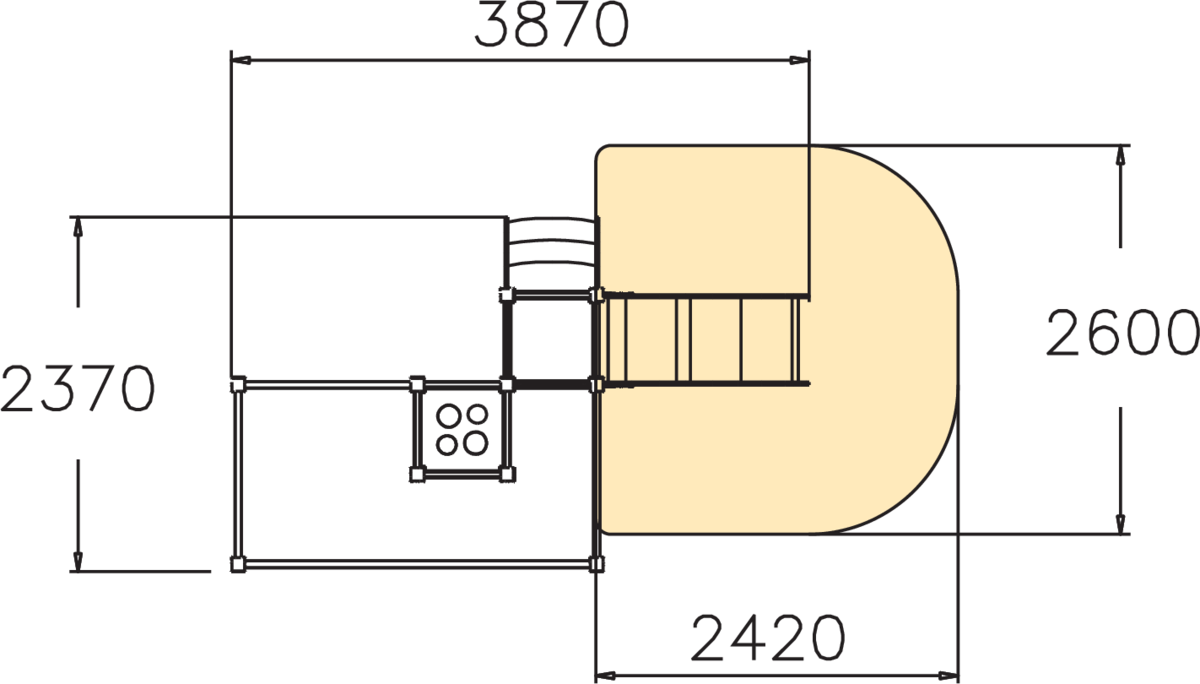

TOP VIEW 104112M (.dwg)
Technical information
User age
1
Max. free fall height, mm
570
Impact area, m²
5.9
Product height, mm
1380
Product lenght, mm
3870
Product width, mm
2370
Height required, mm
2370
IMPACT AREA LENGTH, MM
2420
IMPACT AREA WIDTH, MM
2600
