Home
/
spareparts
Spare parts
138117M

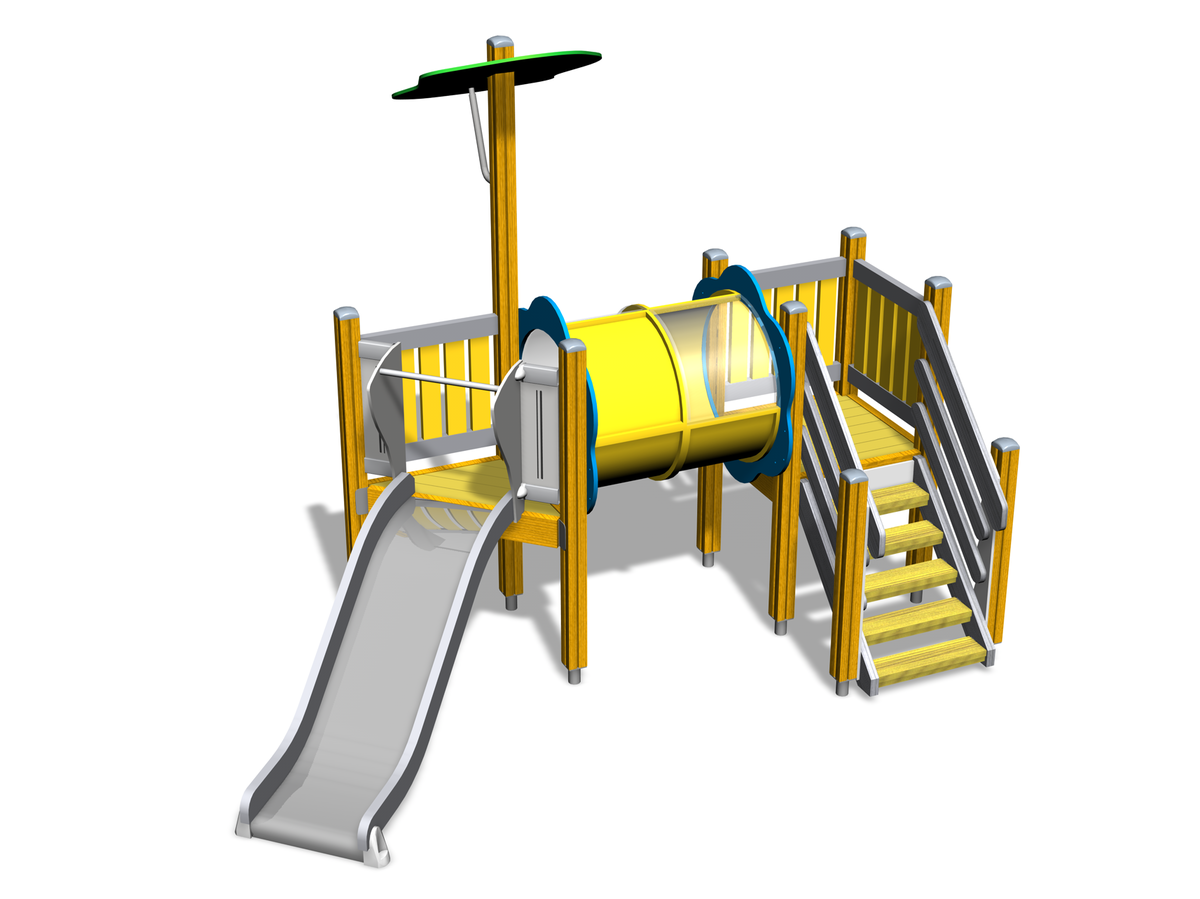

RABBIT´S BURROW
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701422
703327SP
POST 93x93x1650 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701589
706746-610SP
WALL WOOD 80M 45x640x701 YELLOW
701596
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
701598
908207-216SP
SUPPORT 336x392x40 CLOUD ROOF 2015
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
701928
SLIDE FOUNDATION PART, DEEP
701928
SLIDE FOUNDATION PART, DEEP
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702729
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
703704
703704-705SP
RAIL 80MDL SLIDE GREY
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
002305
706539SP1
TUBE TUNNEL 1135/80M WITH BLUE START PLATE
008710
008710SP
FLOOR 80M (008701)
008714
008714SP
TRIANGLE FLOOR 80M ( 008705 )
008875
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
KANINKOLO (.dwg)

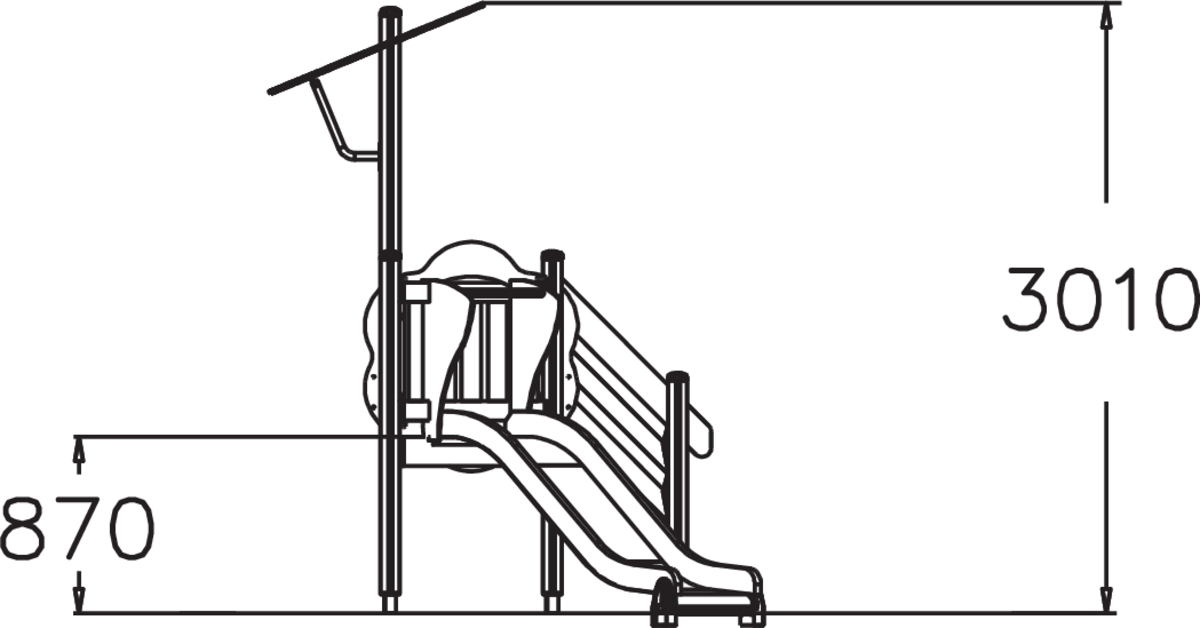

SIDE VIEW 138117M (.dwg)

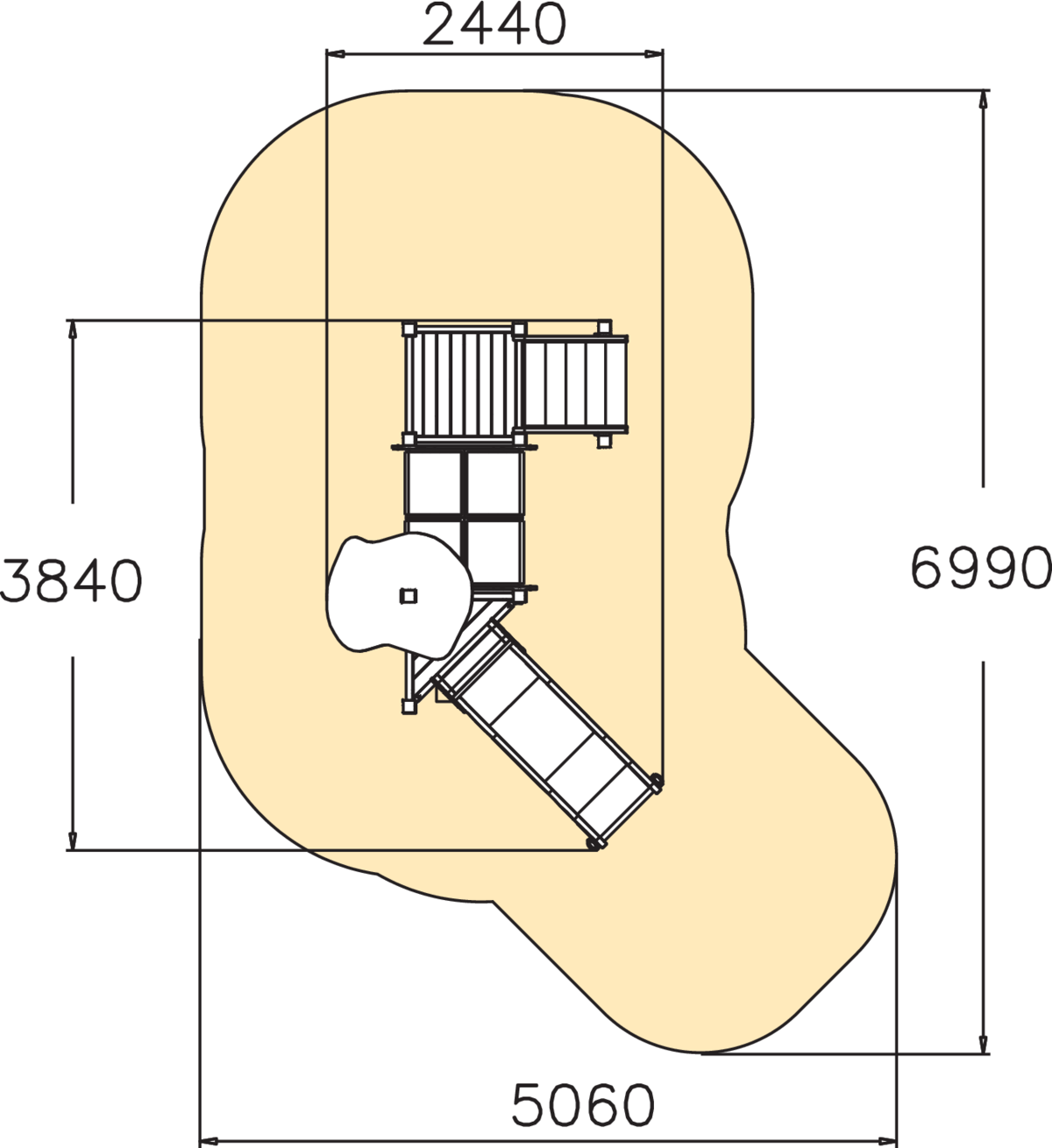

TOP VIEW 138117M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1000
Impact area, m²
25
Product height, mm
3010
Product lenght, mm
2440
Product width, mm
3840
Height required, mm
3010
IMPACT AREA LENGTH, MM
5060
IMPACT AREA WIDTH, MM
6990
