Home
/
spareparts
Spare parts
220336

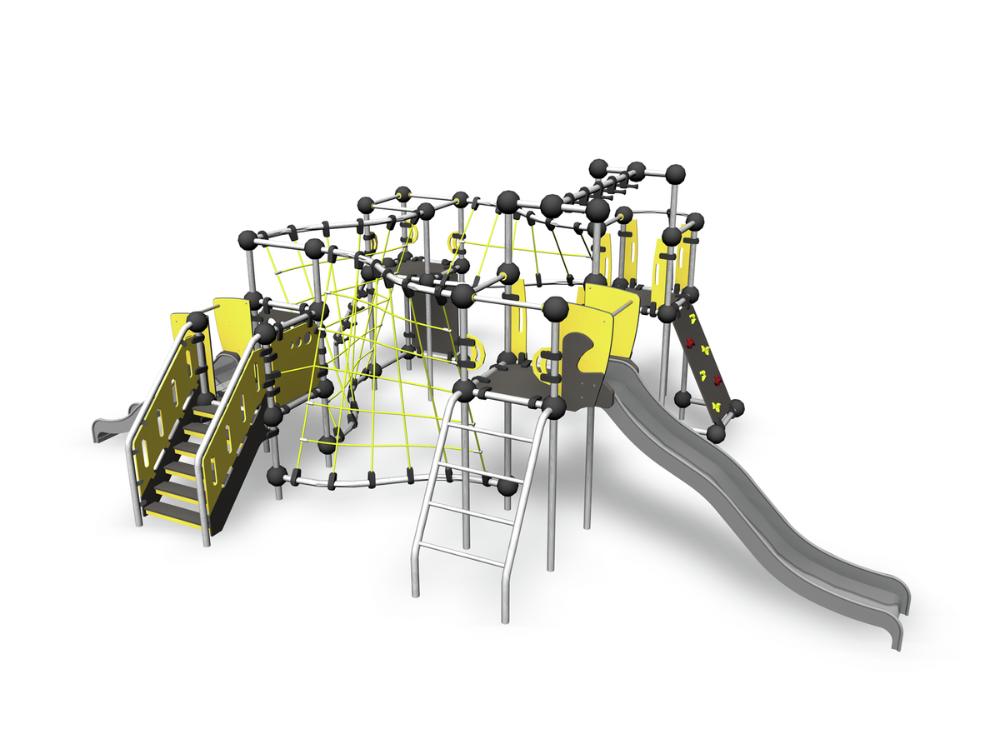

PLUTONIUM
Downloads
Spare parts
Downloads
Technical information

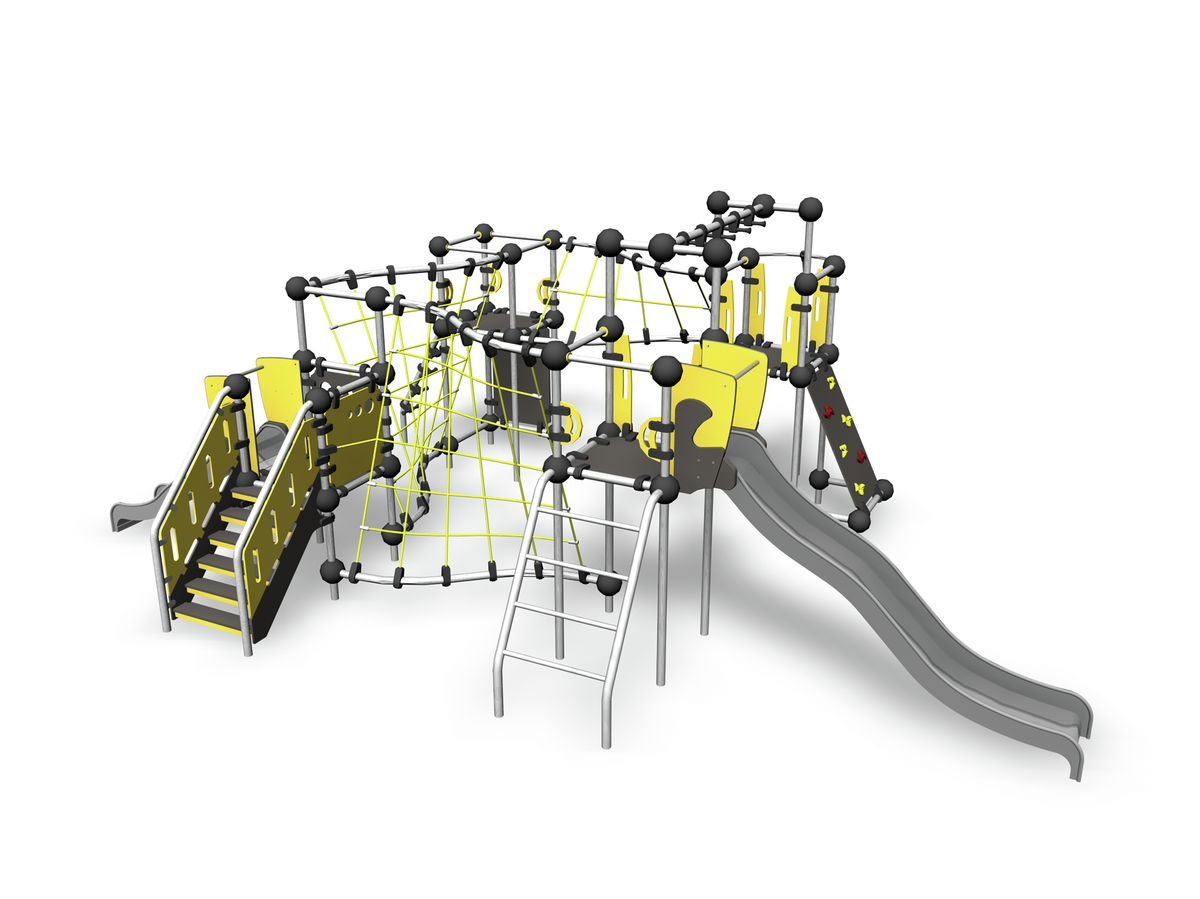

Original product structure
Spare parts
702633
PRINTED LABEL 90x50 NO HELM VERT
702633
PRINTED LABEL 90x50 NO HELM VERT
703992
CLIMBING WALL ELEMENT METAL PRODUCT DARK GREY
703992
CLIMBING WALL ELEMENT METAL PRODUCT DARK GREY
704006
CLIMBING WALL ELEMENT 15x668x1219 DARK GREY
704006
CLIMBING WALL ELEMENT 15x668x1219 DARK GREY
704015
CURVED BAR METAL
704015
CURVED BAR METAL
704381
STAIRS +890 CLOXX 2.0
704381
STAIRS +890 CLOXX 2.0
704440
RAMP LADDER WITH HANDELS
704440
RAMP LADDER WITH HANDELS
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
902134
902134SP
BALL FASTENER
902157
PLUG FOR PLASTIC JOINT BLACK
902157
PLUG FOR PLASTIC JOINT BLACK
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904455
POST 90x90x2737
904455
POST 90x90x2737
904456
POST 90x90x2737 G_J
904456
POST 90x90x2737 G_J
904503
POST 90x90x2137 B_E_K
904503
POST 90x90x2137 B_E_K
904505
POST 90x90x2137 E_K
904505
POST 90x90x2137 E_K
904844
BAR ELEMENT 90x90x2758 SLIDE CURVED
904844
BAR ELEMENT 90x90x2758 SLIDE CURVED
909519
909519SP
PLATE 50x380x380 FOOTING
909708
SLIDE ELEMENT +870 STAINLESS BWI 870
909708
SLIDE ELEMENT +870 STAINLESS BWI 870
909709
SLIDE ELEMENT +1470 STAINLESS BWI 1470
909709
SLIDE ELEMENT +1470 STAINLESS BWI 1470
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 220336 (.dwg)
SIDE VIEW 220336 (.dwg)

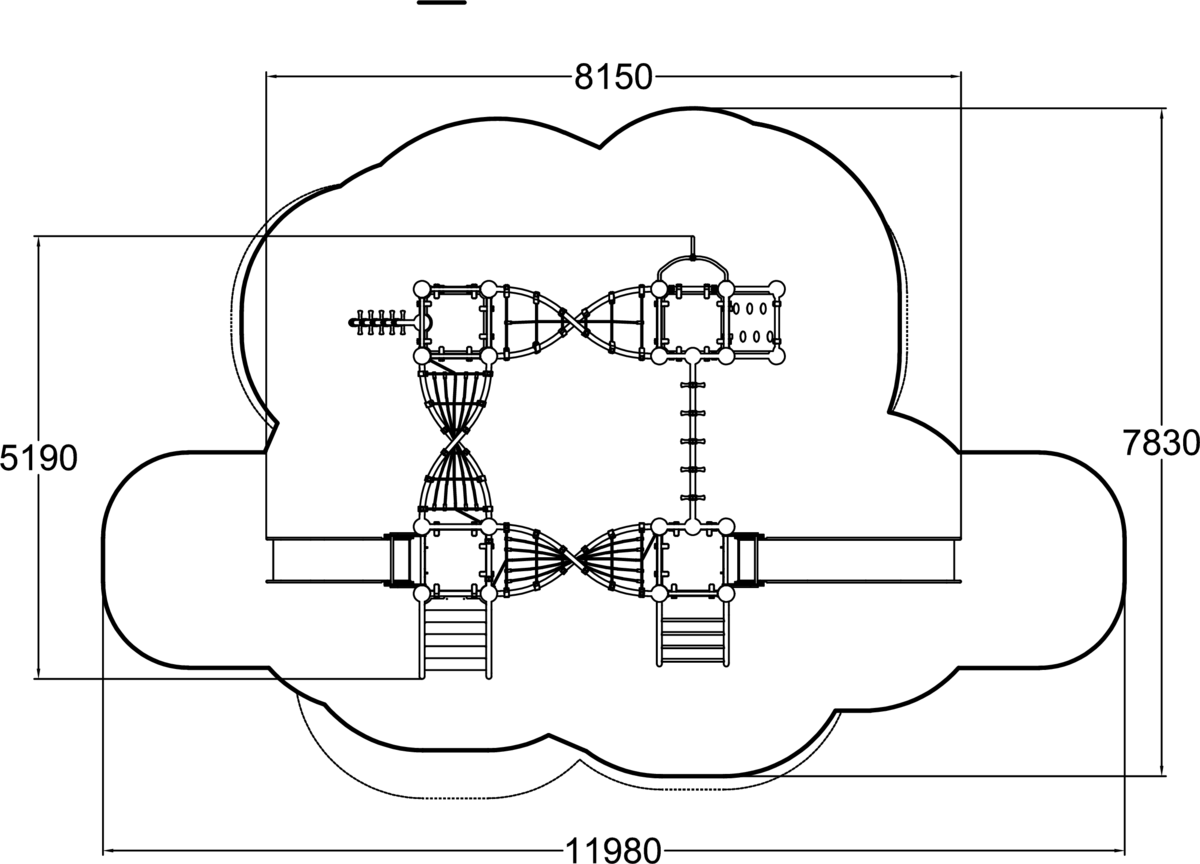

TOP VIEW 220336 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
11990
FALLING SPACE WIDTH, MM
7990
Max. free fall height, mm
2250
Impact area, m²
64
Product height, mm
2920
Product lenght, mm
8150
Product width, mm
5190
Height required, mm
3270
IMPACT AREA LENGTH, MM
11990
IMPACT AREA WIDTH, MM
7990
