Home
/
spareparts
Spare parts
220340

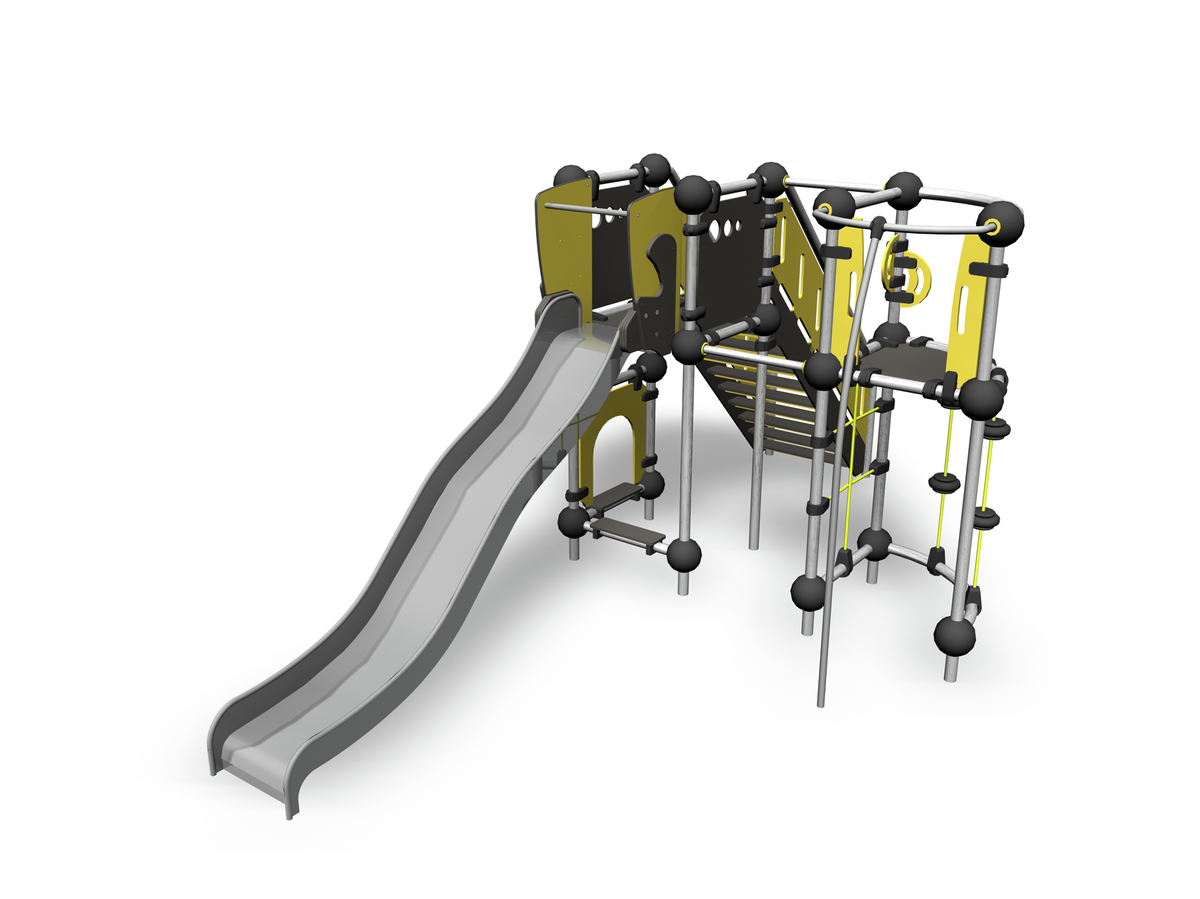

MULTIPLAY TOWER
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702633
PRINTED LABEL 90x50 NO HELM VERT
702633
PRINTED LABEL 90x50 NO HELM VERT
703982
NET YELLOW
703982
NET YELLOW
703994
CLIMBING ELEMENT 1200 STEP
703994
CLIMBING ELEMENT 1200 STEP
704015
CURVED BAR METAL
704015
CURVED BAR METAL
704380
STAIRS CLOXX 2.0
704380
STAIRS CLOXX 2.0
704694
FLOOR METAL PRODUCT DARK GREY
704694
FLOOR METAL PRODUCT DARK GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
902134
902134SP
BALL FASTENER
902157
PLUG FOR PLASTIC JOINT BLACK
902157
PLUG FOR PLASTIC JOINT BLACK
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904455
POST 90x90x2737
904455
POST 90x90x2737
904456
POST 90x90x2737 G_J
904456
POST 90x90x2737 G_J
904844
BAR ELEMENT 90x90x2758 SLIDE CURVED
904844
BAR ELEMENT 90x90x2758 SLIDE CURVED
905402
POST 90x90x2737 B_F2_G_J
905402
POST 90x90x2737 B_F2_G_J
909519
909519SP
PLATE 50x380x380 FOOTING
909709
SLIDE ELEMENT +1470 STAINLESS BWI 1470
909709
SLIDE ELEMENT +1470 STAINLESS BWI 1470
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 220340 (.dwg)
SIDE VIEW 220340 (.dwg)

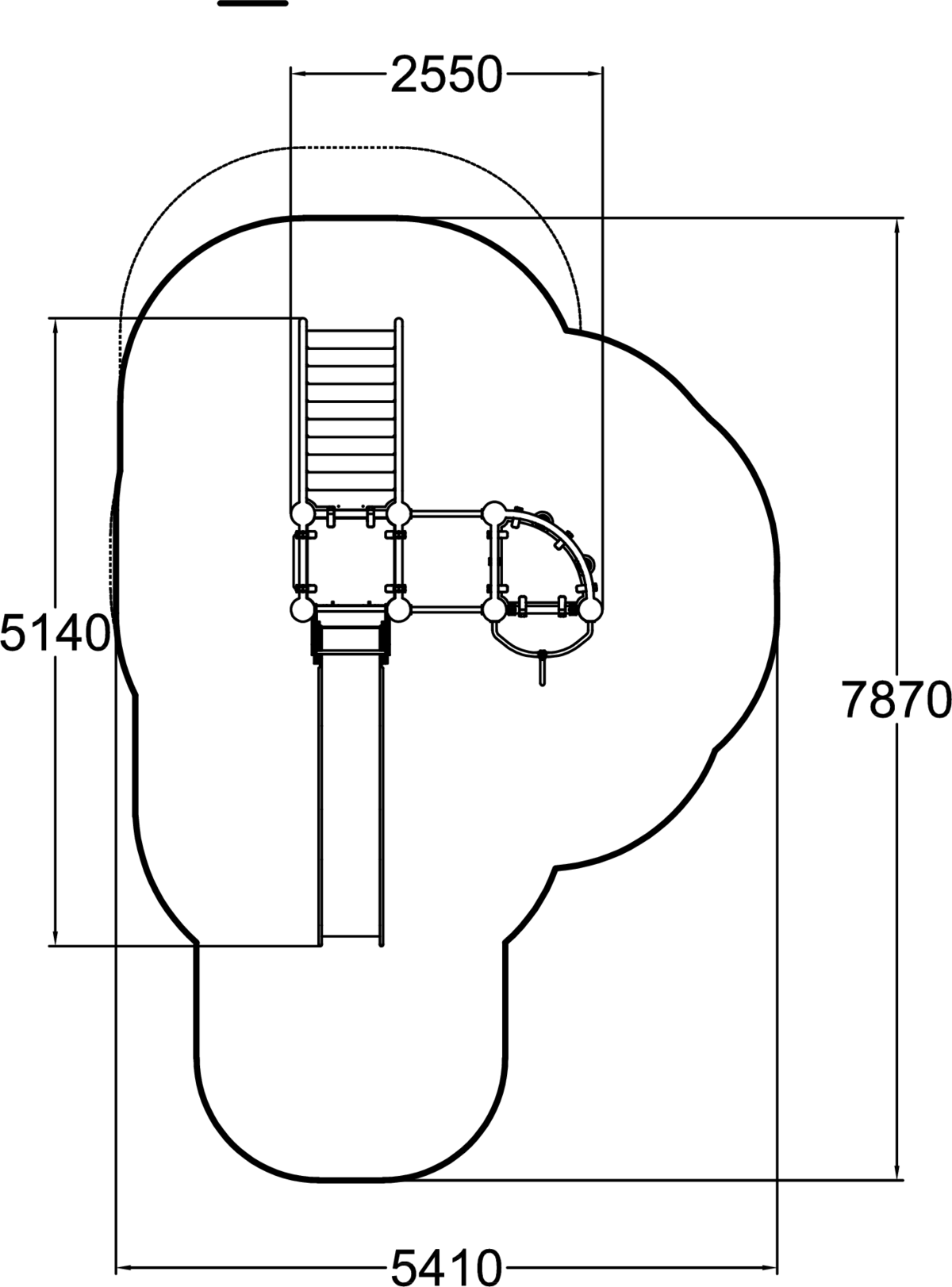

TOP VIEW 220340 (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
8450
FALLING SPACE WIDTH, MM
5460
Max. free fall height, mm
1470
Impact area, m²
30.4
Product height, mm
2320
Product lenght, mm
2550
Product width, mm
5140
Height required, mm
3270
IMPACT AREA LENGTH, MM
5410
IMPACT AREA WIDTH, MM
7870
