Spare parts

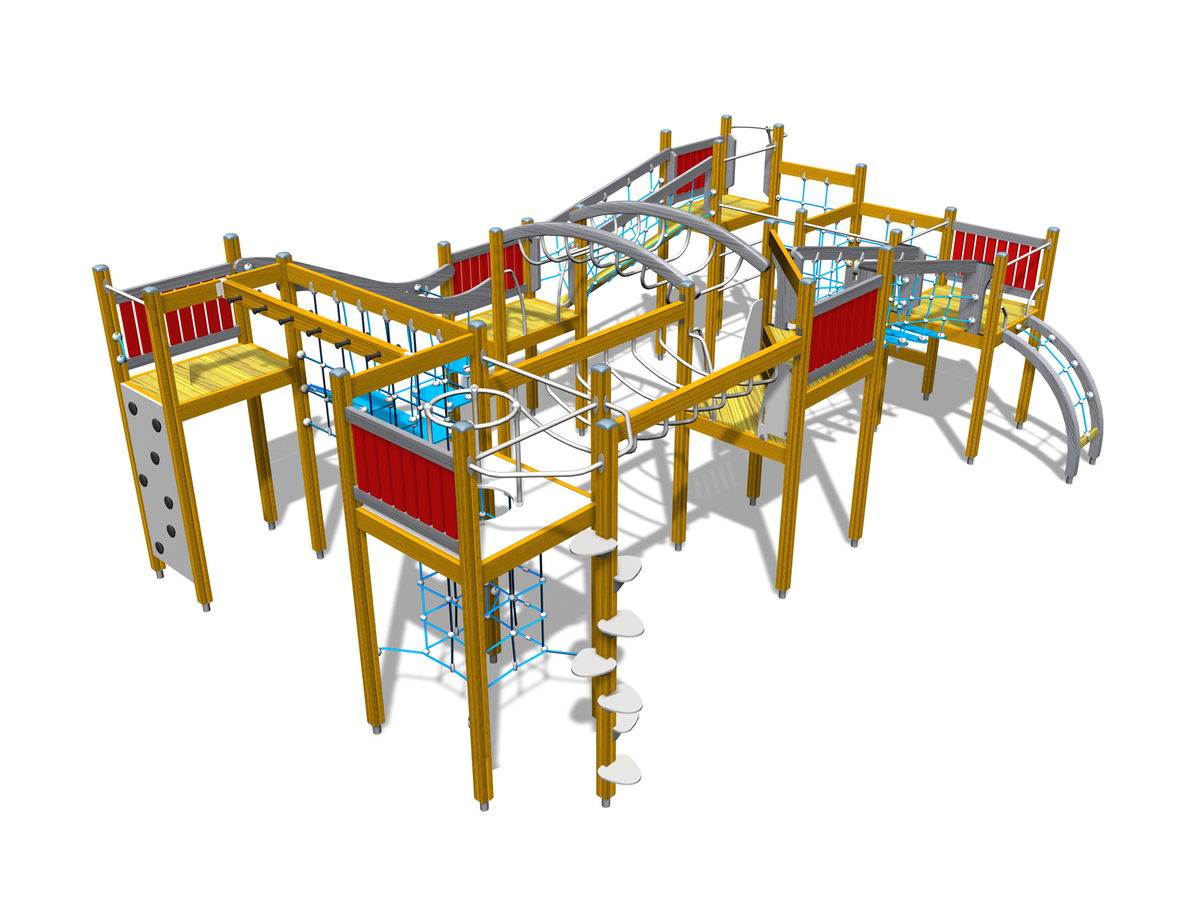

120300M
MOTORIC WORKOUT
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701060
BRIDGE 2400 DUCKBOARD
Open substructure
701052
701053
701055
701060SP
BRIDGE 2400 DUCKBOARD 80M (rail grey, net blue)
706453-701SP
STEP 15x145x600 BLUE
707255-604SP
RAIL 45x120x2480 GRAY
701055SP
HANDRAIL NET 2375x700 120M BLUE
701105
NET RAMP
Open substructure
701100
701105SP
CLIMBING CURVED NET +1470 OLD FINNO
701100SP
NET 1455x505 CURVED BLUE
701161
701161SP
BRIDGE 2400 PLANK 80 MODUL
701428
701428SP
POST 93x93x2250 YELLOW
701431
701431SP
POST 95x95x2550 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701451
TASAPAINOILU PORTAAT,
Open substructure
701372
701375
701380
701451SP
BRIDGE 2400 BALANCE
701372SP
NET 948x517 LADDER
701375SP
ROPE 280 HOLDER
701380SP
NET 1385x1040 SIDE
701478
701478SP
BOOM 45x145x724 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701486
701486SP
BOOM 45x145x2324 YELLOW (005693)
701502
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701557
003880SP
FLOOR 120M
701569
003886SP
TRIANGLE FLOOR 120M
701574
BOOM DIAGONAL 120M YELLOW
701574
BOOM DIAGONAL 120M YELLOW
701581
FLOOR 80M/120M
701581
FLOOR 80M/120M
701582
701582SP
ADAPTER 120M TO 80M GREY
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701620
701620SP
HANGING 2400 BAR ELEMENT
701623
701623SP
NET 1105x1510 FRAME BLUE
701626
007441SP
FIREMAN BAR +1470, 80M BAR NEW
701666
701666SP
STEP 15x265x275 DARK GREY
701667
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701707
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701710
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701716
707285-301SP
NET ASSEMBLY 1600x2305 BLUE
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702722
NET 120M TUNNEL VERTICAL
Open substructure
702722SP
NET 120M TUNNEL VERTICAL
702739
706710-301SP
SAFETY ROPE Ø16X618, M80 BLUE
702744
702743SP
PLATE 757x321x15 ADAPTER
702750
907701-216SP
HAND GRIP 40x545x114 GRAY
702792
707315SP
HAND GRIP Ø16 BLACK
702818
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702899
907701-216SP
HAND GRIP 40x545x114 GRAY
703183
703183SP
HANDRAIL NET 2305x650
901600
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
901782
901782SP
COVER BAR Ø33x810x324 GREY
901785
901785SP
BAR ELEMENT 120M GREY
901787
907694-216SP
BAR ELEMENT40x120x704 80M GREY
901792
901792SP
BAR ELEMENT, CURVED 550x550 GREY
901798
901798SP
BAR ELEMENT 283x283 CURVED GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
003786
701616-604SP
WALL ELEMENT 120M 45x680x1101 LIGHT GREY
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
MOTORIIKKARATA (.dwg)

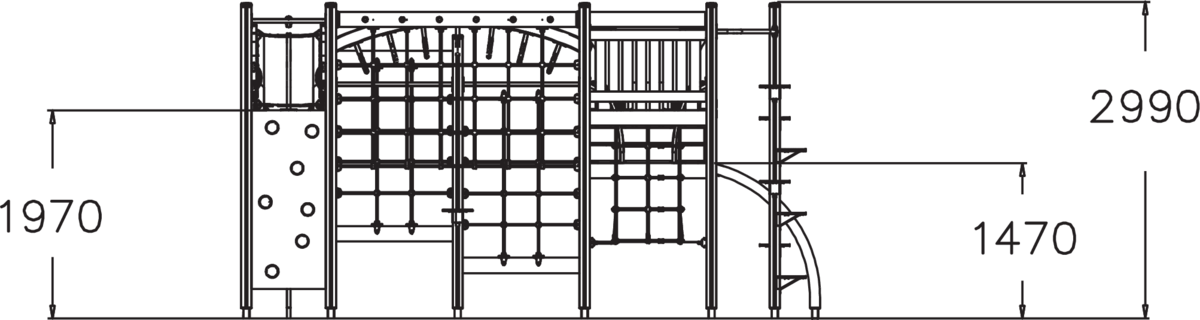

SIDE VIEW 120300M (.dwg)
TOP VIEW 120300M (.dwg)
Technical information
User age
8
Max. free fall height, mm
2900
Impact area, m²
100.3
Product height, mm
2990
Product lenght, mm
5480
Product width, mm
9030
Height required, mm
3770
IMPACT AREA LENGTH, MM
9170
IMPACT AREA WIDTH, MM
13010
