Spare parts
175046

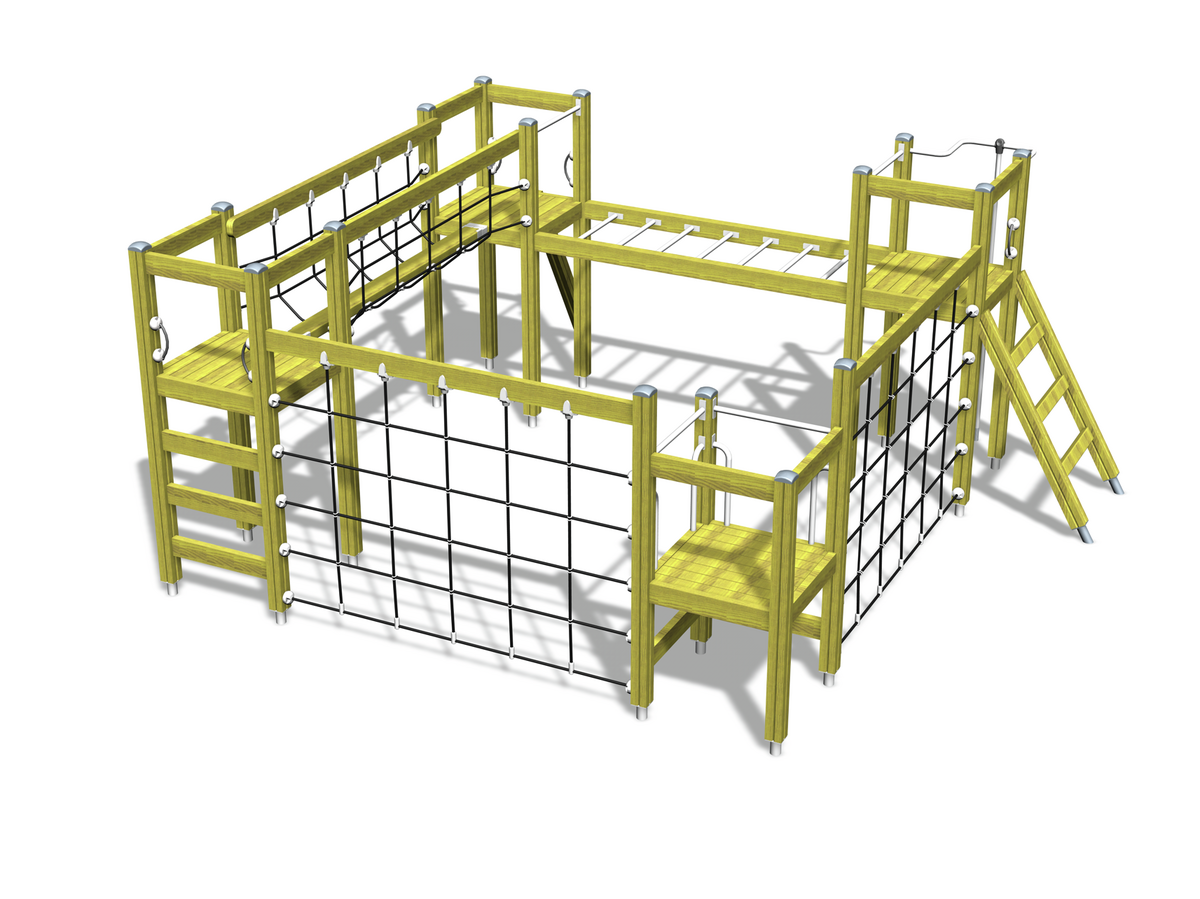

MOTORIC TRACK
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
703130
LADDER
703130
LADDER
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
703133
WOODEN STAIRS WITH HANDELS IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706484
POST 93x93x2150 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
706511
POST 93x93x1870 IMPREGNATED
707255
RAIL 45x120x2480 IMPREGNATED
707255
RAIL 45x120x2480 IMPREGNATED
707262
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707732
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
008986
008710SP
FLOOR 80M (008701)
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
707285-305
707285-305SP
NET ASSEMBLY 1600x2305 BLACK
907698-216
907698-216SP
BAR ELEMENT +1470, Ø337x2054 GREY
Downloads
PRODUCT MODEL 175046 (.dwg)

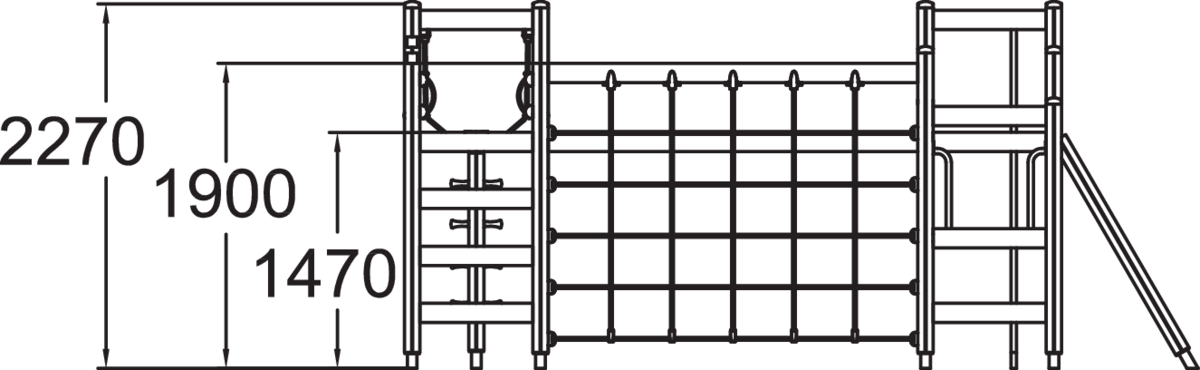

SIDE VIEW (.dwg)

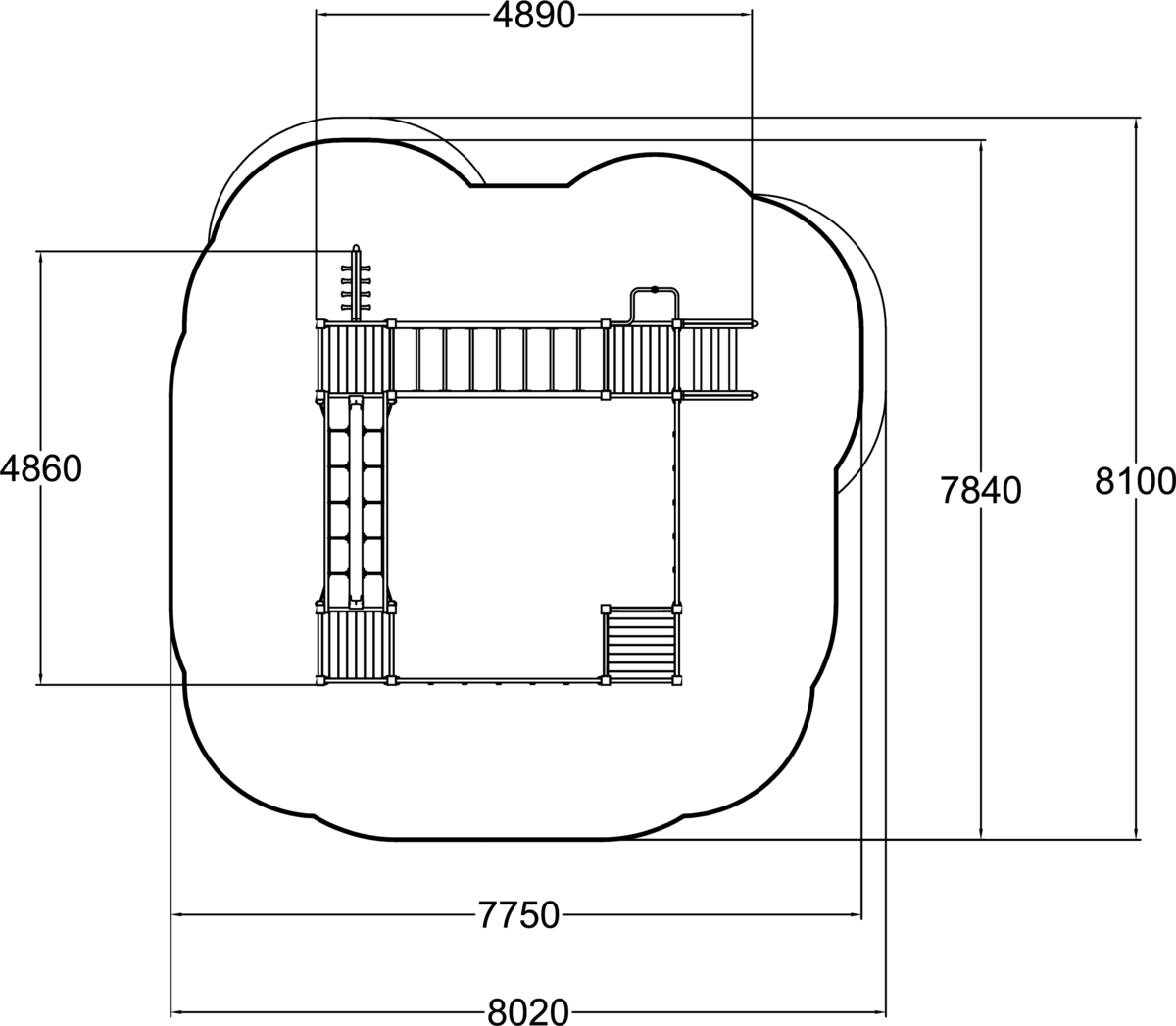

TOP VIEW 175046 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
8020
FALLING SPACE WIDTH, MM
8100
Max. free fall height, mm
1900
Impact area, m²
53
Product height, mm
2260
Product lenght, mm
4890
Product width, mm
4860
Height required, mm
3270
IMPACT AREA LENGTH, MM
7750
IMPACT AREA WIDTH, MM
7840
