137302M

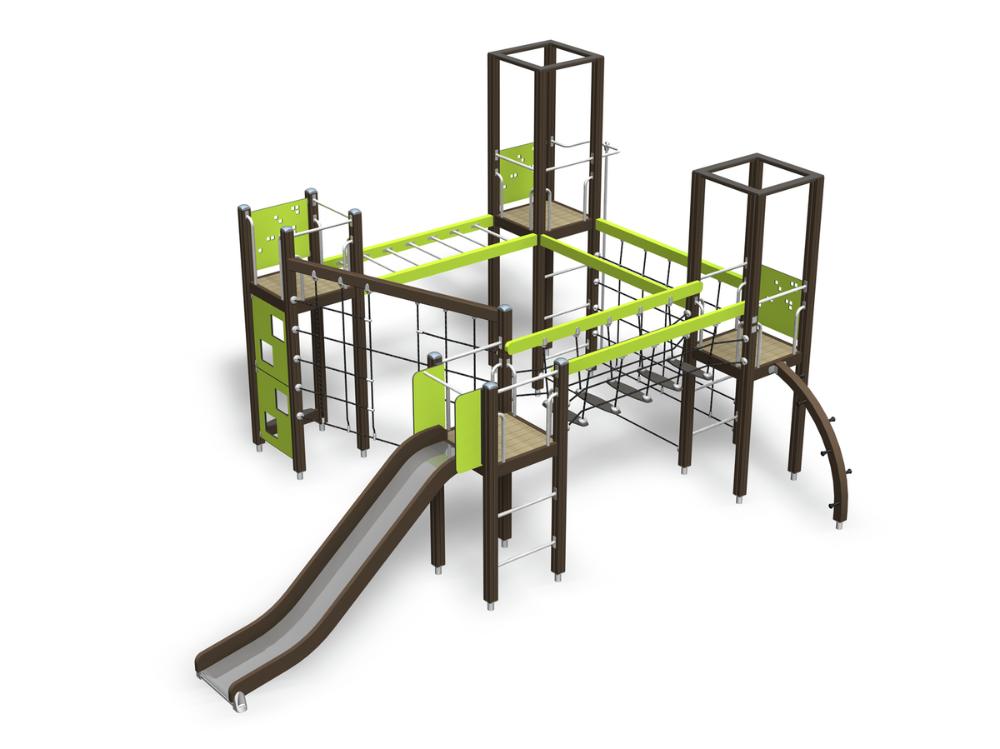

MOTORIC TRACK

Please notice that the product was earlier delivered with different measurements 80M/2000mm during 24.7.2014 - 9.11.2015. Now the measurements are 80M/2400mm.

Downloads
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
706371 706371
706371-703SP SLIDE RAIL PLATE 15x747x343 LIME 706371-703SP SLIDE RAIL PLATE 15x747x343 LIME
706428 PLATE 706428 PLATE
706428SP ROOF PLATE 15x93x888.5 DARK GREY 706428SP ROOF PLATE 15x93x888.5 DARK GREY
706429 BATTEN 32x45x706 IMPREGNATED 706429 BATTEN 32x45x706 IMPREGNATED
706429 BATTEN 32x45x706 IMPREGNATED 706429 BATTEN 32x45x706 IMPREGNATED
706436 706436
706436-703SP WALL LAMINATE 80M 10x640x701 LIME 706436-703SP WALL LAMINATE 80M 10x640x701 LIME
706439 BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED
706439 BOOM 45x120x704 IMPREGNATED 706439 BOOM 45x120x704 IMPREGNATED
706444 POST 93x93x3200 IMPREGNATED 706444 POST 93x93x3200 IMPREGNATED
706444 POST 93x93x3200 IMPREGNATED 706444 POST 93x93x3200 IMPREGNATED
706450 706450
706450SP SLIDE ELEMENT +1470 IMPREGNATED DEEP 706450SP SLIDE ELEMENT +1470 IMPREGNATED DEEP
706453 706453
706453-704SP STEP 15x145x600 DARK GREY 706453-704SP STEP 15x145x600 DARK GREY
706475 CLIMBING ELEMENT 1387x1020x325 IMPREGNATED 706475 CLIMBING ELEMENT 1387x1020x325 IMPREGNATED
706475 CLIMBING ELEMENT 1387x1020x325 IMPREGNATED 706475 CLIMBING ELEMENT 1387x1020x325 IMPREGNATED
706484 POST 93x93x2150 IMPREGNATED 706484 POST 93x93x2150 IMPREGNATED
706484 POST 93x93x2150 IMPREGNATED 706484 POST 93x93x2150 IMPREGNATED
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706505 STRIP 35x70x730 FFL 2014 GREY 706505 STRIP 35x70x730 FFL 2014 GREY
706540 706540
706540-703SP CLIMBING WALL 20x702x415 LIME 706540-703SP CLIMBING WALL 20x702x415 LIME
706669 POST 93x93x2400 IMPREGNATED 706669 POST 93x93x2400 IMPREGNATED
706669 POST 93x93x2400 IMPREGNATED 706669 POST 93x93x2400 IMPREGNATED
706788 POST 93x93x3700 IMPREGNATED 706788 POST 93x93x3700 IMPREGNATED
706788 POST 93x93x3700 IMPREGNATED 706788 POST 93x93x3700 IMPREGNATED
706810 POST 93x93x2650 IMPREGNATED 706810 POST 93x93x2650 IMPREGNATED
706810 POST 93x93x2650 IMPREGNATED 706810 POST 93x93x2650 IMPREGNATED
707255 RAIL 45x120x2480 IMPREGNATED 707255 RAIL 45x120x2480 IMPREGNATED
707255 RAIL 45x120x2480 IMPREGNATED 707255 RAIL 45x120x2480 IMPREGNATED
707260 707260
707260-305SP NET ASSEMBLY 2375x600 BLACK 707260-305SP NET ASSEMBLY 2375x600 BLACK
707732 707732
Not available
Inquire spare parts for the product using a form Open form for spare part questions
901868 901868
901868SP HANDRAIL BAR Ø34x598 GREY 901868SP HANDRAIL BAR Ø34x598 GREY
905138 COVER TOP HAT GREY 905138 COVER TOP HAT GREY
905196 905196
001296SP SPAREPART PACKAGE TOP HAT GREY 001296SP SPAREPART PACKAGE TOP HAT GREY
909511 909511
909511SP BASE PIPE 90x90x650 909511SP BASE PIPE 90x90x650
909519 909519
909519SP PLATE 50x380x380 FOOTING 909519SP PLATE 50x380x380 FOOTING
907695-216 907695-216
907695-216SP BAR ELEMENT 80M 773x431x120 GREY 907695-216SP BAR ELEMENT 80M 773x431x120 GREY
907694-216 907694-216
907694-216SP BAR ELEMENT40x120x704 80M GREY 907694-216SP BAR ELEMENT40x120x704 80M GREY
008986 008986
008710SP FLOOR 80M (008701) 008710SP FLOOR 80M (008701)

Technical information

  • User age
    4+

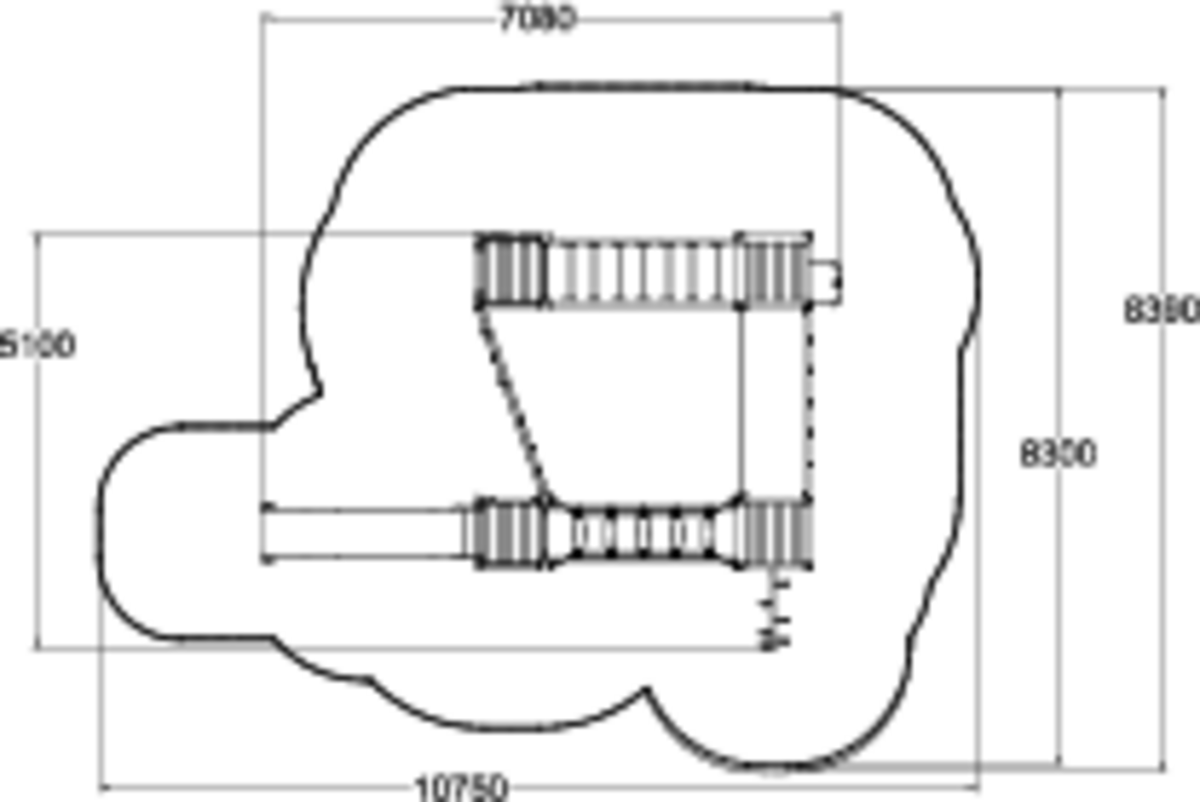

  • FALLING SPACE LENGTH, MM
    10750
  • FALLING SPACE WIDTH, MM
    8390
  • Max. free fall height, mm
    2470
  • Impact area, m²
    65.7

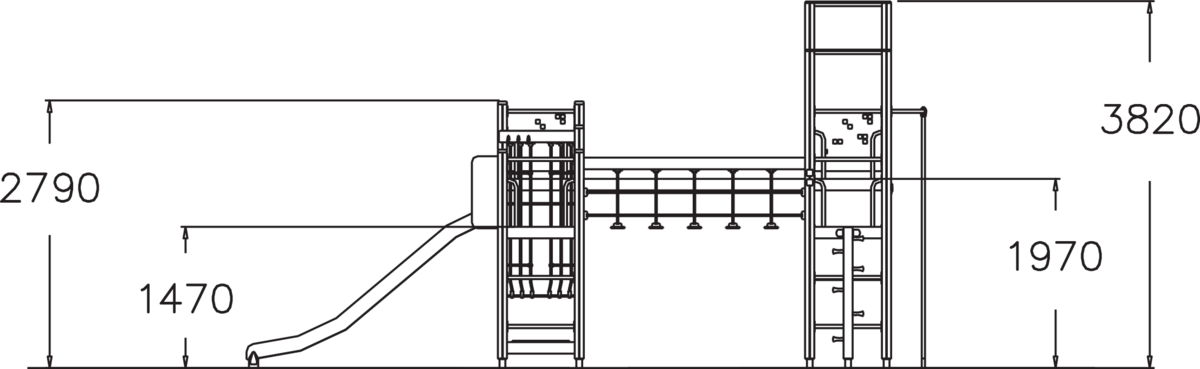

  • Product height, mm
    3820
  • Product lenght, mm
    7080
  • Product width, mm
    5100
  • Height required, mm
    3820
  • IMPACT AREA LENGTH, MM
    10750
  • IMPACT AREA WIDTH, MM
    8300
