Home
/
spareparts
Spare parts
175529

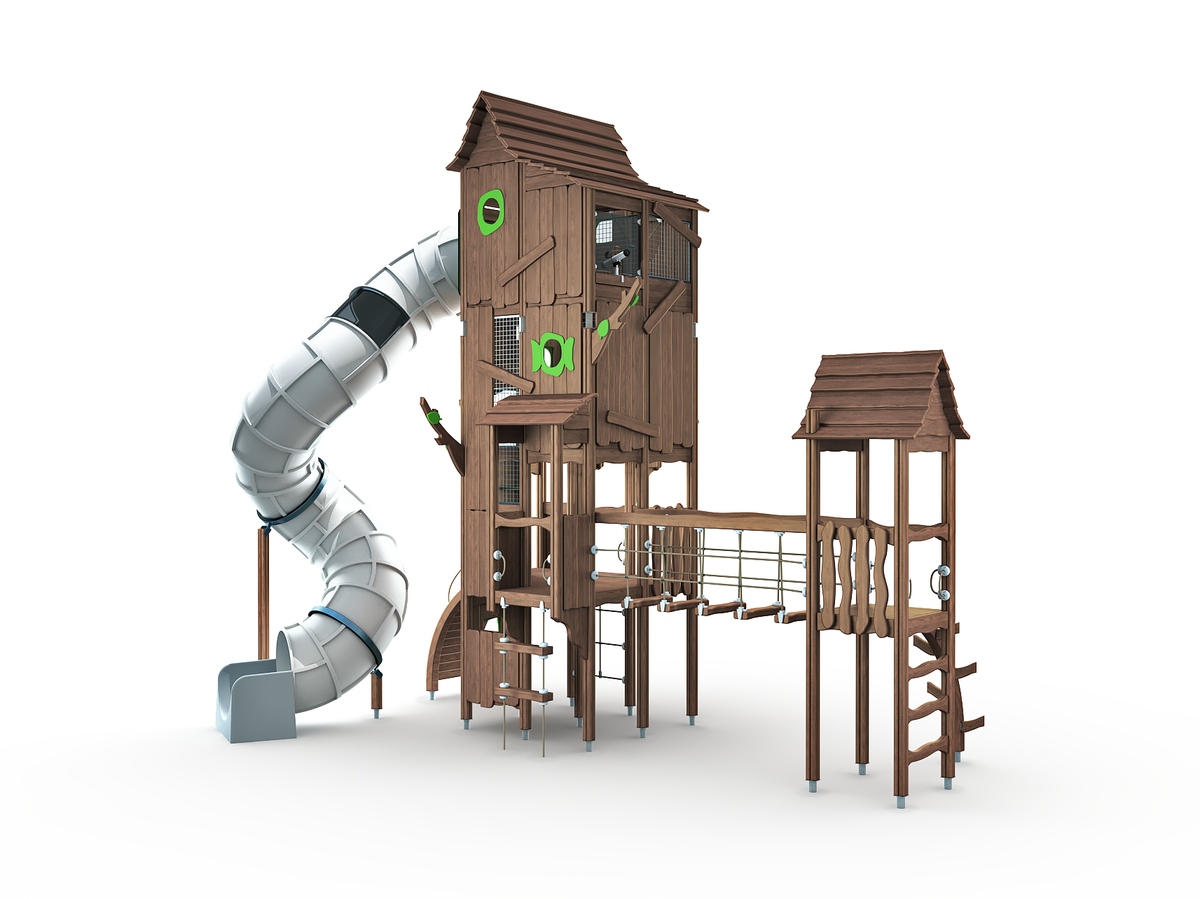

MAGIC MOUNTAIN FLORA
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
705211
BOOM 45x145x715 FLORA
705211
BOOM 45x145x715 FLORA
705211-614SP
BOOM 45x145x724 FLORA
705239
POST 93x93x2850 FLORA
705239
POST 93x93x2850 FLORA
705258
FLOOR ELEMENT 32x750x750 FLORA
705258
FLOOR ELEMENT 32x750x750 FLORA
705368
ARCHED ELEMENT FLORA
705368
ARCHED ELEMENT FLORA
705506
ADAPTER 45x120x660 FLORA
705506
ADAPTER 45x120x660 FLORA
705511
705511SP
HAND GRIP Ø16 FLORA
708370
ROOF PLANK 28x200x1100 TROLL VILLAGE FLORA
708370
ROOF PLANK 28x200x1100 TROLL VILLAGE FLORA
708372
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708372
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708374
ROOF TRUSS 690x704 TROLL VILLAGE FLORA
708374
ROOF TRUSS 690x704 TROLL VILLAGE FLORA
708645
ROOF ELEMENT 68x372x435 TROLL VILLAGE
708645
ROOF ELEMENT 68x372x435 TROLL VILLAGE
708670
ROOF ELEMENT 68x372x435 TROLL VILLAGE
708670
ROOF ELEMENT 68x372x435 TROLL VILLAGE
708873
ROOF PLANK 28x200x1100 TROLL VILLAGE
708873
ROOF PLANK 28x200x1100 TROLL VILLAGE
708874
ROOF PLANK 28x200x1100 TROLL VILLAGE
708874
ROOF PLANK 28x200x1100 TROLL VILLAGE
708896
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708896
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708898
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708898
ROOF PLANK 28x200x2000 TROLL VILLAGE FLORA
708906
BOOM 45x145x372 FLORA
708906
BOOM 45x145x372 FLORA
708945
RUBBER ELEMENT
708945
RUBBER ELEMENT
709046
709046SP
BRANCH 45x205x925 FLORA
709062
PLANK 28x120x800 FLORA
709062
PLANK 28x120x800 FLORA
709119
BOOM 70x120x704 FLORA ( 706512 Impregn. )
709119
BOOM 70x120x704 FLORA ( 706512 Impregn. )
709120
BOOM 93x93x704 FLORA (707912 Impregn. )
709120
BOOM 93x93x704 FLORA (707912 Impregn. )
709123
POST 93x93x370 FLORA
709123
POST 93x93x370 FLORA
709124
POST 93x93x1850 FLORA
709124
POST 93x93x1850 FLORA
909491
EXTENSION FOOT 90x90x150
909491
EXTENSION FOOT 90x90x150
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
P07526
POST 93x93x1546 FLORA
P07526
POST 93x93x1546 FLORA
P07664
POST 93x93x1200 FLORA
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
003894
003894SP
VANE FASTENER SYSTEM
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 175529 (.dwg)

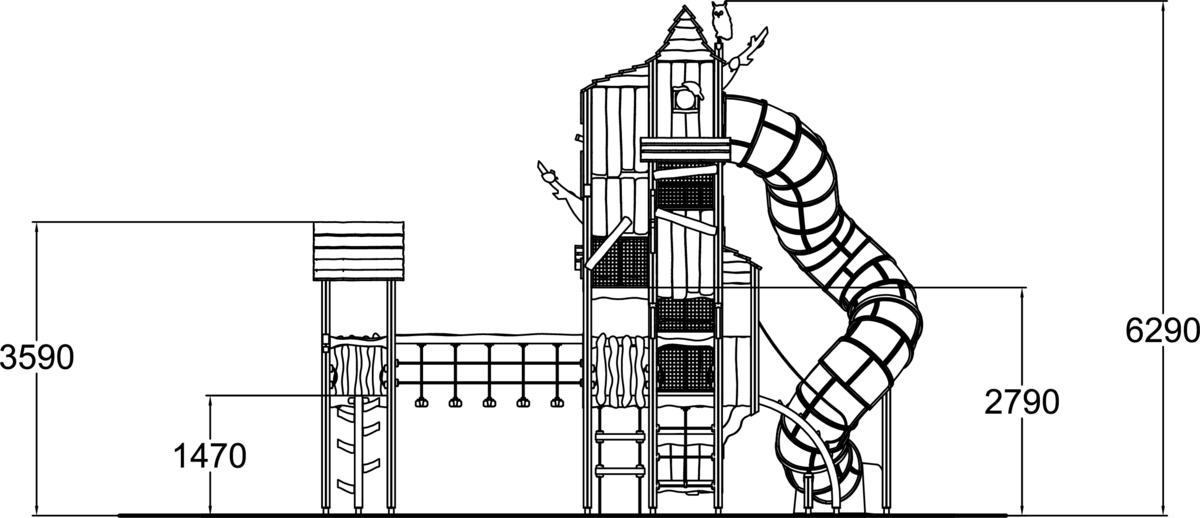

SIDE VIEW 175529 (.dwg)

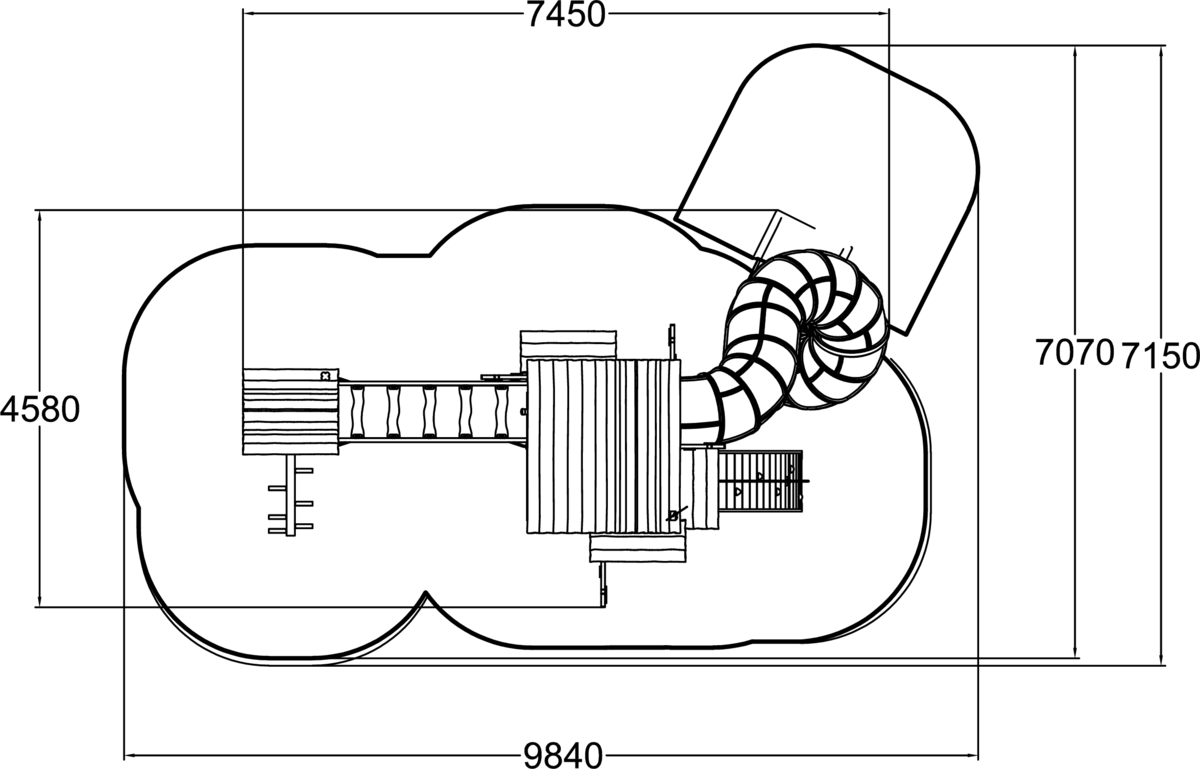

TOP VIEW 175529 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
9840
FALLING SPACE WIDTH, MM
7160
Max. free fall height, mm
1470
Impact area, m²
47
Product height, mm
6840
Product lenght, mm
7450
Product width, mm
4580
Height required, mm
6850
IMPACT AREA LENGTH, MM
9840
IMPACT AREA WIDTH, MM
7070
