Home
/
spareparts
Spare parts
138031M

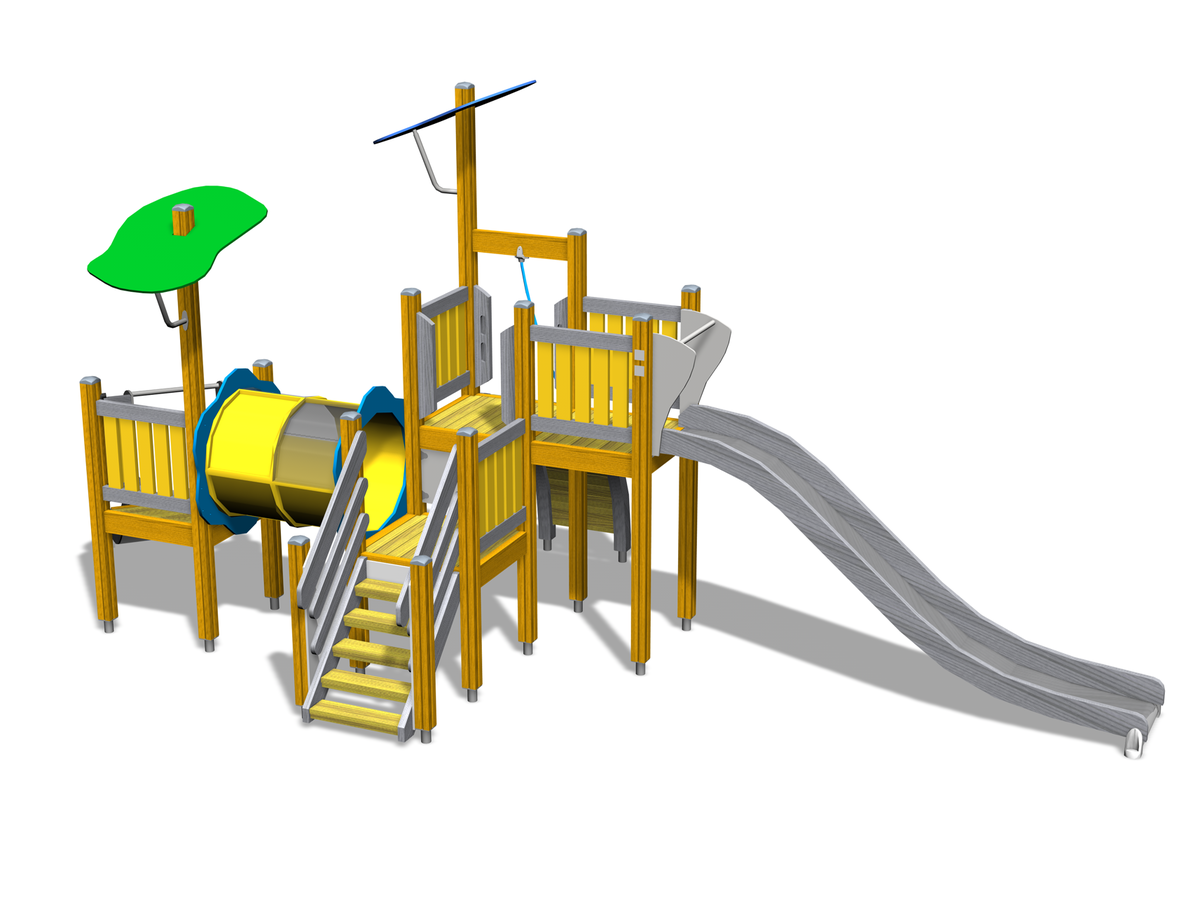

LYNX'S TRAIL
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701095
CLIMBING ELEMENT + 1470 CURVED
Open substructure
701088
MAT, 45x645x1698
701293
701088-604SP1
CLIMBING ELEMENT CURVED +1480, with 120M bar element LIQUORICE GREY
701088
MAT, 45x645x1698
701293SP
CLIMBING ROPE L 2085 for wooden beam
701422
703327SP
POST 93x93x1650 YELLOW
701428
701428SP
POST 93x93x2250 YELLOW
701431
701431SP
POST 95x95x2550 YELLOW
701434
701434SP
POST 93x93x2850 YELLOW
701437
701437SP
POST 95x95x3450 YELLOW
701478
701478SP
BOOM 45x145x724 YELLOW
701553
701553-705SP
RAIL 80M SLIDE GREY
701555
LIUKUMÄKI,1470
701928
SLIDE FOUNDATION PART, DEEP
706450-604SP
SLIDE ELEMENT +1470 GREY DEEP
701928
SLIDE FOUNDATION PART, DEEP
701556
706452-604SP
SLIDE ELEMENT +870 GREY DEEP
701589
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701595
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701598
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
701647
BOOM DIAGONAL 80M YELLOW incl. fastening parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
702729
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702899
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
702945
706461
PLATE 15x400x703 DARK GREY
703704
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
707201
STAIR +870 OLD GREY
Open substructure
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705
707191-604
STAIR ELEMENT +870 STAIR GREY
707201
STAIR +870 OLD GREY
707145-604
POST 43x93x717 GREY STAIRS 20
707146-705SP
HANDRAIL STAIR 15x145x1153 LIGHT GREY
707191-604
STAIR ELEMENT +870 STAIR GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
002305
706539SP1
TUBE TUNNEL 1135/80M WITH BLUE START PLATE
008710
008710SP
FLOOR 80M (008701)
008714
008714SP
TRIANGLE FLOOR 80M ( 008705 )
008875
707328-707SP
CLOUD ROOF 2015 10x750x1290 GREEN
Downloads
ILVESPOLKU (.dwg)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)

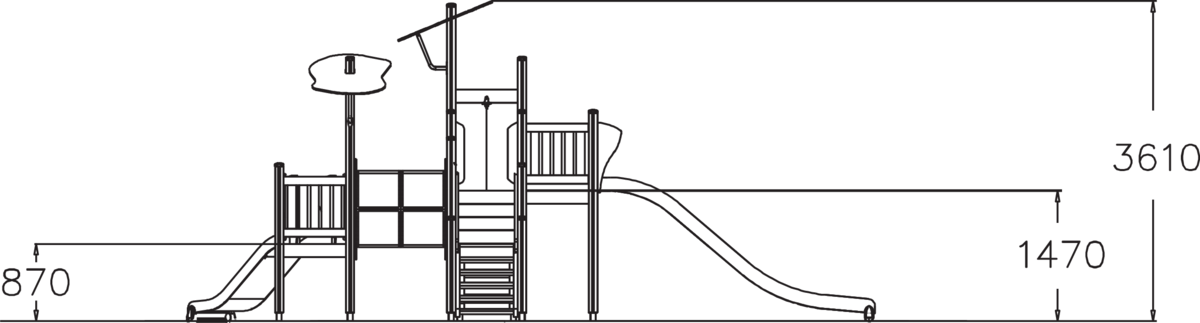

SIDE VIEW 138031M (.dwg)

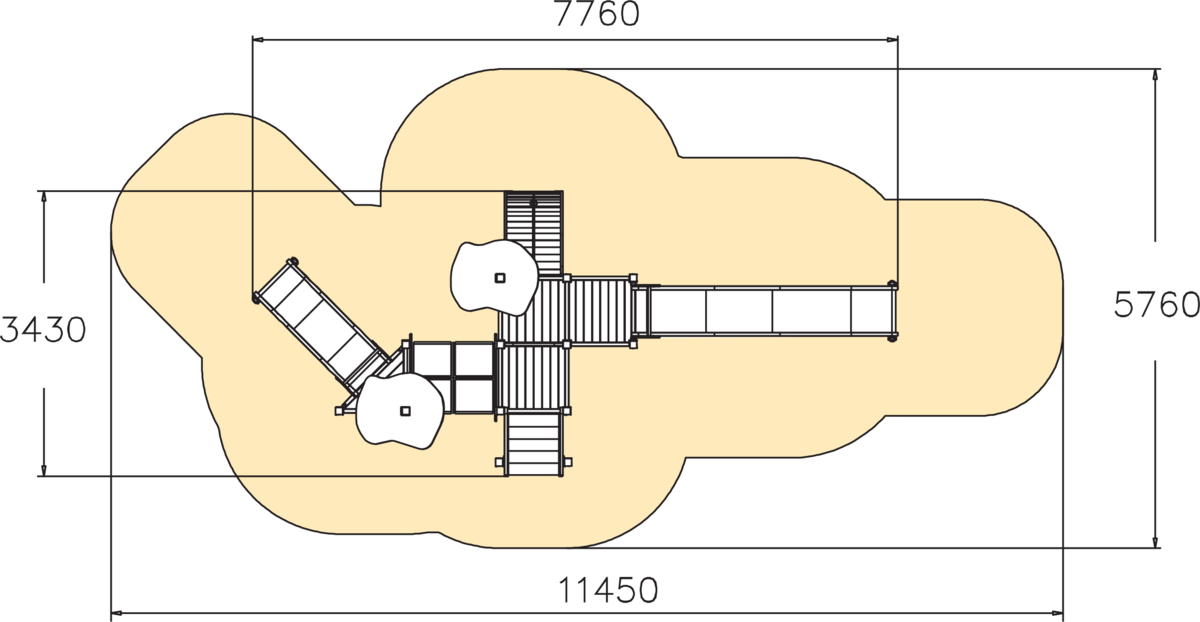

TOP VIEW 138031M (.dwg)
Technical information
User age
2
Max. free fall height, mm
1470
Impact area, m²
44.2
Product height, mm
3610
Product lenght, mm
7760
Product width, mm
3430
Height required, mm
3610
IMPACT AREA LENGTH, MM
11450
IMPACT AREA WIDTH, MM
5760
