Home
/
spareparts
Spare parts
104325M
LUCAS
Downloads
Spare parts
Downloads
Technical information
Spare part sets
905834SP
PLASTIC SLIDE +870 DEEP YELLOW
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706481
PLATE 93x93x10 TOP HAT FFL
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706514
BOOM 70x120x1504 IMPREGNATED
706514
BOOM 70x120x1504 IMPREGNATED
706600
706600-305SP
TRAPEZE BLACK ROPE
706735
706735-305SP
RINGS PAIR FINNO Ø16x562mm BLACK ROPE
707390
707390-301SP
CLIMBING ELEMENT +870 BLUE, DEEP
901868
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
907694-216
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 104325M (.dwg)

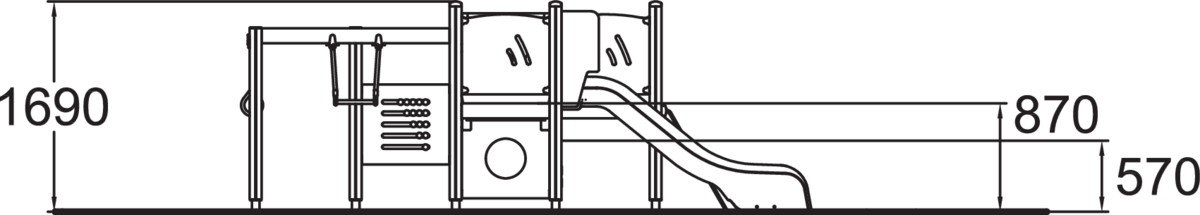

SIDE VIEW 104325M (.dwg)

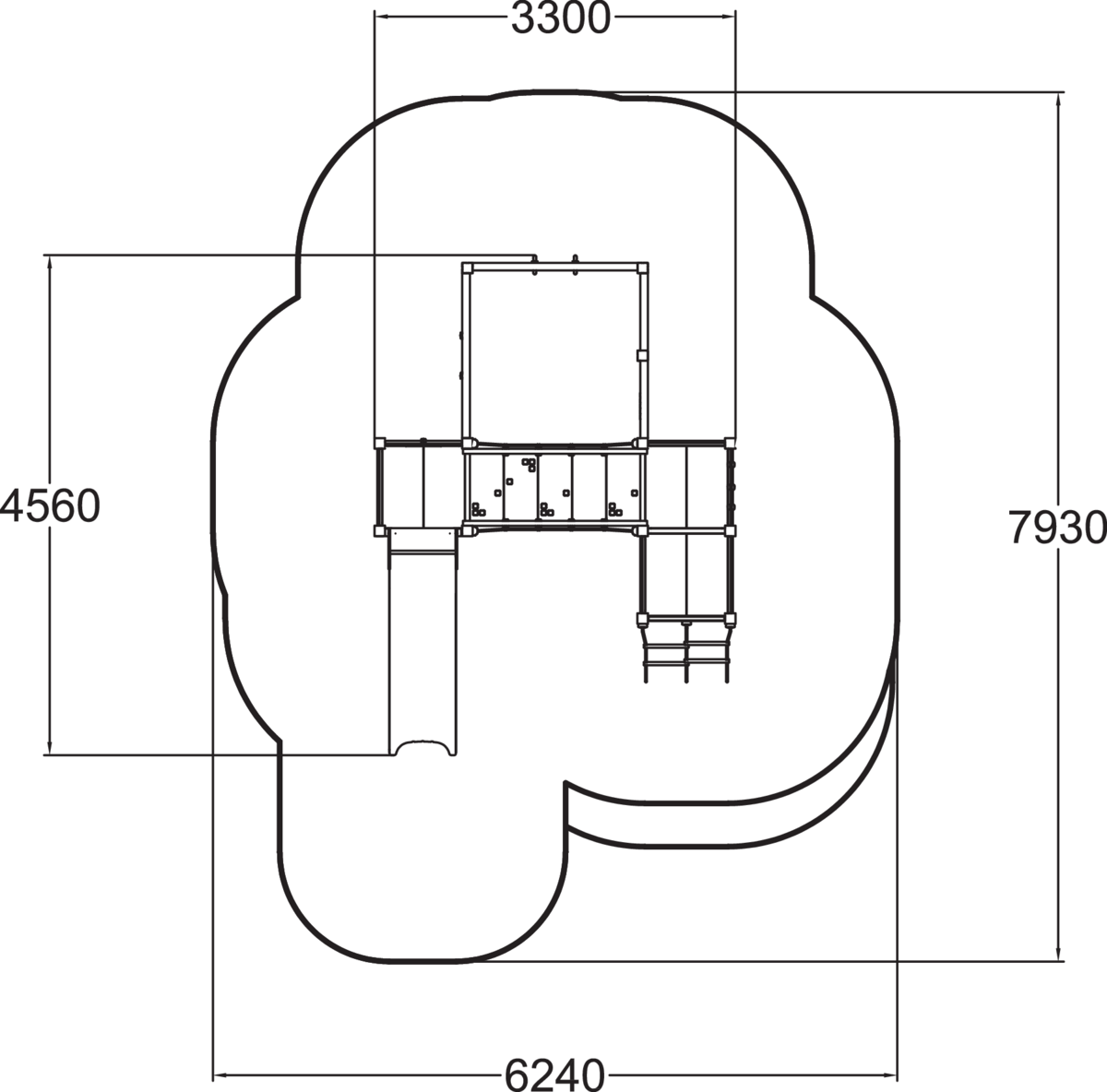

TOP VIEW 104325M (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
7930
FALLING SPACE WIDTH, MM
6240
Max. free fall height, mm
1000
Impact area, m²
37.9
Product height, mm
1690
Product lenght, mm
4560
Product width, mm
3300
Height required, mm
2670
IMPACT AREA LENGTH, MM
7930
IMPACT AREA WIDTH, MM
6240
