Home
/
spareparts
Spare parts
104625M

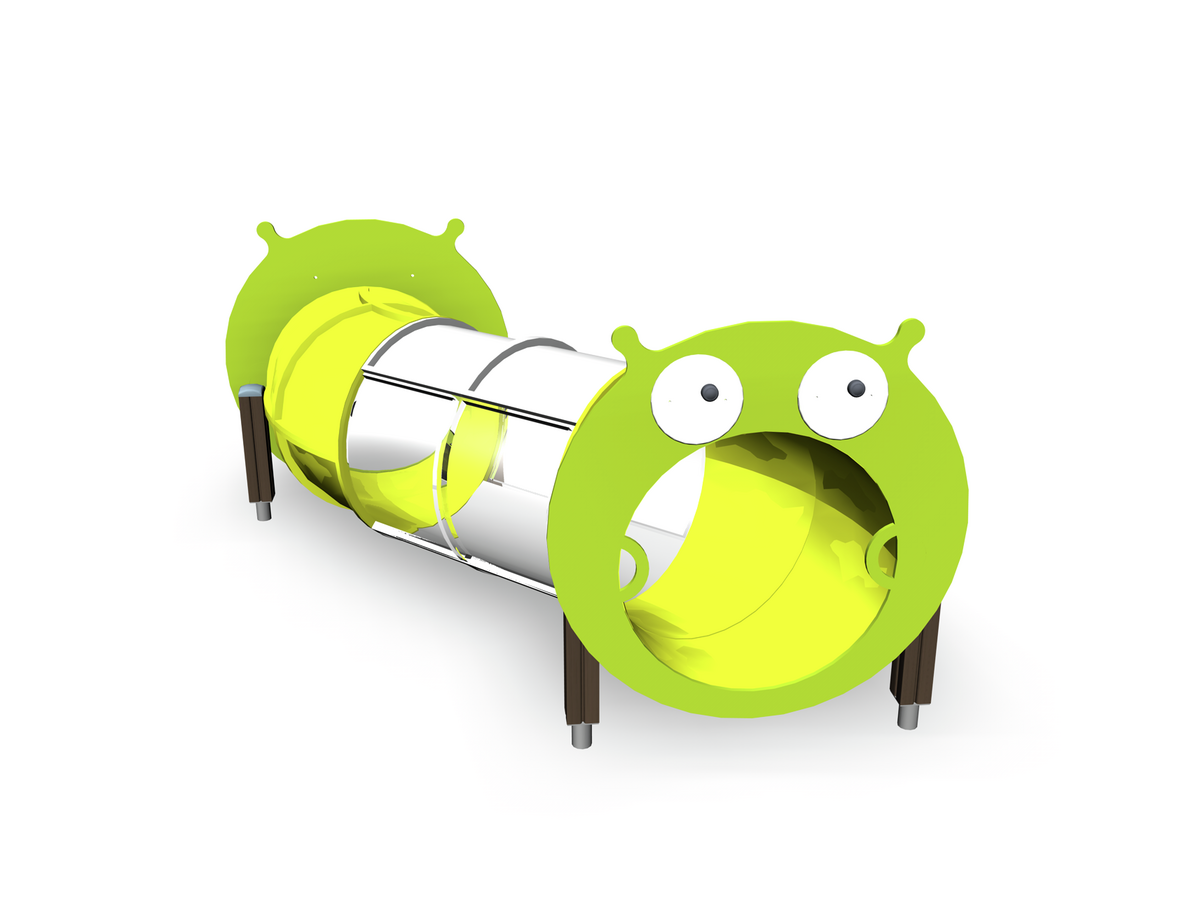

LONG TUBE TUNNEL
Downloads
Spare parts
Downloads
Technical information
Spare part sets
707605-611SP
START PLATE 21x1190x1190 LIME
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
707331
POST 93x93x470 IMPREGNATED
707331
POST 93x93x470 IMPREGNATED
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905803
905803SP
BASE MODULE SMALL CURVED YELLOW
905813
905813SP
BASE MODULE BIG CURVED YELLOW
905821
905821SP
BASE MOD.STRAIGHT GREY
905829
905829SP
BASE MOD.STRAIGHT (SEE-THROUGH)
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 104625M (.dwg)

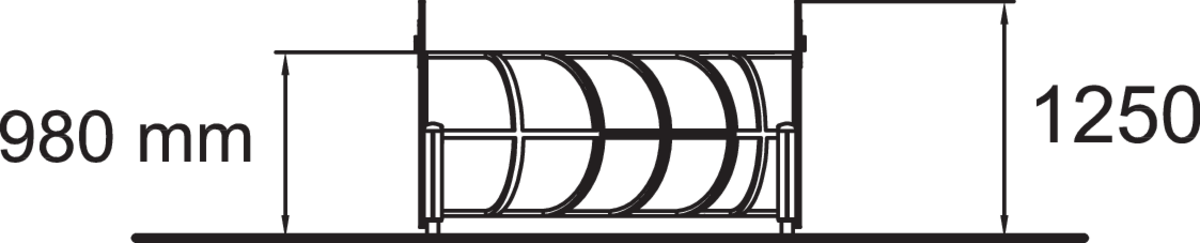

SIDE VIEW 104625M (.dwg)

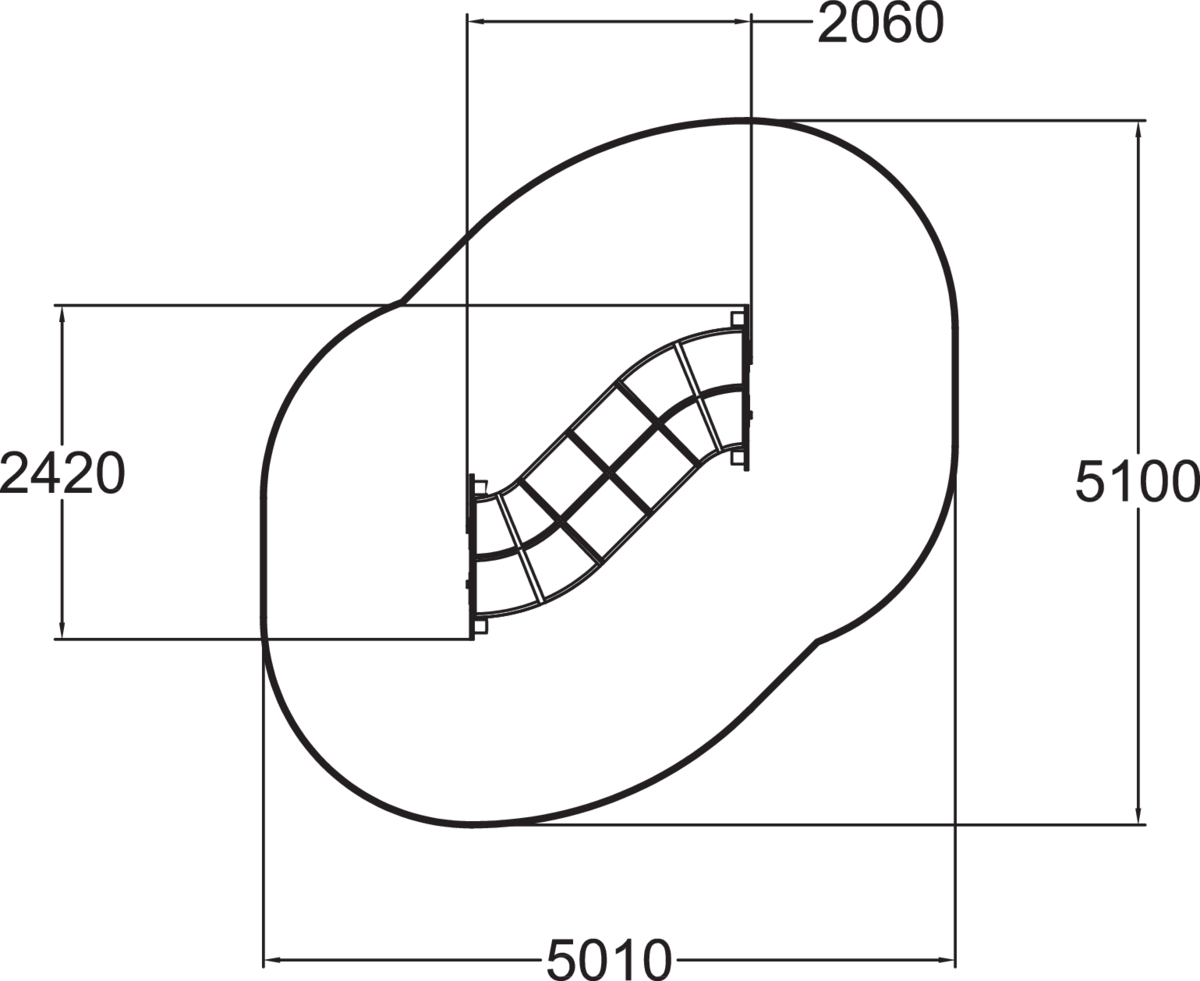

TOP VIEW 104625M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
5010
FALLING SPACE WIDTH, MM
5100
Max. free fall height, mm
980
Impact area, m²
19
Product height, mm
1250
Product lenght, mm
2060
Product width, mm
2420
Height required, mm
2780
IMPACT AREA LENGTH, MM
5010
IMPACT AREA WIDTH, MM
5100
