Home
/
spareparts
Spare parts
137025M

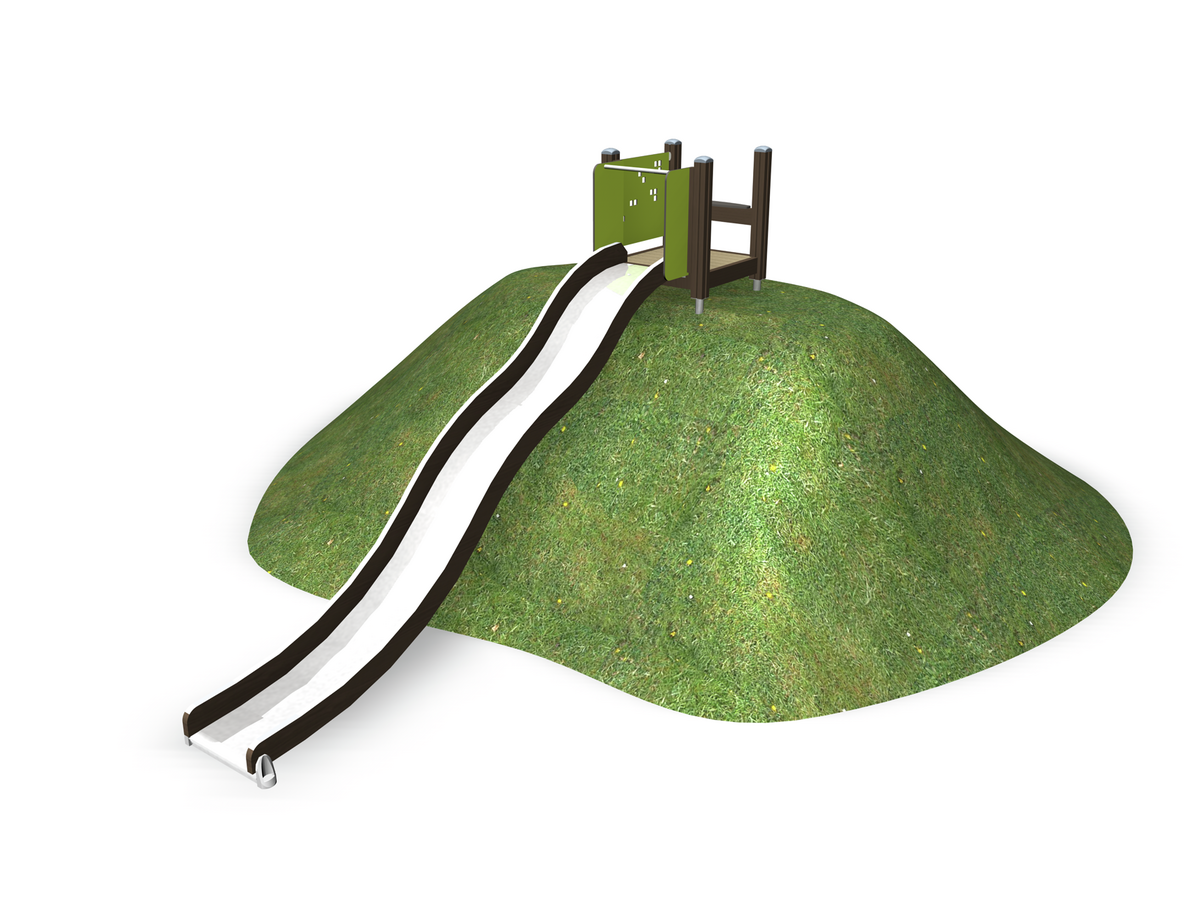

LONG HILL SLIDE 1970
Downloads
Spare parts
Downloads
Technical information
Spare part sets
701448-602SP
SLIDE ELEMENT +2070 DARK BROWN DEEP
901879SP
ATTACHMENT PIECE FOR SLIDE MOUNTING
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706371
706371-703SP
SLIDE RAIL PLATE 15x747x343 LIME
706436
706436-703SP
WALL LAMINATE 80M 10x640x701 LIME
706439
BOOM 45x120x704 IMPREGNATED
706439SP
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706453
706453-704SP
STEP 15x145x600 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706894
POST 93x93x950 IMPREGNATED
706894
POST 93x93x950 IMPREGNATED
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
008986
008710SP
FLOOR 80M (008701)
701448-602
701448-602SP
SLIDE ELEMENT +2070 DARK BROWN DEEP
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137025M (.dwg)

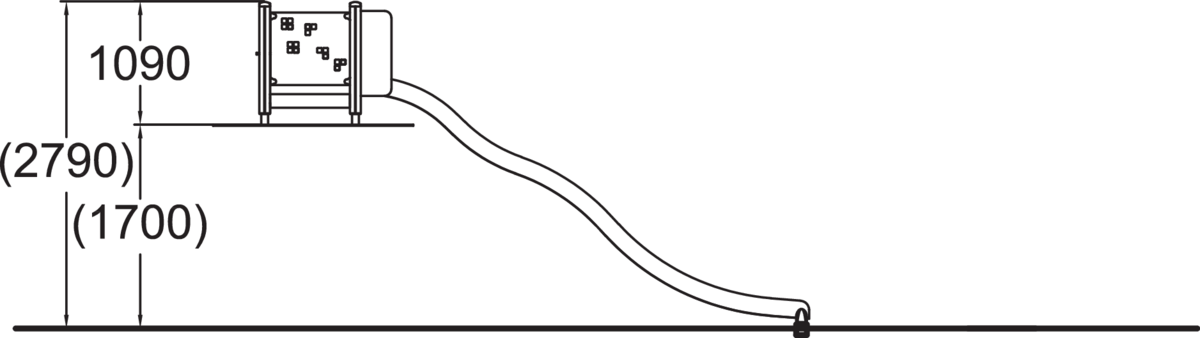

SIDE VIEW 137025M (.dwg)

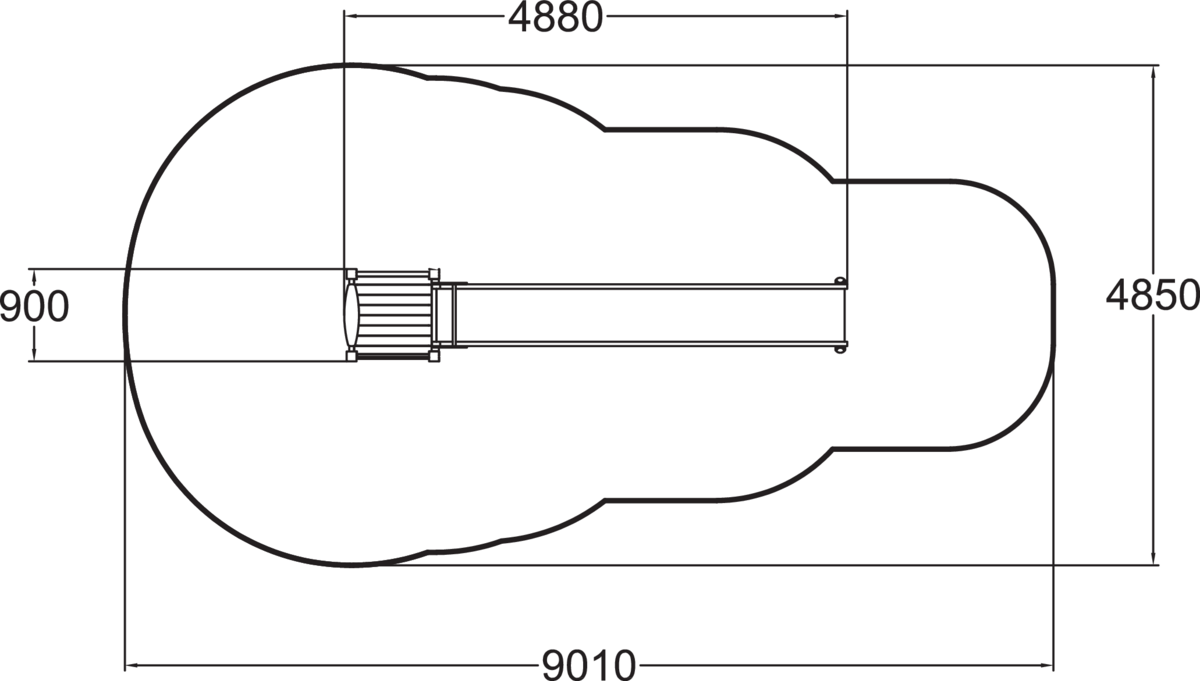

TOP VIEW 137025M (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
9010
FALLING SPACE WIDTH, MM
4850
Max. free fall height, mm
1000
Impact area, m²
32.2
Product height, mm
2790
Product lenght, mm
4880
Product width, mm
900
Height required, mm
3870
IMPACT AREA LENGTH, MM
9010
IMPACT AREA WIDTH, MM
4850
