Home
/
spareparts
Spare parts
104510M
LISA
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706439
BOOM 45x120x704 IMPREGNATED
706439
BOOM 45x120x704 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706441
POST 93x93x1550 IMPREGNATED
706481
PLATE 93x93x10 TOP HAT FFL
706481-703SP
PLATE 93x93x10 TOP HAT FFL LIME
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706527
706527SP
POST 93x93x1600 IMPREGNATED
706577
706577SP
POST 93x93x600 IMPREGNATED
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
706891
BOOM 45x145x724 IMPREGNATED
706891
BOOM 45x145x724 IMPREGNATED
706892
PLATE 15x93x700
706892
PLATE 15x93x700
706894
POST 93x93x950 IMPREGNATED
706894
POST 93x93x950 IMPREGNATED
707146
707146-703SP
HANDRAIL STAIR 15x145x1153 LIME
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 104510M (.dwg)

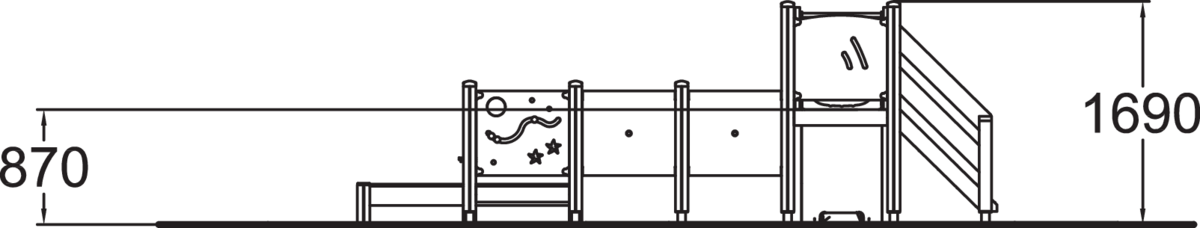

SIDE VIEW 104510M (.dwg)

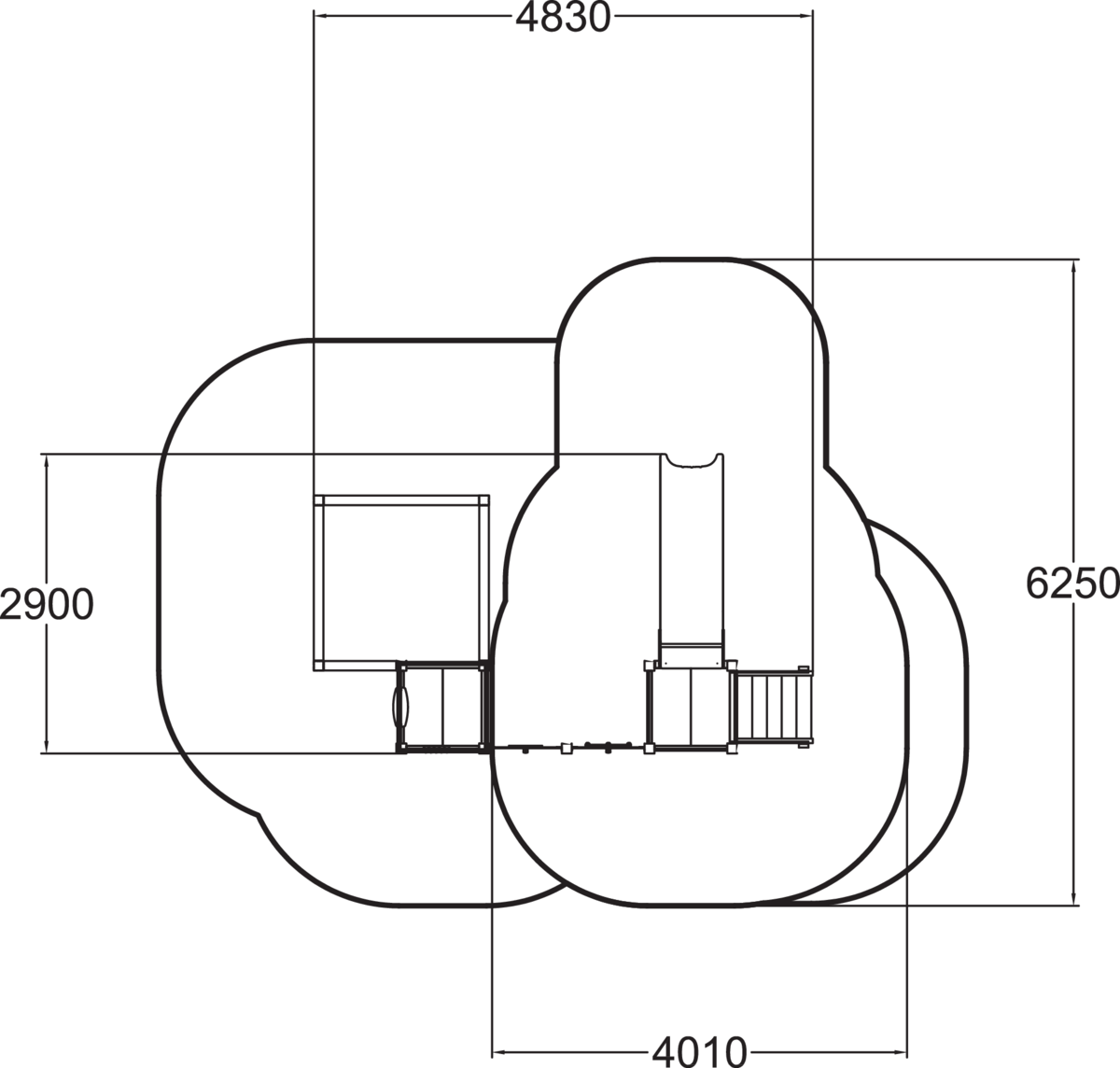

TOP VIEW 104510M (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7815
FALLING SPACE WIDTH, MM
6250
Max. free fall height, mm
1000
Impact area, m²
20.7
Product height, mm
1690
Product lenght, mm
4830
Product width, mm
2900
Height required, mm
2700
IMPACT AREA LENGTH, MM
6250
IMPACT AREA WIDTH, MM
4010
