Home
/
spareparts
Spare parts
137710

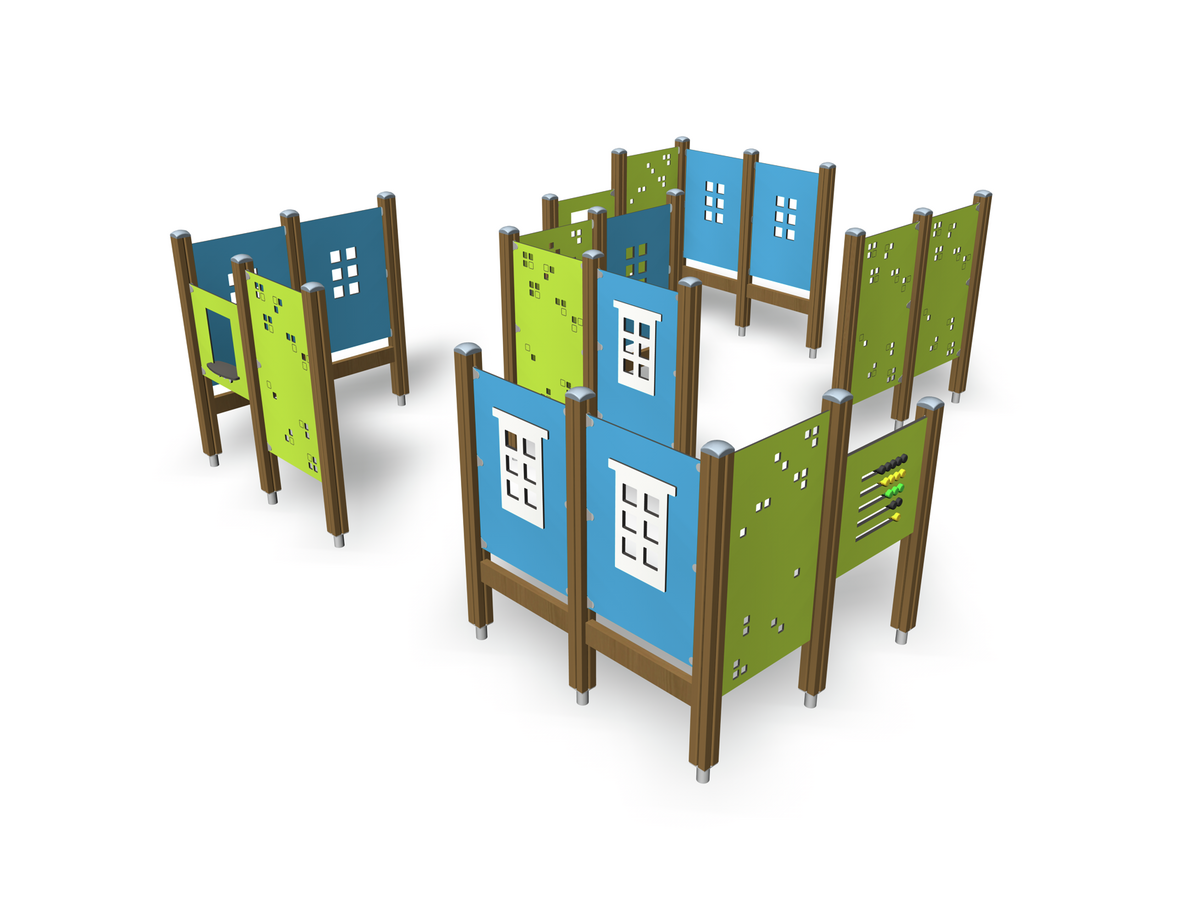

LABYRINTHE
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706441-603
POST 93x93x1550 BROWN
706441-603
POST 93x93x1550 BROWN
707430-701
WALL ELEMENT 20x1000x702 BLUE
707430-701
WALL ELEMENT 20x1000x702 BLUE
701401-603
701401-603SP
POST 93X93X1250 BROWN
707459-703
WALL ELEMENT 10x1200x702 LIME
707459-703
WALL ELEMENT 10x1200x702 LIME
706439-603
BOOM 45x120x704 BROWN
706439-603SP
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
Downloads
InstallationInstructions (.pdf)

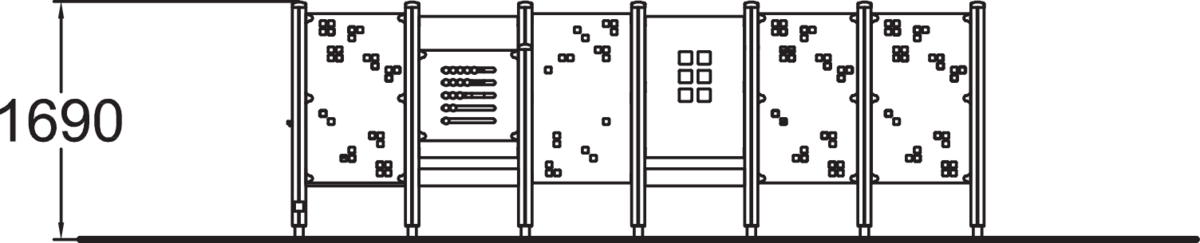

SIDE VIEW 137710 (.dwg)

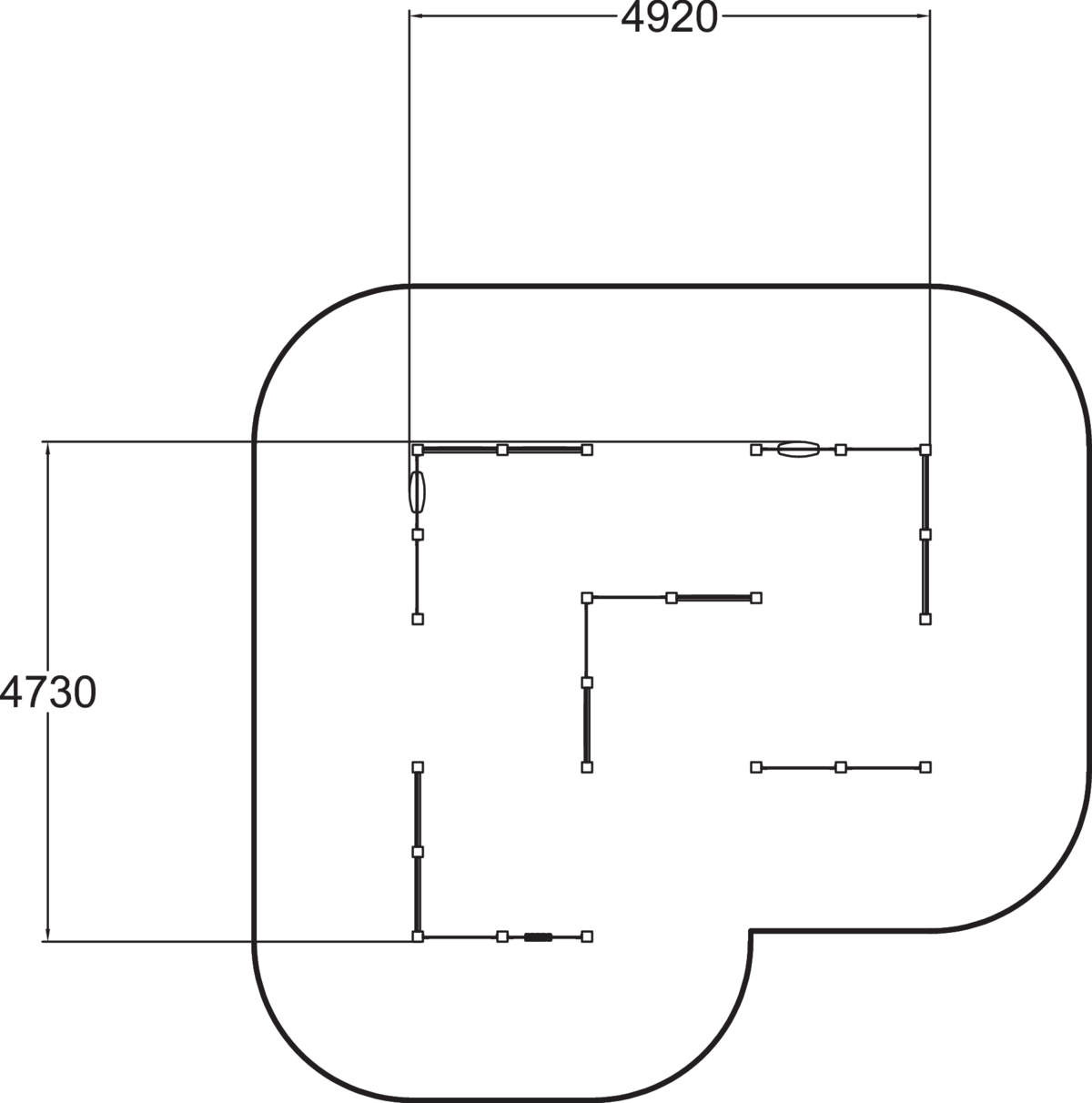

TOP VIEW 137710 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7930
FALLING SPACE WIDTH, MM
7730
Impact area, m²
0
Product height, mm
1690
Product lenght, mm
4920
Product width, mm
4730
Height required, mm
1800
