Spare parts
220325
KRYPTON
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702633
PRINTED LABEL 90x50 NO HELM VERT
702633
PRINTED LABEL 90x50 NO HELM VERT
703982
NET YELLOW
703982
NET YELLOW
704006
CLIMBING WALL ELEMENT 15x668x1219 DARK GREY
704006
CLIMBING WALL ELEMENT 15x668x1219 DARK GREY
704381
STAIRS +890 CLOXX 2.0
704381
STAIRS +890 CLOXX 2.0
704440
RAMP LADDER WITH HANDELS
704440
RAMP LADDER WITH HANDELS
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
902134
902134SP
BALL FASTENER
902157
PLUG FOR PLASTIC JOINT BLACK
902157
PLUG FOR PLASTIC JOINT BLACK
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904100
ADAPTER 60-44 PARKOUR HAND RAIL
904455
POST 90x90x2737
904455
POST 90x90x2737
904456
POST 90x90x2737 G_J
904456
POST 90x90x2737 G_J
904505
POST 90x90x2137 E_K
904505
POST 90x90x2137 E_K
909519
909519SP
PLATE 50x380x380 FOOTING
909708
SLIDE ELEMENT +870 STAINLESS BWI 870
909708
SLIDE ELEMENT +870 STAINLESS BWI 870
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 220325 (.dwg)

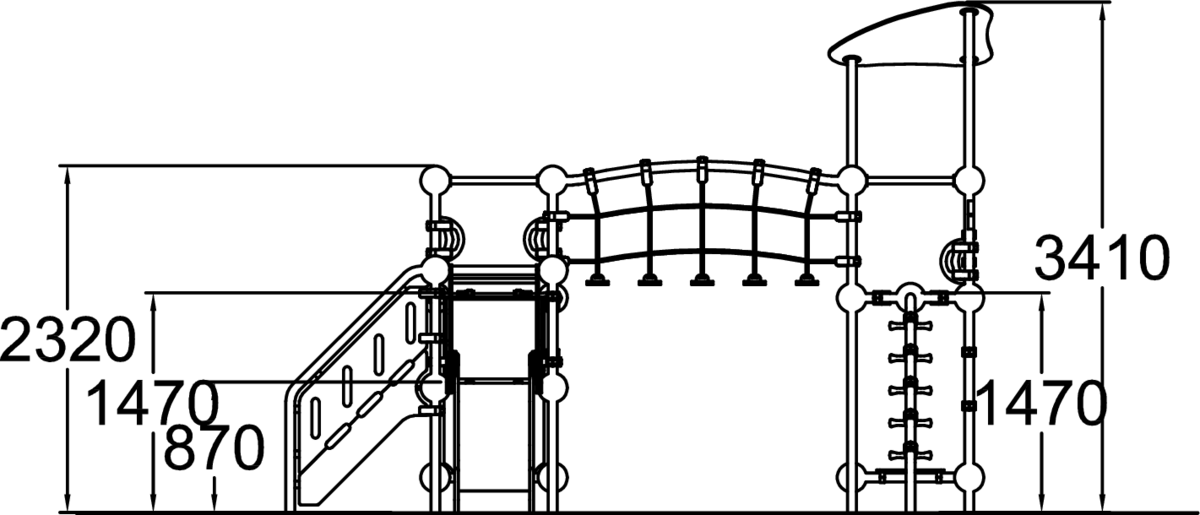

SIDE VIEW 220325 (.dwg)

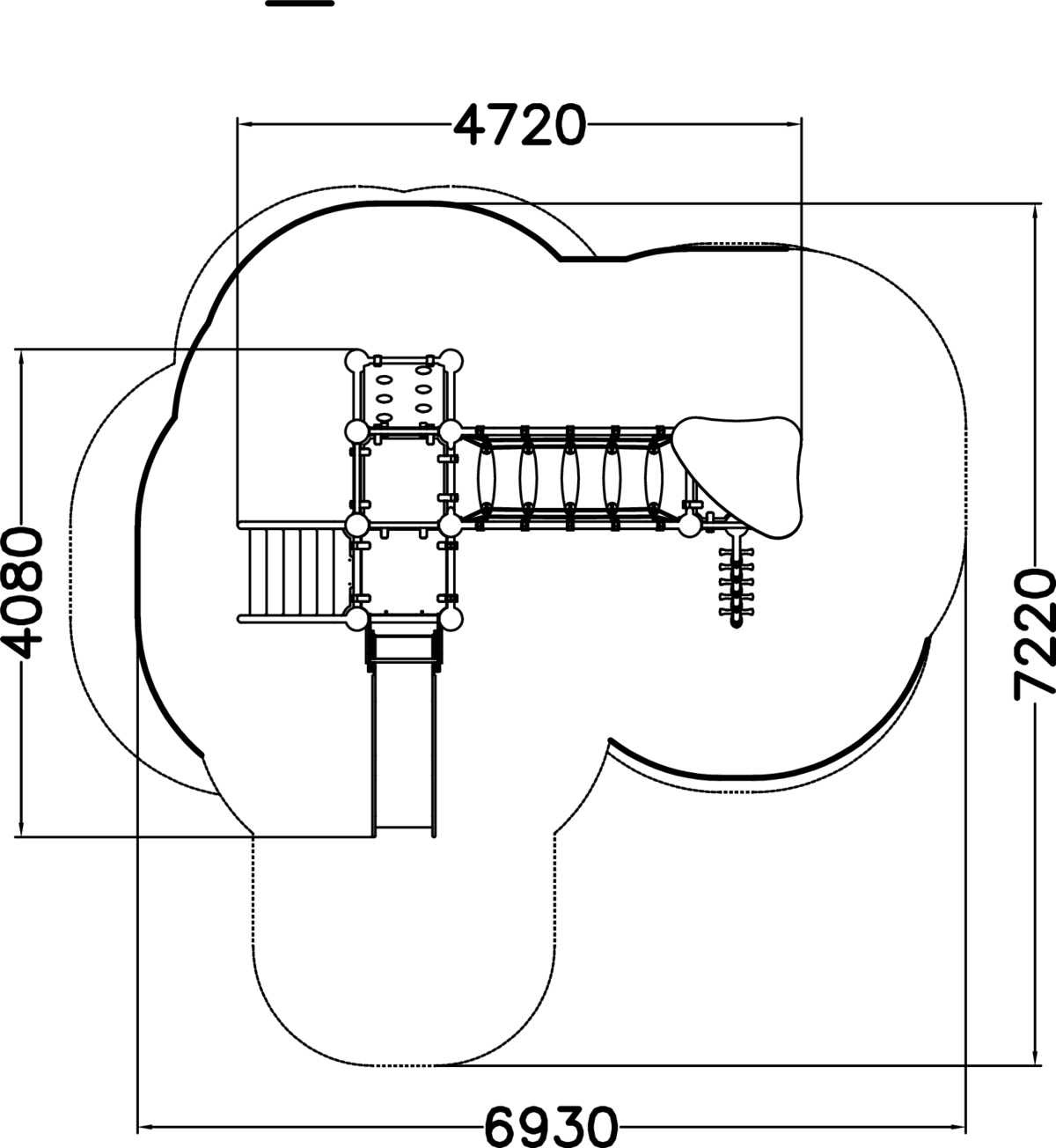

TOP VIEW 220325 (.dwg)
Technical information
User age
1+
FALLING SPACE LENGTH, MM
7600
FALLING SPACE WIDTH, MM
7540
Max. free fall height, mm
1550
Impact area, m²
34.5
Product height, mm
3410
Product lenght, mm
4720
Product width, mm
4080
Height required, mm
3410
IMPACT AREA LENGTH, MM
6930
IMPACT AREA WIDTH, MM
7220
