Home
/
spareparts
Spare parts
138077M
JUNGLE
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701280
701280SP
NET, 1569x1545
701300
006942SP
SIDE NET STEEL ( 701300 )
701327
701327SP
ROPE LADDER 2355MM
701428
701428SP
POST 93x93x2250 YELLOW
701474
701474SP
POST 95x95x1530 YELLOW (006800)
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701486
701486SP
BOOM 45x145x2324 YELLOW (005693)
701606
DEEP FOUNDATION FOOT
701606
DEEP FOUNDATION FOOT
701623
701623SP
NET 1105x1510 FRAME BLUE
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
901596
SLIDE BAR 90x90x2090
901596
SLIDE BAR 90x90x2090
901785
901785SP
BAR ELEMENT 120M GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
SIDE VIEW 138077M (.dwg)

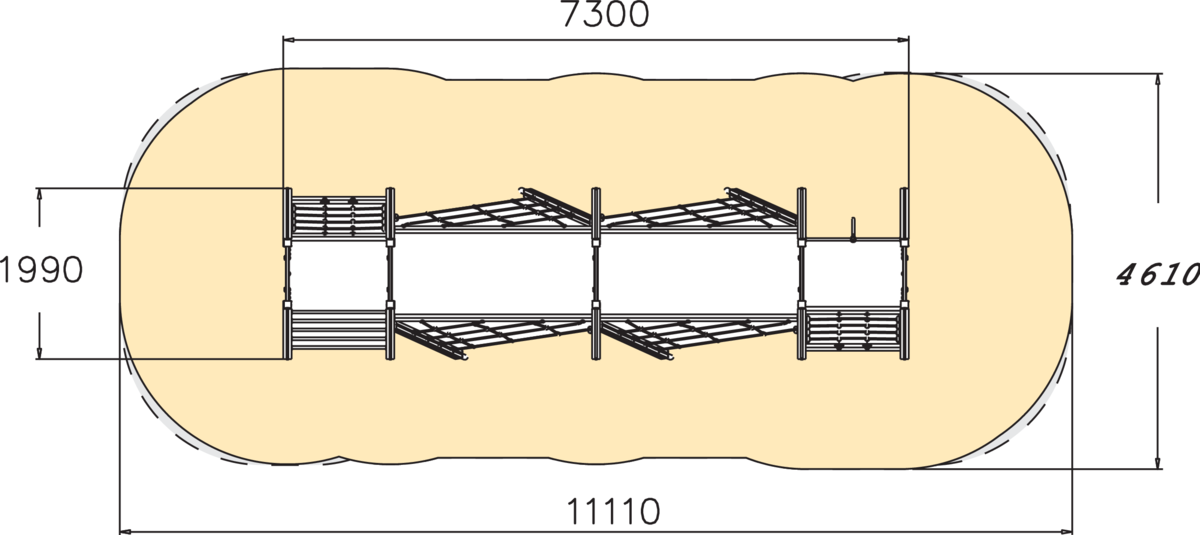

TOP VIEW 138077M (.dwg)
Technical information
User age
6
Max. free fall height, mm
2160
Impact area, m²
46.9
Product height, mm
2310
Product lenght, mm
7300
Product width, mm
1990
Height required, mm
2450
IMPACT AREA LENGTH, MM
11110
IMPACT AREA WIDTH, MM
4590
