150210M

HADES

Downloads
700219 700219
700219SP PLATFORM NET 700219SP PLATFORM NET
702286 PRINTED LABEL 65x65 702286 PRINTED LABEL 65x65
702286SP PRINTED LABEL 65x65 702286SP PRINTED LABEL 65x65
702339 PRINTED LABEL 118x78 NO HELM - VERTICAL 702339 PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP PRINTED LABEL NO HELM - VERTICAL 118x78 702339SP PRINTED LABEL NO HELM - VERTICAL 118x78
702907 702907
Not available
Inquire spare parts for the product using a form Open form for spare part questions
702914 702914
Not available
Inquire spare parts for the product using a form Open form for spare part questions
702935 702935
702935SP U-NET 2700 DEEP (006869) 702935SP U-NET 2700 DEEP (006869)
702936 702936
Not available
Inquire spare parts for the product using a form Open form for spare part questions
707570 707570
Not available
Inquire spare parts for the product using a form Open form for spare part questions
707592 707592
Not available
Inquire spare parts for the product using a form Open form for spare part questions
707614 707614
Not available
Inquire spare parts for the product using a form Open form for spare part questions
901798 901798
901798SP BAR ELEMENT 283x283 CURVED GREY 901798SP BAR ELEMENT 283x283 CURVED GREY
903454 903454
Not available
Inquire spare parts for the product using a form Open form for spare part questions
907040 FOUNDATION PART 907040 FOUNDATION PART
907040 FOUNDATION PART 907040 FOUNDATION PART
929341 ATTACHMENT IRON (1 BRANCH) 929341 ATTACHMENT IRON (1 BRANCH)
929341 ATTACHMENT IRON (1 BRANCH) 929341 ATTACHMENT IRON (1 BRANCH)
960120 METAL POST (club) 960120 METAL POST (club)
960120 METAL POST (club) 960120 METAL POST (club)
006892 BOOM (ARENA) 90x145x1200 GREY 006892 BOOM (ARENA) 90x145x1200 GREY
006892 BOOM (ARENA) 90x145x1200 GREY 006892 BOOM (ARENA) 90x145x1200 GREY
005363 005363
Not available
Inquire spare parts for the product using a form Open form for spare part questions
006879 ROPE HANDRAIL 006879 ROPE HANDRAIL
006879 ROPE HANDRAIL 006879 ROPE HANDRAIL
006877 SUPPORT ROPE 006877 SUPPORT ROPE
006877 SUPPORT ROPE 006877 SUPPORT ROPE
006889 BALANCE BEAM 006889 BALANCE BEAM
006889 BALANCE BEAM 006889 BALANCE BEAM

Technical information

  • User age
    4+

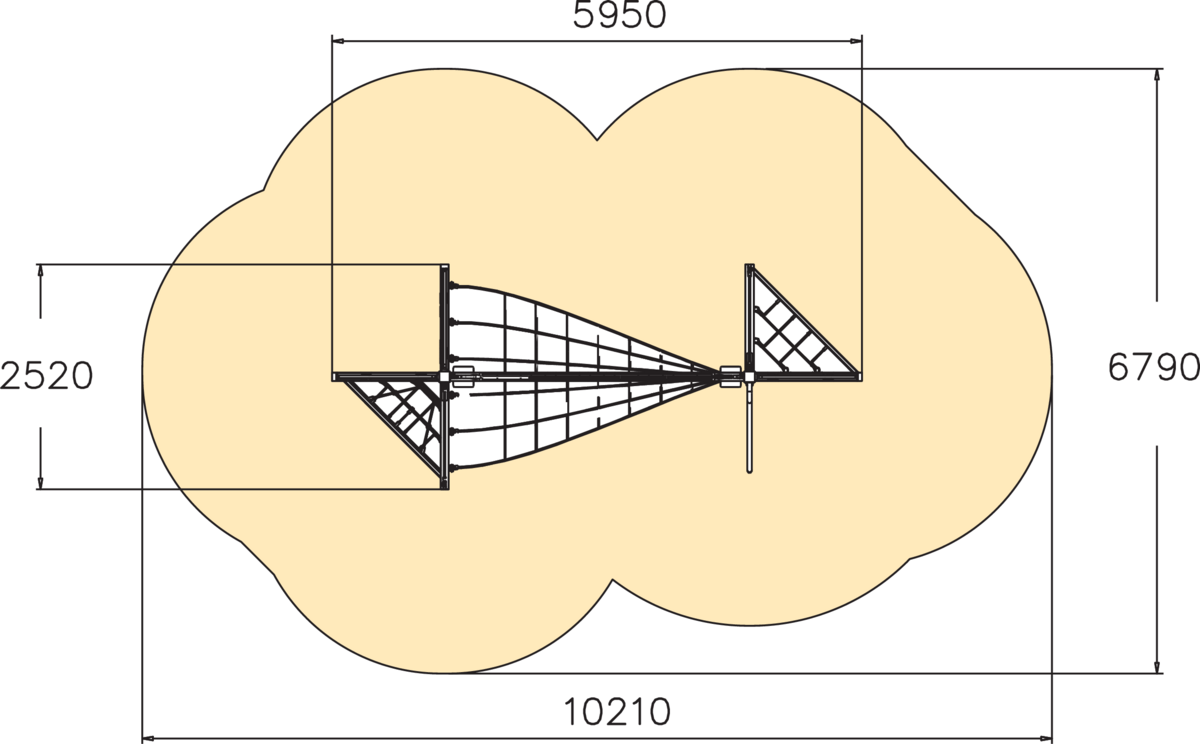

  • FALLING SPACE LENGTH, MM
    10210
  • FALLING SPACE WIDTH, MM
    6790
  • Max. free fall height, mm
    2740
  • Impact area, m²
    52.7

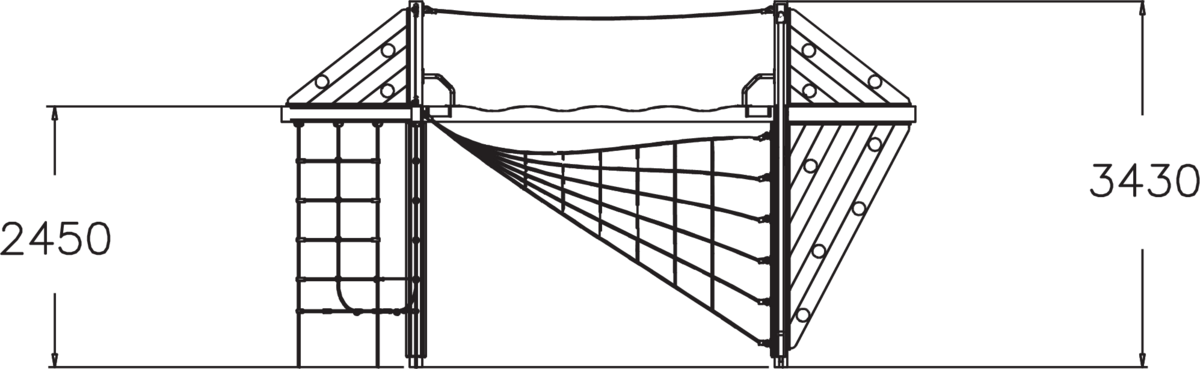

  • Product height, mm
    3430
  • Product lenght, mm
    5950
  • Product width, mm
    2520
  • Height required, mm
    4250
  • IMPACT AREA LENGTH, MM
    10210
  • IMPACT AREA WIDTH, MM
    6790
