Spare parts
137303M
GRASSHOPPER
Downloads
Spare parts
Downloads
Technical information
Spare part sets
137303SP
SPARE PARTS PACKAGE FOR 137303M LIME GREEN
137303SP1
SPARE PARTS PACKAGE FOR 137303M APPLE RED
137303SP2
SPARE PARTS PACKAGE FOR 137303M LIQUORICE GREY
905031SP
SPIRAL SPRING (STRONG),415x380x90
Original product structure
Spare parts
909895
909895SP
SEAT, 479x249x134
929450
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
929451
929451SP
PEDESTAL IRON 330x240x190
706738-703
SIDE PLATE 20x140x500 LIME
706738-703
SIDE PLATE 20x140x500 LIME
706737-602
BOOM AND SPRING 1500x510x91 DARK BROWN
Open substructure
706737-602SP
BOOM AND SPRING 1500x510x91 DARK BROWN
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137303M (.dwg)

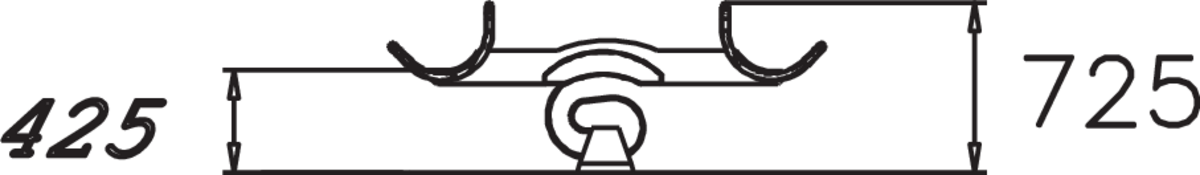

SIDE VIEW 137303M (.dwg)

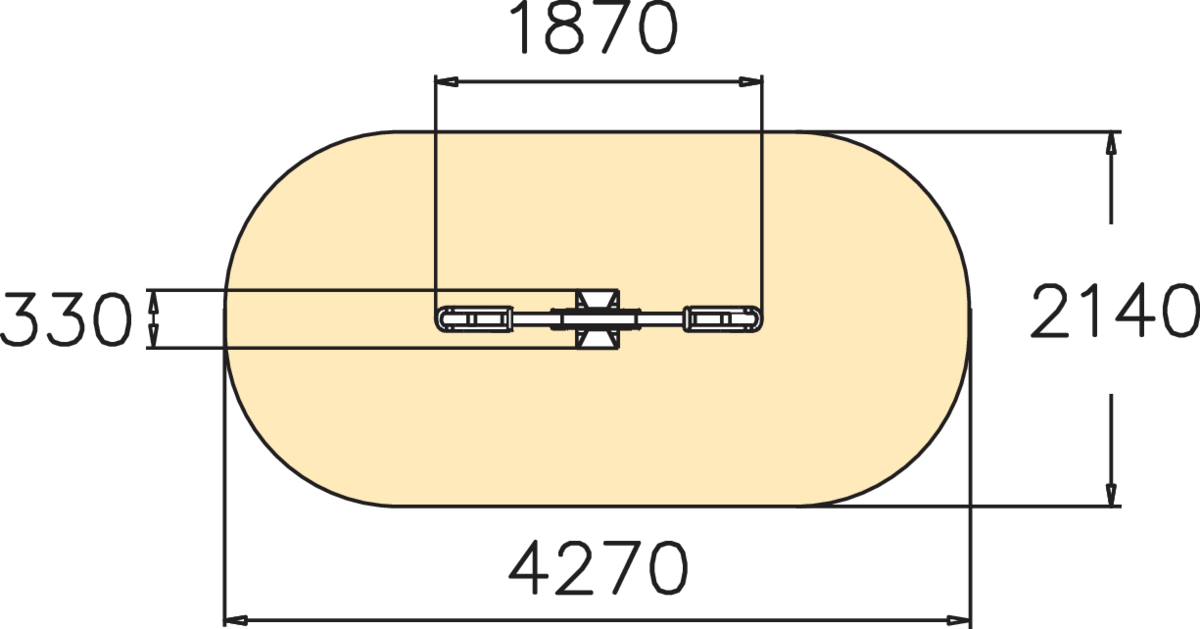

TOP VIEW 137303M (.dwg)
Technical information
User age
2+
FALLING SPACE LENGTH, MM
4270
FALLING SPACE WIDTH, MM
2140
Max. free fall height, mm
590
Impact area, m²
8.3
Product height, mm
725
Product lenght, mm
1870
Product width, mm
330
Height required, mm
2500
IMPACT AREA LENGTH, MM
4270
IMPACT AREA WIDTH, MM
2140
