Home
/
spareparts
Spare parts
010303
GRASSHOPPER
Downloads
Spare parts
Downloads
Technical information
Spare part sets
137303SP
SPARE PARTS PACKAGE FOR 137303M LIME GREEN
905031SP
SPIRAL SPRING (STRONG),415x380x90
Original product structure
Spare parts
909895
909895SP
SEAT, 479x249x134
929450
929450SP
FOUNDATION PIPE
929451
929451SP
PEDESTAL IRON 330x240x190
009960
BOOM 1500x510x90
Open substructure
905031
905031SP
SPIRAL SPRING (STRONG),415x380x90
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
009961
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
Downloads
HEINÄSIRKKA (.dwg)
InstallationInstructions (.pdf)

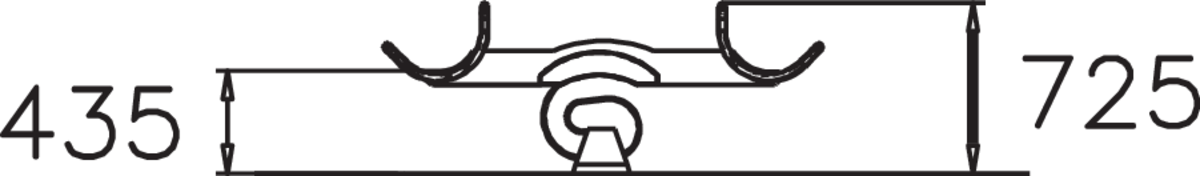

SIDE VIEW 010303 (.dwg)

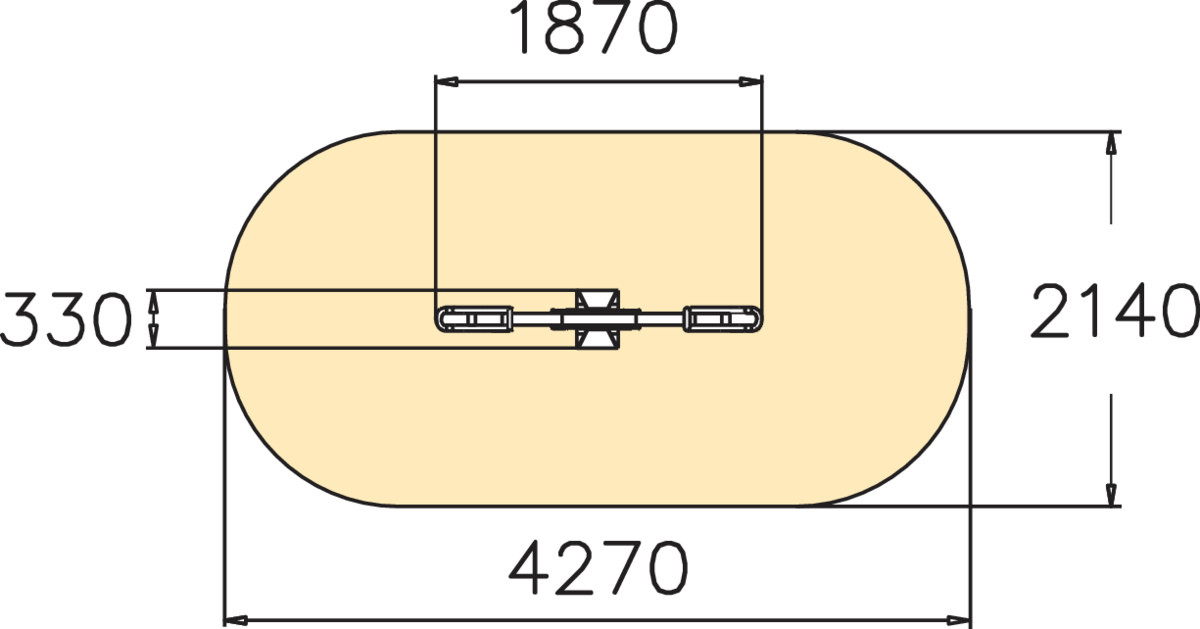

TOP VIEW 010303 (.dwg)
Technical information
User age
1
Max. free fall height, mm
590
Impact area, m²
8.3
Product height, mm
725
Product lenght, mm
1870
Product width, mm
330
Height required, mm
2500
IMPACT AREA LENGTH, MM
4270
IMPACT AREA WIDTH, MM
2140
