Spare parts

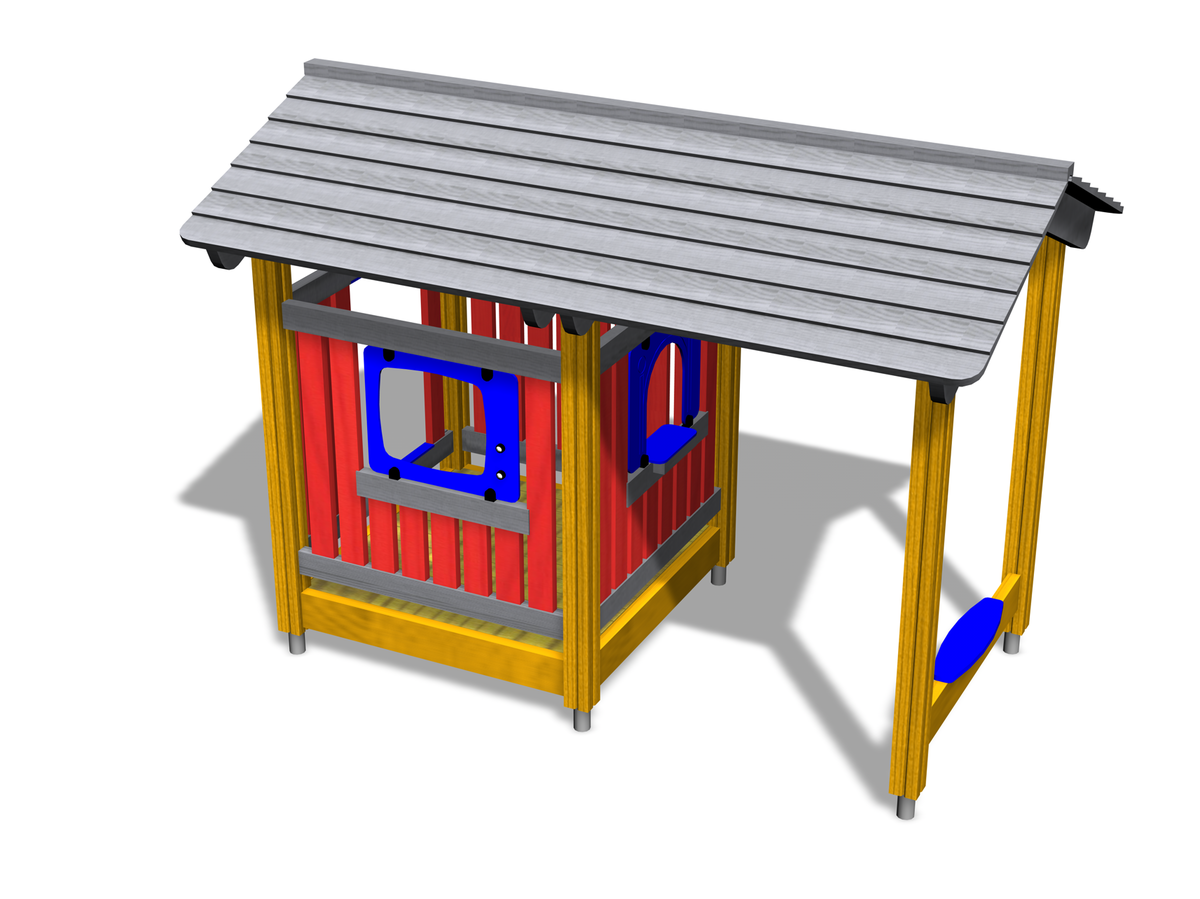

122457M
GAME HOUSE
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
701052
706453-701SP
STEP 15x145x600 BLUE
701422
703327SP
POST 93x93x1650 YELLOW
701482
701482SP
BOOM 45x145x1124 (005692) YELLOW
701557
003880SP
FLOOR 120M
701618
P11478-604SP
WALL 120M WINDOW 45x1065x1101 GREY
701794
P10780-604SP
WALL 120M 45x1065x1101 LIGHT GREY
701796
P10475-604SP
WALL 45x1065x1101 DOOR GREY
909521
BASE FOOT, L=700
Open substructure
909511
909519
909521SP
BASE FOOT, L=700
909511SP
BASE PIPE 90x90x650
909519SP
PLATE 50x380x380 FOOTING
002782
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
003901
Not available
Inquire spare parts for the product using a form
Open form for spare part questions
005273
706727-701SP
KIOSK PLAY PANEL 640x702 BLUE
005274
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
005285
005285SP
PLATFORM DESK
005906
SIDE BOARD 2800
005906
SIDE BOARD 2800
005909
ROOF BOARD 2800
005909
ROOF BOARD 2800
005919
005919SP
ROOF BATTEN 45x70x2800
Downloads
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
InstallationInstructions (.pdf)
LEIKKIKATOS (.dwg)

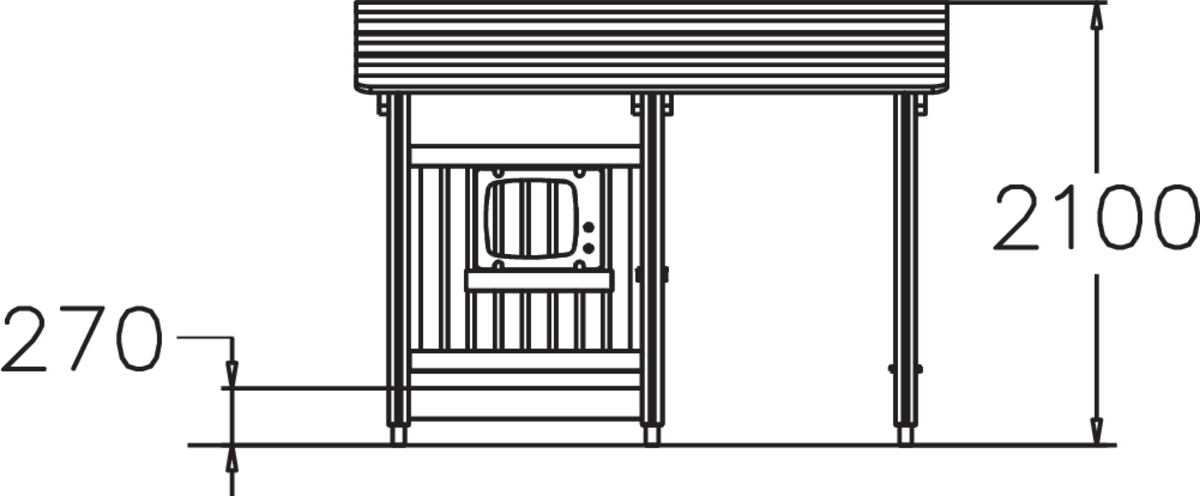

SIDE VIEW 122457M (.dwg)

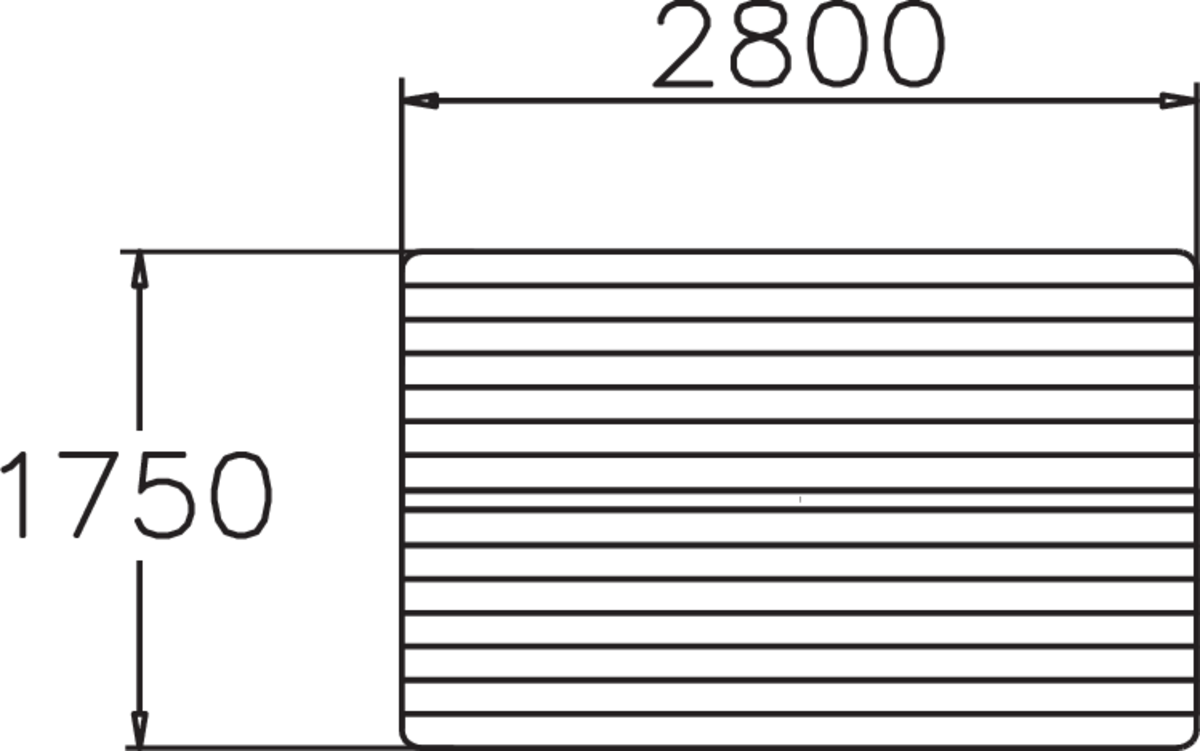

TOP VIEW 122457M (.dwg)
Technical information
User age
1
Max. free fall height, mm
270
Impact area, m²
0
Product height, mm
2100
Product lenght, mm
2800
Product width, mm
1750
Height required, mm
2100
