Home
/
spareparts
Spare parts
137835

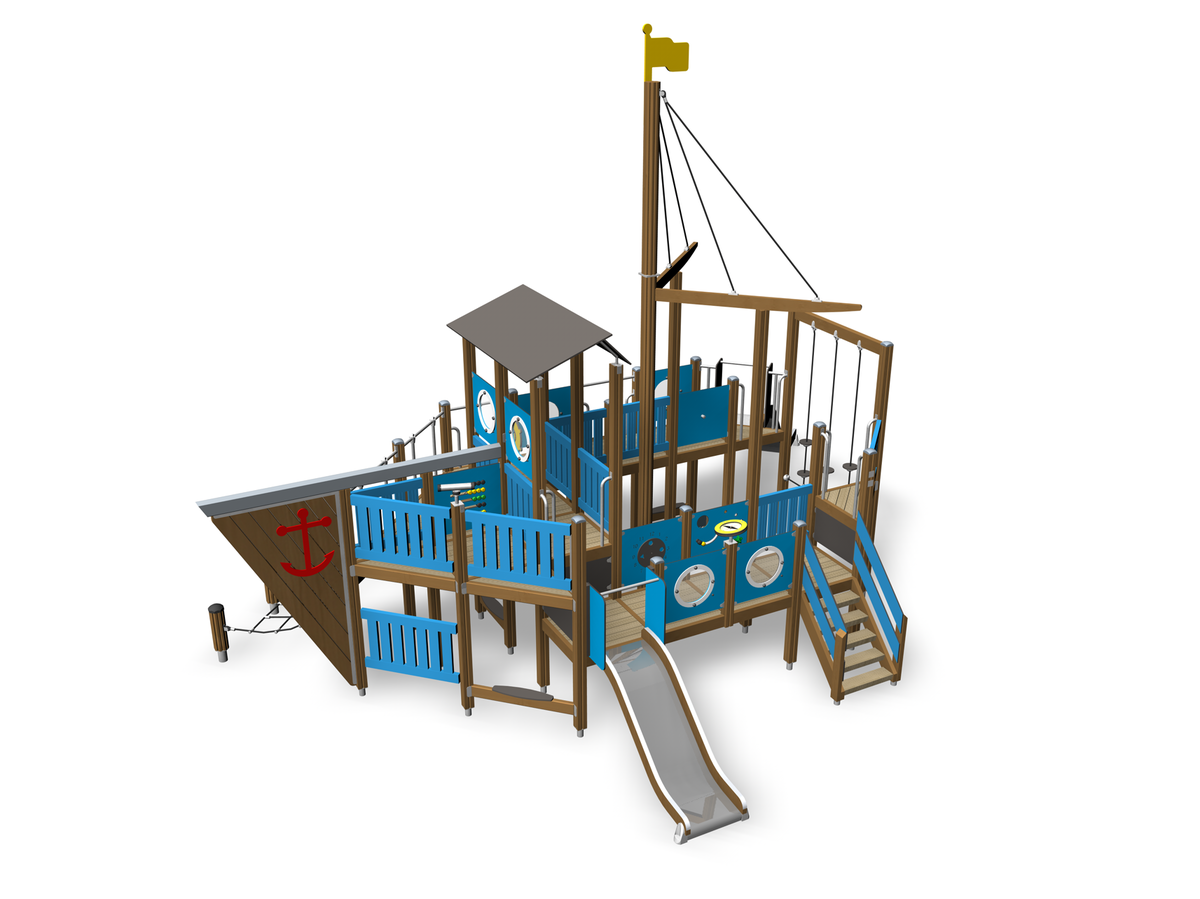

FISHING SHIP
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
702339
PRINTED LABEL 118x78 NO HELM - VERTICAL
702339SP
PRINTED LABEL NO HELM - VERTICAL 118x78
706453
706453-704SP
STEP 15x145x600 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706461
PLATE 15x400x703 DARK GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
706508
BATTEN 32x45x650 BRACKET
706508
BATTEN 32x45x650 BRACKET
706744
PLATFORM 15x145x380 DESK DARK GREY
706744
PLATFORM 15x145x380 DESK DARK GREY
707333
FASTENER KIT FUNCTION ELEMENT
707333
FASTENER KIT FUNCTION ELEMENT
707410
PLANK ELEMENT
707410
PLANK ELEMENT
707732
907688-216SP
HAND GRIP 40x765x114 GREY
907701-216SP
HAND GRIP 40x545x114 GRAY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
903112
FOOT PIPE 600, L=750
903112
FOOT PIPE 600, L=750
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
905879
RUDDER ATTACHMENT PIECE
905879
RUDDER ATTACHMENT PIECE
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
929325
ATTACHMENT PLATE 40x40x1080
929325
ATTACHMENT PLATE 40x40x1080
929326
ATTACHMENT FLANGE 40x40x3x2095
929326
ATTACHMENT FLANGE 40x40x3x2095
706746-608
706746-608SP
WALL WOOD 80M 45x640x701 BLUE
707407-305
NET 1540x800 BLACK
707407-305
NET 1540x800 BLACK
706452-603
706452-603SP
SLIDE ELEMENT +870 BROWN DEEP
907692-216
907692-216SP
SLIDE ADAPTER ELEMENT 80MD PEARL LIGHT GREY
707453-701
707453-701SP
WINDOW PLAY PANEL 640x702 BLUE
907688-216
907688-216SP
HAND GRIP 40x765x114 GREY
706450-603
706450-603SP
SLIDE ELEMENT +1470 BROWN DEEP
706772-701
706772-701SP
ROULETTE PLAY PANEL 640x702 BLUE
707401-608
RAIL 45x120x1680 BLUE
707401-608
RAIL 45x120x1680 BLUE
707146-701
707146-701SP
HANDRAIL STAIR 15x145x1153 BLUE
008985
008714SP
TRIANGLE FLOOR 80M ( 008705 )
707320-702
002031SP
RUDDER PLATE ELEMENT YELLOW
706997-608
706997-608SP
WOODEN WALL 80MD 45x640x984 BLUE
707600-305
707600-305SP
NET 2000x1850 BLACK
706371-701
706371-701SP
SLIDE RAIL PLATE 15x747x343 BLUE
707597-603
POST 140x140x450 WITH 8 GROOVES BROWN
707597-603
POST 140x140x450 WITH 8 GROOVES BROWN
707305-703
707305-703SP
TREASURE MAP LIME
707593-603
BOOM 45x120x1030 BROWN
707593-603
BOOM 45x120x1030 BROWN
706439-603
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
706475-603
706475-603SP
CLIMBING ELEMENT 1387x1020x325 BROWN
707653-603
WALL ELEMENT 32x1130x2110 FISHING BOAT BROWN
707653-603
WALL ELEMENT 32x1130x2110 FISHING BOAT BROWN
706510-603
706510-603SP
BOOM 80MD 45x120x1030 BROWN
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
907667-216
SUPPORT PEARL LIGHT GREY
907667-216
SUPPORT PEARL LIGHT GREY
706484-603
POST 93x93x2150 BROWN
706484-603
POST 93x93x2150 BROWN
706441-603
POST 93x93x1550 BROWN
706441-603
POST 93x93x1550 BROWN
707374-603
BOOM 45x120x1504 BROWN
707374-603
BOOM 45x120x1504 BROWN
908044-216
TUBE Ø337x679
908044-216
TUBE Ø337x679
706790-603
POST 93x93x3500 BROWN
706790-603
POST 93x93x3500 BROWN
706444-603
POST 93x93x3200 BROWN
706444-603
POST 93x93x3200 BROWN
008986
008710SP
FLOOR 80M (008701)
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137835 (.dwg)

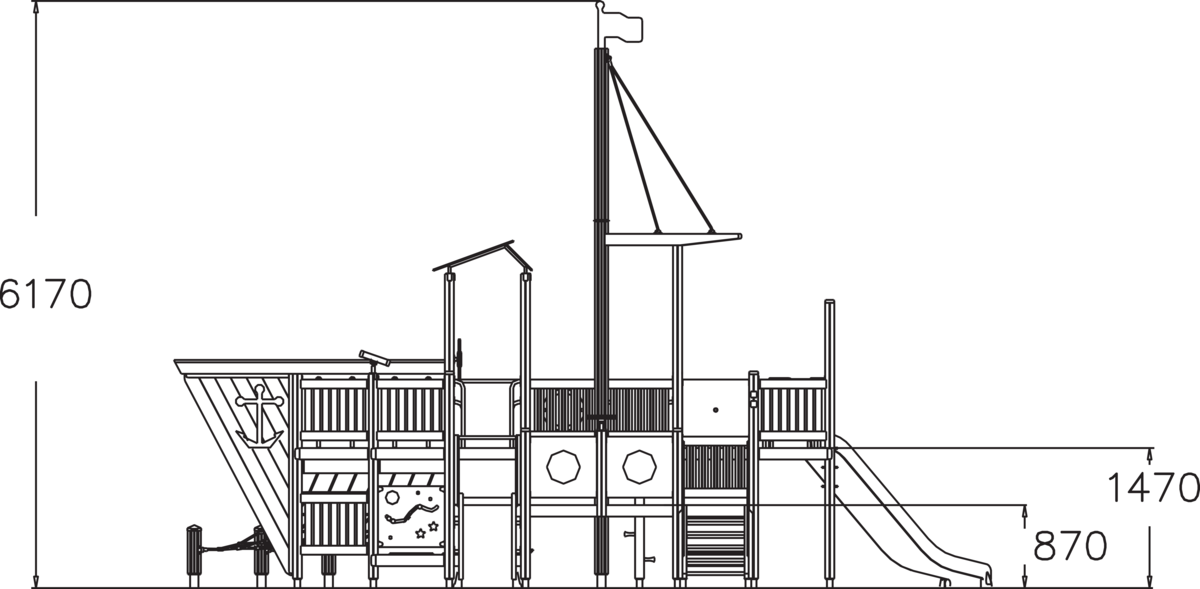

SIDE VIEW 137835 (.dwg)

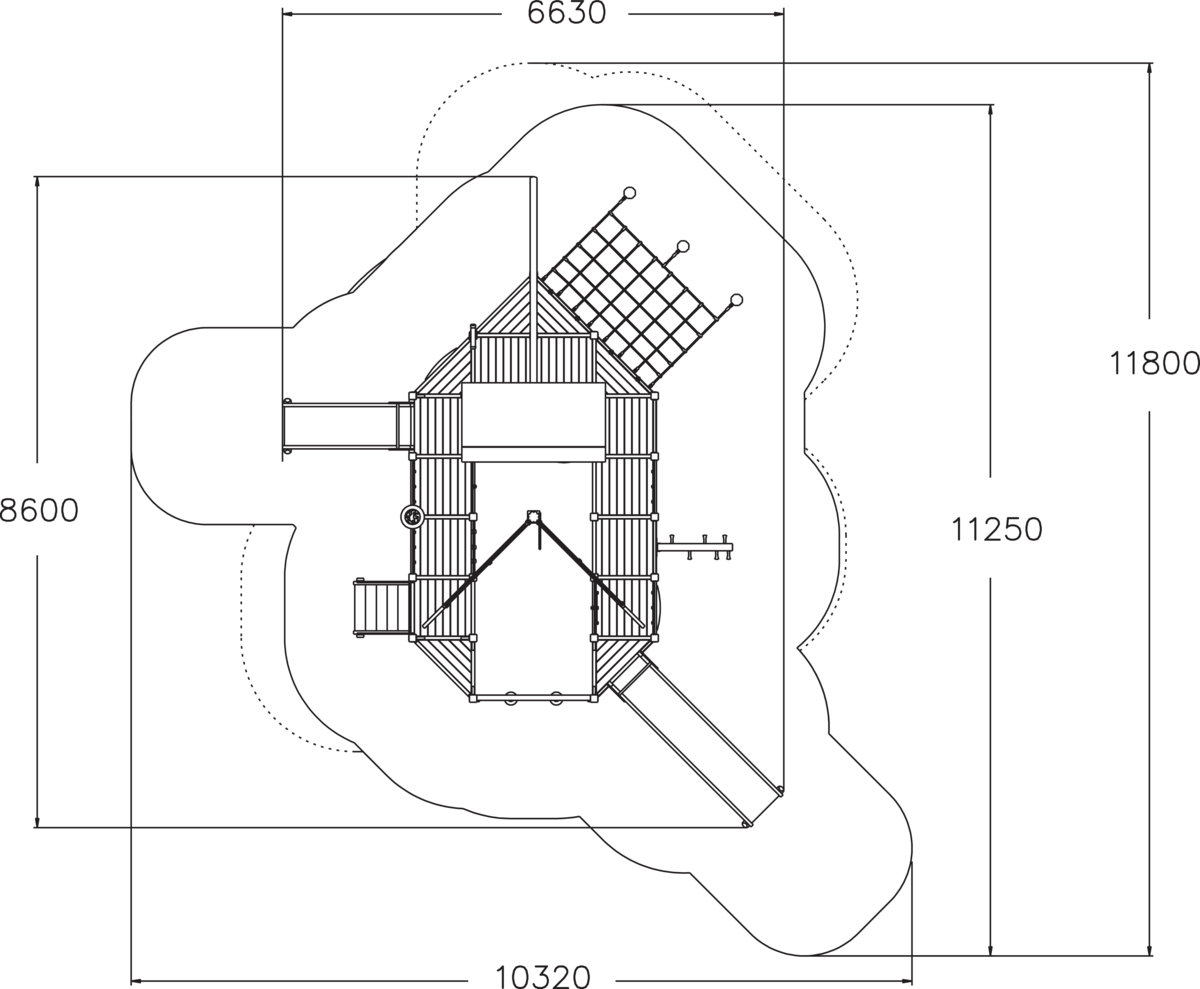

TOP VIEW 137835 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
10320
FALLING SPACE WIDTH, MM
11800
Max. free fall height, mm
1470
Impact area, m²
67
Product height, mm
6170
Product lenght, mm
8600
Product width, mm
6630
Height required, mm
6170
IMPACT AREA LENGTH, MM
10320
IMPACT AREA WIDTH, MM
11250
