Home
/
spareparts
Spare parts
137740

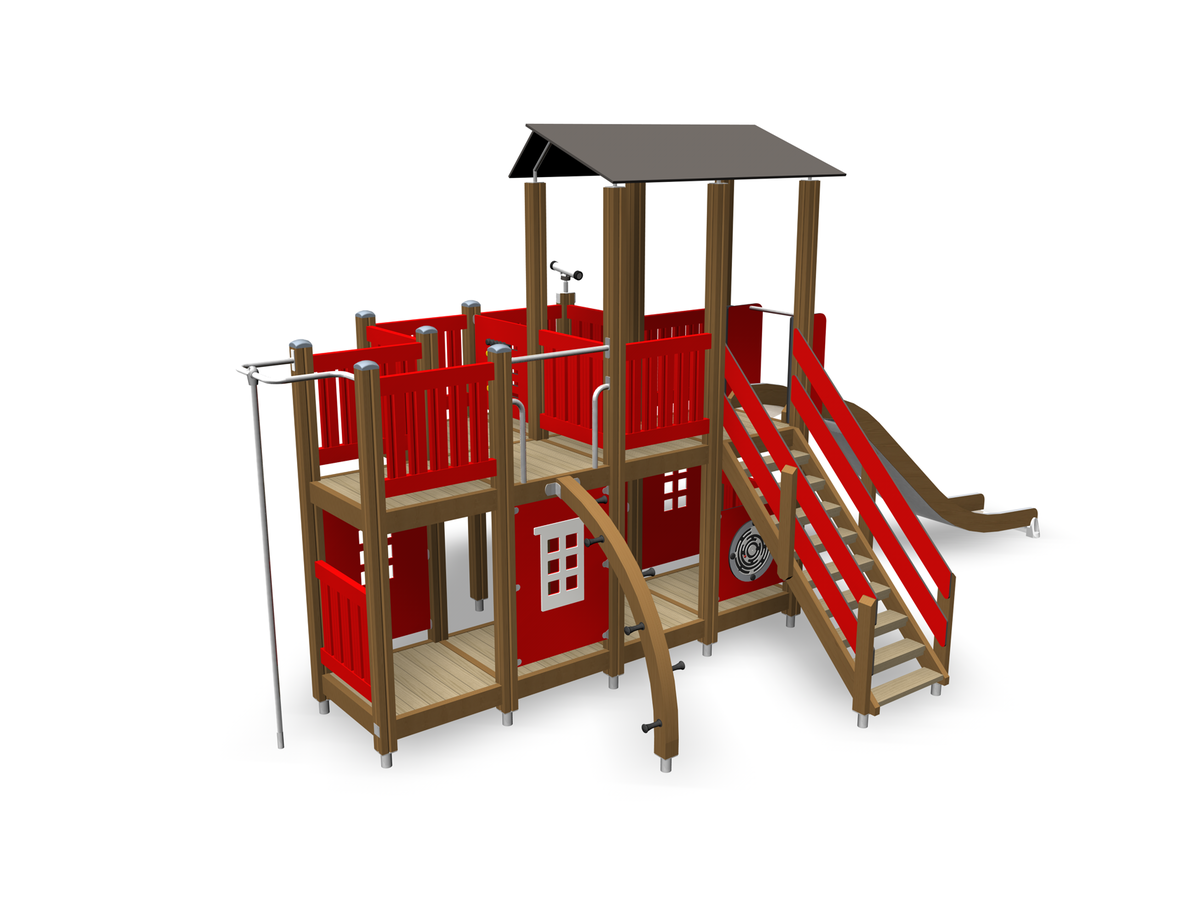

FARMHOUSE
Downloads
Spare parts
Downloads
Technical information
Original product structure
Spare parts
702286
PRINTED LABEL 65x65
702286SP
PRINTED LABEL 65x65
706505
STRIP 35x70x730 FFL 2014 GREY
706505
STRIP 35x70x730 FFL 2014 GREY
707732
907688-216SP
HAND GRIP 40x765x114 GREY
901868
901868SP
HANDRAIL BAR Ø34x598 GREY
905138
COVER TOP HAT GREY
905196
001296SP
SPAREPART PACKAGE TOP HAT GREY
909511
909511SP
BASE PIPE 90x90x650
909519
909519SP
PLATE 50x380x380 FOOTING
706484-603
POST 93x93x2150 BROWN
706484-603
POST 93x93x2150 BROWN
706371-706
706371-706SP
SLIDE RAIL PLATE 15x747x343 RED
707430-706
WALL ELEMENT 20x1000x702 RED
707430-706
WALL ELEMENT 20x1000x702 RED
706568-603
POST 93x93x3000 BROWN
706568-603
POST 93x93x3000 BROWN
706475-603
706475-603SP
CLIMBING ELEMENT 1387x1020x325 BROWN
008986
008710SP
FLOOR 80M (008701)
907667-216
SUPPORT PEARL LIGHT GREY
907667-216
SUPPORT PEARL LIGHT GREY
907694-216
907694-216SP
BAR ELEMENT40x120x704 80M GREY
706450-603
706450-603SP
SLIDE ELEMENT +1470 BROWN DEEP
706439-603
BOOM 45x120x704 BROWN
706439-603SP
BOOM 45x120x704 BROWN
706439-603
BOOM 45x120x704 BROWN
706746-607
706746-607SP
WALL WOOD 80M 45x640x701 RED
907695-216
907695-216SP
BAR ELEMENT 80M 773x431x120 GREY
907698-216
907698-216SP
BAR ELEMENT +1470, Ø337x2054 GREY
Downloads
InstallationInstructions (.pdf)
PRODUCT MODEL 137740 (.dwg)

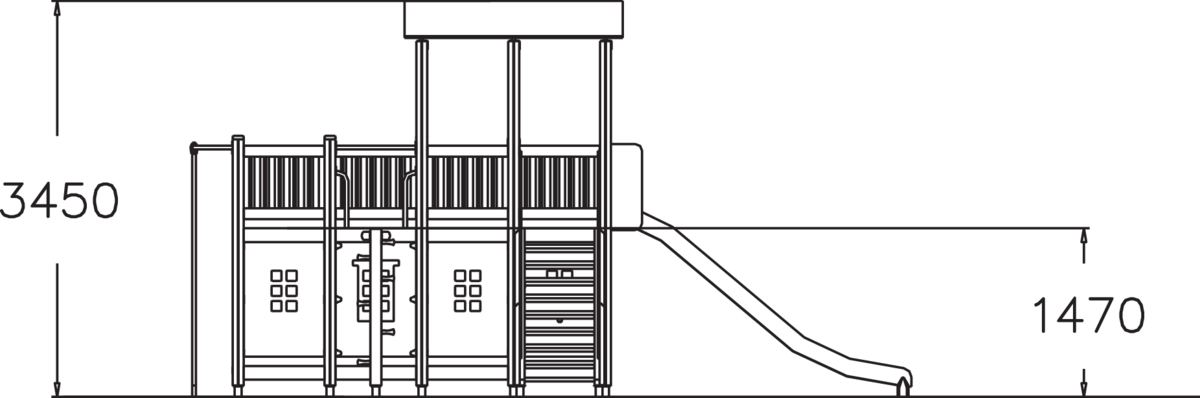

SIDE VIEW 137740 (.dwg)

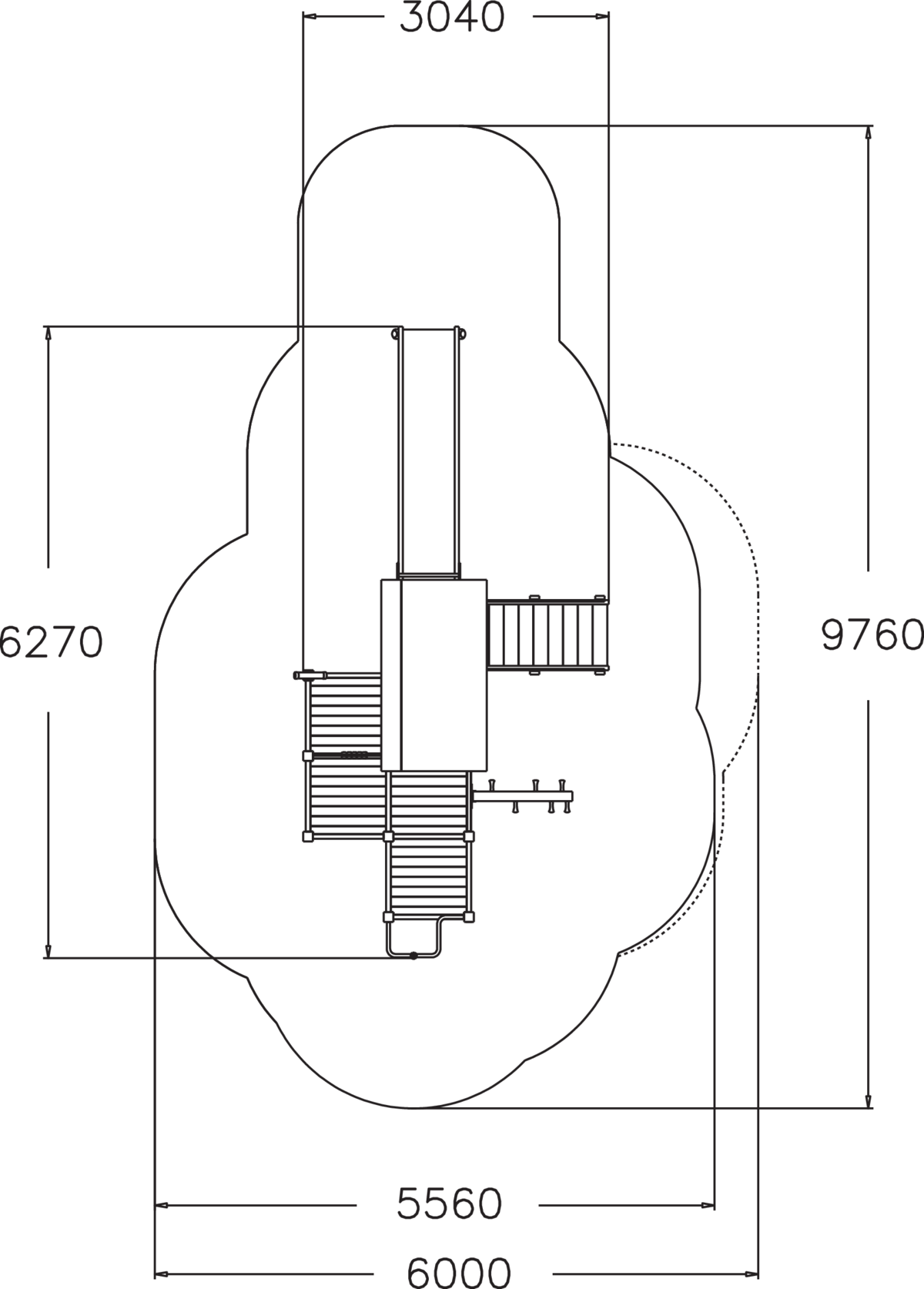

TOP VIEW 137740 (.dwg)
Technical information
User age
3+
FALLING SPACE LENGTH, MM
6000
FALLING SPACE WIDTH, MM
9760
Max. free fall height, mm
1470
Impact area, m²
38.2
Product height, mm
3450
Product lenght, mm
3040
Product width, mm
6270
Height required, mm
3450
IMPACT AREA LENGTH, MM
5560
IMPACT AREA WIDTH, MM
9760
